Perimeter fixing
The profile attaches to the wall and forms the support for the tensioned membrane.
SofiMarsel / Basic profiles
01-10 EURO
Basic wall profile. Pre-drilled.
Classic stretch-ceiling fixing around the room perimeter. Three versions: standard, lightweight Light and black moiré, weighing 170, 145 and 178 g/m respectively.
3D model: 01-10 aluminium version
- Installation
- Wall-mounted

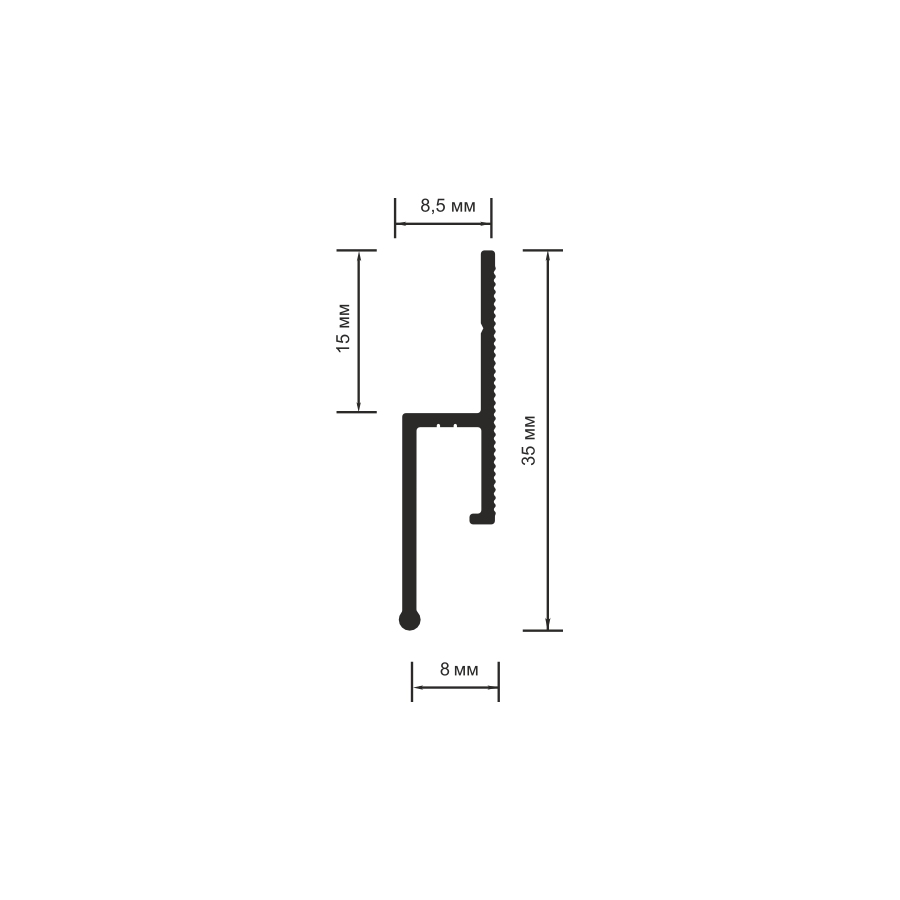

- Cross-section in drawing
- 35 × 8.5 mm
- Profile length
- 2 m
- Pre-drilled
- Yes
The foundation of a single-level ceiling.
SofiMarsel 01-10 EURO is a pre-drilled aluminium profile for securing a stretch membrane to the wall around the room perimeter. Designed for standard single-level ceilings. Supplied in 2 m lengths and used with SofiMarsel (black or white) harpoon.
Factory-made holes
The mounting flange is supplied with pre-drilled fixing holes.
Curved sections
Cuts on the back of the profile allow it to follow curves according to the installation design.
Three versions of 01-10
Choose the version for your project. Weights are approximate and given per linear metre of profile.
01-10 EURO
Standard
≈170g/m
The standard version for typical wall-mounted installations.
- Version
- Grey aluminium
- Profile length
- 2 m
01-10 EURO Light
Lightweight Light
≈145g/m
A lighter version for projects prioritising economy.
- Version
- Grey aluminium
- Profile length
- 2 m
01-10 EURO Black
Black moiré
≈178g/m
A painted version with a black moiré finish.
- Version
- Black moiré
- Profile length
- 2 m

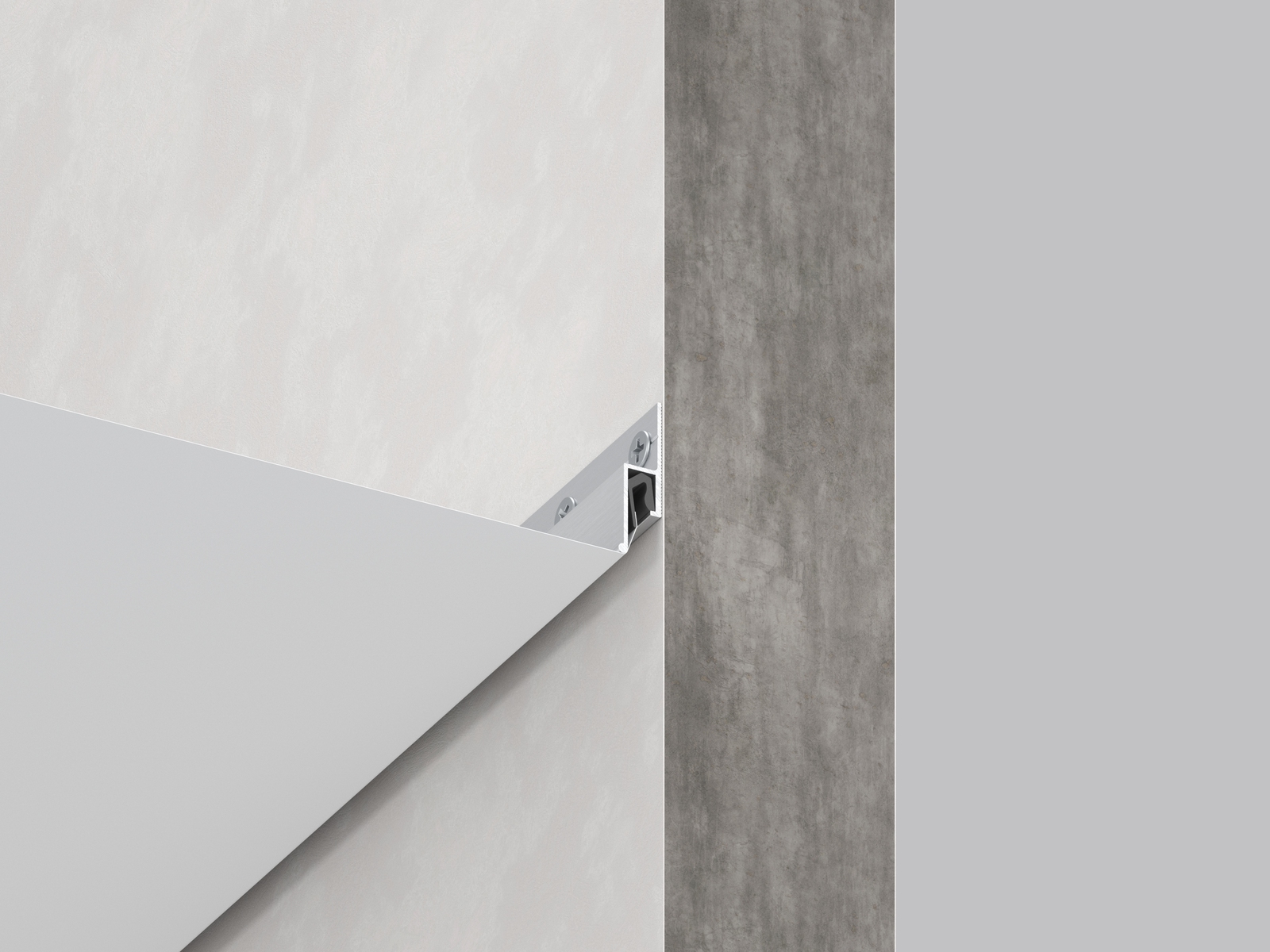

Wall fixing for the membrane
Install the profile around the room perimeter at the chosen height. The membrane is secured with SofiMarsel (black or white) harpoon. Select fixings for the wall material and condition.
01-10 EURO installation and application
Technical specifications
| Cross-section in drawing | 35 × 8.5 mm |
|---|---|
| Profile length | 2 m |
| Installation | Wall-mounted |
| Material | Aluminium |
| Pre-drilled | Yes |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈170 g/m |
| Weight per linear metre · Lightweight Light | ≈145 g/m |
| Weight per linear metre · Black moiré | ≈178 g/m |
Questions about 01-10 EURO
How do the three versions differ?
The standard profile weighs approximately 170 g/m, Light 145 g/m and black moiré 178 g/m. Standard and Light are grey aluminium; the black version has a painted finish.
Is this the weight of a 2 m profile?
No. Weight is stated per linear metre. The standard supplied profile length is 2 m.
Where is the profile used?
For fixing standard single-level stretch ceilings to the walls around the room perimeter.
Which harpoon is used?
SofiMarsel (black or white).
Can it follow a curved wall?
Yes. Cuts on the back adapt the profile to curved sections. The cutting method and spacing depend on the installation design.
