Wall-mounted shadow gap system
01‑14 shadow gap profile with a 10 mm line
A black aluminium wall profile for stretch ceilings that forms a 10 mm shadow gap and simplifies the treatment of external ceiling corners.
- Visible shadow gap
- 10 mm
- Profile section
- 35 × 20 mm
- Standard length
- 2 m
- Product code
- 01-14
Shadow profile catalogue
Wall-mounted shadow gap profiles
01‑12 — 01‑16
Ceiling-mounted shadow gap profiles
02‑9
Separating shadow gap profiles
03‑3
Shadow profile bars
08‑6 PRO
Short answer
What is the SofiMarsel 01-14 profile?
SofiMarsel 01-14 is a wall-mounted aluminium perimeter profile for stretch ceilings. It creates a nominal 10 mm shadow gap between the wall and the membrane. Its bent section geometry makes external ceiling corners easier to form while preserving a clean architectural perimeter line.
Design logic
Why specify 01-14
The profile combines a pronounced 10 mm recess with geometry designed for demanding perimeter junctions.
10 mm shadow line
The wide, clearly readable recess gives the ceiling plane a strong visual separation from the wall.
External corners
The bent section structure simplifies preparation and formation of external ceiling corners.
Defined perimeter
The black moiré surface keeps the profile visually quiet and the shadow line consistent.
Verified product data
Technical specifications
Key dimensions and compatibility data for specification and installation.
- Application
- Wall-mounted shadow gap stretch ceiling
- Visible shadow gap
- 10 mm
- Profile section
- 35 × 20 mm
- Standard length
- 2 m
- Weight
- ≈380 g/m
- Material
- Aluminium
- Finish
- Black moiré
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Product code
- 01-14

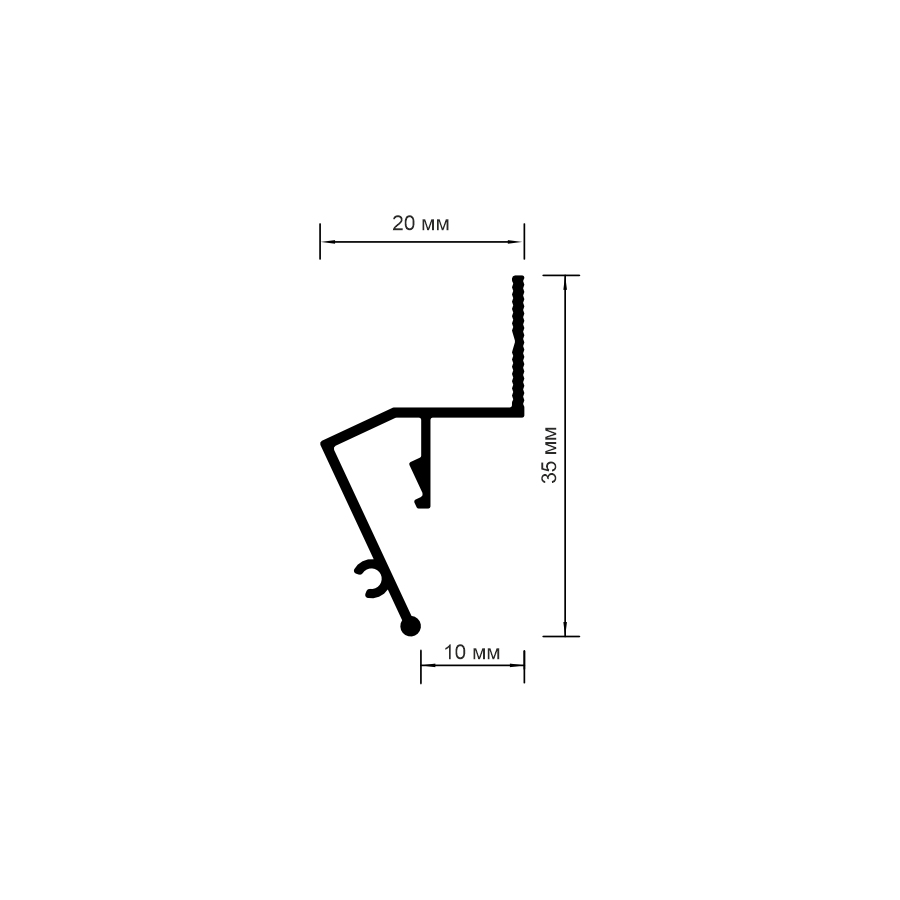

CAD and dimension drawing
Use the dimensioned drawing for quick reference and the source DWG when coordinating the junction in a technical project.
DWGDownload DWG↓JPGOpen dimension drawing↗Application
Perimeter and external corner junctions

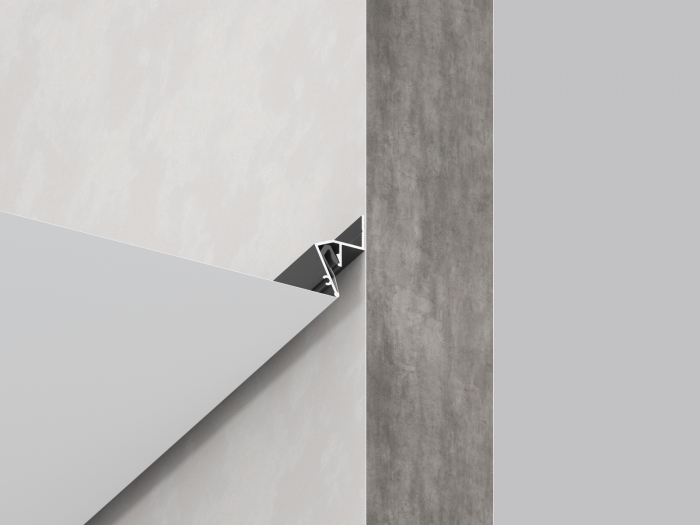

The profile is fixed to the wall around the ceiling perimeter. Its bent section geometry helps the installer form external corners more easily. After the membrane is fitted, the system leaves a nominal 10 mm dark recess; the black moiré finish makes the structural part less visible inside the gap.
05 / Animation

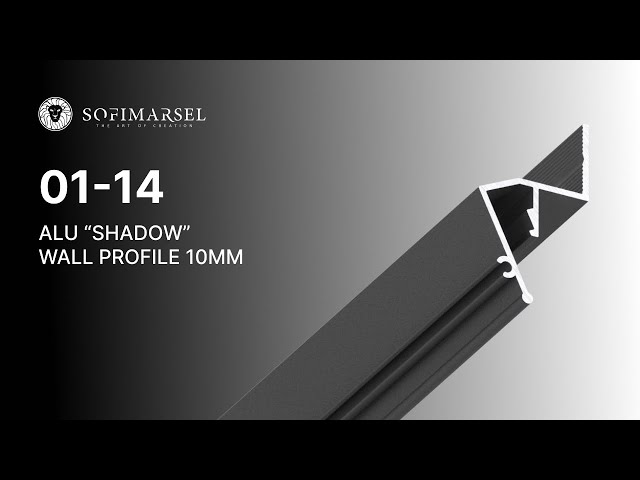

Profile 01-14 in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTube360° reference
See the profile in an interactive scene
The Kuula view supplements the technical drawing with spatial context. Open it full-screen to inspect the presentation from every direction.
Open 360° viewClear answers
Questions about profile 01-14
What is profile 01-14 used for?
It is a wall-mounted perimeter profile for installing a stretch ceiling with a visible shadow line at the wall.
How wide is the finished shadow gap?
The profile forms a nominal visible shadow gap of 10 mm.
What are the profile dimensions?
The profile section is 35 × 20 mm. The standard length is 2 m and the weight is approximately 380 g per metre.
Why is 01-14 suitable for external corners?
Its bent section geometry makes the preparation and formation of external ceiling corners easier.
Which harpoon is compatible with 01-14?
Profile 01-14 uses the SofiMarsel harpoon, available in white or black.
What finish does profile 01-14 have?
The official finish is black moiré. Its texture gives the black a visually deeper appearance than a conventional matt finish.
Can I download a CAD file?
Yes. This page provides the original 01-14 DWG file, a dimension drawing and an interactive 3D model.
