Flagship ceiling-mounted floating system
Flagship06‑22 ceiling-mounted flagship profile with interchangeable light screens
A ceiling-mounted aluminium profile for a floating stretch ceiling, designed for projects where wall fixing is unavailable or undesirable.
- Compatible screens
- D13 / PVC13
- Overall section
- 39 × 28 mm
- Standard length
- 2 m
- Product code
- 06-22
Floating profile catalogue
Wall-mounted floating ceiling profiles
06‑6 PRO — 06‑18 PRO
Ceiling-mounted floating ceiling profiles
06‑22
Short answer
What is the SofiMarsel 06-22 profile?
SofiMarsel 06-22 is a ceiling-mounted aluminium profile for a floating stretch ceiling. It forms the same screened perimeter light concept as 06-18 PRO but transfers the fixing point from the wall to the structural ceiling. The 13 mm channel accepts D13 Black at 20%, D13 at 80% or flexible PVC13 at 50% light transmission.
Lighting logic
Why choose ceiling-mounted 06-22
The flagship system keeps the lighting result flexible while removing dependence on a suitable wall fixing surface.
Ceiling mounting
The load-bearing flange fixes to the structural ceiling when the wall cannot or should not receive the profile.
Direct LED installation
The LED position is open and accessible, simplifying alignment, connection and later service.
Three continuous screens
Select 20%, 50% or 80% light transmission; roll supply allows a continuous line without intermediate screen joints.
Verified product data
06-22 technical data
Mounting type, section dimensions and screen compatibility are stated together for selection and installation planning.
- Application
- Ceiling-mounted profile for a floating stretch ceiling
- Compatible screens
- D13 Black / D13 / PVC13
- Overall section
- 39 × 28 mm
- Standard length
- 2 m
- Weight
- ≈318 g/m
- Material
- Aluminium
- Mounting
- Direct fixing to the structural ceiling
- Screen channel
- 13 mm
- Visible light opening
- 12 mm
- Light transmission
- D13 Black 20% / PVC13 50% / D13 80%
- Screen supply
- Continuous rolls; cut in whole-metre increments
- Finishes
- White moiré / black moiré
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Product code
- 06-22

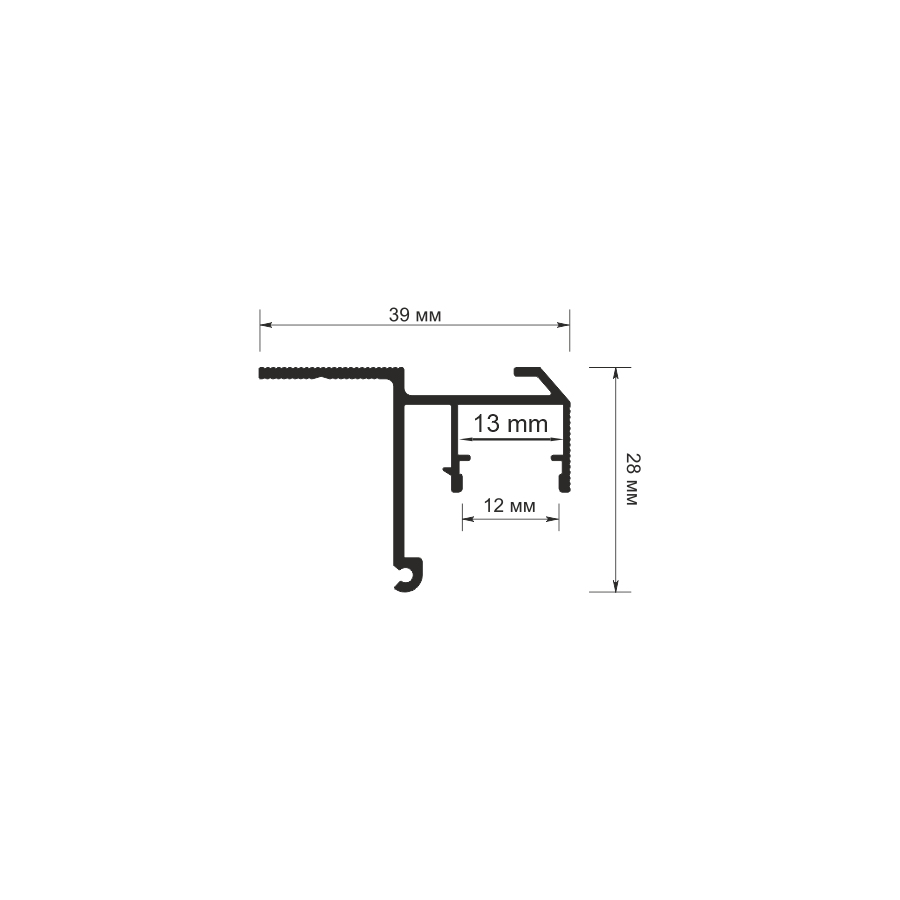

06-22 dimensions and section
Use the dimensioned section to check the ceiling junction, 13 mm screen channel and 12 mm visible light opening. The DWG is available for detailed CAD coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application

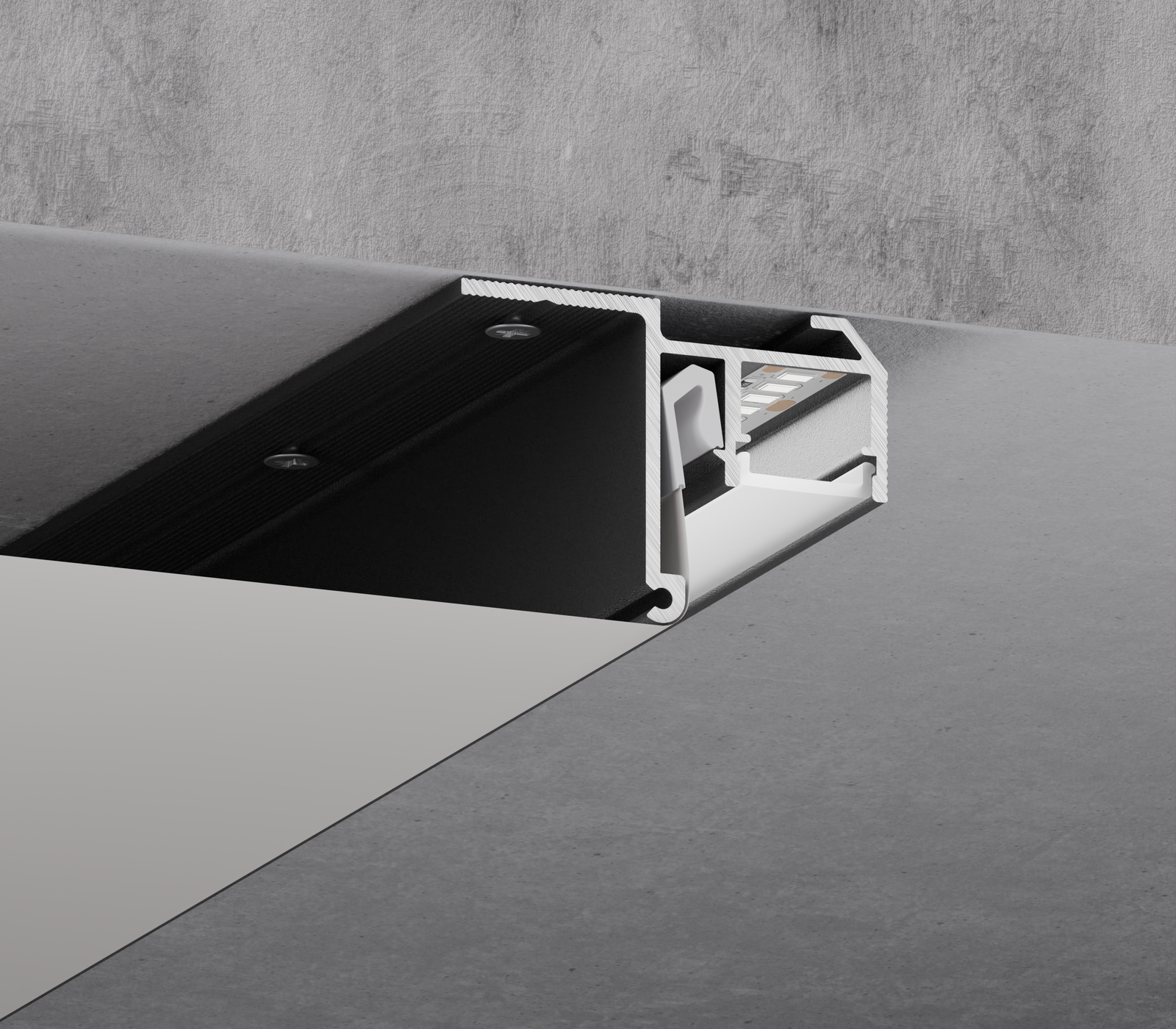

Floating perimeter light without wall fixing
The profile is fixed to the structural ceiling, the LED strip is installed in its dedicated position, and the selected D13 or PVC13 screen closes the light channel in one continuous length. LED strip, power supply and lighting calculation are selected for the project.
Compatible light screens
Choose the light output: 20%, 50% or 80%
06-22 accepts three separately specified continuous screens. D13 is rigid polycarbonate in black or white; PVC13 is a flexible screen that is easier to fit. All three are supplied from rolls and cut to order in whole-metre increments, so the visible line can remain free of intermediate screen joints.
Black rigid polycarbonate screen
The darkest option for restrained accent lighting. The black D13 screen transmits 20% of the light and keeps the line visually quiet when the LEDs are off.
- Material
- Rigid polycarbonate
- Colour
- Black
- Light transmission
- 20%
- Installation
- Clip-in screen for the 13 mm channel
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-22
White rigid polycarbonate screen
The highest-output option. The white D13 screen transmits 80% of the light for a brighter continuous perimeter line.
- Material
- Rigid polycarbonate
- Colour
- White
- Light transmission
- 80%
- Installation
- Clip-in screen for the 13 mm channel
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-22

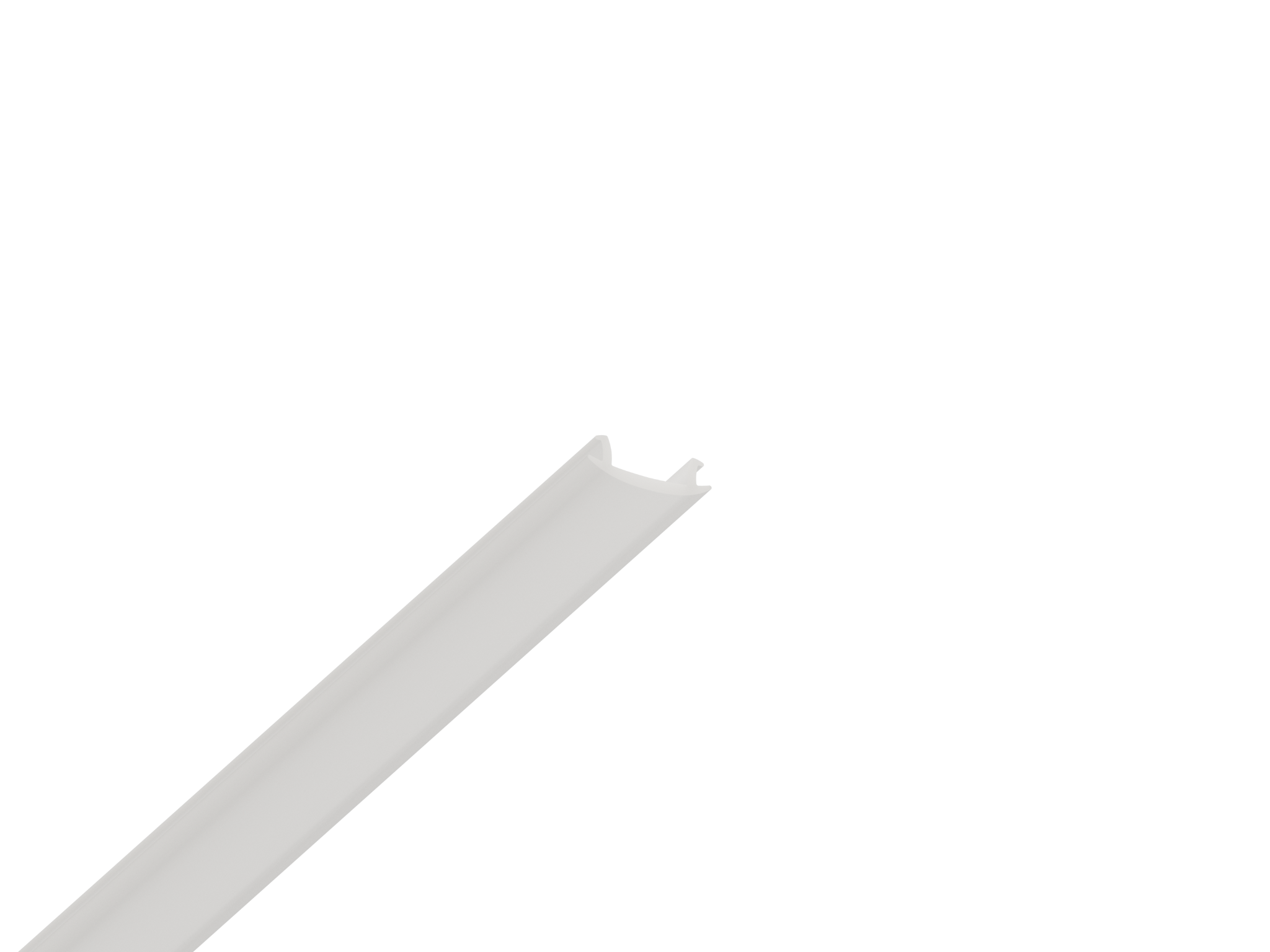

Flexible PVC screen
A flexible press-in screen for faster, more forgiving installation. PVC13 transmits 50% of the light and provides the balanced middle option.
- Material
- Flexible PVC
- Colour
- White translucent
- Light transmission
- 50%
- Installation
- Flexible press-in screen; easier to fit
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-22
Clear answers
Questions about 06-22 and its screens
When is 06-22 used?
It is used for a floating stretch ceiling when the system needs to be fixed to the structural ceiling rather than to the wall.
How does 06-22 differ from 06-18 PRO?
Both use the same D13 and PVC13 screen concept; 06-18 PRO is wall-mounted, while 06-22 is ceiling-mounted.
Which screens are compatible?
D13 Black and D13 rigid polycarbonate screens and the flexible PVC13 screen.
How much light does each screen transmit?
D13 Black transmits 20%, PVC13 transmits 50% and D13 transmits 80%.
Are intermediate screen joints required?
The screens are supplied from rolls and cut in whole-metre increments, so a specified length can remain continuous.
What are the profile dimensions?
The overall section is 39 × 28 mm, the screen channel is 13 mm and the visible light opening is 12 mm.
What is the standard length and weight?
The standard profile length is 2 m and the declared weight is approximately 318 g per linear metre.
Can I download the 06-22 CAD file?
Yes. The page provides the 06-22 DWG, dimension drawing and interactive 3D model.
