Wall mounting
For fixing the stretch ceiling around the room perimeter.
SofiMarsel / Basic profiles
02-6
Basic universal profile. With TL insert.
02-6 fixes to the wall or ceiling and accepts a decorative TL PVC insert. One version, weighing approximately 240 g/m.
3D model: 02-6 aluminium version
- Installation
- Wall / ceiling

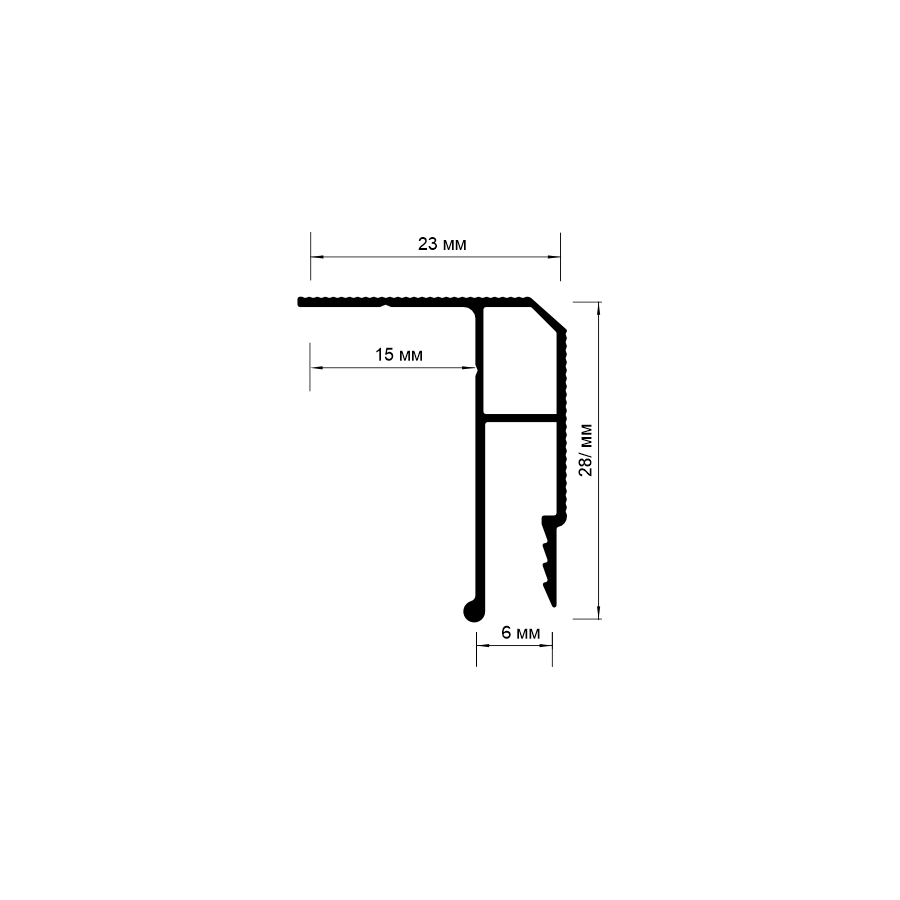

- Cross-section in drawing
- 28 × 23 mm
- Profile length
- 2 m
- PVC insert
- TL
Wall. Or ceiling.
SofiMarsel 02-6 is a universal aluminium stretch-ceiling profile for wall or ceiling mounting. A TL insert finishes the junction. It accepts the same seven inserts as 01-11.
Ceiling mounting
An alternative fixing to the ceiling substrate, according to the junction design.

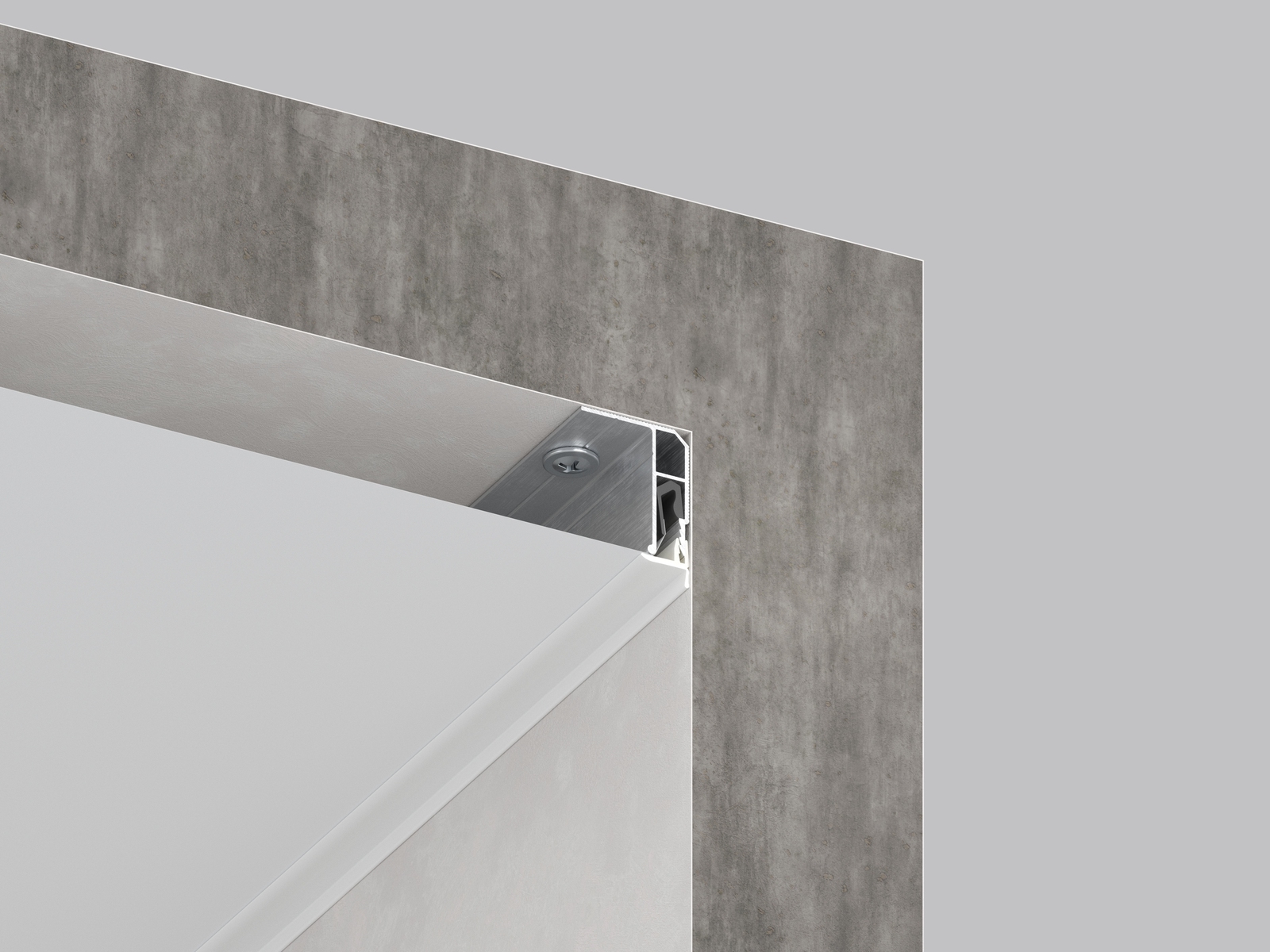

A finished wall junction
The TL PVC insert finishes the line between the wall and stretch ceiling.
Two installation options
Fix the profile to the wall or ceiling substrate according to the project. After installing the membrane, finish the junction with a decorative TL PVC insert.
TL inserts. Seven shades.
The decorative PVC insert covers the installation gap at the wall. Select the article number using the displayed sample.
PVC insert

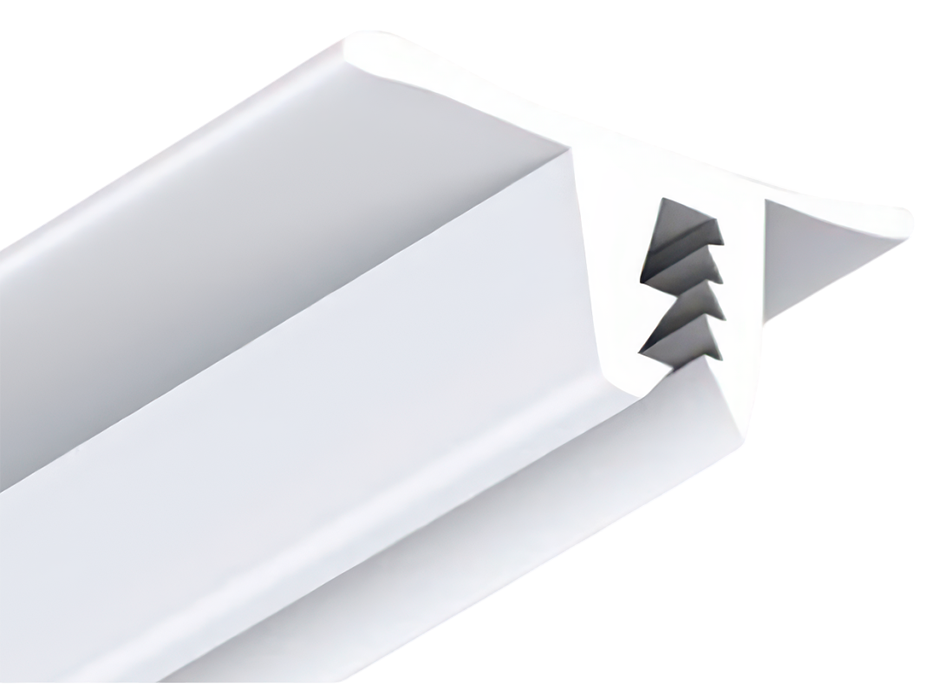

TL-303
White
PVC insert

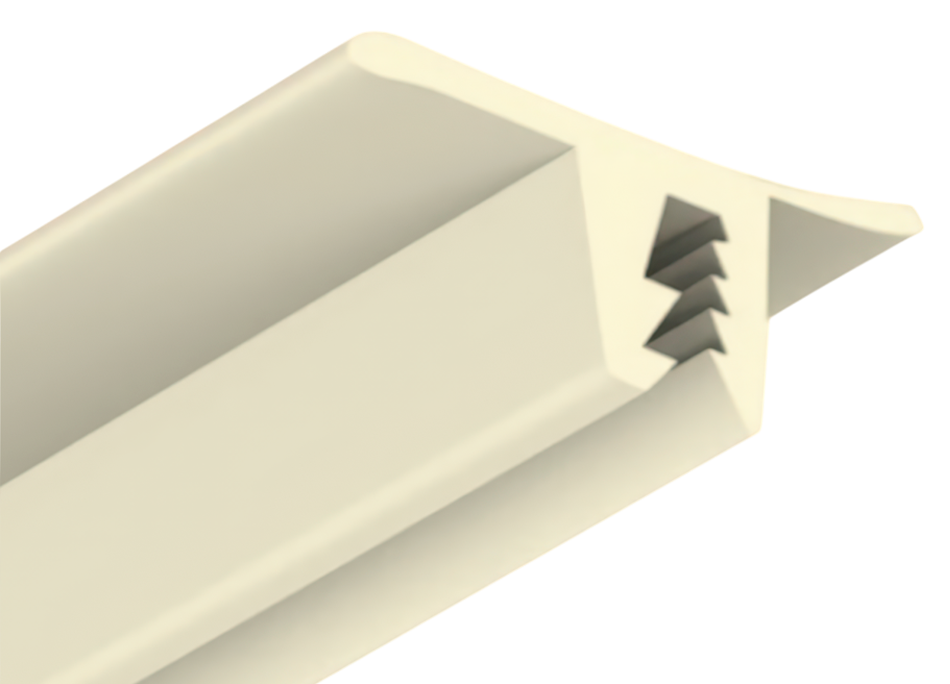

TL-307
Light cream
PVC insert

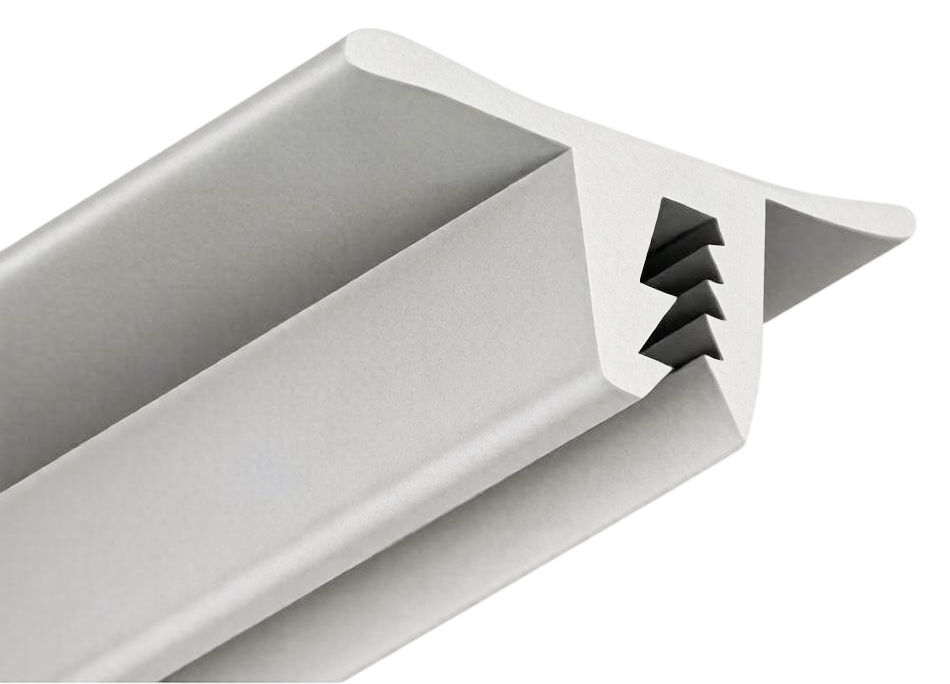

TL-313
Light grey
PVC insert

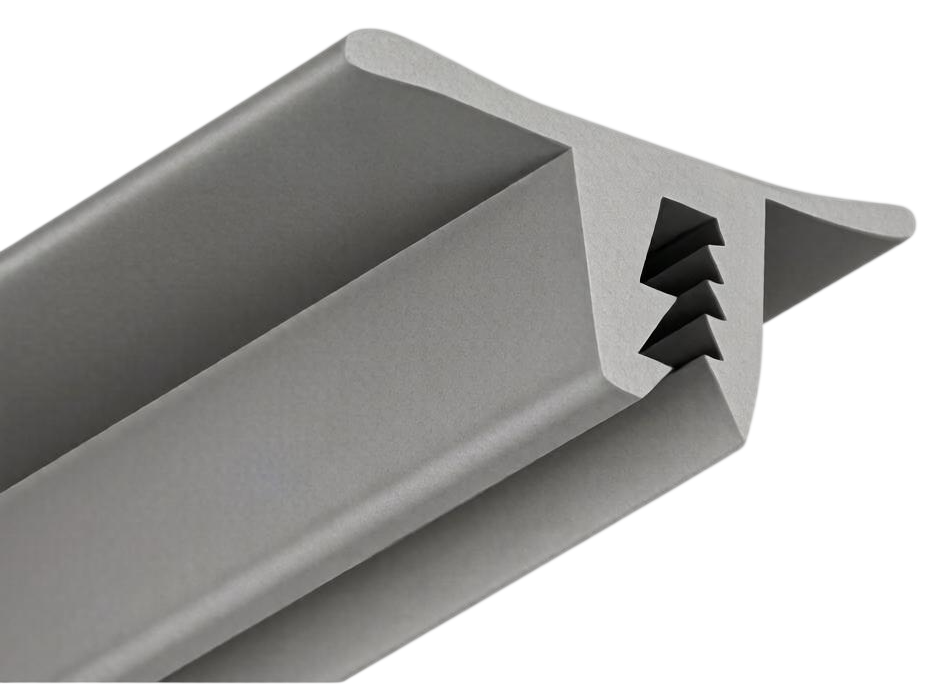

TL-319
Grey
PVC insert

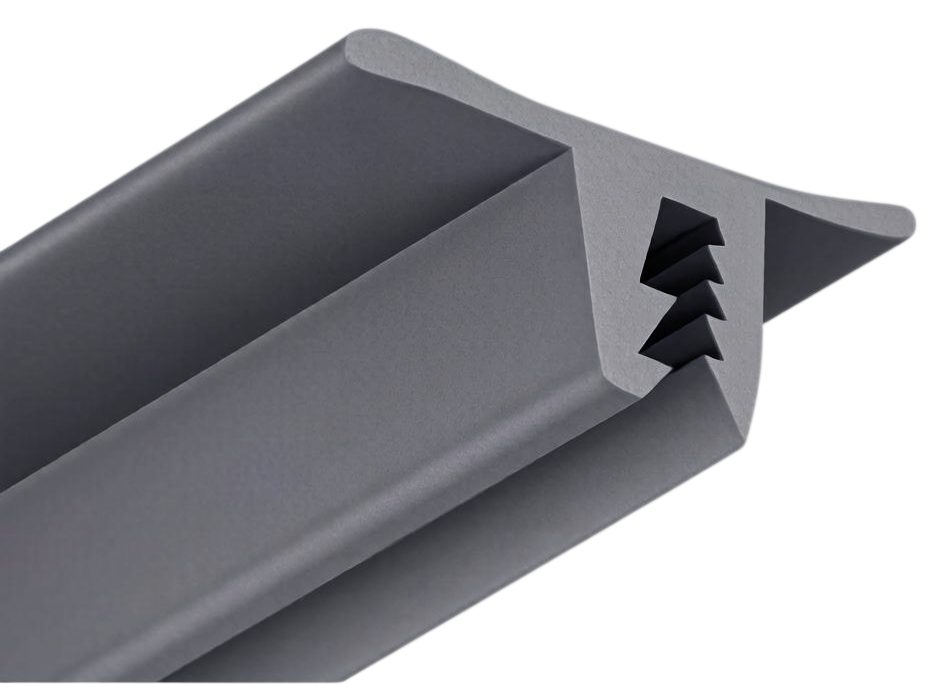

TL-333
Graphite
PVC insert

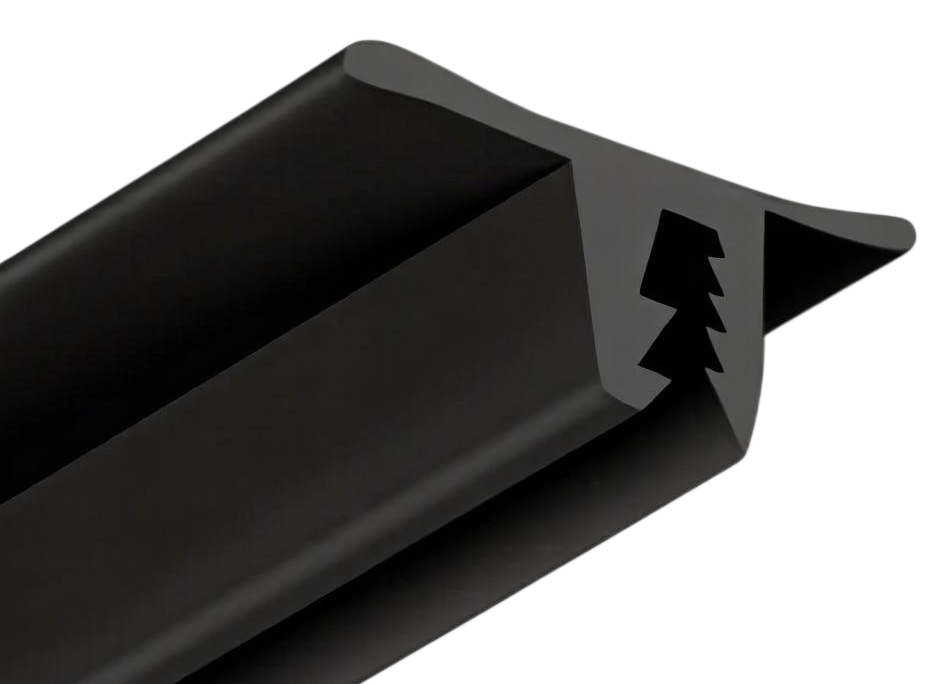

TL-347
Black
PVC insert
TL-501
CreamShade names describe the images. Order by TL article number; colour appearance depends on the screen.
02-6 installation and application
Technical specifications
| Cross-section in drawing | 28 × 23 mm |
|---|---|
| Profile length | 2 m |
| Installation | Wall / ceiling |
| Material | Aluminium |
| PVC insert | TL |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈240 g/m |
Questions about 02-6
Is there a lightweight version?
02-6 is available in one version at approximately 240 g/m. This product has no Lite version.
Is this the weight of a 2 m profile?
No. Weight is stated per linear metre. The standard supplied profile length is 2 m.
Where can 02-6 be fixed?
To the wall or ceiling substrate, depending on the project and mounting arrangement.
Which inserts are compatible?
This profile accepts TL PVC inserts. This page shows TL-303, TL-307, TL-313, TL-319, TL-333, TL-347 and TL-501.
