SofiMarsel DEEP linear-light system
SofiMarsel DEEP technology06‑8 DEEP profile with a recessed 47 mm screen
A separate linear-light model that locks a rigid D47 diffuser deeper inside the aluminium section for a precise ceiling junction and clean terminated end.
- Light line
- 47 mm
- Overall section
- 50 × 40 mm
- Standard length
- 2 m
- Product code
- 06-8 DEEP
Linear-light profile catalogue
Choose a linear-light profile
06‑13 — 06‑20 PRO
Profile overview
What is SofiMarsel 06-8 DEEP?
06-8 DEEP is a dedicated 47 mm linear-light profile whose rigid D47 screen is recessed inside the section. The deeper edge makes the membrane junction look like a precise plasterboard detail and keeps a terminated line visually clean from oblique viewpoints. PVC47 cannot be used.
SofiMarsel technology
DEEP recesses the diffuser inside the profile
The difference is visible at the ceiling plane and becomes especially important where a light line terminates before reaching a wall.
06-8 · classic screen plane
The removable screen sits at the finished ceiling plane. This version accepts rigid D47 polycarbonate or flexible PVC47.
06-8 DEEP · recessed screen
The rigid D47 screen locks deeper inside the aluminium section, so the membrane-to-light junction reads like a precise plasterboard detail.
06-8 · end element
A clean terminated light line
With a front end cap, the recessed rigid screen stays controlled at the line end: no visible bulge and less stray side light when viewed at an angle.
Advantages
Why specify DEEP
The proprietary geometry improves the two details that most influence a premium light line: the ceiling junction and the free end.
Recessed diffuser edge
The rigid D47 screen sits deeper than the finished membrane plane.
Clean terminated end
The screen stays controlled near the 06-8-F cap, avoiding a visible bulge and reducing stray side light.
Plasterboard-like precision
The membrane meets the light channel with a crisp, intentionally recessed edge.
Technical specifications
06-8 DEEP technical data
DEEP is a separate profile model with its own geometry and strict screen compatibility.
- Application
- Premium recessed-screen linear light for stretch ceilings
- Compatible screens
- D47 Black / D47 White only
- Overall section
- 50 × 40 mm
- Standard length
- 2 m
- Weight
- ≈689 g/m
- Material
- Aluminium
- Visible light line
- 47 mm
- Internal channel
- 23 mm
- Screen position
- Recessed inside the profile
- Light transmission
- D47 Black 20% / D47 White 80%
- Not compatible
- PVC47 flexible screen
- Screen supply
- Ordered separately
- Finish
- Mill-finish aluminium / grey
- Product code
- 06-8 DEEP
06-8 DEEP dimensions and recessed edge
The drawing shows the 50 × 40 mm envelope, 47 mm opening and the deeper screen locks. Use the DWG for CAD coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application
Recessed light line with a controlled edge
Install the DEEP aluminium profile, LED equipment and stretch-ceiling membrane, then lock a rigid D47 Black or D47 White screen into the recessed channel. Do not use flexible PVC47. Complete a free end with the 06-8-F cap.
Compatible components
Two rigid screens for the DEEP light line
DEEP requires a rigid polycarbonate edge. Select D47 Black or D47 White; flexible PVC47 is not compatible.
Black polycarbonate screen
Darkens the unlit line and transmits 20% of LED light.
- Material
- Polycarbonate
- Colour
- Black
- Light transmission
- 20%
- System width
- 47 mm
Compatible withSofiMarsel 06-8 DEEP

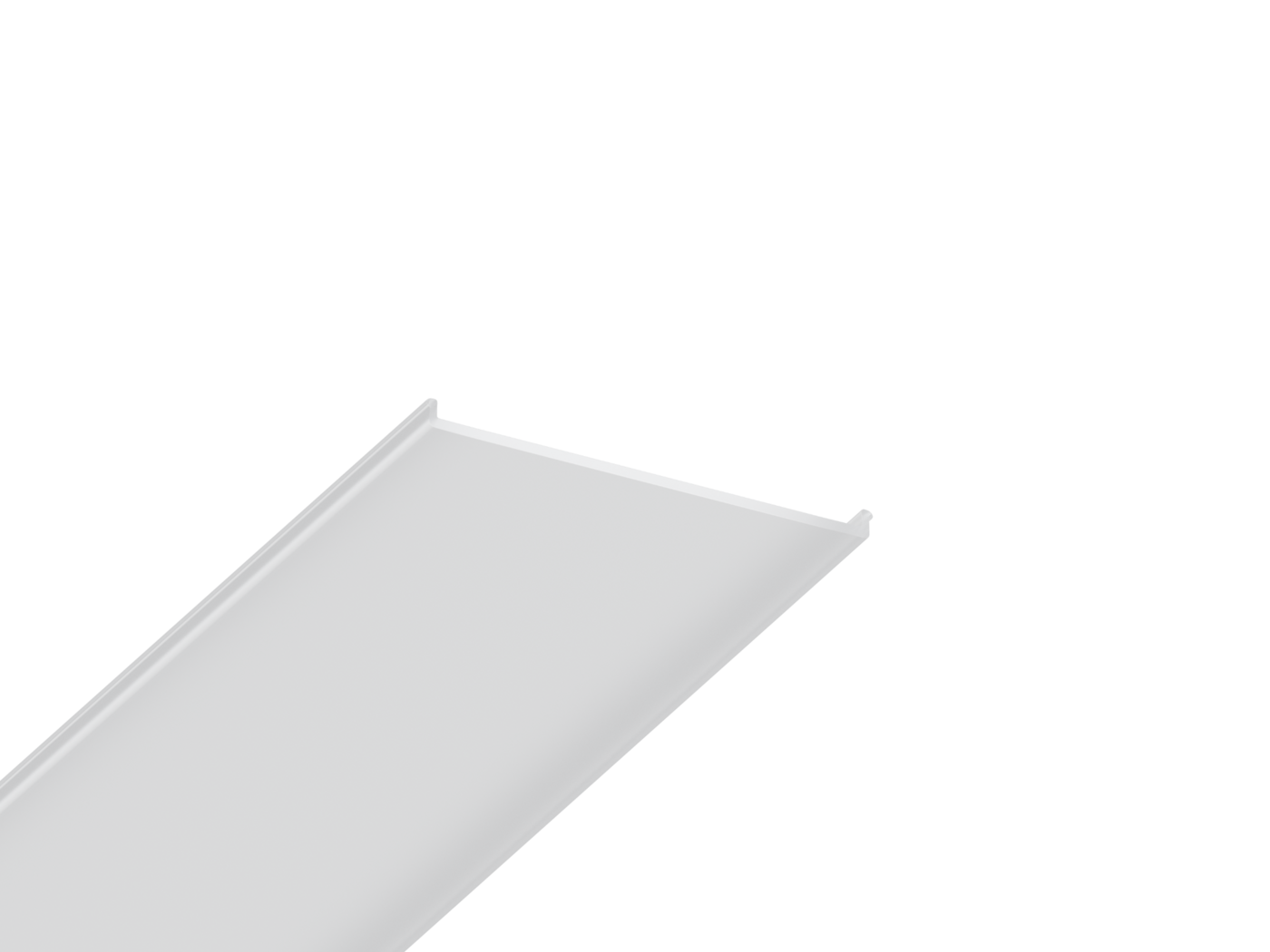

White polycarbonate screen
Creates the brightest diffused line and transmits 80% of LED light.
- Material
- Polycarbonate
- Colour
- White
- Light transmission
- 80%
- System width
- 47 mm
Compatible withSofiMarsel 06-8 DEEP
05 / Animation
Profile 06-8 DEEP in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTubeIn the interior
A 47 mm light line in the interior
A Kuula panorama from the official SofiMarsel product page. Look around to see the light line in the space.
Open panoramaQuestions and answers
Questions about 06-8 DEEP
What makes DEEP different?
Its rigid D47 screen is recessed inside the profile rather than sitting in the finished ceiling plane.
Why is that useful at a terminated end?
The rigid recessed edge avoids a visible diffuser bulge and reduces stray side light when viewed at an angle.
Which screens fit DEEP?
Only rigid D47 Black and D47 White polycarbonate screens.
Can PVC47 be installed?
No. Flexible PVC47 is not compatible with 06-8 DEEP.
Is DEEP an option for standard 06-8?
No. 06-8 DEEP is a separate profile model with different geometry.
What are the dimensions?
The overall section is 50 × 40 mm and the light line is 47 mm wide.
Can it be terminated before a wall?
Yes. Use the compatible 06-8-F front end cap.
Is CAD available?
Yes. DWG, dimension drawing and an interactive 3D model are provided.
