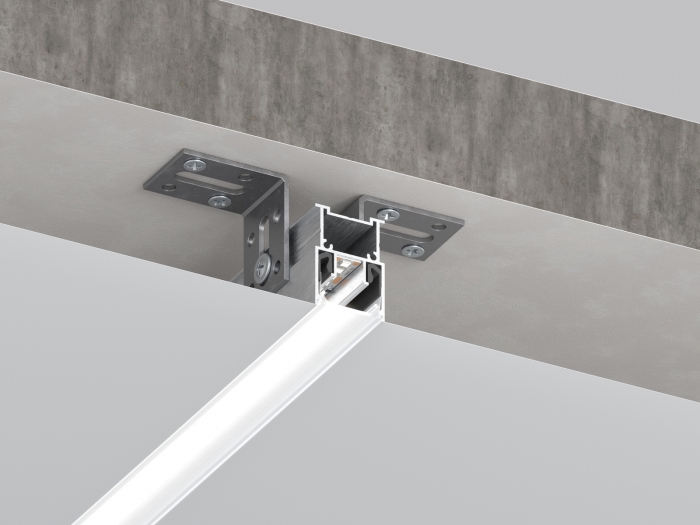

SofiMarsel DEEP linear-light system
SofiMarsel DEEP technology06‑13 DEEP profile with a recessed 25 mm screen
A separate linear-light model that locks a rigid D25 diffuser deeper inside the aluminium section for a precise ceiling junction and clean terminated end.
- Light line
- 25 mm
- Overall section
- 27 × 40 mm
- Standard length
- 2 m
- Product code
- 06-13 DEEP
Linear-light profile catalogue
Choose a linear-light profile
06‑13 — 06‑20 PRO
Profile overview
What is SofiMarsel 06-13 DEEP?
06-13 DEEP is a dedicated 25 mm linear-light profile whose rigid D25 screen is recessed inside the section. The deeper edge makes the membrane junction look like a precise plasterboard detail and keeps a terminated line visually clean from oblique viewpoints. PVC26 cannot be used.
SofiMarsel technology
DEEP recesses the diffuser inside the profile
The difference is visible at the ceiling plane and becomes especially important where a light line terminates before reaching a wall.
06-13 · classic screen plane
The removable screen sits at the finished ceiling plane. This version accepts rigid D25 polycarbonate or flexible PVC26.
06-13 DEEP · recessed screen
The rigid D25 screen locks deeper inside the aluminium section, so the membrane-to-light junction reads like a precise plasterboard detail.
06-13 · end element
A clean terminated light line
With a front end cap, the recessed rigid screen stays controlled at the line end: no visible bulge and less stray side light when viewed at an angle.
Advantages
Why specify DEEP
The proprietary geometry improves the two details that most influence a premium light line: the ceiling junction and the free end.
Recessed diffuser edge
The rigid D25 screen sits deeper than the finished membrane plane.
Clean terminated end
The screen stays controlled near the 06-13 cap, avoiding a visible bulge and reducing stray side light.
Plasterboard-like precision
The membrane meets the light channel with a crisp, intentionally recessed edge.
Technical specifications
06-13 DEEP technical data
DEEP is a separate profile model with its own geometry and strict screen compatibility.
- Application
- Premium recessed-screen linear light for stretch ceilings
- Compatible screens
- D25 Black / D25 White only
- Overall section
- 27 × 40 mm
- Standard length
- 2 m
- Weight
- ≈537 g/m
- Material
- Aluminium
- Visible light line
- 25 mm
- Internal channel
- 10 mm
- Screen position
- Recessed inside the profile
- Light transmission
- D25 Black 20% / D25 White 80%
- Not compatible
- PVC26 flexible screen
- Screen supply
- Ordered separately
- Finish
- Mill-finish aluminium / grey
- Product code
- 06-13 DEEP
06-13 DEEP dimensions and recessed edge
The drawing shows the 27 × 40 mm envelope, 25 mm opening and the deeper screen locks. Use the DWG for CAD coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application
Recessed light line with a controlled edge
Install the DEEP aluminium profile, LED equipment and stretch-ceiling membrane, then lock a rigid D25 Black or D25 White screen into the recessed channel. Do not use flexible PVC26. Complete a free end with the 06-13 cap.
Compatible components
Two rigid screens for the DEEP light line
DEEP requires a rigid polycarbonate edge. Select D25 Black or D25 White; flexible PVC26 is not compatible.

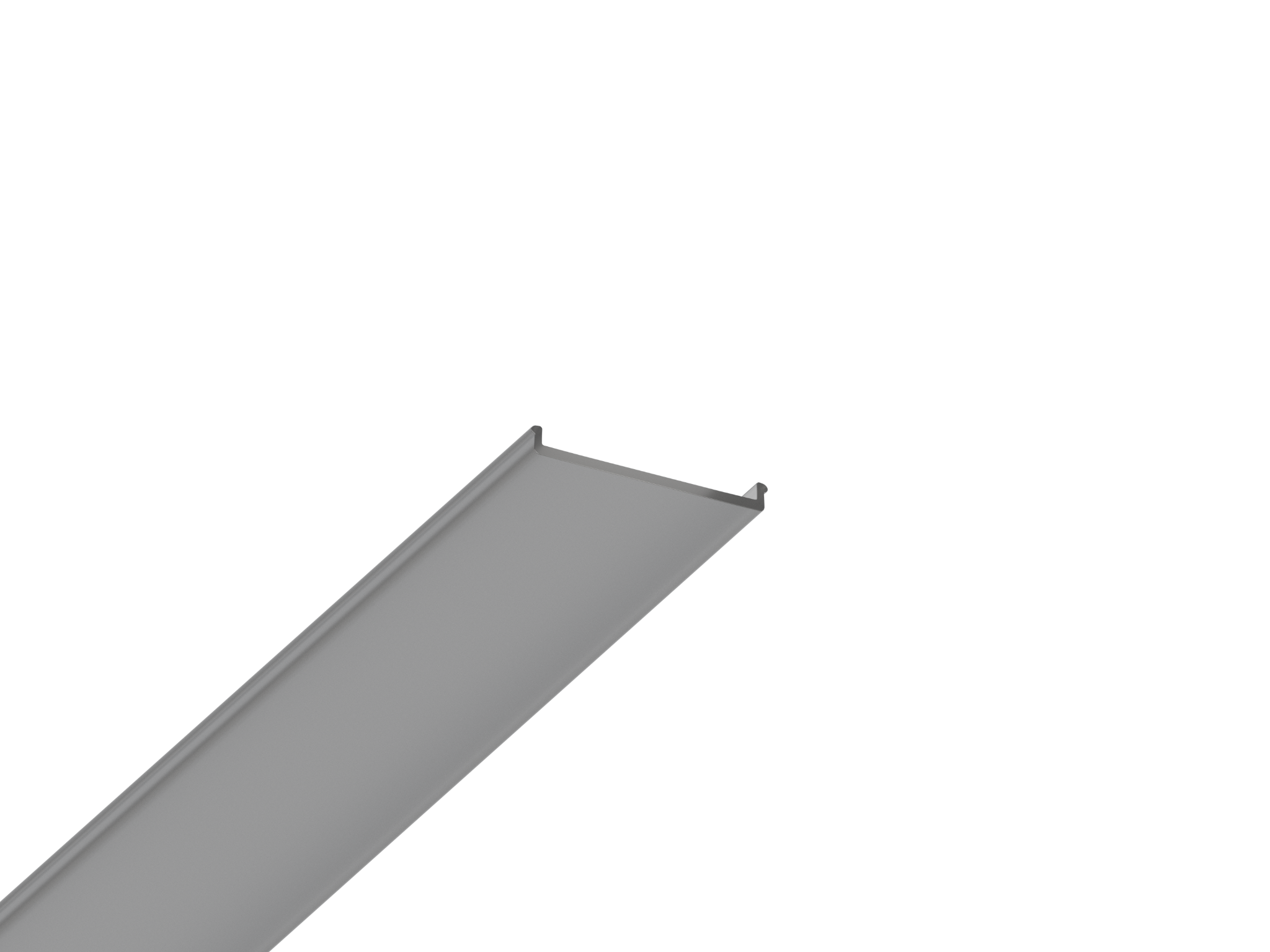

Black polycarbonate screen
Darkens the unlit line and transmits 20% of LED light.
- Material
- Polycarbonate
- Colour
- Black
- Light transmission
- 20%
- System width
- 25 mm
Compatible withSofiMarsel 06-13 DEEP
White polycarbonate screen
Creates the brightest diffused line and transmits 80% of LED light.
- Material
- Polycarbonate
- Colour
- White
- Light transmission
- 80%
- System width
- 25 mm
Compatible withSofiMarsel 06-13 DEEP
Terminated line

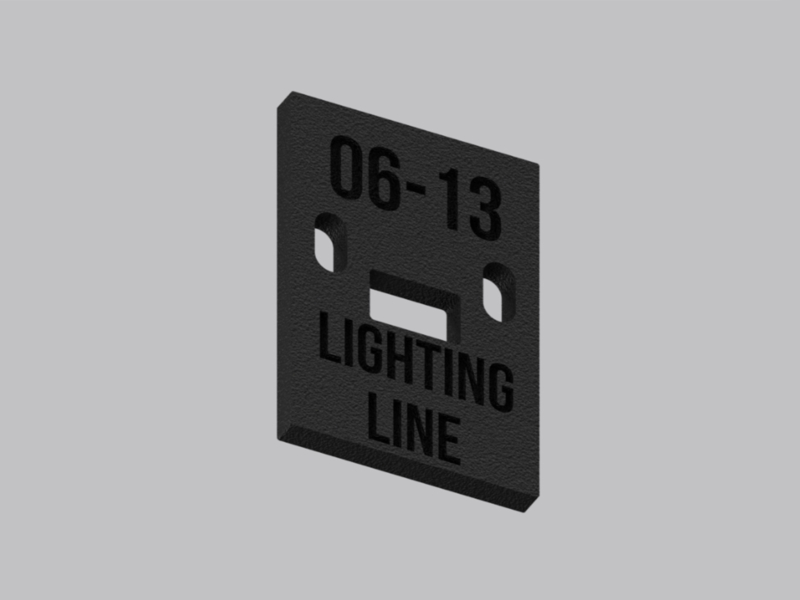

06-13 end element
Use the dedicated end element when the light line stops freely before reaching a wall.
06-13 end element
Closes the aluminium section and gives a deliberate finish to a terminated 25 mm light line.
- Material
- Technical polymer
- Colour
- Black
- Function
- Closes the free end of the light line
- Compatible with
- 06-13 / 06-13 DEEP
SofiMarsel technology
DEEP recesses the diffuser inside the profile
The difference is visible at the ceiling plane and becomes especially important where a light line terminates before reaching a wall.
Open visual referenceQuestions and answers
Questions about 06-13 DEEP
What makes DEEP different?
Its rigid D25 screen is recessed inside the profile rather than sitting in the finished ceiling plane.
Why is that useful at a terminated end?
The rigid recessed edge avoids a visible diffuser bulge and reduces stray side light when viewed at an angle.
Which screens fit DEEP?
Only rigid D25 Black and D25 White polycarbonate screens.
Can PVC26 be installed?
No. Flexible PVC26 is not compatible with 06-13 DEEP.
Is DEEP an option for standard 06-13?
No. 06-13 DEEP is a separate profile model with different geometry.
What are the dimensions?
The overall section is 27 × 40 mm and the light line is 25 mm wide.
Can it be terminated before a wall?
Yes. Use the compatible 06-13 front end cap.
Is CAD available?
Yes. DWG, dimension drawing and an interactive 3D model are provided.
