35 mm recess
Creates space for the track with a neat stretch-ceiling junction.
SofiMarsel / Track Adapters
07-7 BASIC TRACKLINE
Make the track part of the ceiling.
A 35 mm recess for the TRK track. A clean stretch-ceiling junction with a choice of compatible track luminaires.
- Recess width
- 35 mm
- Profile section
- 60 × 29 mm
- Track
- TRK / 230 V
- Luminaires
- TRL / 20
A clean junction. Light for your space.
SofiMarsel 07-7 BASIC TRACKLINE is an aluminium profile that forms an unpainted 35 mm recess in a stretch ceiling. It accepts a TRK01-1 or TRK01-2 single-phase track, which carries compatible TRL luminaires. The adapter profile measures 60 × 29 mm in cross-section.
One system
The 07-7 adapter, TRK track and TRL luminaires each serve a different role and are selected together.
A choice of light
GU10 and GX53 spotlights, adjustable and linear luminaires with integrated LED.

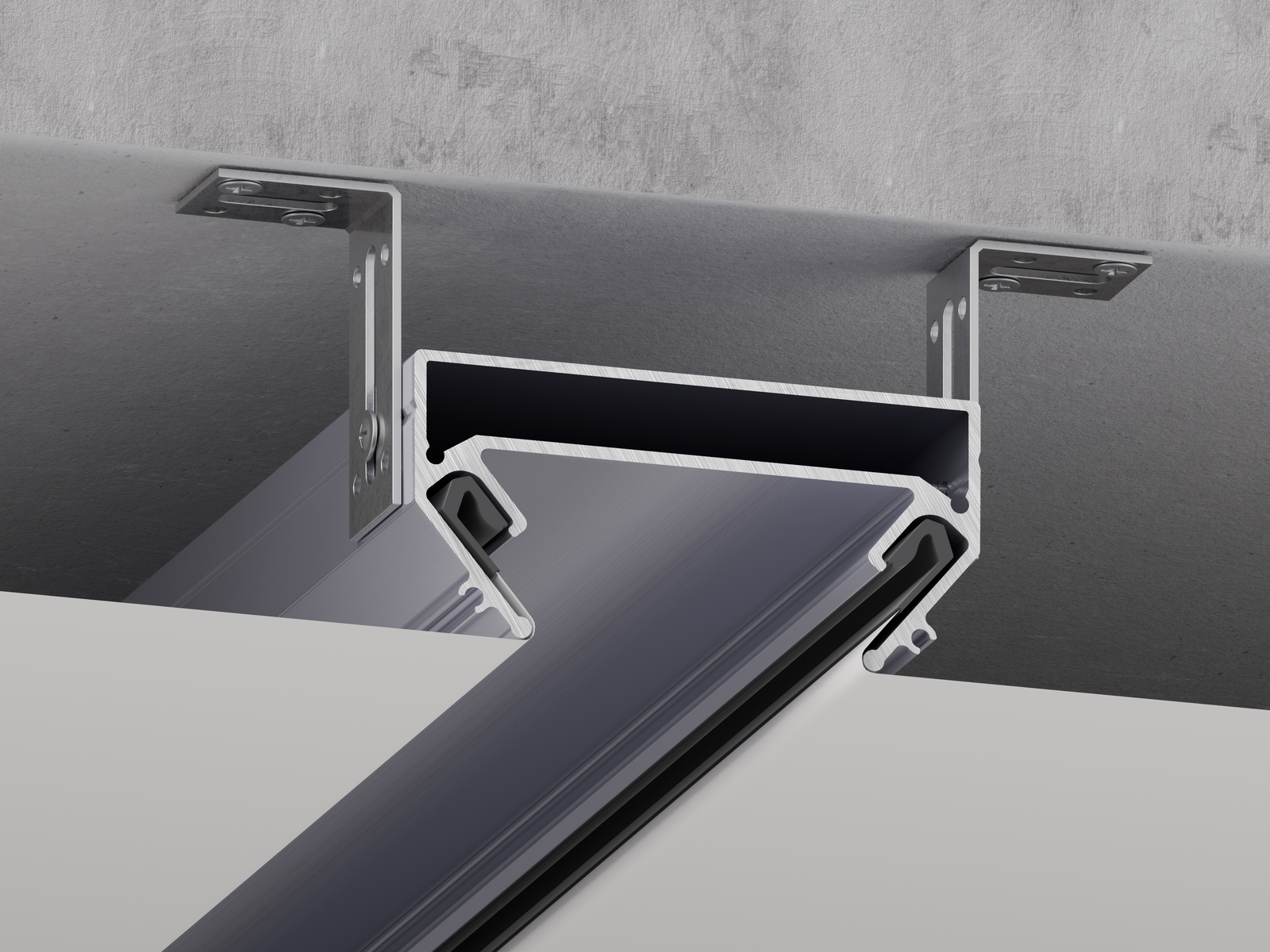

How the system fits together
Adjustable brackets attach the profile to the structural ceiling. The stretch membrane fits into both sides of the profile, and the track sits inside the recess.
01 / 07-7 adapter
Forms the recess and the stretch-ceiling junction.
02 / TRK track
A 230 V single-phase track for compatible luminaires.
03 / TRL luminaires
Choose the shape, light source and finish for your interior.
07-7 / BASIC TRACKLINE
07-7 BASIC TRACKLINE profile video
07-7 + TRK + TRL
Compatible lighting
Choose a track and luminaires for the 07-7 adapter. These models belong to the single-phase TRK system in the SofiMarsel catalogue.
TRK / Single-phase

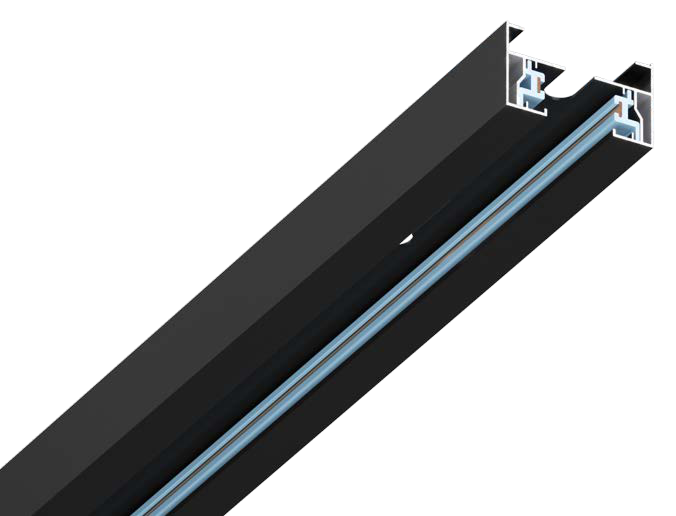

TRK track
TRK01-1 · White
TRK01-2 · Black
- Voltage
- 230 V
- Length
- 2 m
- Track section
- 33.7 × 20.6 mm
Includes a power feed module and an end cap.
Track connectors
I, L, T and X connectors for straight runs, corners and intersections. Available in white and black.

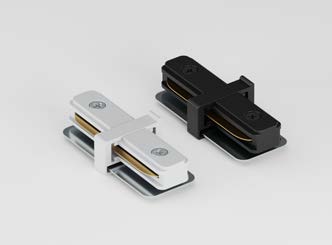

I
IC01-1 · White
IC01-2 · Black

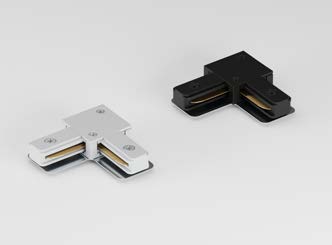

L
IC01-3 · White
IC01-4 · Black

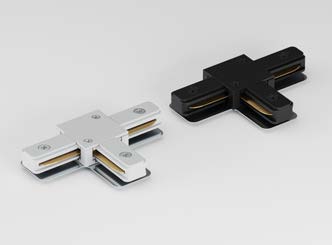

T
IC01-5 · White
IC01-6 · Black

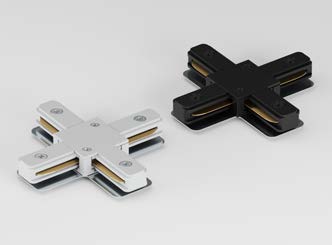

X
IC01-7 · White
IC01-8 · Black
TRK / 230 V
TRL luminaires
20 models. Replaceable GU10 / GX53 lamps or integrated LED with neutral 4000 K light.

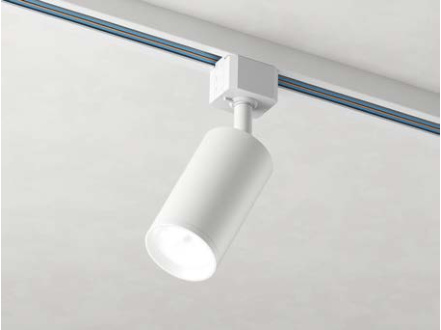

GU10TRL01-1
White- Voltage
- 230 V
- Dimensions
- Ø54 × 170 mm
- Light source
- GU10
- Body length
- 100 mm
- Rotation / tilt
- 330° / 85°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 10 ↗

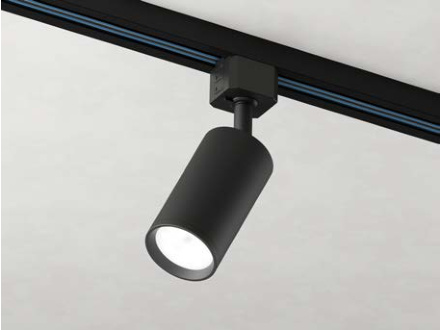

GU10TRL01-2
Black- Voltage
- 230 V
- Dimensions
- Ø54 × 170 mm
- Light source
- GU10
- Body length
- 100 mm
- Rotation / tilt
- 330° / 85°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 10 ↗

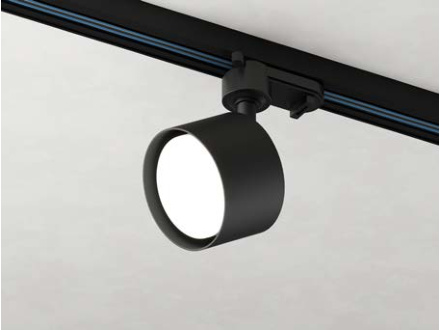

GX53TRL01-3
Black- Voltage
- 230 V
- Dimensions
- Ø88 × 120 mm
- Light source
- GX53
- Body length
- 68 mm
- Rotation / tilt
- 340° / 85°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 11 ↗

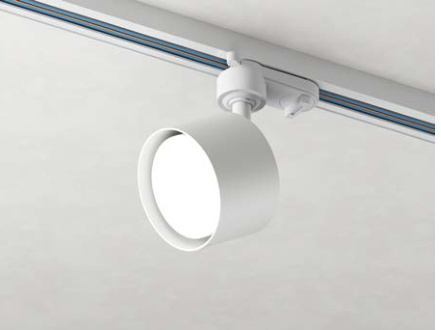

GX53TRL01-4
White- Voltage
- 230 V
- Dimensions
- Ø88 × 120 mm
- Light source
- GX53
- Body length
- 68 mm
- Rotation / tilt
- 340° / 85°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 11 ↗

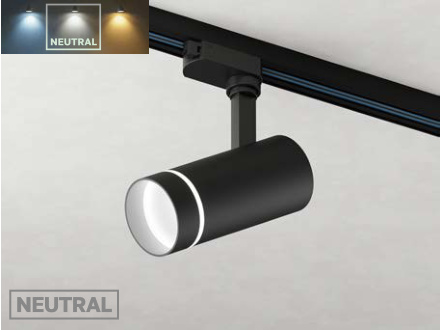

12 W · 4000 KTRL01-5
Black- Voltage
- 230 V
- Dimensions
- Ø70 × 220 mm
- Light source
- Integrated LED
- Body length
- 160 mm
- Power
- 12 W
- Luminous flux
- 960 lm
- Colour temperature
- 4000 K
- Rotation / tilt
- 345° / 90°
Dimensioned drawing · PDF 12 ↗

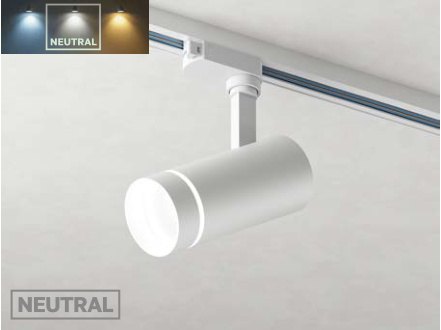

12 W · 4000 KTRL01-6
White- Voltage
- 230 V
- Dimensions
- Ø70 × 220 mm
- Light source
- Integrated LED
- Body length
- 160 mm
- Power
- 12 W
- Luminous flux
- 960 lm
- Colour temperature
- 4000 K
- Rotation / tilt
- 345° / 90°
Dimensioned drawing · PDF 12 ↗

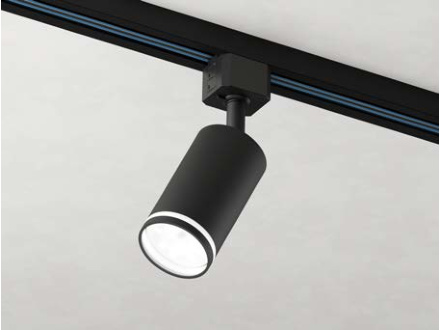

GU10TRL01-7
Black- Voltage
- 230 V
- Dimensions
- Ø54 × 170 mm
- Light source
- GU10
- Body length
- 100 mm
- Rotation / tilt
- 330° / 85°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 13 ↗

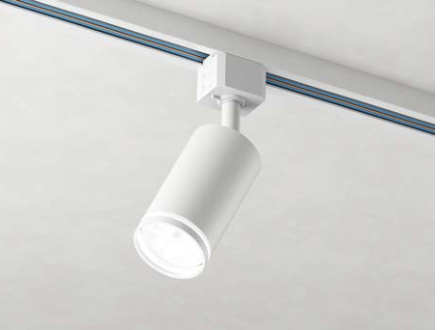

GU10TRL01-8
White- Voltage
- 230 V
- Dimensions
- Ø54 × 170 mm
- Light source
- GU10
- Body length
- 100 mm
- Rotation / tilt
- 330° / 85°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 13 ↗

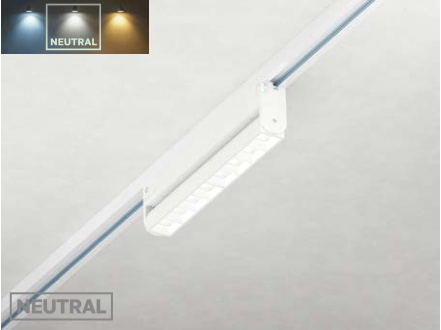

20 W · 4000 KTRL01-9
White- Voltage
- 230 V
- Dimensions
- 290 × 35 × 68 mm
- Light source
- Integrated LED
- Power
- 20 W
- Luminous flux
- 1440 lm
- Colour temperature
- 4000 K
- Rotation / tilt
- 180°
Dimensioned drawing · PDF 14 ↗

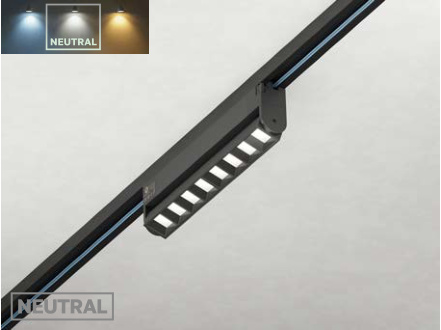

20 W · 4000 KTRL01-10
Black- Voltage
- 230 V
- Dimensions
- 290 × 35 × 68 mm
- Light source
- Integrated LED
- Power
- 20 W
- Luminous flux
- 1440 lm
- Colour temperature
- 4000 K
- Rotation / tilt
- 180°
Dimensioned drawing · PDF 14 ↗

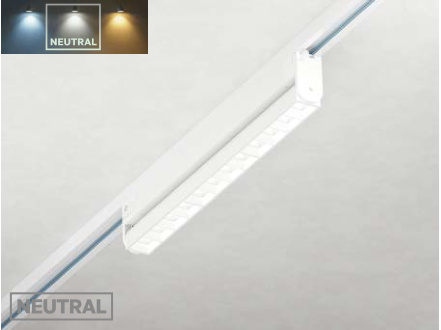

30 W · 4000 KTRL01-11
White- Voltage
- 230 V
- Dimensions
- 415 × 35 × 68 mm
- Light source
- Integrated LED
- Power
- 30 W
- Luminous flux
- 2160 lm
- Colour temperature
- 4000 K
- Rotation / tilt
- 180°
Dimensioned drawing · PDF 15 ↗

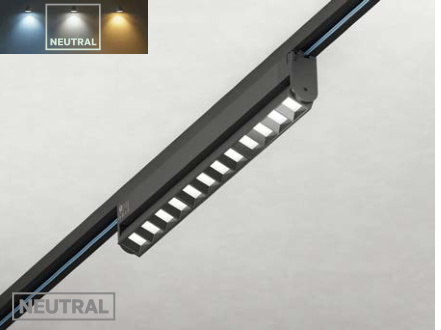

30 W · 4000 KTRL01-12
Black- Voltage
- 230 V
- Dimensions
- 415 × 35 × 68 mm
- Light source
- Integrated LED
- Power
- 30 W
- Luminous flux
- 2160 lm
- Colour temperature
- 4000 K
- Rotation / tilt
- 180°
Dimensioned drawing · PDF 15 ↗

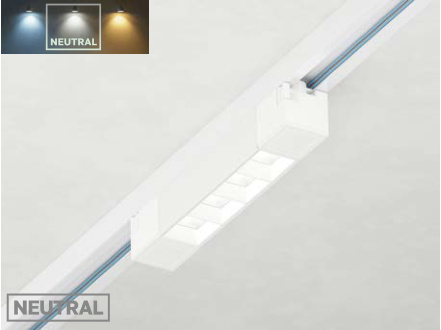

12 W · 4000 KTRL01-13
White- Voltage
- 230 V
- Dimensions
- 212 × 34 × 34 mm
- Light source
- Integrated LED
- Power
- 12 W
- Luminous flux
- 710 lm
- Colour temperature
- 4000 K
Dimensioned drawing · PDF 16 ↗

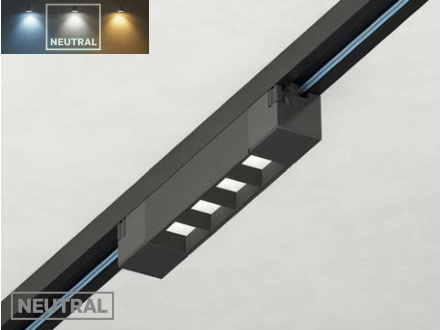

12 W · 4000 KTRL01-14
Black- Voltage
- 230 V
- Dimensions
- 212 × 34 × 34 mm
- Light source
- Integrated LED
- Power
- 12 W
- Luminous flux
- 710 lm
- Colour temperature
- 4000 K
Dimensioned drawing · PDF 16 ↗

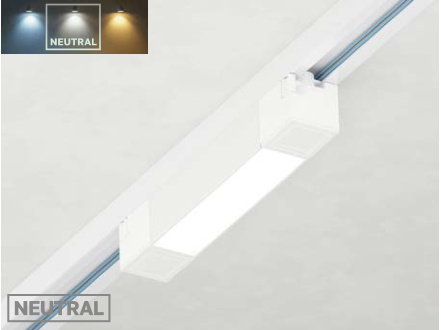

12 W · 4000 KTRL01-15
White- Voltage
- 230 V
- Dimensions
- 212 × 34 × 34 mm
- Light source
- Integrated LED
- Power
- 12 W
- Luminous flux
- 710 lm
- Colour temperature
- 4000 K
Dimensioned drawing · PDF 17 ↗

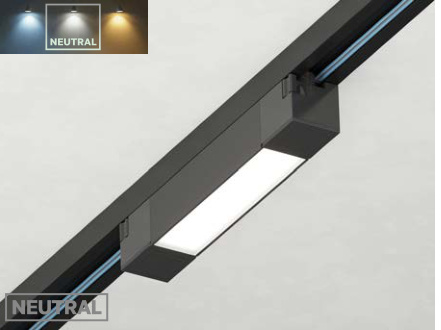

12 W · 4000 KTRL01-16
Black- Voltage
- 230 V
- Dimensions
- 212 × 34 × 34 mm
- Light source
- Integrated LED
- Power
- 12 W
- Luminous flux
- 710 lm
- Colour temperature
- 4000 K
Dimensioned drawing · PDF 17 ↗

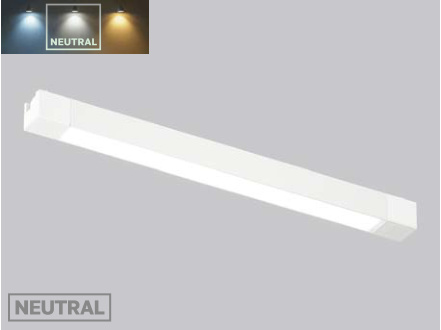

30 W · 4000 KTRL01-17
White- Voltage
- 230 V
- Length × width
- 475 × 34 mm
- Light source
- Integrated LED
- Power
- 30 W
- Luminous flux
- 2130 lm
- Colour temperature
- 4000 K
Dimensioned drawing · PDF 18 ↗

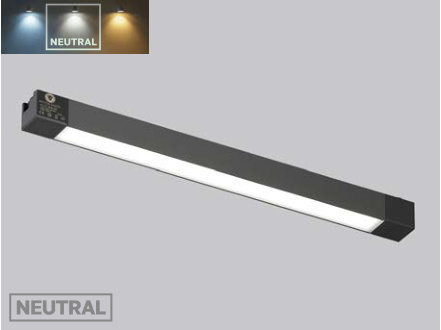

30 W · 4000 KTRL01-18
Black- Voltage
- 230 V
- Length × width
- 475 × 34 mm
- Light source
- Integrated LED
- Power
- 30 W
- Luminous flux
- 2130 lm
- Colour temperature
- 4000 K
Dimensioned drawing · PDF 18 ↗

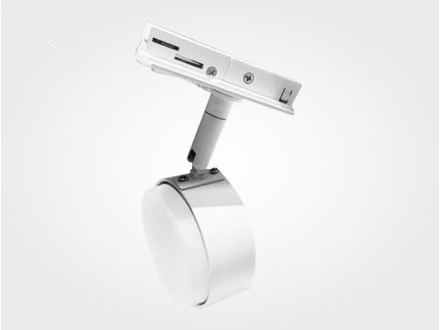

GX53TRL01-19
White- Voltage
- 230 V
- Body
- Ø80 × 29 mm
- Light source
- GX53
- Stem
- 50 mm
- Adapter
- 80 mm
- Rotation / tilt
- 330° / 180°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 19 ↗

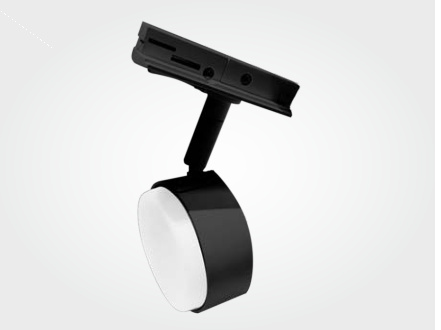

GX53TRL01-20
Black- Voltage
- 230 V
- Body
- Ø80 × 29 mm
- Light source
- GX53
- Stem
- 50 mm
- Adapter
- 80 mm
- Rotation / tilt
- 330° / 180°
Lamp sold separately. Power, luminous flux and colour temperature depend on the chosen lamp.
Dimensioned drawing · PDF 19 ↗
Adapter accessories

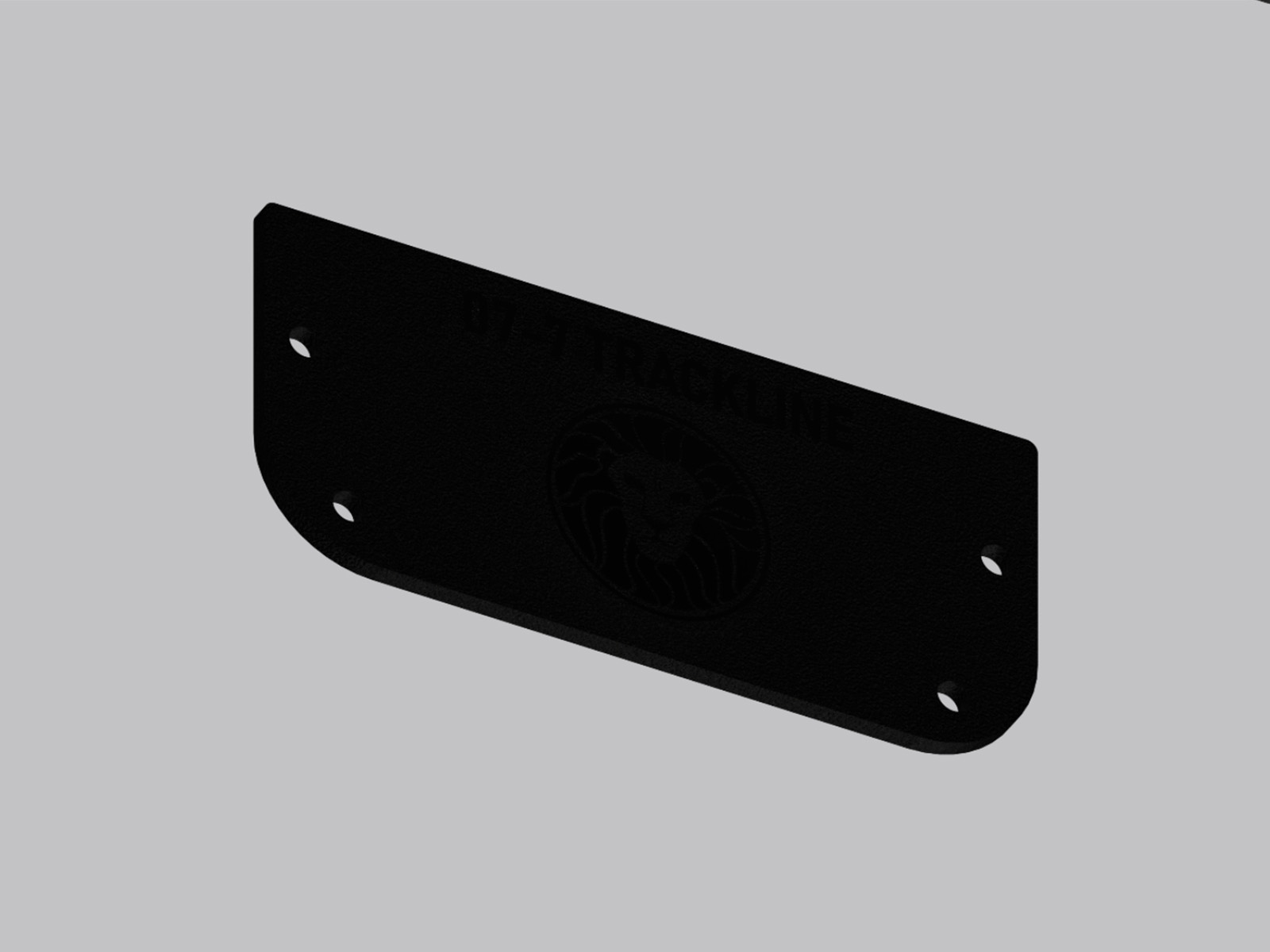

07-7 end element
Closes the end of the profile. Screws included.

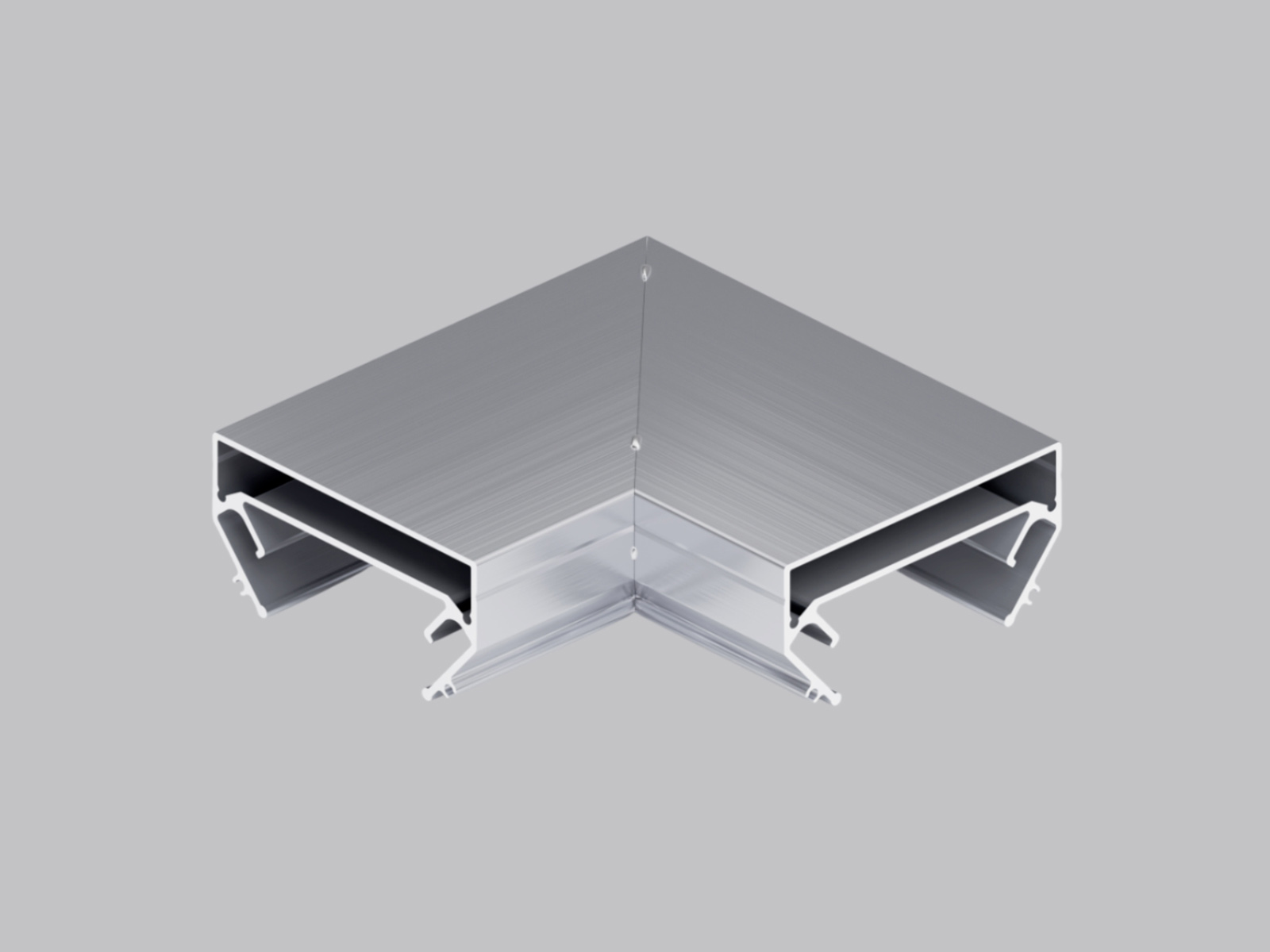

07-7 junctions and assemblies
Ready-made junctions: L — 15 × 15 cm, T — 10 × 20 cm, X — 20 × 20 cm. Custom assemblies are also available.

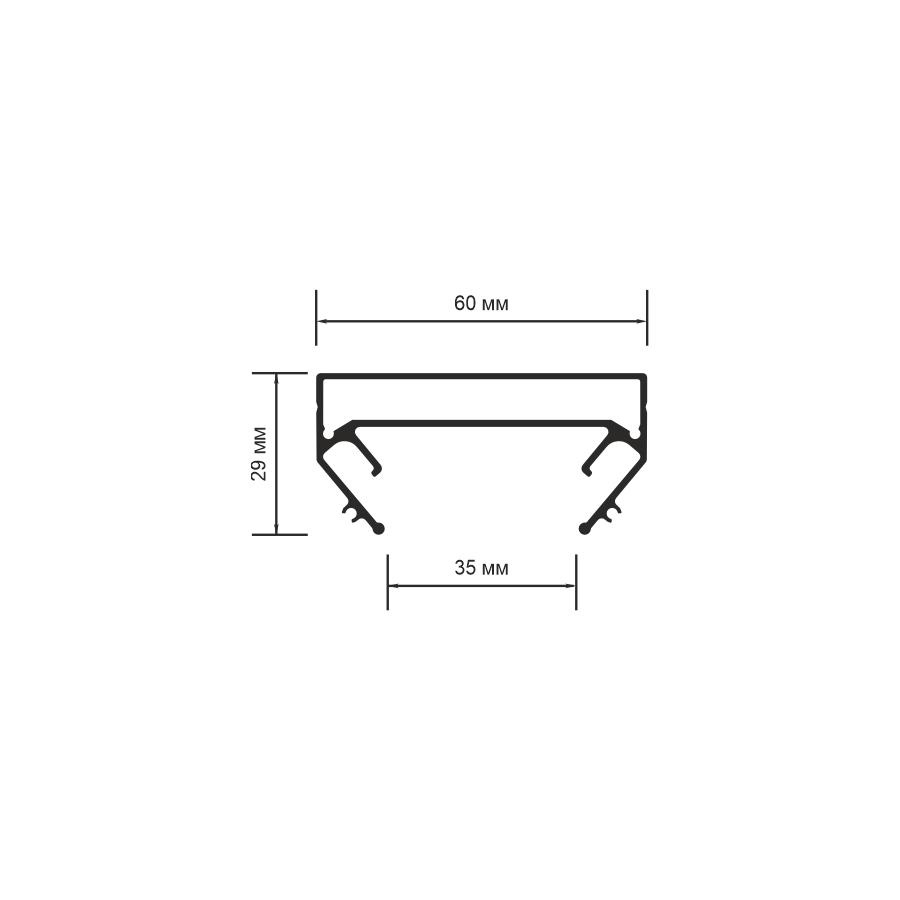

Technical specifications
| Profile section | 60 × 29 mm |
|---|---|
| Recess width | 35 mm |
| Material | Aluminium |
| Recess finish | Unpainted |
| Mounting | Structural ceiling with adjustable brackets |
| Track | TRK01-1 / TRK01-2 |
About 07-7
Is 07-7 the electrical track itself?
No. 07-7 forms the recess in the stretch ceiling. A separate TRK track fits inside it and carries the TRL luminaires.
Which tracks are compatible?
This page presents white TRK01-1 and black TRK01-2 single-phase tracks: 230 V, 2 m long, with a 33.7 × 20.6 mm section.
Are lamps included?
GU10 and GX53 lamps are not included. LED models have an integrated light source; power, luminous flux and colour temperature are listed for each model.
What does the 360° link show?
A virtual interior from the SofiMarsel catalogue. Several luminaires may link to the same interior where they are shown together.
