SofiMarsel / Basic profiles
02-7 EURO
Basic EURO profile. Ceiling-mounted.
02-7 EURO fixes to the ceiling. Two aluminium versions: standard at approximately 160 g/m and lightweight Light at approximately 140 g/m.
3D model: 02-7 aluminium version
- Installation
- Ceiling-mounted

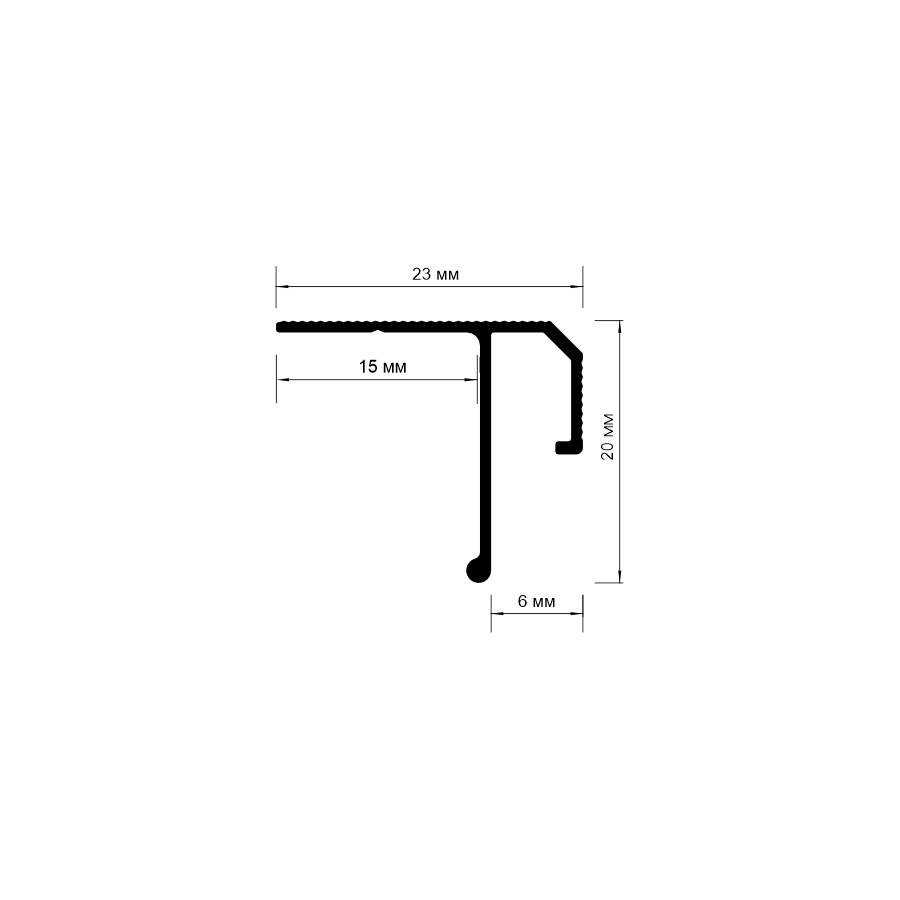

- Cross-section in drawing
- 20 × 23 mm
- Profile length
- 2 m
- Harpoon
- SofiMarsel — black or white
Fixing to the ceiling.
SofiMarsel 02-7 EURO is a basic aluminium ceiling-mounted profile for stretch ceilings. It serves a similar purpose to the wall-mounted 01-10, with fixing to the ceiling substrate. Suitable where wall fixing is not possible.
Two versions
Standard profile at 160 g/m and lightweight Light at 140 g/m.
EURO system
Compatible with SofiMarsel (black or white) harpoons.
02-7 or 02-7 Light
Choose the version for your project. Weights are approximate and given per linear metre of profile.
02-7 EURO
Standard
≈160g/m
Standard ceiling-mounted version — approximately 160 g/m.
- Version
- Grey aluminium
- Profile length
- 2 m
02-7 EURO Light
Lightweight Light
≈140g/m
Lightweight ceiling-mounted Light version — approximately 140 g/m.
- Version
- Grey aluminium
- Profile length
- 2 m
When fixing must move to the ceiling
02-7 is used where there is no wall, beside sliding-door wardrobes without a supporting panel, and around roof windows or building services. The catalogue describes installation typically via an aluminium or timber beam. Select the substrate and fixings to suit the project.

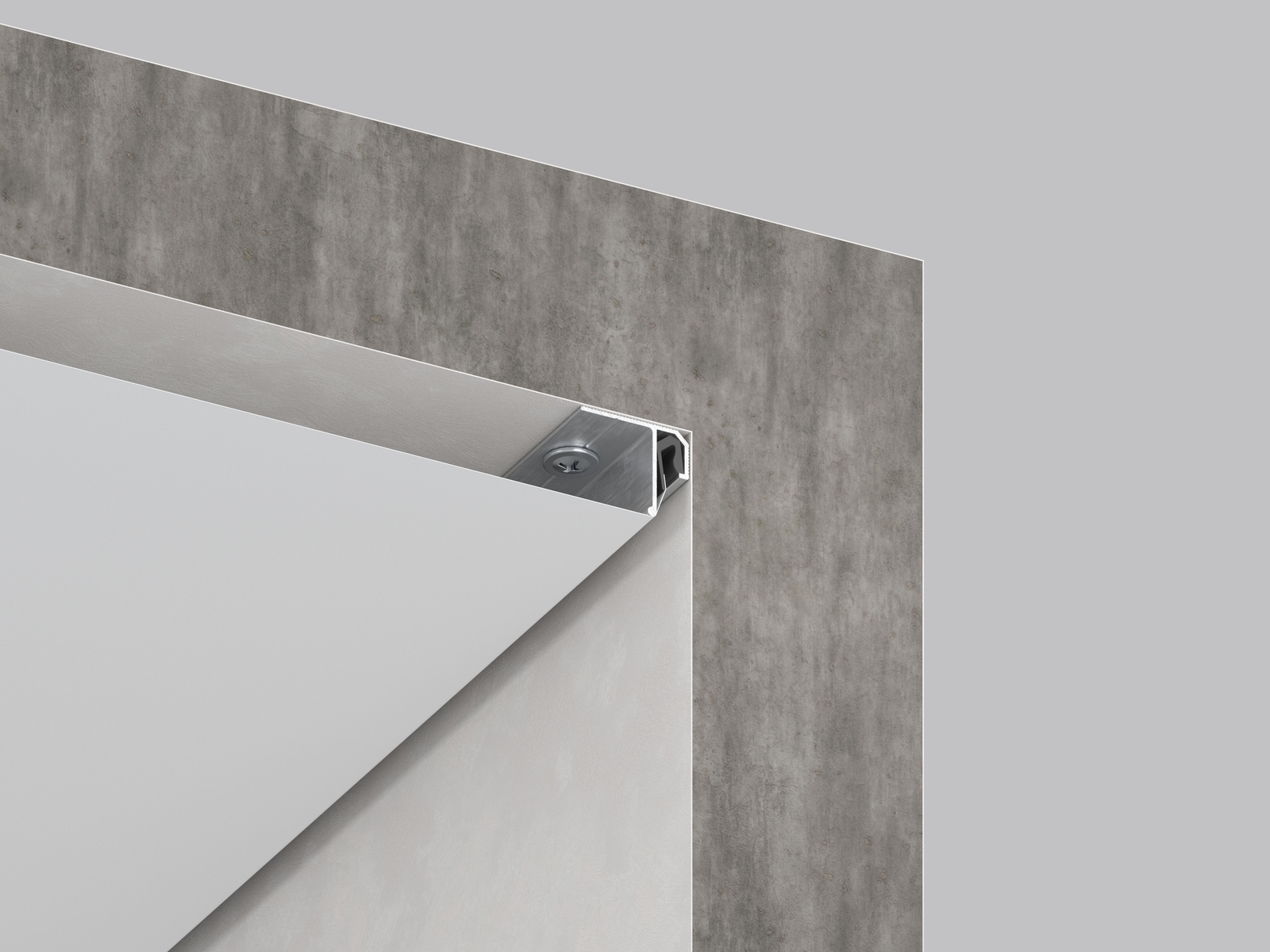

02-7 EURO installation and application
Technical specifications
| Cross-section in drawing | 20 × 23 mm |
|---|---|
| Profile length | 2 m |
| Installation | Ceiling-mounted |
| Material | Aluminium |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈160 g/m |
| Weight per linear metre · Lightweight Light | ≈140 g/m |
Questions about 02-7 EURO
How does 02-7 differ from 01-10?
01-10 is a wall-mounted EURO profile; 02-7 is designed for ceiling fixing.
Which versions are available?
Standard 02-7 at approximately 160 g/m and lightweight 02-7 Light at approximately 140 g/m.
Which harpoon is compatible?
SofiMarsel (black or white).
Is weight given per metre?
Yes, per linear metre. The standard profile length is 2 m.
