Around furniture
Forms the ceiling edge alongside a built-in wardrobe.
SofiMarsel / Basic profiles
08-4 PRO
Box profile for niches and furniture perimeters.
08-4 PRO creates a concealed curtain-track niche and forms the stretch-ceiling edge beside a built-in wardrobe where wall fixing is not possible.
3D model: 08-4 PRO aluminium version
- Installation
- Ceiling brackets

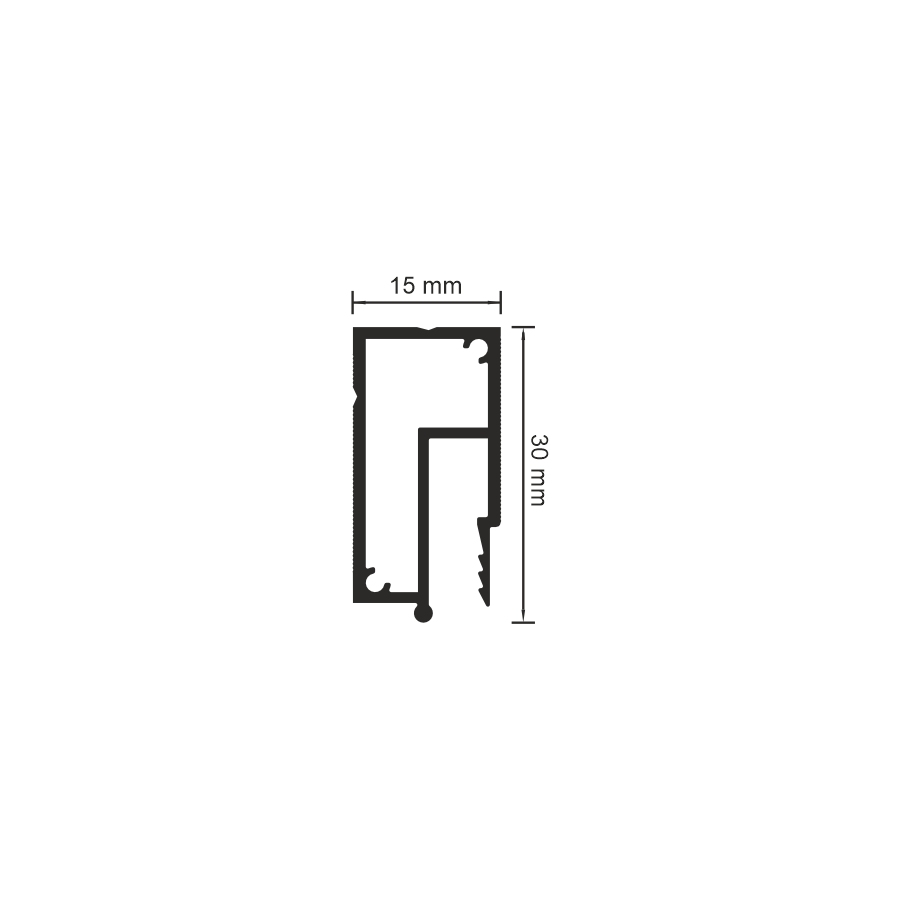

- Cross-section in drawing
- 15 × 30 mm
- Profile length
- 2 m
A ceiling beside a wardrobe. Independent of the wall.
SofiMarsel 08-4 PRO is a 15 × 30 mm aluminium box profile. It is used for concealed ceiling curtain-track niches and installations beside built-in wardrobes or weak walls where a wall-mounted profile cannot be fixed. Attach it to the existing ceiling with adjustable brackets at a recommended spacing of 50 cm.
Curtain-track niche
For concealed ceiling curtain tracks.
Where walls are weak
Fix to the existing ceiling where wall-mounted profiles cannot be installed.

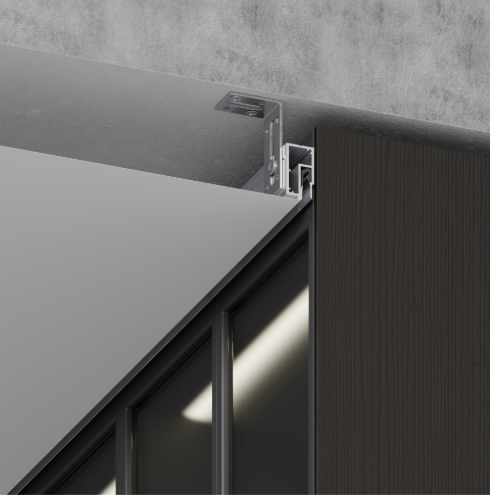

Ceiling junction beside a built-in wardrobe
The profile forms the stretch-ceiling edge alongside furniture. The illustration shows the junction above a wardrobe: an adjustable bracket fixed to the existing ceiling holds the profile beside the furniture. The profile does not need to be fixed to the wardrobe front. Recommended bracket spacing: 50 cm.
TL inserts. White and black.
The catalogue lists TL-303 and TL-347 for 08-4 PRO. Article numbers and colours are shown below each image.

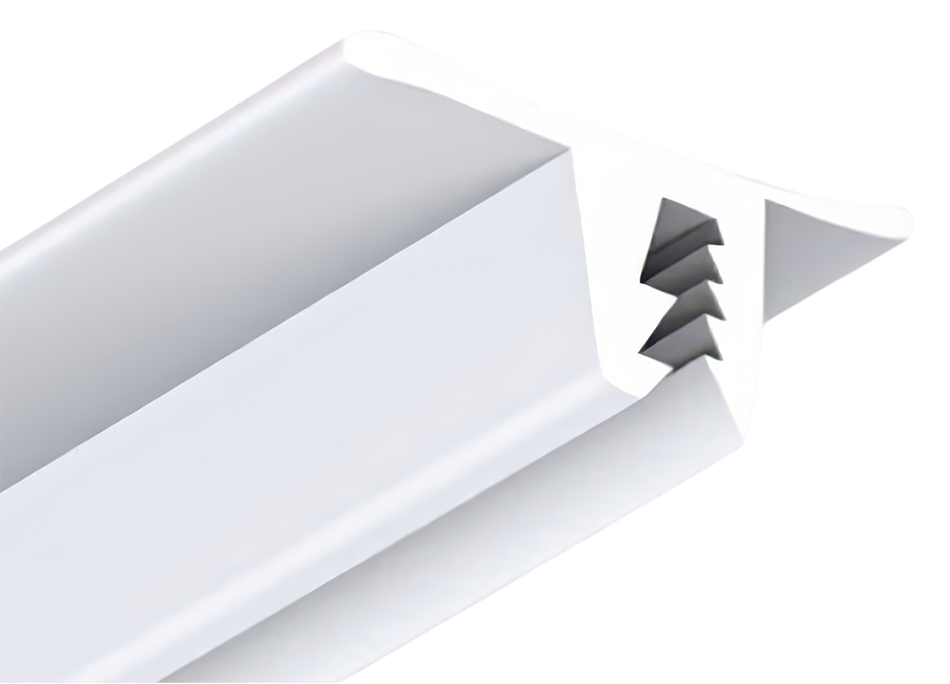

PVC insert
TL-303
White

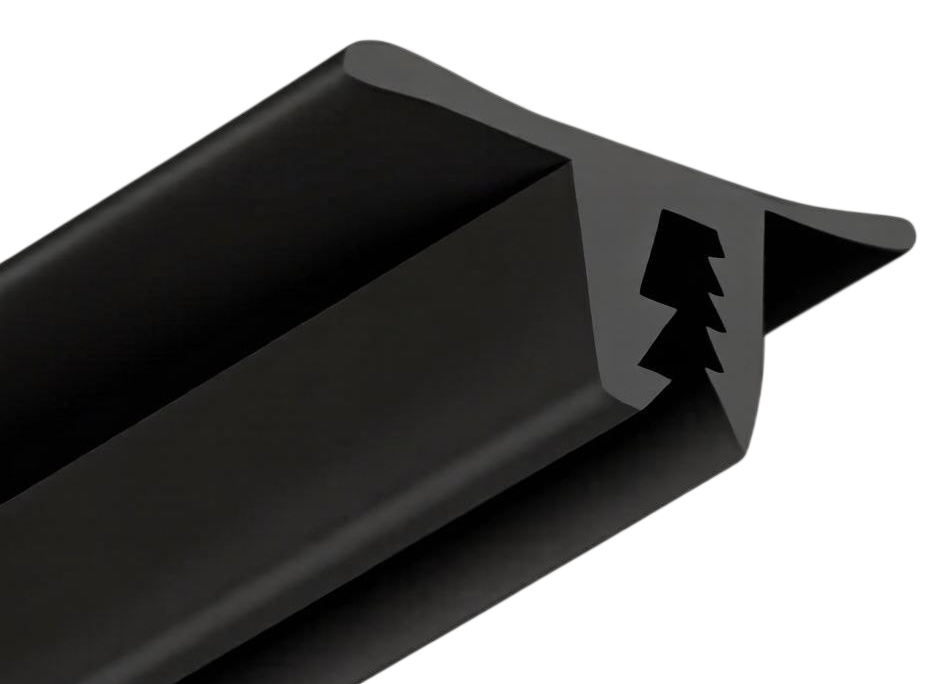

PVC insert
TL-347
BlackShade names describe the images. Order by TL article number; colour appearance depends on the screen.
Technical specifications
| Cross-section in drawing | 15 × 30 mm |
|---|---|
| Profile length | 2 m |
| Installation | Ceiling brackets |
| Material | Aluminium |
| TL inserts. White and black. | TL-303 / TL-347 |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈327 g/m |
Questions about 08-4 PRO
How can a stretch ceiling run around a built-in wardrobe?
08-4 PRO forms the membrane edge beside the wardrobe. Fix the profile to the existing ceiling with adjustable brackets; fixing to the wardrobe front is not required.
Is 08-4 PRO suitable where walls are weak?
Yes. The catalogue specifies use where wall-mounted profiles cannot be fixed. The profile is supported from the existing ceiling by brackets.
Can it create a concealed curtain-track niche?
Yes. Niches for ceiling curtain tracks are a stated application.
What bracket spacing is recommended?
Adjustable brackets at a recommended spacing of 50 cm.
Which inserts and harpoon fit?
The catalogue shows white TL-303 and black TL-347 PVC inserts. Use a black or white SofiMarsel harpoon.
