07-6 Magnetic Adapter

An adapter for magnetic lighting in stretch ceilings. The 07-6 profile creates a recess for a separate TRM 01-1 or TRM 01-2 track, with ML luminaires and a 48 V MT power supply.

Explore tracks and luminaires ↓Watch video ↗

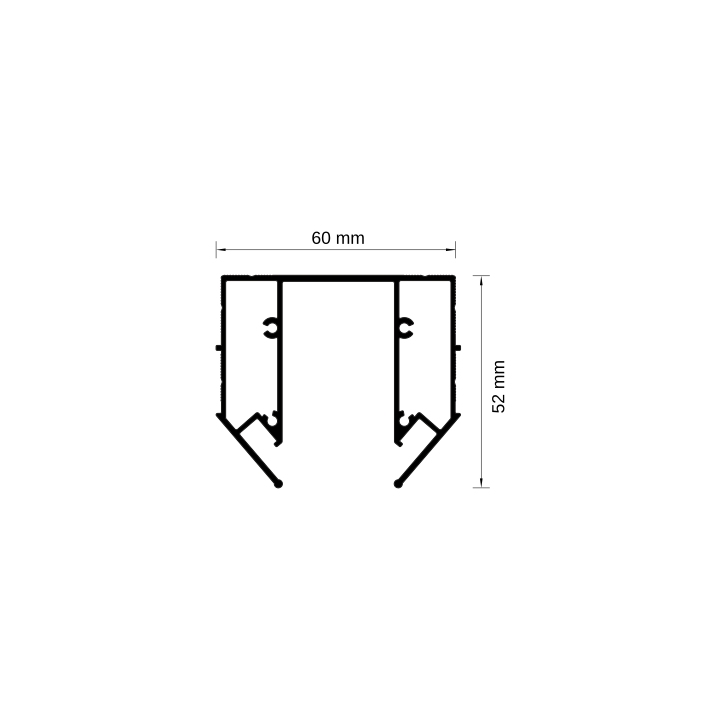

Profile section: 60 × 52 mm
Length: 2 m
Track: TRM / 48 V
ML magnetic luminaires: ML / 27

Magnetic light. Flush with the ceiling.

SofiMarsel 07-6 Magnetic Adapter is a 60 × 52 mm aluminium profile for installing a TRM magnetic track flush with a stretch ceiling. The adapter forms the structure and holds the membrane; the separate TRM supplies power and supports magnetic luminaire attachment. Profile length: 2 m. Colour: grey.

Separate magnetic track

TRM 01-1, 1 m long, or TRM 01-2, 2 m long, fits inside the adapter.

Light for each task

Linear, adjustable, accent and pendant ML luminaires operate on the 48 V magnetic system.

Room layout

Straight sections and L, T and X junctions create the required lighting layout.

Compare with the integrated 07-8 FR track ↗

Installing the adapter and track

The 07-6 profile attaches to the structural ceiling on adjustable brackets. The TRM track fits inside; the stretch membrane attaches to the grooves on both sides.

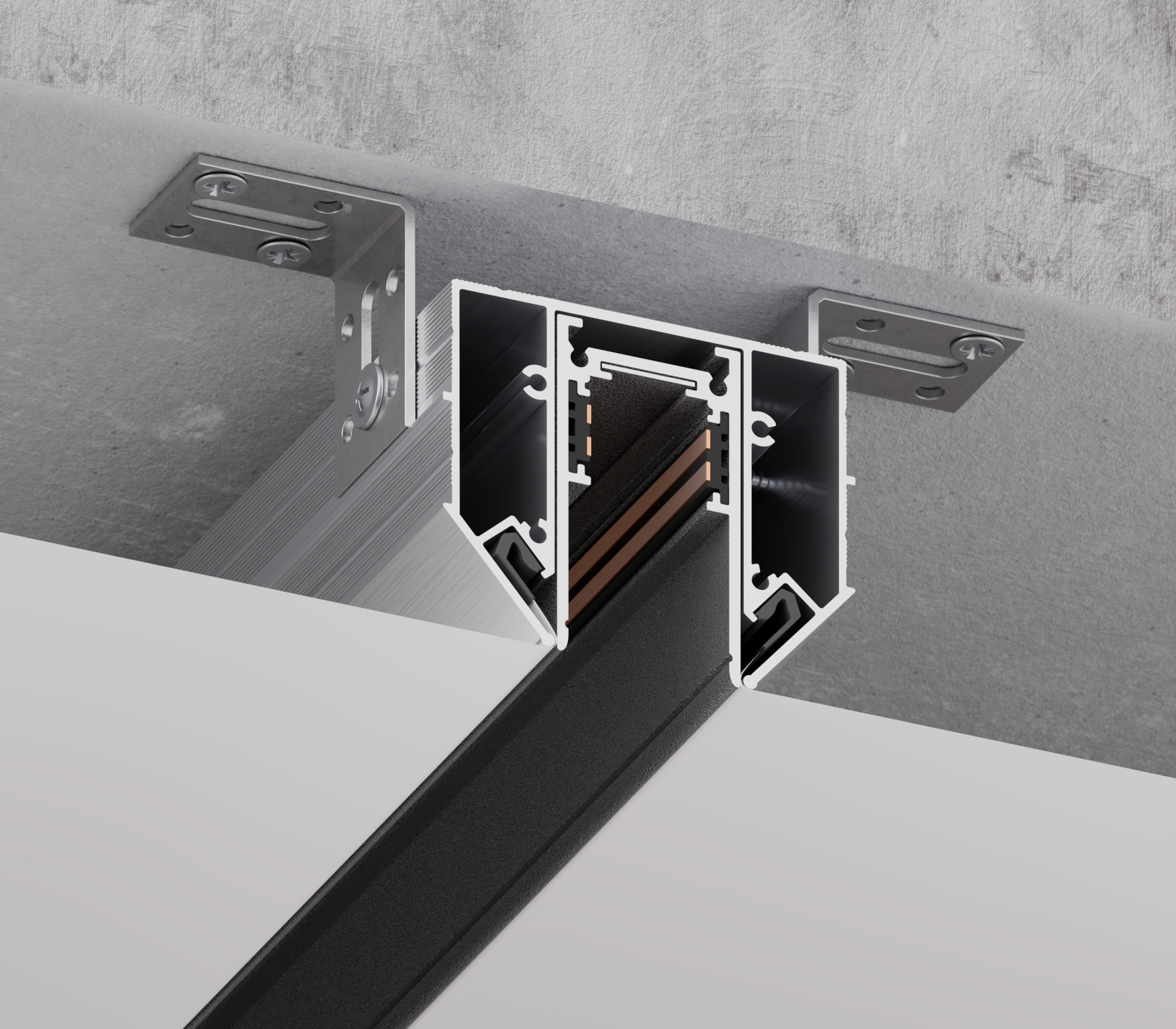

07-6 with TRM installed

The diagram shows the separate aluminium adapter, magnetic track and structural ceiling fixing. A 48 V MT supply connects through the IM01-1 feed module.

07-6 Magnetic Adapter overview

YouTube ↗

07-6 + TRM / 48 V / MT / ML

TRM, MT power and ML luminaires

Build the system with a TRM track, MT power supply, IM electrical connectors and suitable ML luminaires. All 27 catalogue ML variants are listed below with specifications, videos and panoramas.

TRM / 48 V

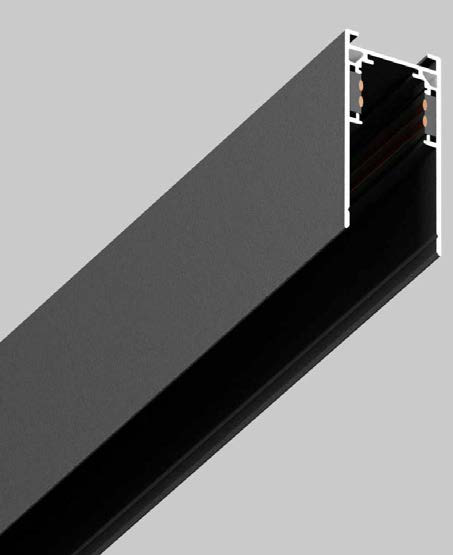

TRM magnetic track

Both versions are black, with a 26.9 × 50.8 mm cross-section and a 48 V supply. They differ in length: TRM 01-1 is 1 m; TRM 01-2 is 2 m.

TRM 01-1 · 1 m

TRM 01-2 · 2 m

System voltage: 48 V
Track section: 26.9 × 50.8 mm
Colour: Black

Dimensioned drawing · PDF 66 ↗

MT power supplies

Three models with a 48 V output: 100, 200 and 300 W. Select the power supply according to the total luminaire load.

MT01-1

Output: 48 V
Power: 100 W
Length × height: 220 × 26 mm
Colour: Black

Dimensioned drawing · PDF 96 ↗

MT01-2

Output: 48 V
Power: 200 W
Length × height: 310 × 26 mm
Colour: Black

Dimensioned drawing · PDF 96 ↗

MT01-3

Output: 48 V
Power: 300 W
Length × height: 306 × 44.5 mm
Colour: Black

Dimensioned drawing · PDF 97 ↗

Electrical connectors

IM01-1

Power feed

IM01-2

Straight connection

IM01-3

Flexible connection

ML / 48 V

ML magnetic luminaires

All 27 catalogue variants with exact model numbers, dimensions, power and luminous flux. Videos and interior panoramas are available in the cards.

12 W · 4000 K

ML01-1

Black

System voltage: 48 V
Power: 12 W
Colour temperature: 4000 K
Luminous flux: 960 lm
Drawing dimensions: 222 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 72 ↗

18 W · 4000 K

ML01-2

Black

System voltage: 48 V
Power: 18 W
Colour temperature: 4000 K
Luminous flux: 1440 lm
Drawing dimensions: 330 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 73 ↗

12 W · 3000 K

ML01-3

Black

System voltage: 48 V
Power: 12 W
Colour temperature: 3000 K
Luminous flux: 930 lm
Drawing dimensions: 222 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 74 ↗

18 W · 3000 K

ML01-4

Black

System voltage: 48 V
Power: 18 W
Colour temperature: 3000 K
Luminous flux: 1390 lm
Drawing dimensions: 330 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 75 ↗

10 W · 4000 K

ML02-1

Black

System voltage: 48 V
Power: 10 W
Colour temperature: 4000 K
Luminous flux: 800 lm
Drawing dimensions: 305 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 76 ↗

20 W · 4000 K

ML02-2

Black

System voltage: 48 V
Power: 20 W
Colour temperature: 4000 K
Luminous flux: 1600 lm
Drawing dimensions: 605 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 77 ↗

10 W · 3000 K

ML02-3

Black

System voltage: 48 V
Power: 10 W
Colour temperature: 3000 K
Luminous flux: 780 lm
Drawing dimensions: 305 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 78 ↗

20 W · 3000 K

ML02-4

Black

System voltage: 48 V
Power: 20 W
Colour temperature: 3000 K
Luminous flux: 1560 lm
Drawing dimensions: 605 × 22.2 × 43.5 mm
Light source: Integrated LED

Dimensioned drawing · PDF 79 ↗

12 W · 4000 K

ML03-1

Black

System voltage: 48 V
Power: 12 W
Colour temperature: 4000 K
Luminous flux: 960 lm
Drawing dimensions: 220 × 22.8 × 104 mm
Rotation / tilt: 180°
Light source: Integrated LED

Dimensioned drawing · PDF 80 ↗

6 W · 4000 K

ML04-2

Black

System voltage: 48 V
Power: 6 W
Colour temperature: 4000 K
Luminous flux: 480 lm
Drawing dimensions: 112 × 22.8 × 104 mm
Rotation / tilt: 180°
Light source: Integrated LED

Dimensioned drawing · PDF 81 ↗

12 W · 4000 K

ML04-3

Black

System voltage: 48 V
Power: 12 W
Colour temperature: 4000 K
Luminous flux: 960 lm
Drawing dimensions: 220 × 22.5 × 104 mm
Rotation / tilt: 180°
Light source: Integrated LED

Dimensioned drawing · PDF 82 ↗

12 W · 4000 K

ML05-1

Black

System voltage: 48 V
Power: 12 W
Colour temperature: 4000 K
Luminous flux: 960 lm
Drawing dimensions: 245 × 22.2 × 61 mm
Rotation / tilt: 180°
Light source: Integrated LED

Dimensioned drawing · PDF 83 ↗

18 W · 4000 K

ML05-2

Black

System voltage: 48 V
Power: 18 W
Colour temperature: 4000 K
Luminous flux: 1440 lm
Drawing dimensions: 360 × 22.2 × 61 mm
Rotation / tilt: 180°
Light source: Integrated LED

Dimensioned drawing · PDF 84 ↗

12 W · 3000 K

ML05-3

Black

System voltage: 48 V
Power: 12 W
Colour temperature: 3000 K
Luminous flux: 930 lm
Drawing dimensions: 245 × 22.2 × 61 mm
Rotation / tilt: 180°
Light source: Integrated LED

Dimensioned drawing · PDF 85 ↗

18 W · 3000 K

ML05-4

Black

System voltage: 48 V
Power: 18 W
Colour temperature: 3000 K
Luminous flux: 1400 lm
Drawing dimensions: 360 × 22.2 × 61 mm
Rotation / tilt: 180°
Light source: Integrated LED

Dimensioned drawing · PDF 86 ↗

15 W · 4000 K

ML06-1

Black

System voltage: 48 V
Power: 15 W
Colour temperature: 4000 K
Luminous flux: 1200 lm
Drawing dimensions: Ø58 × 145 mm
Stem: 43 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 88 ↗

15 W · 4000 K

ML06-2

White

System voltage: 48 V
Power: 15 W
Colour temperature: 4000 K
Luminous flux: 1200 lm
Drawing dimensions: Ø58 × 145 mm
Stem: 43 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 88 ↗

15 W · 3000 K

ML06-3

Black

System voltage: 48 V
Power: 15 W
Colour temperature: 3000 K
Luminous flux: 1150 lm
Drawing dimensions: Ø58 × 145 mm
Stem: 43 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 89 ↗

15 W · 3000 K

ML06-4

White

System voltage: 48 V
Power: 15 W
Colour temperature: 3000 K
Luminous flux: 1150 lm
Drawing dimensions: Ø58 × 145 mm
Stem: 43 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 89 ↗

10 W · 4000 K

ML07-1

White

System voltage: 48 V
Power: 10 W
Colour temperature: 4000 K
Luminous flux: 800 lm
Drawing dimensions: Ø30 × 300 mm
Suspension: 1200 mm
Light source: Integrated LED

Dimensioned drawing · PDF 90 ↗

10 W · 4000 K

ML07-2

Black

System voltage: 48 V
Power: 10 W
Colour temperature: 4000 K
Luminous flux: 800 lm
Drawing dimensions: Ø30 × 300 mm
Suspension: 1200 mm
Light source: Integrated LED

Dimensioned drawing · PDF 90 ↗

10 W · 3000 K

ML07-3

Black

System voltage: 48 V
Power: 10 W
Colour temperature: 3000 K
Luminous flux: 780 lm
Drawing dimensions: Ø30 × 300 mm
Suspension: 1200 mm
Light source: Integrated LED

Dimensioned drawing · PDF 91 ↗

15 W · 4000 K

ML08-1

Black

System voltage: 48 V
Power: 15 W
Colour temperature: 4000 K
Luminous flux: 1200 lm
Drawing dimensions: Ø92.5 × 32 mm
Stem: 124 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 92 ↗

15 W · 4000 K

ML08-2

White

System voltage: 48 V
Power: 15 W
Colour temperature: 4000 K
Luminous flux: 1200 lm
Drawing dimensions: Ø92.5 × 32 mm
Stem: 124 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 92 ↗

15 W · 3000 K

ML08-3

Black

System voltage: 48 V
Power: 15 W
Colour temperature: 3000 K
Luminous flux: 1100 lm
Drawing dimensions: Ø92.5 × 32 mm
Stem: 124 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 93 ↗

15 W · 3000 K

ML08-4

White

System voltage: 48 V
Power: 15 W
Colour temperature: 3000 K
Luminous flux: 1100 lm
Drawing dimensions: Ø92.5 × 32 mm
Stem: 124 mm
Rotation / tilt: 360° / 90°
Light source: Integrated LED

Dimensioned drawing · PDF 93 ↗

7 W · 4000 K

ML09-1

Black / white

System voltage: 48 V
Power: 7 W
Colour temperature: 4000 K
Luminous flux: 780 lm
Drawing dimensions: Ø100 × 160 mm
Light source: Integrated LED

Dimensioned drawing · PDF 94 ↗

07-6 profile components

07-6 end cap

Closes the open end of the adapter. Screws are included with the end cap.

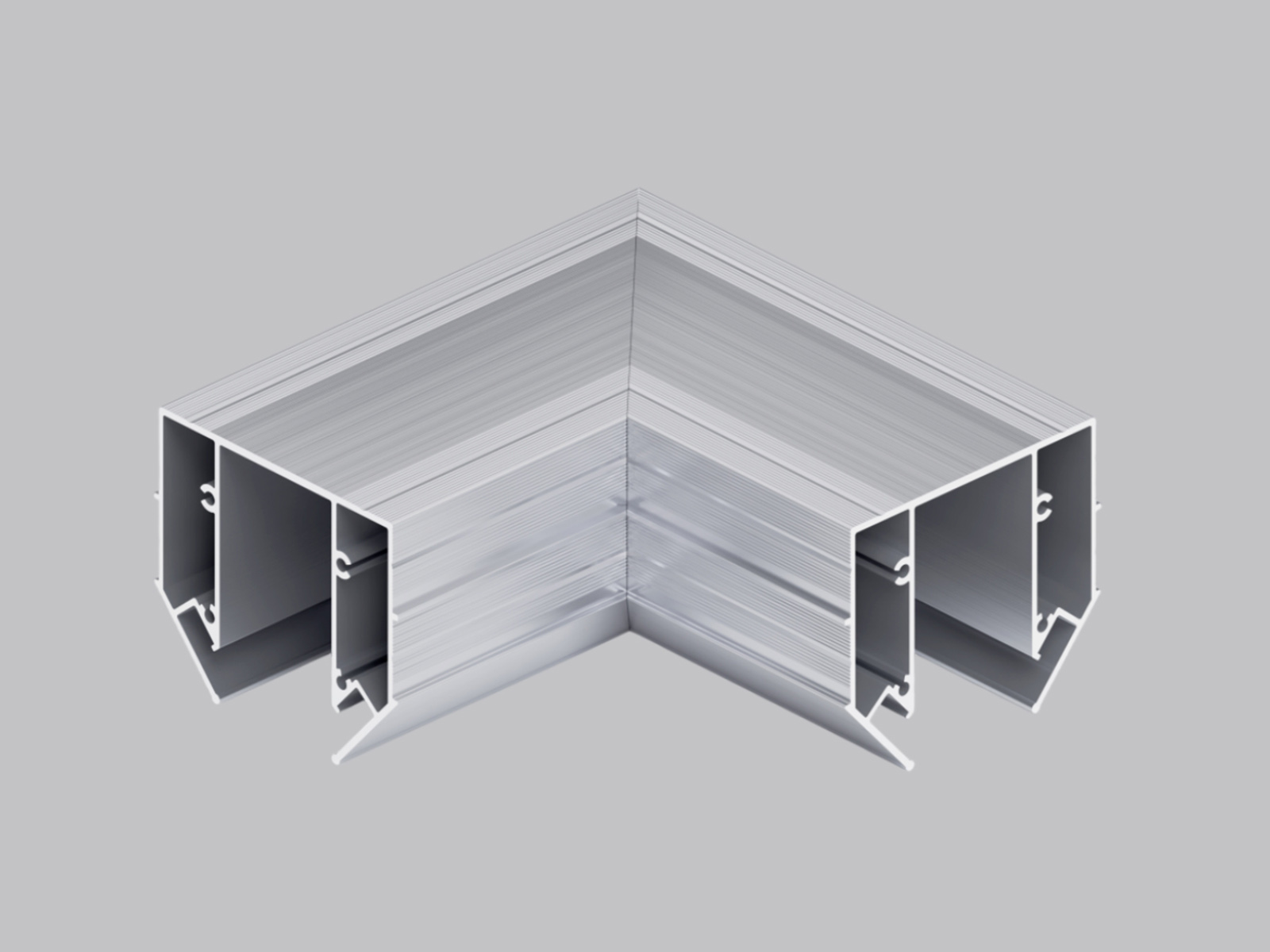

L / T / X configurations

L junction: 15 × 15 cm; T: 10 × 20 cm; X: 20 × 20 cm. Profile mechanical components and TRM electrical connectors serve different functions.

Technical specifications

07-6 / 60 × 52 mm

07-6 Magnetic Adapter
Profile section	60 × 52 mm
Length	2 m
Material	Aluminium
Colour	Grey
Profile weight	≈985 g/m
Mounting	Structural ceiling with adjustable brackets
Track	TRM 01-1 / TRM 01-2

Catalogue and drawing

07-6 · DWG↓07-6 · GLB↓Lighting catalogue · PDF↓07-6 / TRM / MT / ML · TXT↓

System questions

Is a separate track required?

Yes. TRM 01-1 or TRM 01-2 fits inside the 07-6 profile. The adapter itself is not a conductive track.

How does 07-6 differ from 07-7?

07-6 accommodates a 48 V magnetic TRM track and ML luminaires. 07-7 BASIC TRACKLINE uses a 230 V single-phase TRK track and TRL luminaires.

How does it differ from 07-8 FR?

07-6 is an adapter for a separate TRM track. The 07-8 FR profile already has an integrated magnetic track.

Which power supplies and luminaires fit?

MT supplies with a 48 V output and the ML luminaires shown on this page. Select supply power according to the total system load.
