Ceiling-mounted contour-light system
06‑15 ceiling-mounted contour profile with a visible 25 mm light line
An aluminium perimeter profile fixed to the structural ceiling when the same visible contour cannot be supported from the wall.
- Compatible screens
- D25 / PVC26
- Overall section
- 43 × 21 mm
- Standard length
- 2 m
- Product code
- 06-15
Contour profile catalogue
Wall-mounted contour-light profiles
06‑14
Ceiling-mounted contour-light profiles
06‑15
Profile overview
What is the SofiMarsel 06-15 profile?
SofiMarsel 06-15 is a ceiling-mounted aluminium profile for a stretch ceiling with a visible 25 mm illuminated perimeter contour. It creates the same screened light result as wall-mounted 06-14 but transfers the fixing point to the structural ceiling. The removable D25 or PVC26 screen preserves access to the LED strip.
Advantages
Why choose ceiling-mounted 06-15
The system keeps the visible contour concept available when wall fixing cannot be used.
Ceiling mounting
The horizontal flange fixes directly to the structural ceiling.
Visible 25 mm contour
The screen outlines the finished ceiling with a uniform architectural light line.
Serviceable lighting
The separately specified screen is removable, keeping the LED strip accessible.
Technical specifications
06-15 technical data
Mounting type, profile envelope and screen compatibility are listed together for selection and installation planning.
- Application
- Ceiling-mounted contour-light profile for stretch ceilings
- Compatible screens
- D25 Black / D25 White / PVC26
- Overall section
- 43 × 21 mm
- Standard length
- 2 m
- Weight
- ≈315 g/m
- Material
- Aluminium
- Mounting
- Direct fixing to the structural ceiling
- Visible light contour
- 25 mm
- LED mounting shelf
- 13 mm
- Light transmission
- D25 Black 20% / PVC26 50% / D25 White 80%
- Screen supply
- Specified separately from the aluminium profile
- Finish
- Mill-finish aluminium / grey
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Product code
- 06-15

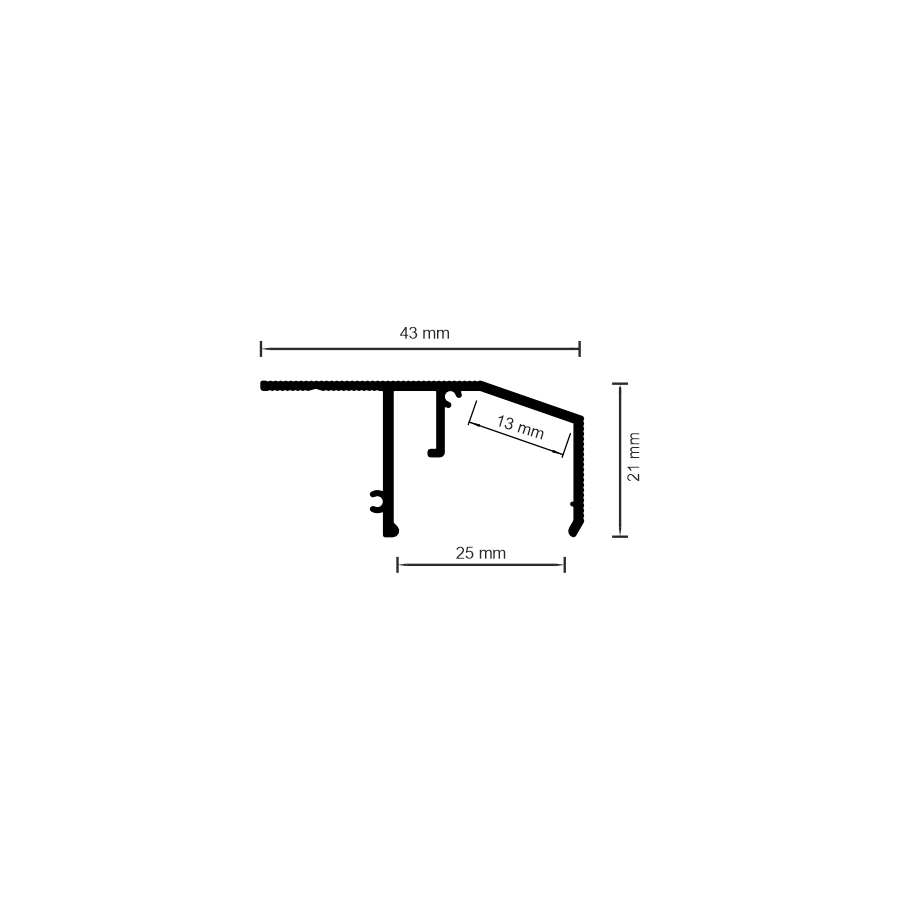

06-15 dimensions and section
The dimensioned section shows the 43 × 21 mm envelope, 25 mm screen opening and 13 mm LED mounting shelf. Download the DWG for detailed CAD coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application
A visible light frame without wall fixing
Fix 06-15 to the structural ceiling, install the LED strip on the 13 mm shelf, mount the stretch-ceiling membrane and close the 25 mm light channel with D25 or PVC26. LED strip, power supply and lighting calculation are selected for the project.
Compatible components
Three screens for the 25 mm light contour
The screen is specified separately from the aluminium profile. It closes the visible light channel and remains removable for access to the LED strip.
Black polycarbonate light screen
Darkens the unlit line and transmits 20% of the LED light.
- Material
- Polycarbonate
- Colour
- Black
- Light transmission
- 20%
- System width
- 25 mm
Compatible withSofiMarsel 06-15 · 25 mm contour system

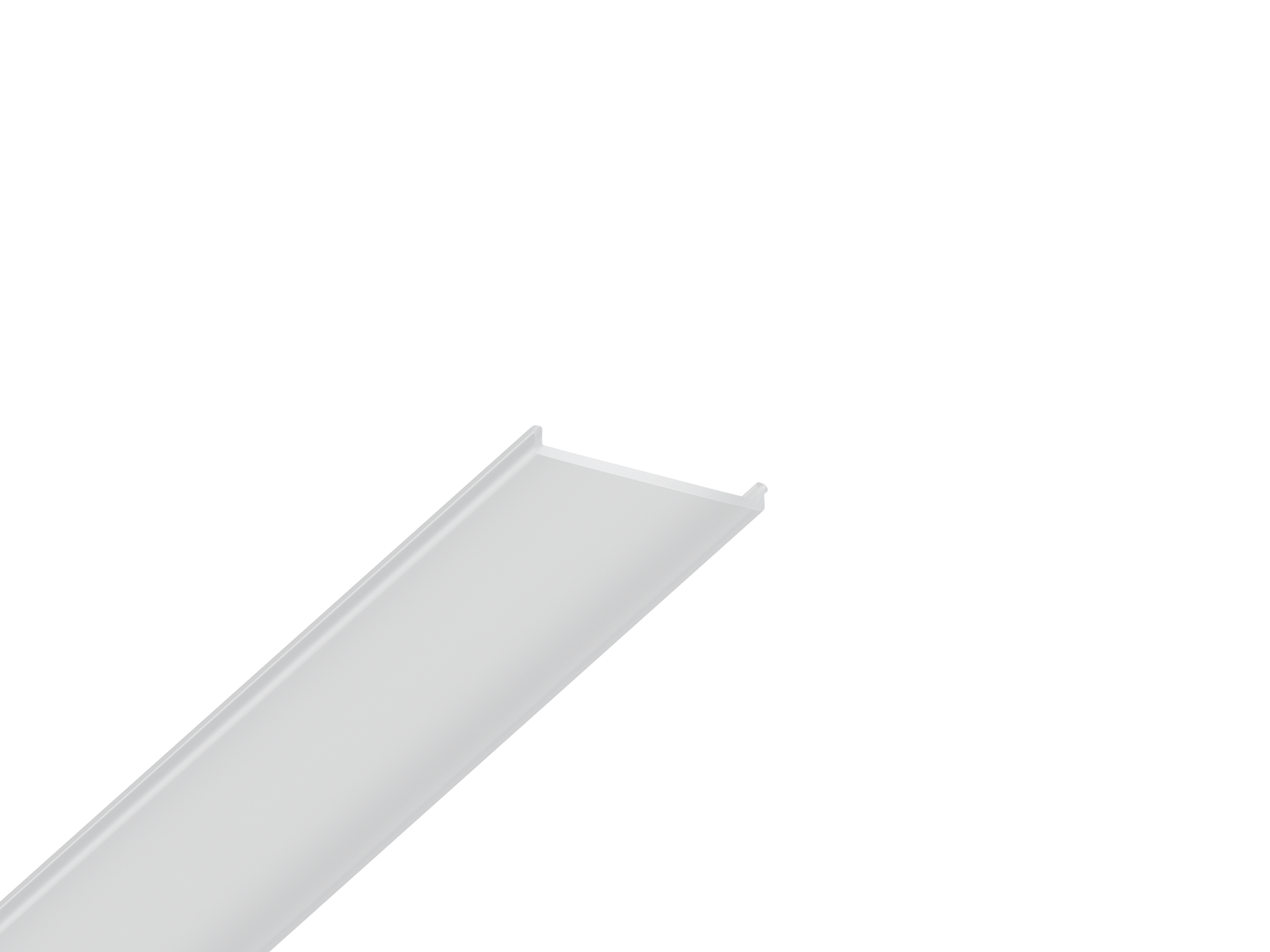

White polycarbonate light screen
Creates the brightest diffused contour and transmits 80% of the LED light.
- Material
- Polycarbonate
- Colour
- White
- Light transmission
- 80%
- System width
- 25 mm
Compatible withSofiMarsel 06-15 · 25 mm contour system
Flexible PVC light screen
Flexible press-in screen with balanced 50% light transmission.
- Material
- Flexible PVC
- Colour
- White
- Light transmission
- 50%
- System width
- 25 mm
Compatible withSofiMarsel 06-15 · 25 mm contour system

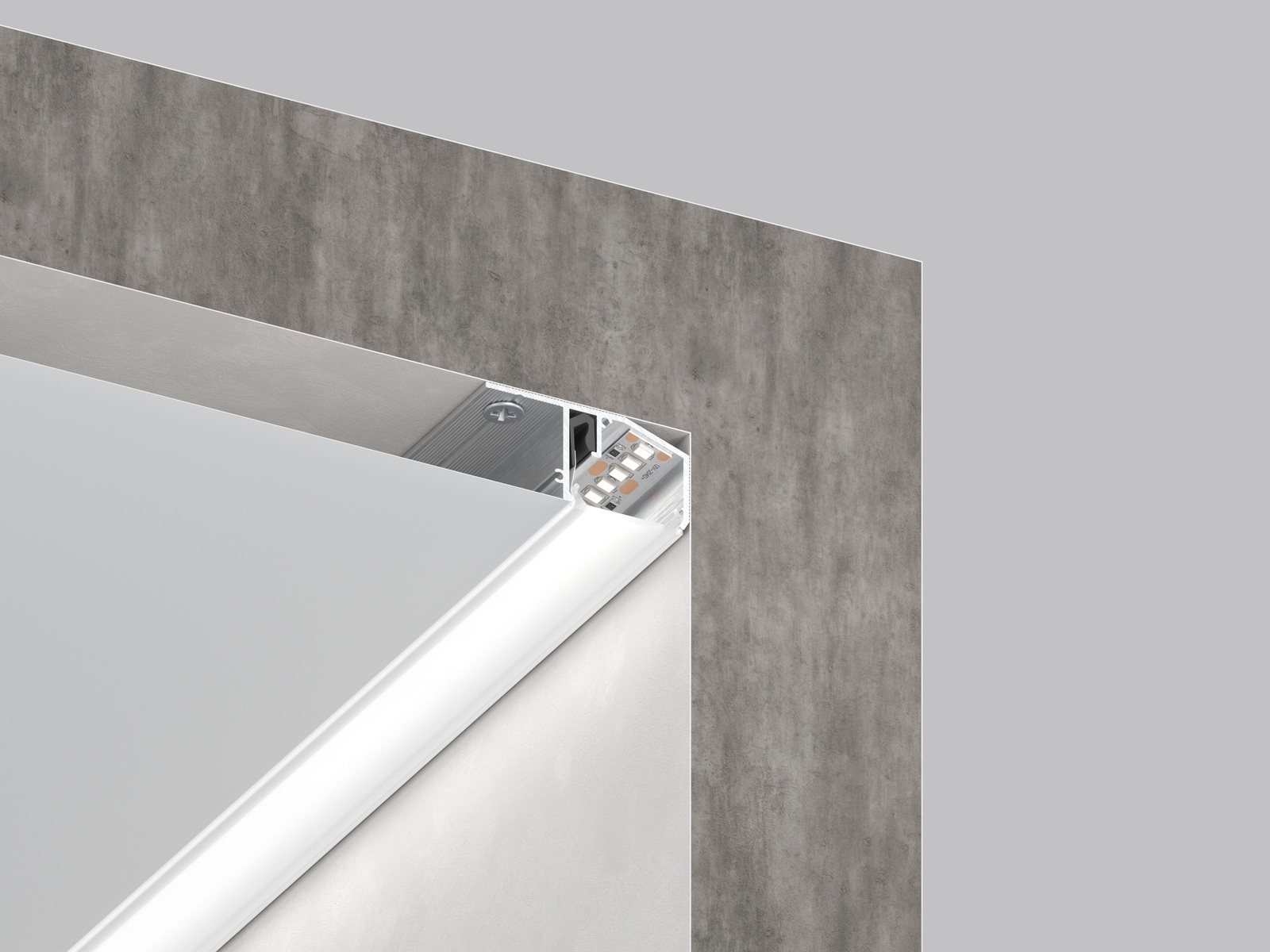

Interior view
View the 06-15 contour light in 360°
The interactive scene shows the visible 25 mm perimeter line formed by the ceiling-mounted contour system.
Open visual referenceQuestions and answers
Questions about 06-15 and its screens
When is 06-15 used?
It is used when the visible perimeter light needs to be supported from the structural ceiling rather than the wall.
How does 06-15 differ from 06-14?
Both create a visible 25 mm contour; 06-14 is wall-mounted and 06-15 is ceiling-mounted.
Which screens fit 06-15?
D25 Black, D25 White and flexible PVC26.
How much light does each screen transmit?
D25 Black 20%, PVC26 50% and D25 White 80%.
Can the LED strip be serviced?
Yes. The screen is removable and preserves access after installation.
What are the profile dimensions?
43 × 21 mm overall, a 25 mm visible contour and a 13 mm LED shelf.
Are the screens included?
No. D25 or PVC26 is specified separately.
Can I download the 06-15 CAD file?
Yes. The page provides the DWG, dimension drawing and interactive 3D model.
