Integrated track
The profile is supplied as a ready magnetic 48 V system.
SofiMarsel / Trackline
Flagship07-8 Full Ready
Magnetic Track
A complete 48 V magnetic track built into a single aluminium profile. A black lighting line with integrated conductive rails and ML magnetic luminaires.
- System voltage
- 48 V

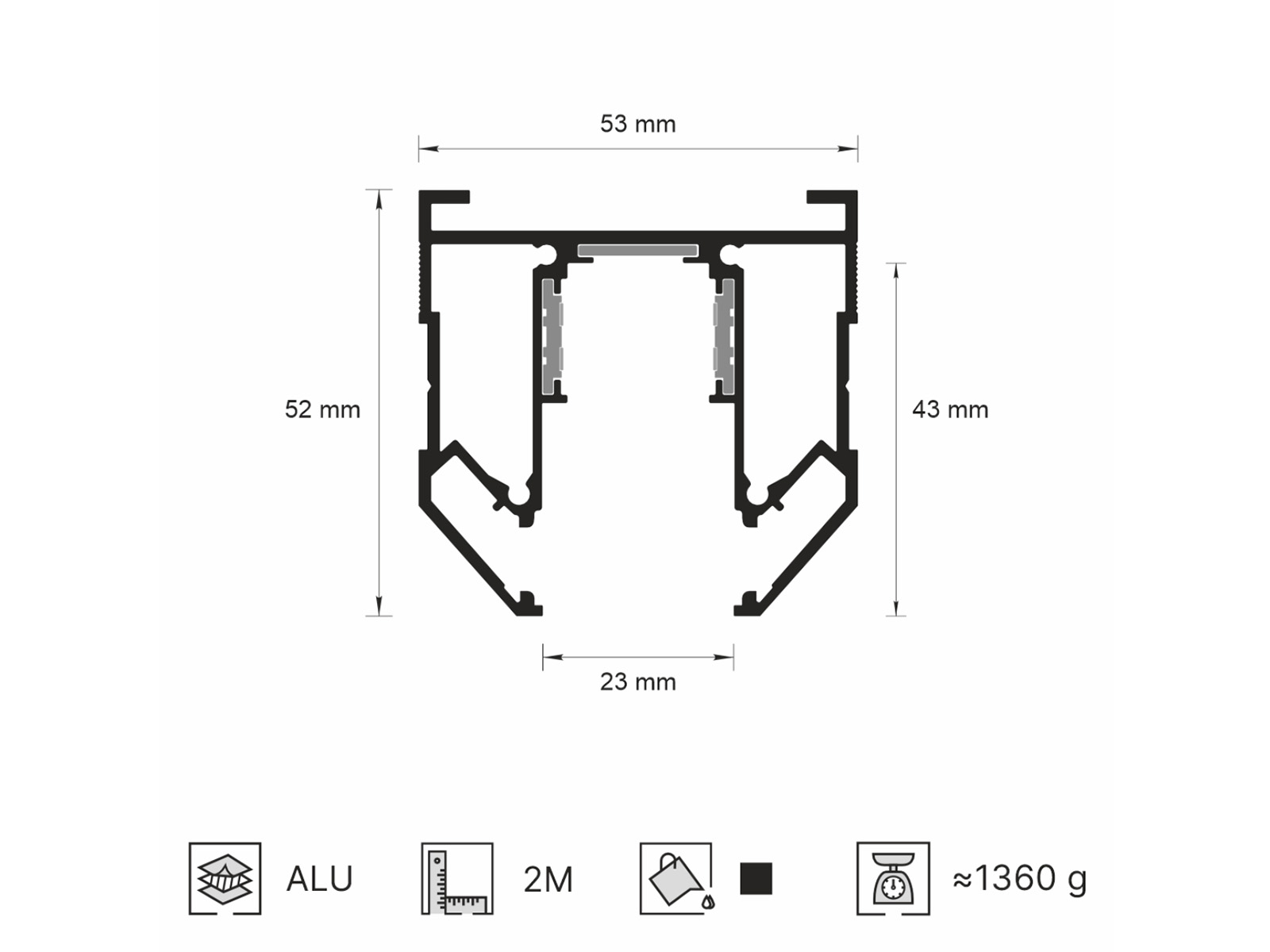

- Profile cross-section
- 53 × 52 mm
- Length
- 2 m
- ML magnetic luminaires
- ML / 27
Profile and track. One system.
SofiMarsel 07-8 FR is an aluminium profile with an integrated 48 V magnetic track for stretch ceilings. Two conductive rails supply power, while a steel strip supports magnetic luminaire attachment. The black body forms a recess for the ML range; a separate TRK busbar is not required.
Light for your design
Combine linear, adjustable, accent and pendant ML luminaires in one system.
Clean ceiling junction
A TF-347 PVC insert provides the decorative closure.
Installation and connections
Fix the profile to the structural ceiling using adjustable brackets at a recommended spacing of 50 cm. Mechanical components make straight joints and corners rigid; electrical connectors carry power.

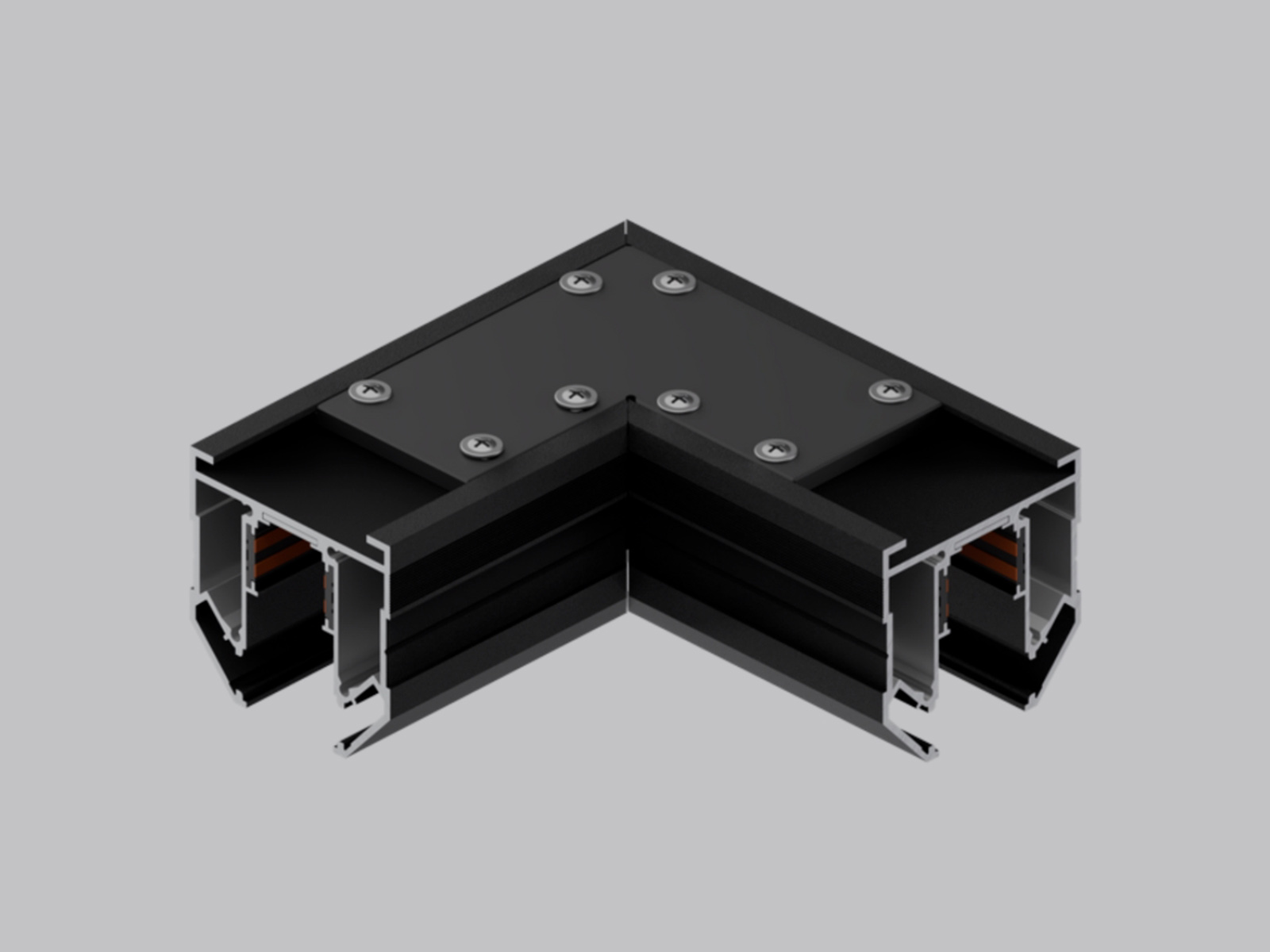

Profile assemblies
Straight and corner joints support different layouts. IM01-1, IM01-2 and IM01-3 electrical connectors are not included with the assemblies.
TF-347
A TF-347 PVC insert provides the decorative closure.
07-8 FR mechanical components

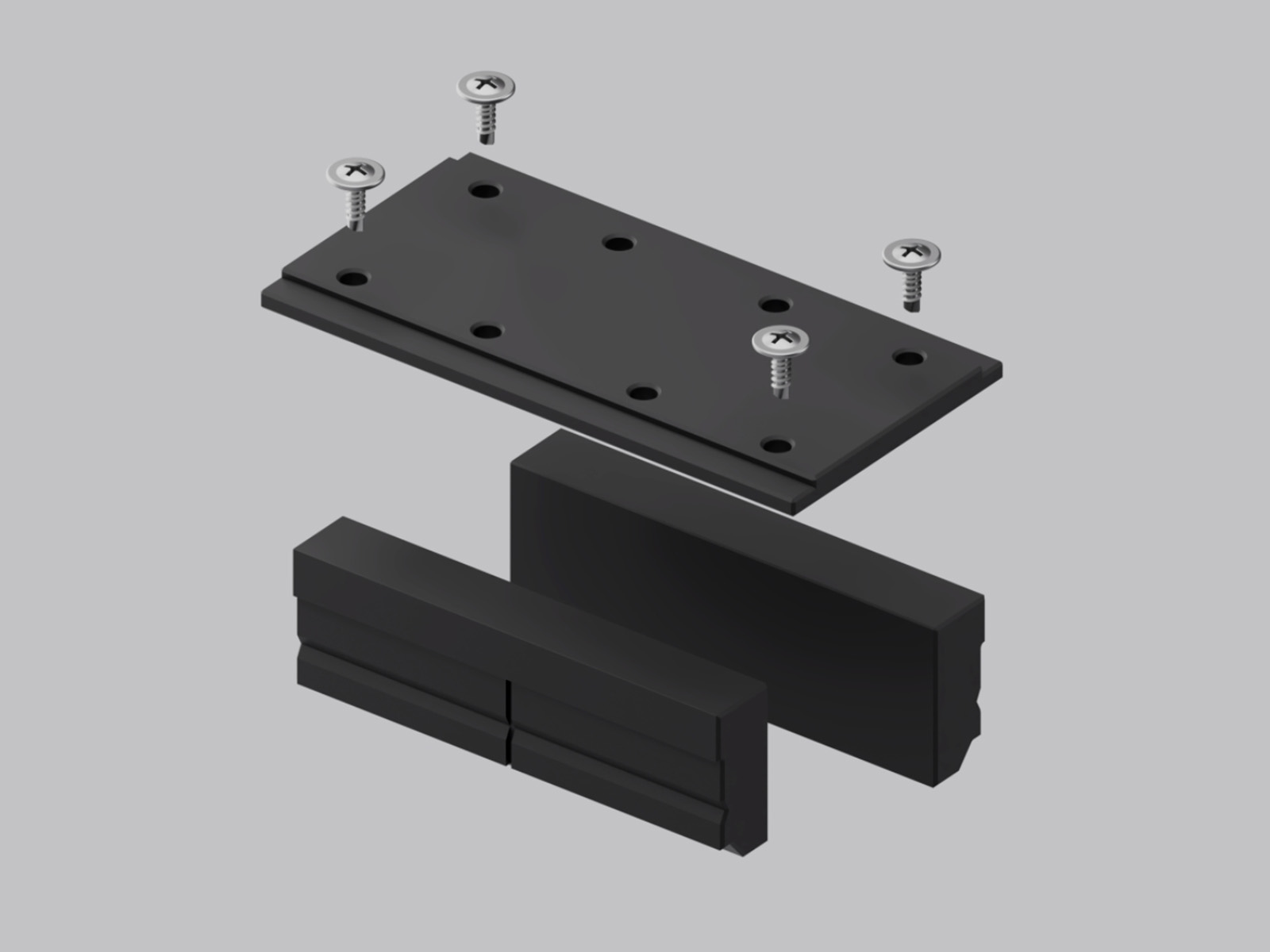

Straight joint I

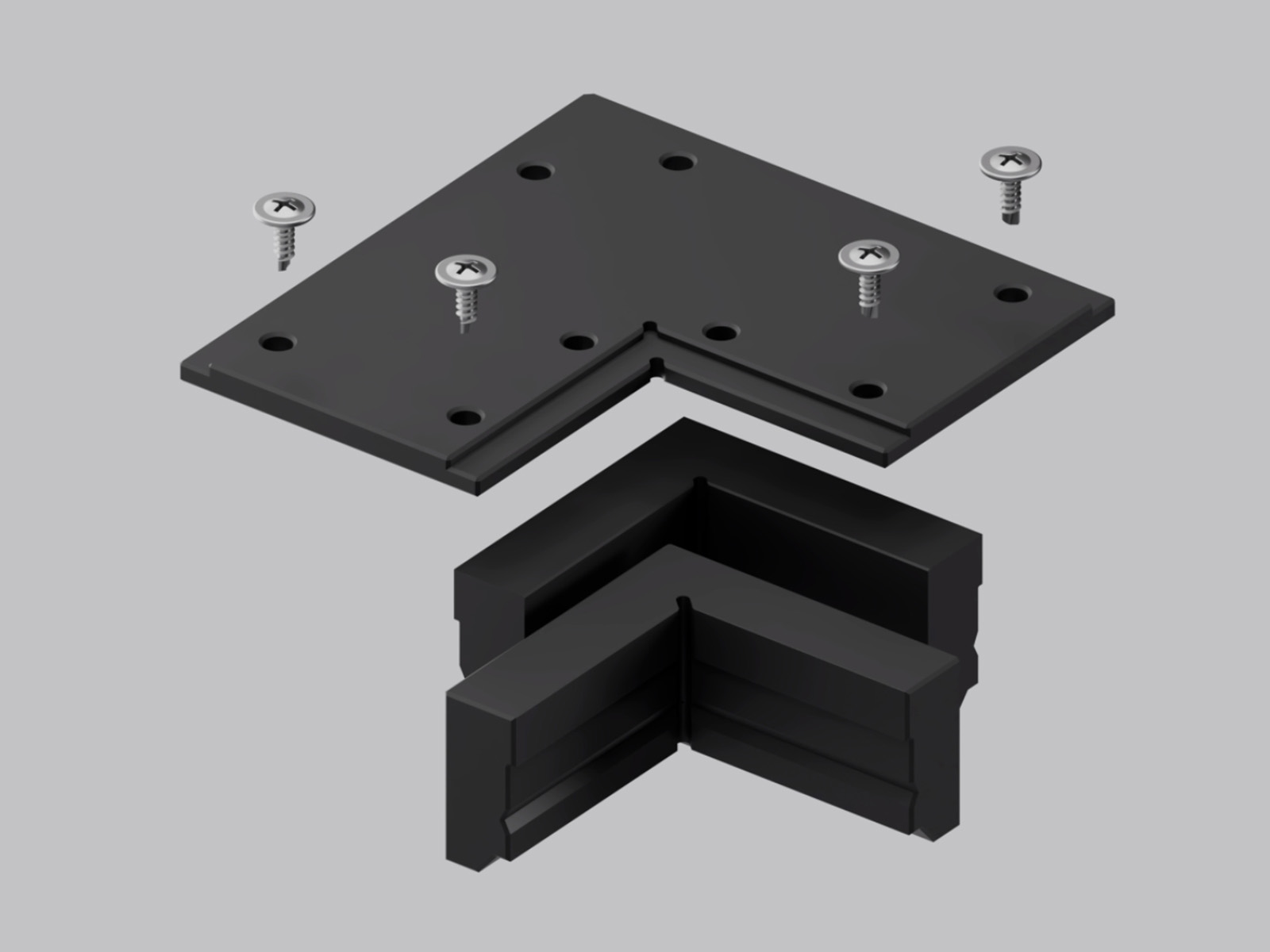

Corner joint L

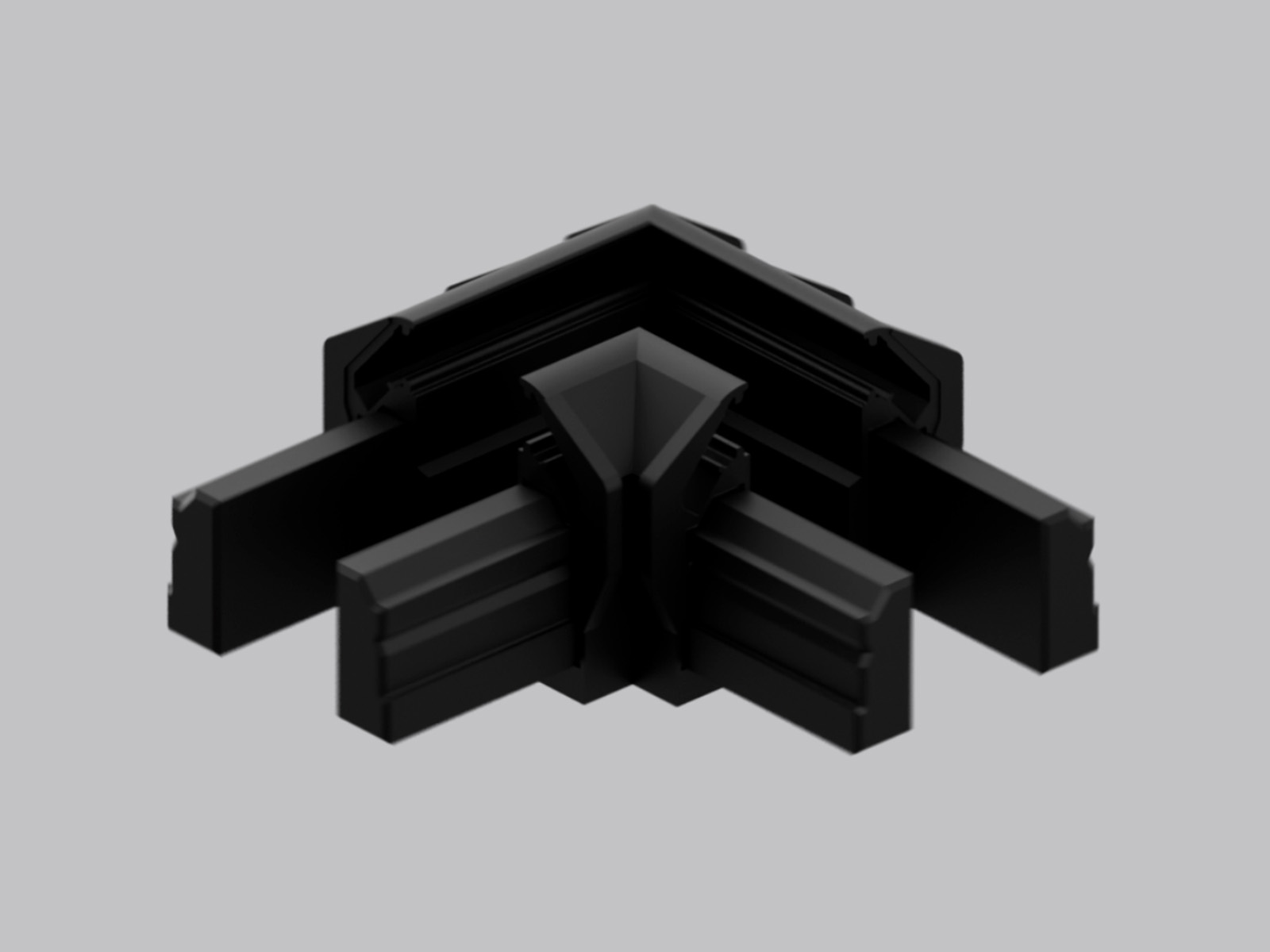

3D corner L

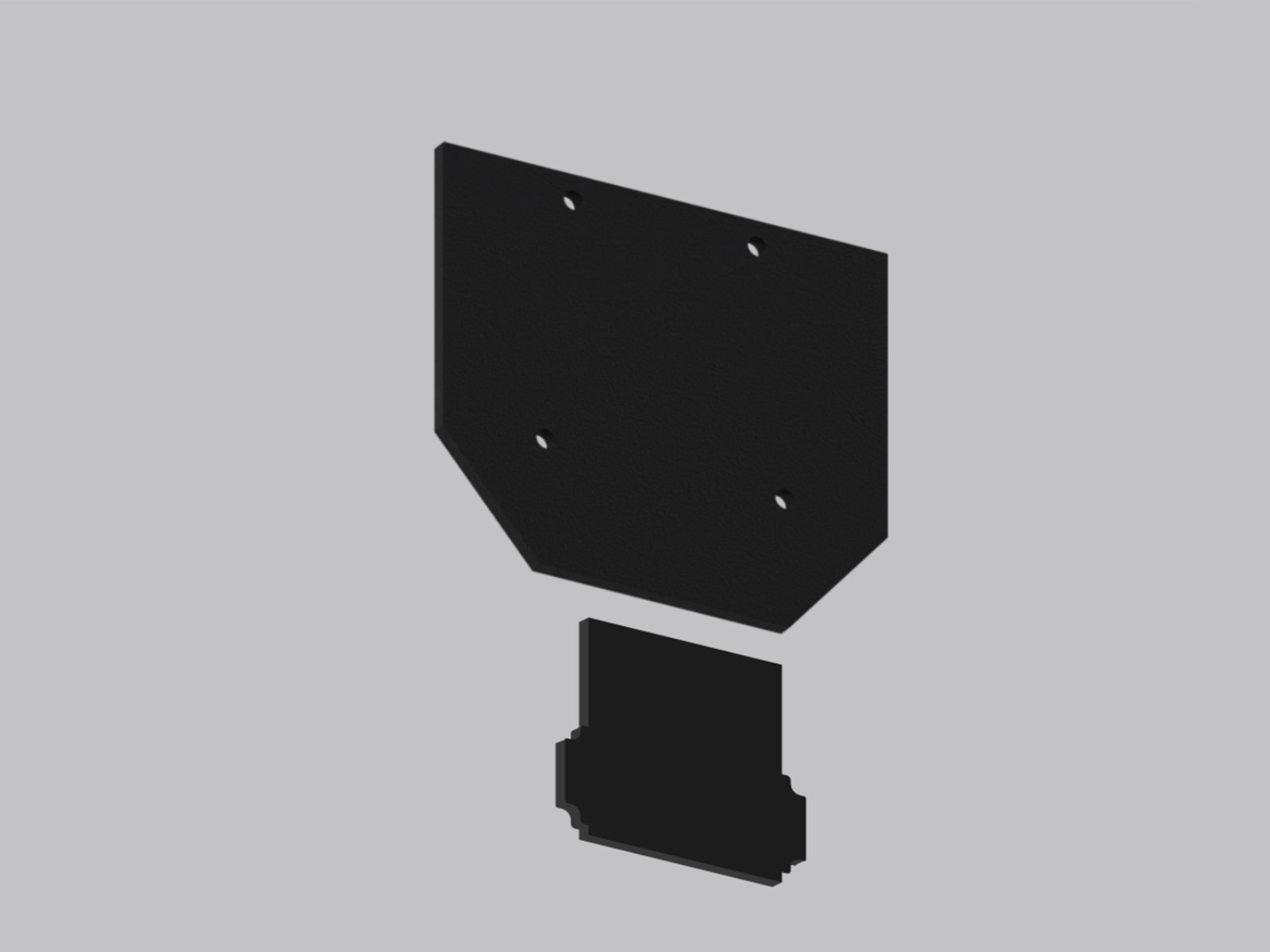

End cap
07-8 FR / TF-347
TF-347 decorative insert
The black TF-347 PVC insert finishes the junction between the stretch membrane and the 07-8 FR profile. This profile uses the standard TF-347 version.
Light, sound and ventilation
One ceiling line combines ML luminaires, MSB audio and the AirTrack ventilation module. Choose modules to suit the room.

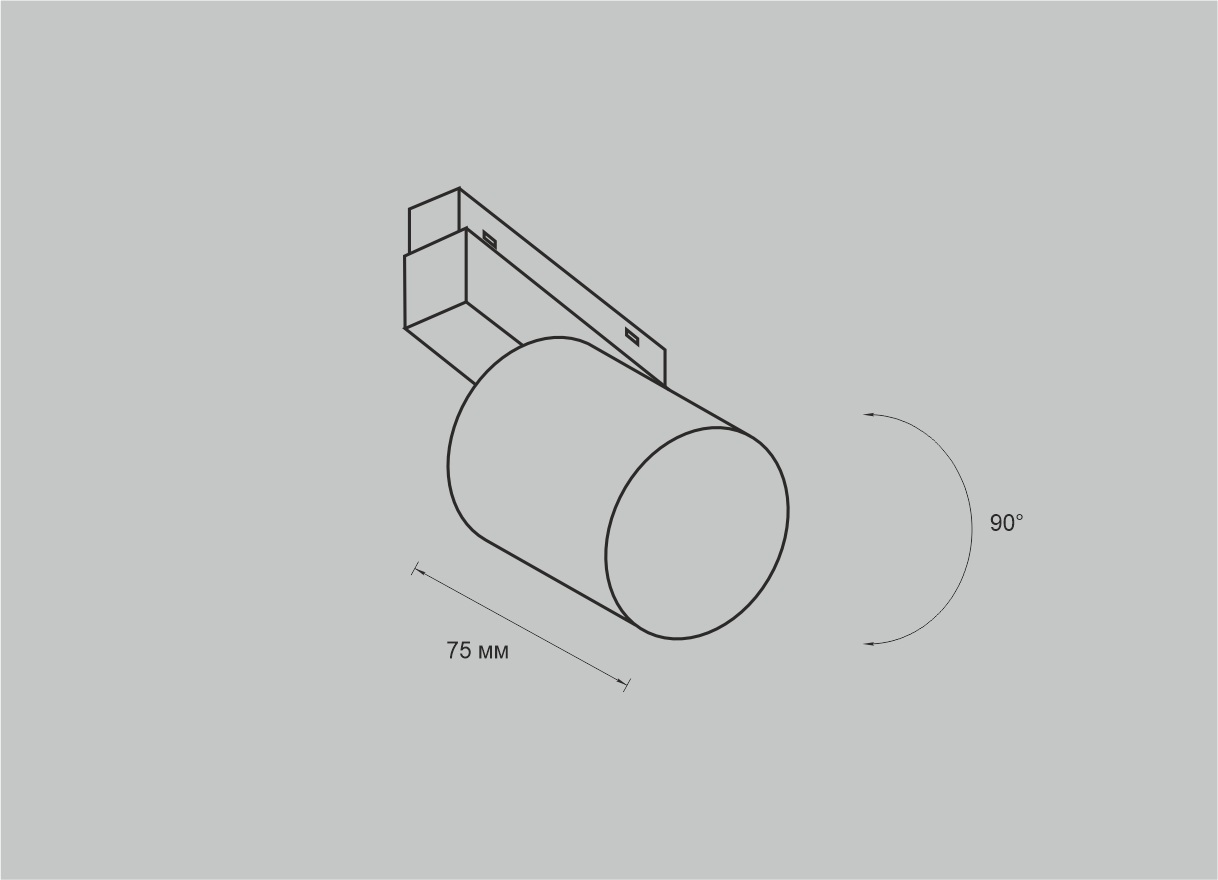

Dimension drawing

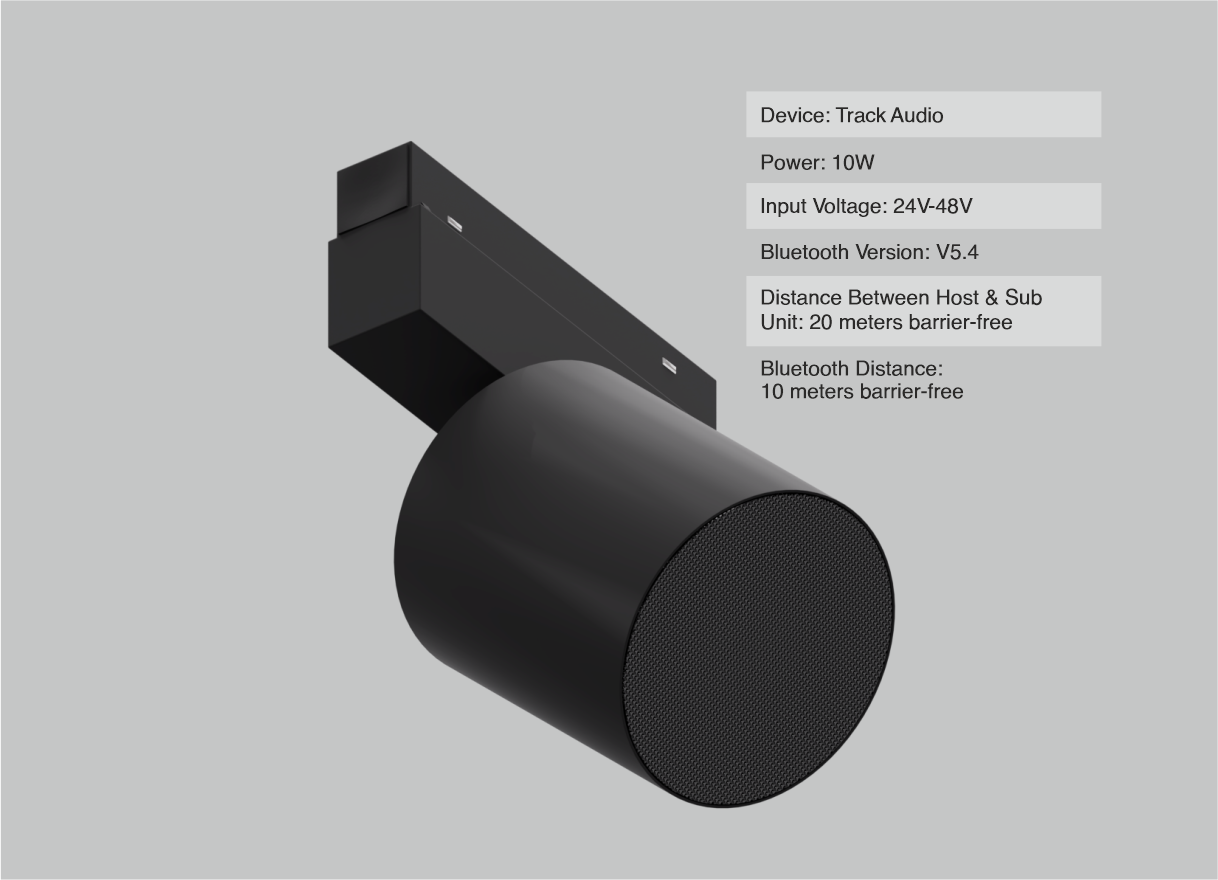

MSB 01-1 / MAGNETIC SOUND BAR
Sound inside the track
MSB 01-1 Magnetic Sound Bar is a compact speaker shaped like a track luminaire. It fits the 07-8 FR magnetic system and connects via Bluetooth.
- Power
- 10 W
- Input voltage
- 24–48 V
- Bluetooth
- 5.4
- Bluetooth range to source
- Up to 10 m without obstacles
- Host-to-sub-unit range
- Up to 20 m without obstacles
- Body length in drawing
- 75 mm
- Tilt
- 90°
- Body
- Aluminium · black
Manufacturer recommendation: space modules 1–1.5 m apart; allow one module for up to 2 m² in residential rooms. Plan the layout for the project.
Manufacturer website ↗
Dimension drawing

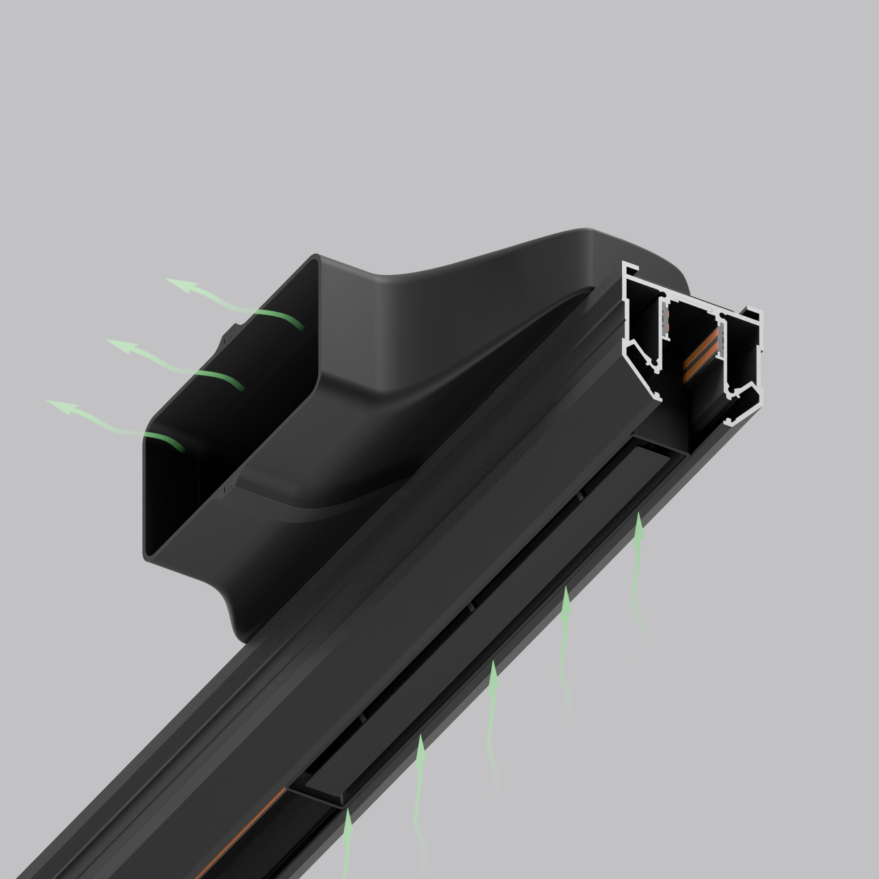

ATM 01-1 / AIR TRACK MODULE
Ventilation along the same line
ATM 01-1 Air Track Module integrates ventilation or air conditioning into the 07-8 profile. A compact diffuser is visible inside the track, while a concealed plenum above the ceiling connects to the ductwork.
- Minimum ceiling drop
- 83 mm

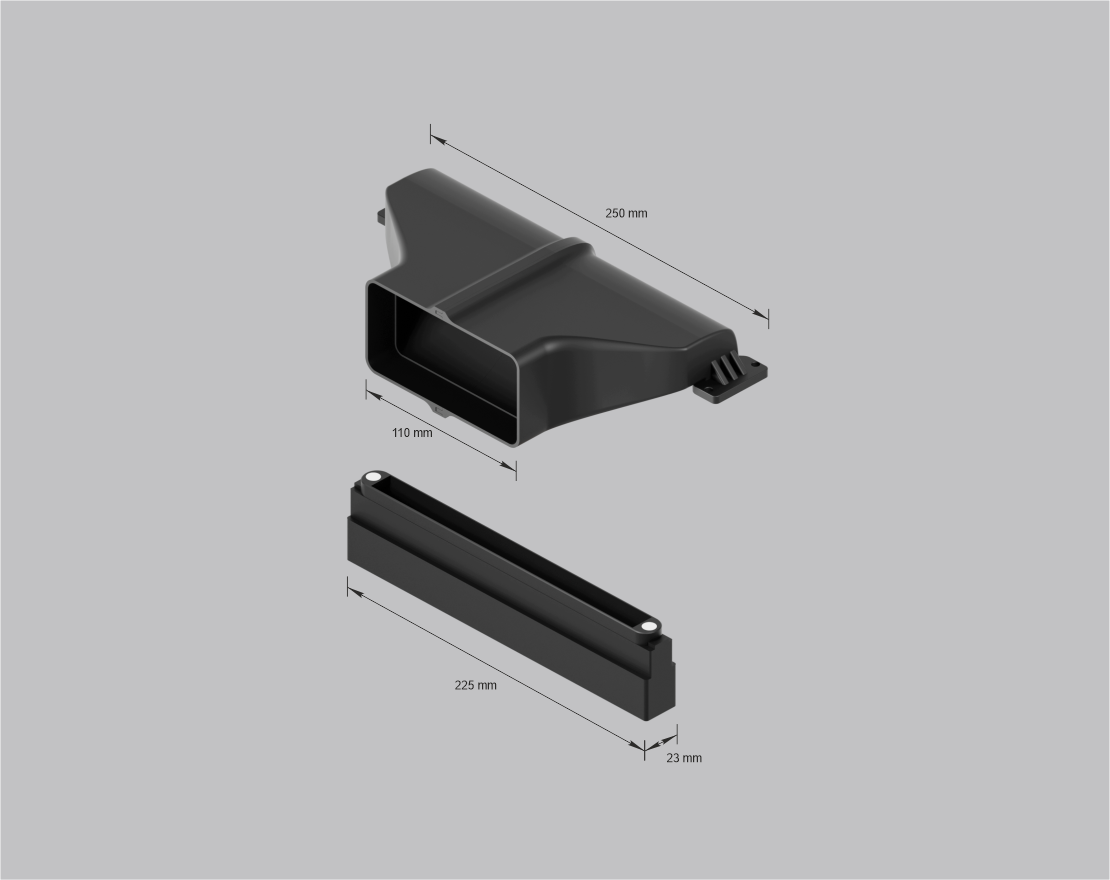

- Diffuser dimensions in drawing
- 225 × 23 mm
- Plenum length in drawing
- 250 mm
- Connection width in drawing
- 110 mm
- Colour
- Black
AirTrack connects to a ventilation or air-conditioning system. Ductwork and airflow are specified for each project.
Manufacturer website ↗How AirTrack works
YouTube ↗07-8 Full Ready Magnetic Track overview
07-8 FR / 48 V / MT / ML
Compatible magnetic system
MT power supplies and the complete ML range from the SofiMarsel lighting catalogue. Choose the lighting function, body colour and colour temperature.

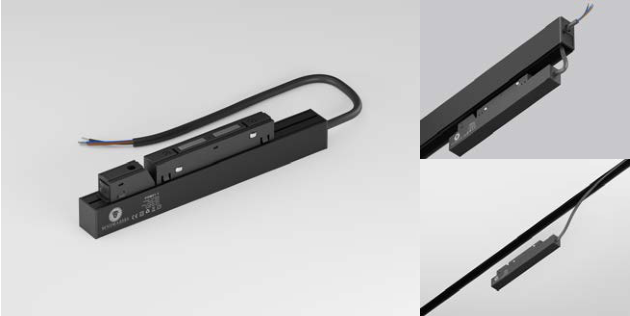

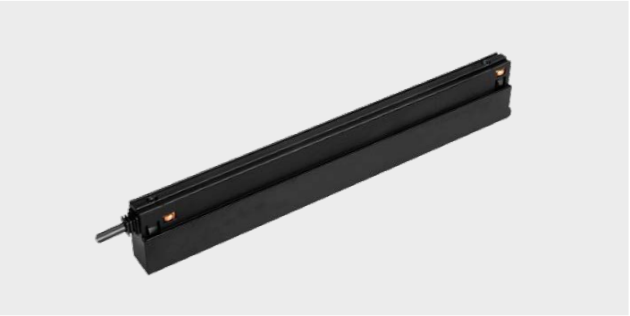

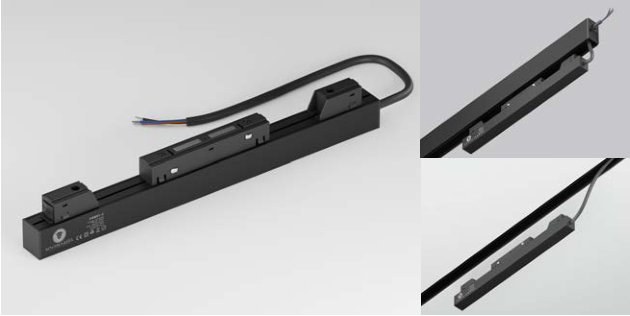

MT power supplies
Three models with a 48 V output: 100, 200 and 300 W. Select the power supply according to the total luminaire load.
Electrical connectors

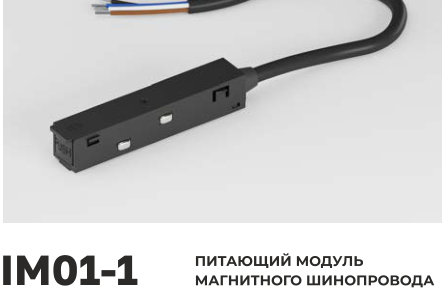

IM01-1
Power feed

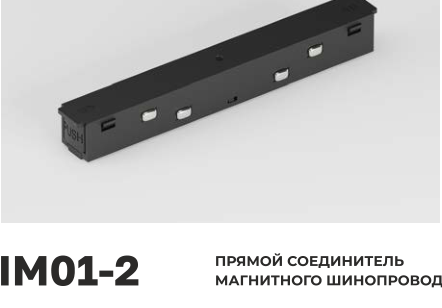

IM01-2
Straight connection

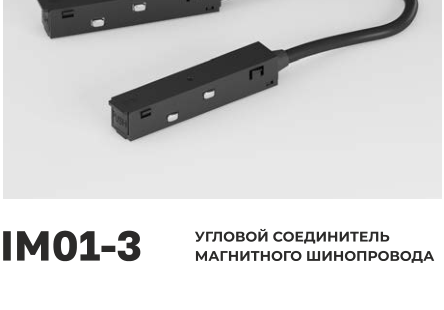

IM01-3
Flexible connection
ML / 48 V
ML magnetic luminaires
All 27 catalogue variants with exact model numbers, dimensions, power and luminous flux. Videos and interior panoramas are available in the cards.

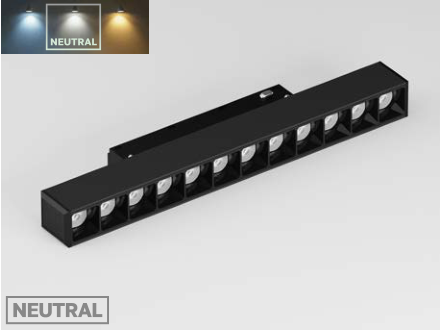

12 W · 4000 KML01-1
Black- System voltage
- 48 V
- Power
- 12 W
- Colour temperature
- 4000 K
- Luminous flux
- 960 lm
- Drawing dimensions
- 222 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 72 ↗

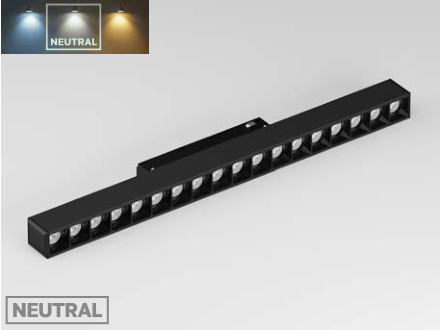

18 W · 4000 KML01-2
Black- System voltage
- 48 V
- Power
- 18 W
- Colour temperature
- 4000 K
- Luminous flux
- 1440 lm
- Drawing dimensions
- 330 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 73 ↗
12 W · 3000 KML01-3
Black- System voltage
- 48 V
- Power
- 12 W
- Colour temperature
- 3000 K
- Luminous flux
- 930 lm
- Drawing dimensions
- 222 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 74 ↗

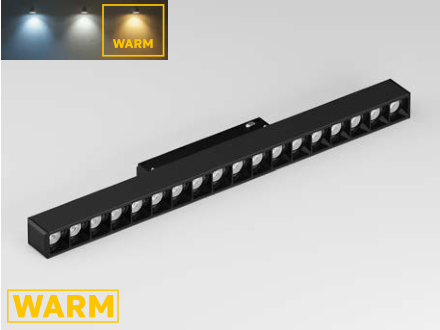

18 W · 3000 KML01-4
Black- System voltage
- 48 V
- Power
- 18 W
- Colour temperature
- 3000 K
- Luminous flux
- 1390 lm
- Drawing dimensions
- 330 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 75 ↗

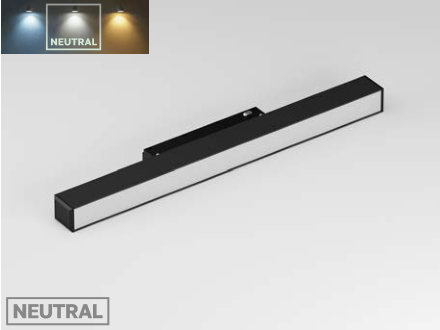

10 W · 4000 KML02-1
Black- System voltage
- 48 V
- Power
- 10 W
- Colour temperature
- 4000 K
- Luminous flux
- 800 lm
- Drawing dimensions
- 305 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 76 ↗

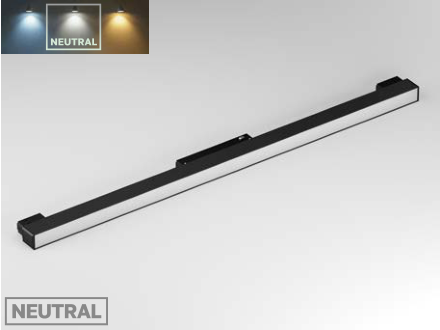

20 W · 4000 KML02-2
Black- System voltage
- 48 V
- Power
- 20 W
- Colour temperature
- 4000 K
- Luminous flux
- 1600 lm
- Drawing dimensions
- 605 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 77 ↗

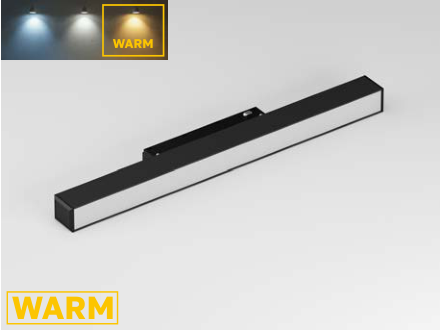

10 W · 3000 KML02-3
Black- System voltage
- 48 V
- Power
- 10 W
- Colour temperature
- 3000 K
- Luminous flux
- 780 lm
- Drawing dimensions
- 305 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 78 ↗

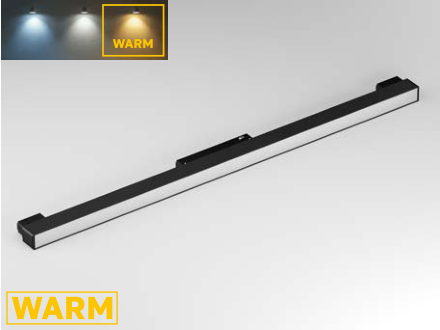

20 W · 3000 KML02-4
Black- System voltage
- 48 V
- Power
- 20 W
- Colour temperature
- 3000 K
- Luminous flux
- 1560 lm
- Drawing dimensions
- 605 × 22.2 × 43.5 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 79 ↗

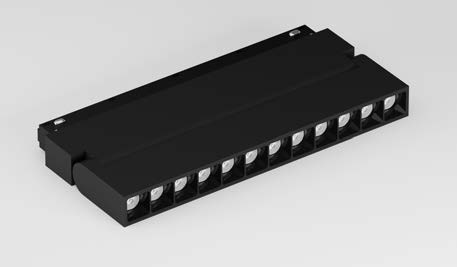

12 W · 4000 KML03-1
Black- System voltage
- 48 V
- Power
- 12 W
- Colour temperature
- 4000 K
- Luminous flux
- 960 lm
- Drawing dimensions
- 220 × 22.8 × 104 mm
- Rotation / tilt
- 180°
- Light source
- Integrated LED
Dimensioned drawing · PDF 80 ↗

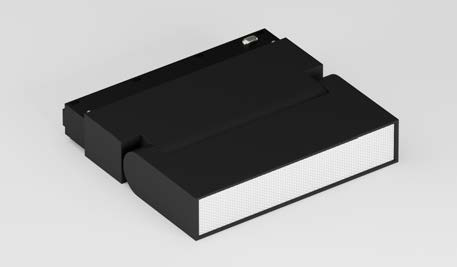

6 W · 4000 KML04-2
Black- System voltage
- 48 V
- Power
- 6 W
- Colour temperature
- 4000 K
- Luminous flux
- 480 lm
- Drawing dimensions
- 112 × 22.8 × 104 mm
- Rotation / tilt
- 180°
- Light source
- Integrated LED
Dimensioned drawing · PDF 81 ↗

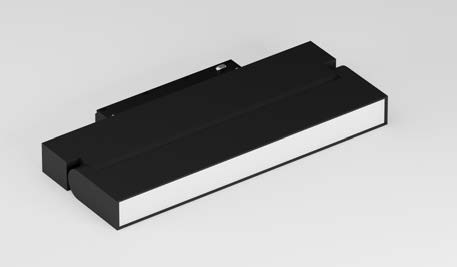

12 W · 4000 KML04-3
Black- System voltage
- 48 V
- Power
- 12 W
- Colour temperature
- 4000 K
- Luminous flux
- 960 lm
- Drawing dimensions
- 220 × 22.5 × 104 mm
- Rotation / tilt
- 180°
- Light source
- Integrated LED
Dimensioned drawing · PDF 82 ↗
12 W · 4000 KML05-1
Black- System voltage
- 48 V
- Power
- 12 W
- Colour temperature
- 4000 K
- Luminous flux
- 960 lm
- Drawing dimensions
- 245 × 22.2 × 61 mm
- Rotation / tilt
- 180°
- Light source
- Integrated LED
Dimensioned drawing · PDF 83 ↗

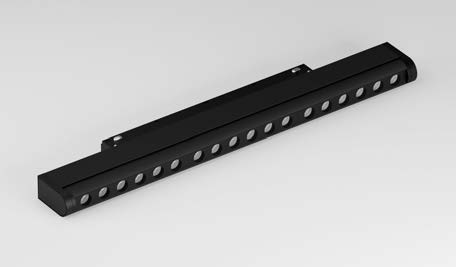

18 W · 4000 KML05-2
Black- System voltage
- 48 V
- Power
- 18 W
- Colour temperature
- 4000 K
- Luminous flux
- 1440 lm
- Drawing dimensions
- 360 × 22.2 × 61 mm
- Rotation / tilt
- 180°
- Light source
- Integrated LED
Dimensioned drawing · PDF 84 ↗

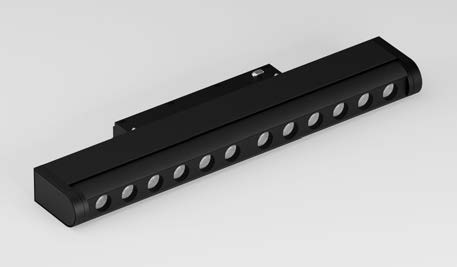

12 W · 3000 KML05-3
Black- System voltage
- 48 V
- Power
- 12 W
- Colour temperature
- 3000 K
- Luminous flux
- 930 lm
- Drawing dimensions
- 245 × 22.2 × 61 mm
- Rotation / tilt
- 180°
- Light source
- Integrated LED
Dimensioned drawing · PDF 85 ↗
18 W · 3000 KML05-4
Black- System voltage
- 48 V
- Power
- 18 W
- Colour temperature
- 3000 K
- Luminous flux
- 1400 lm
- Drawing dimensions
- 360 × 22.2 × 61 mm
- Rotation / tilt
- 180°
- Light source
- Integrated LED
Dimensioned drawing · PDF 86 ↗

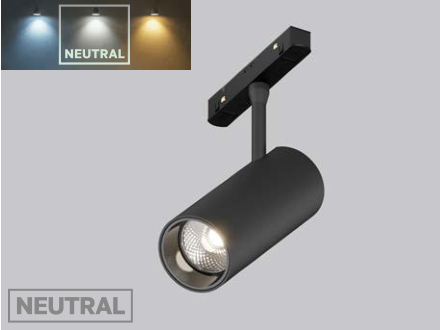

15 W · 4000 KML06-1
Black- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 4000 K
- Luminous flux
- 1200 lm
- Drawing dimensions
- Ø58 × 145 mm
- Stem
- 43 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 88 ↗

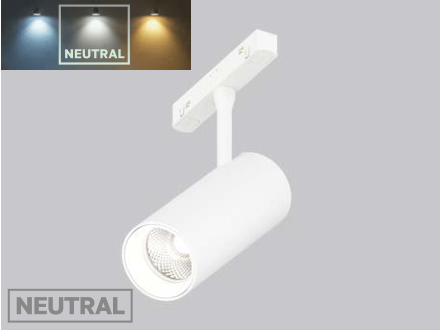

15 W · 4000 KML06-2
White- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 4000 K
- Luminous flux
- 1200 lm
- Drawing dimensions
- Ø58 × 145 mm
- Stem
- 43 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 88 ↗

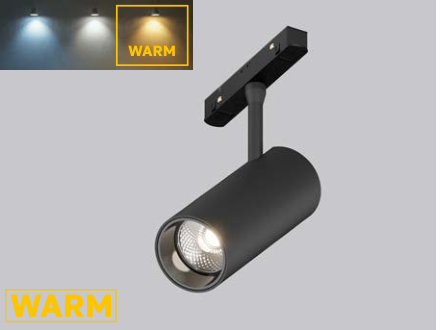

15 W · 3000 KML06-3
Black- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 3000 K
- Luminous flux
- 1150 lm
- Drawing dimensions
- Ø58 × 145 mm
- Stem
- 43 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 89 ↗

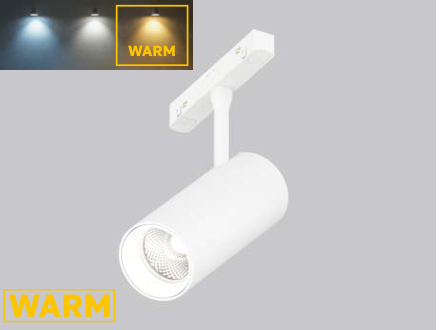

15 W · 3000 KML06-4
White- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 3000 K
- Luminous flux
- 1150 lm
- Drawing dimensions
- Ø58 × 145 mm
- Stem
- 43 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 89 ↗

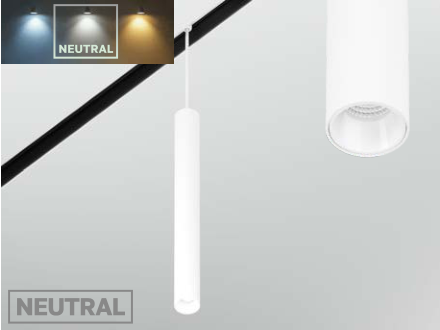

10 W · 4000 KML07-1
White- System voltage
- 48 V
- Power
- 10 W
- Colour temperature
- 4000 K
- Luminous flux
- 800 lm
- Drawing dimensions
- Ø30 × 300 mm
- Suspension
- 1200 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 90 ↗

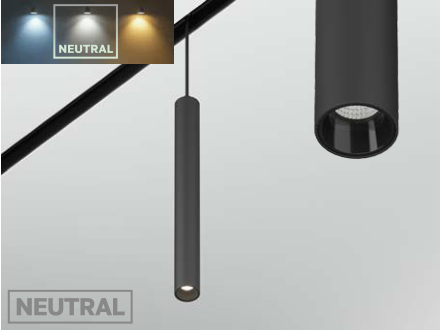

10 W · 4000 KML07-2
Black- System voltage
- 48 V
- Power
- 10 W
- Colour temperature
- 4000 K
- Luminous flux
- 800 lm
- Drawing dimensions
- Ø30 × 300 mm
- Suspension
- 1200 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 90 ↗

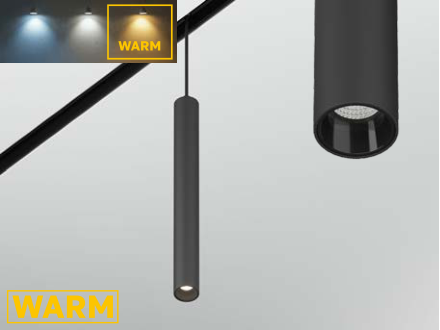

10 W · 3000 KML07-3
Black- System voltage
- 48 V
- Power
- 10 W
- Colour temperature
- 3000 K
- Luminous flux
- 780 lm
- Drawing dimensions
- Ø30 × 300 mm
- Suspension
- 1200 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 91 ↗

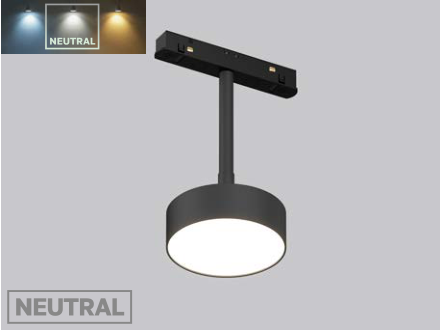

15 W · 4000 KML08-1
Black- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 4000 K
- Luminous flux
- 1200 lm
- Drawing dimensions
- Ø92.5 × 32 mm
- Stem
- 124 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 92 ↗

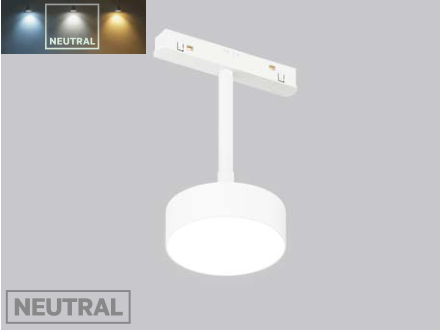

15 W · 4000 KML08-2
White- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 4000 K
- Luminous flux
- 1200 lm
- Drawing dimensions
- Ø92.5 × 32 mm
- Stem
- 124 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 92 ↗

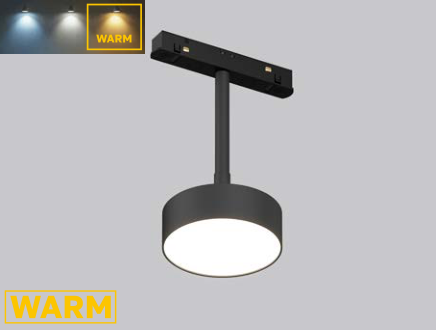

15 W · 3000 KML08-3
Black- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 3000 K
- Luminous flux
- 1100 lm
- Drawing dimensions
- Ø92.5 × 32 mm
- Stem
- 124 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 93 ↗

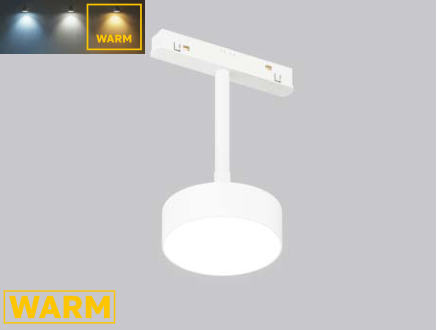

15 W · 3000 KML08-4
White- System voltage
- 48 V
- Power
- 15 W
- Colour temperature
- 3000 K
- Luminous flux
- 1100 lm
- Drawing dimensions
- Ø92.5 × 32 mm
- Stem
- 124 mm
- Rotation / tilt
- 360° / 90°
- Light source
- Integrated LED
Dimensioned drawing · PDF 93 ↗

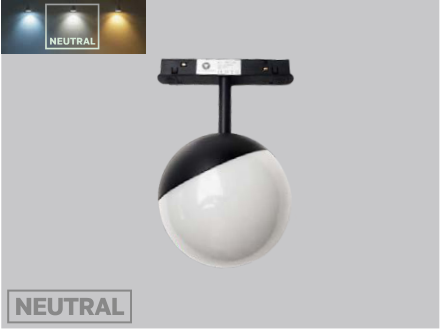

7 W · 4000 KML09-1
Black / white- System voltage
- 48 V
- Power
- 7 W
- Colour temperature
- 4000 K
- Luminous flux
- 780 lm
- Drawing dimensions
- Ø100 × 160 mm
- Light source
- Integrated LED
Dimensioned drawing · PDF 94 ↗
Technical specifications
| Profile cross-section | 53 × 52 mm |
|---|---|
| Length | 2 m |
| System voltage | 48 V |
| Colour | Black |
| Adjustable bracket spacing | 50 cm |
| Recess | 22 mm in the description; 23 mm opening in the drawing |
| ML | ML01–ML09 |
| Material | Aluminium |
| PVC | TF-347 |
System questions
Is a separate TRK track required?
No. The 48 V magnetic track is integrated into the 07-8 FR profile.
Which luminaires are compatible?
SofiMarsel ML luminaires designed for 48 V.
How is the profile fixed?
To the structural ceiling with adjustable brackets at a recommended spacing of 50 cm.
What powers the system?
A 48 V power supply sized for the load. The catalogue includes MT01-1 at 100 W, MT01-2 at 200 W and MT01-3 at 300 W.
