Flagship wall-mounted floating ceiling system
06‑18 PRO flagship profile with interchangeable light screens
A wall-mounted aluminium profile designed for fast direct LED installation and a continuous floating-light line, with three screen options for precise control of brightness and appearance.
- Compatible screens
- D13 / PVC13
- Overall profile envelope
- 22 × 40 mm
- Standard length
- 2 m
- Product code
- 06-18 PRO
Floating profile catalogue
Wall-mounted floating ceiling profiles
06‑6 PRO — 06‑18 PRO
Ceiling-mounted floating ceiling profiles
06‑22
Short answer
What is the SofiMarsel 06-18 PRO profile?
SofiMarsel 06-18 PRO is a wall-mounted aluminium profile for a floating stretch ceiling with a dedicated 13 mm screen channel. The LED strip is mounted on a right-angle shelf, which makes positioning and replacement straightforward. The completed light line can use D13 Black (20% transmission), D13 (80%) or flexible PVC13 (50%).
Lighting logic
Why 06-18 PRO is the flagship model
The profile combines installer-friendly LED access, selectable light output and a joint-free roll-fed screen system.
Fast right-angle LED mounting
The dedicated shelf holds the strip at a right angle, making the LED position easy to see, apply and service.
Three controlled light outputs
Choose 20%, 50% or 80% light transmission without changing the aluminium profile.
Continuous screen from a roll
D13 and PVC13 are cut to the required whole-metre length, helping avoid intermediate screen joints along the visible line.
Verified product data
Technical specifications
Verified official profile data plus the current screen options confirmed for 06-18 PRO.
- Application
- Wall-mounted profile for a floating stretch ceiling
- Compatible screens
- D13 Black / D13 / PVC13
- Overall profile envelope
- 22 × 40 mm
- Standard length
- 2 m
- Weight
- ≈291 g/m
- Material
- Aluminium
- LED installation
- Direct placement on a right-angle shelf
- Screen channel
- 13 mm
- Screen transmission
- Black D13 20% / PVC13 50% / White D13 80%
- Screen supply
- Continuous rolls; cut in whole-metre increments
- Available finishes
- White moiré / black moiré
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Product code
- 06-18 PRO

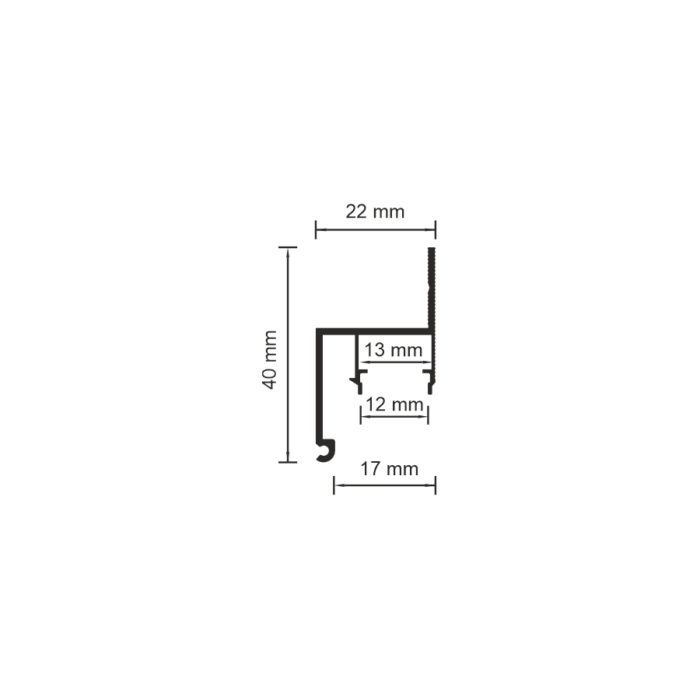

CAD and dimension drawing
Use the visible official drawing for orientation and the supplied 06-18 PRO DWG as the authoritative source for technical coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application

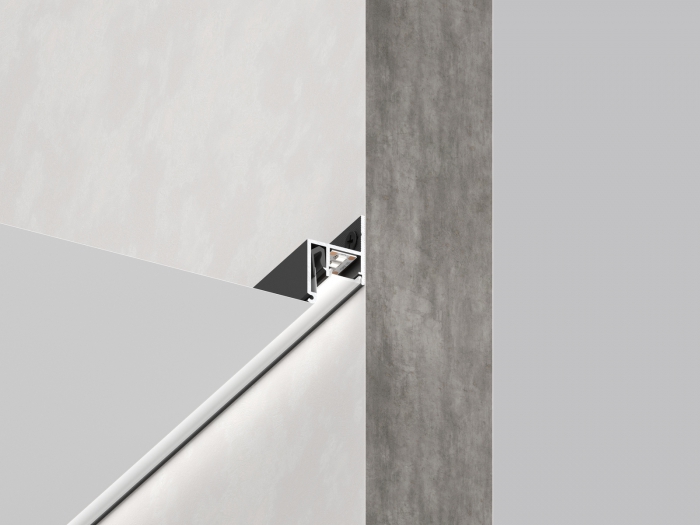

Direct, accessible LED installation at the wall perimeter
The profile is fixed to the wall; its ribbed rear face supports close contact with the substrate. The LED strip is applied to the right-angle shelf, after which the selected D13 or PVC13 screen is installed as one continuous length. The LED strip, driver, screen and lighting calculation are specified for the project.
Compatible light screens
Choose the light output: 20%, 50% or 80%
06-18 PRO accepts three separately specified continuous screens. D13 is rigid polycarbonate in black or white; PVC13 is a flexible screen that is easier to fit. All three are supplied from rolls and cut to order in whole-metre increments, so the visible line can remain free of intermediate screen joints.
Black rigid polycarbonate screen
The darkest option for restrained accent lighting. The black D13 screen transmits 20% of the light and keeps the line visually quiet when the LEDs are off.
- Material
- Rigid polycarbonate
- Colour
- Black
- Light transmission
- 20%
- Installation
- Clip-in screen for the 13 mm channel
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-18 PRO

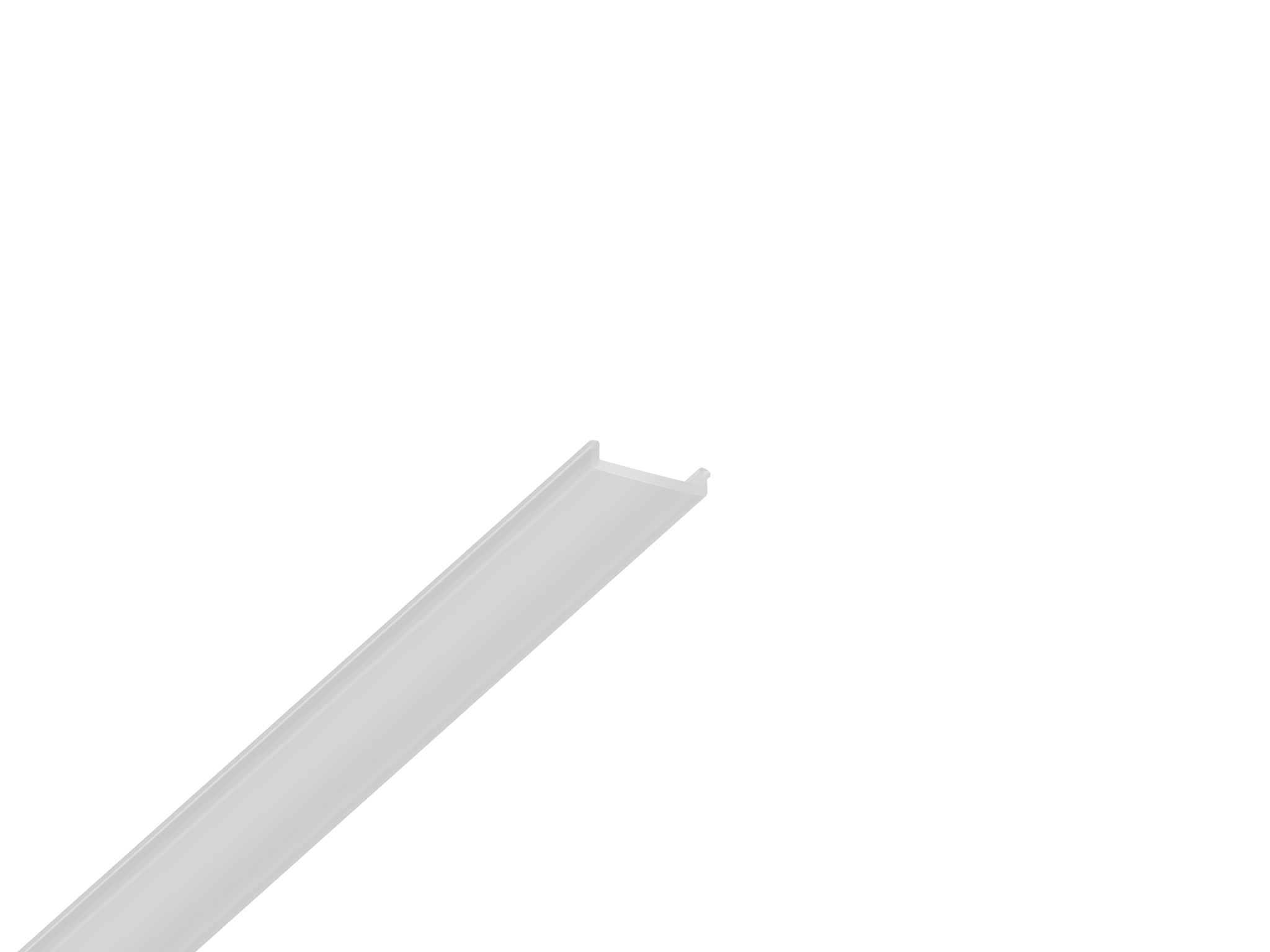

White rigid polycarbonate screen
The highest-output option. The white D13 screen transmits 80% of the light for a brighter continuous perimeter line.
- Material
- Rigid polycarbonate
- Colour
- White
- Light transmission
- 80%
- Installation
- Clip-in screen for the 13 mm channel
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-18 PRO
Flexible PVC screen
A flexible press-in screen for faster, more forgiving installation. PVC13 transmits 50% of the light and provides the balanced middle option.
- Material
- Flexible PVC
- Colour
- White translucent
- Light transmission
- 50%
- Installation
- Flexible press-in screen; easier to fit
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-18 PRO
05 / Animation
Profile 06-18 PRO in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTubeSpatial reference
Inspect the 06-18 PRO light line in a 360° scene
The Kuula view shows the spatial result of the illuminated perimeter; the official drawing and DWG remain the technical references.
Open visual referenceClear answers
Questions about 06-18 PRO and its screens
What is 06-18 PRO used for?
It is a wall-mounted profile for a floating stretch ceiling with an illuminated perimeter line and an interchangeable 13 mm screen.
Why is 06-18 PRO positioned as the flagship model?
Its right-angle LED shelf makes the strip easy to install and service, while three screens allow the light output to be changed without changing the aluminium profile.
Which screens are compatible with 06-18 PRO?
The compatible options are rigid polycarbonate D13 Black and D13, plus the flexible PVC13 screen.
How much light does each screen transmit?
D13 Black transmits 20%, PVC13 transmits 50%, and D13 transmits 80% of the light.
Which screen is easiest to install?
PVC13 is flexible and is the easiest of the three options to press into the screen channel.
Do the screens have visible joints?
The screens are supplied from rolls and cut to order in whole-metre increments, so a continuous run can be made without intermediate screen joints within the ordered length.
What are the dimensions and weight?
The official profile envelope is 22 × 40 mm, the standard length is 2 m, and the declared weight is approximately 291 g per running metre.
Which finishes and harpoon are available?
The profile is available in white moiré and black moiré and uses the SofiMarsel harpoon in white or black.
Can I download the 06-18 PRO CAD file?
Yes. This page provides the supplied 06-18 PRO DWG, an official dimension drawing and the official interactive 3D model.
