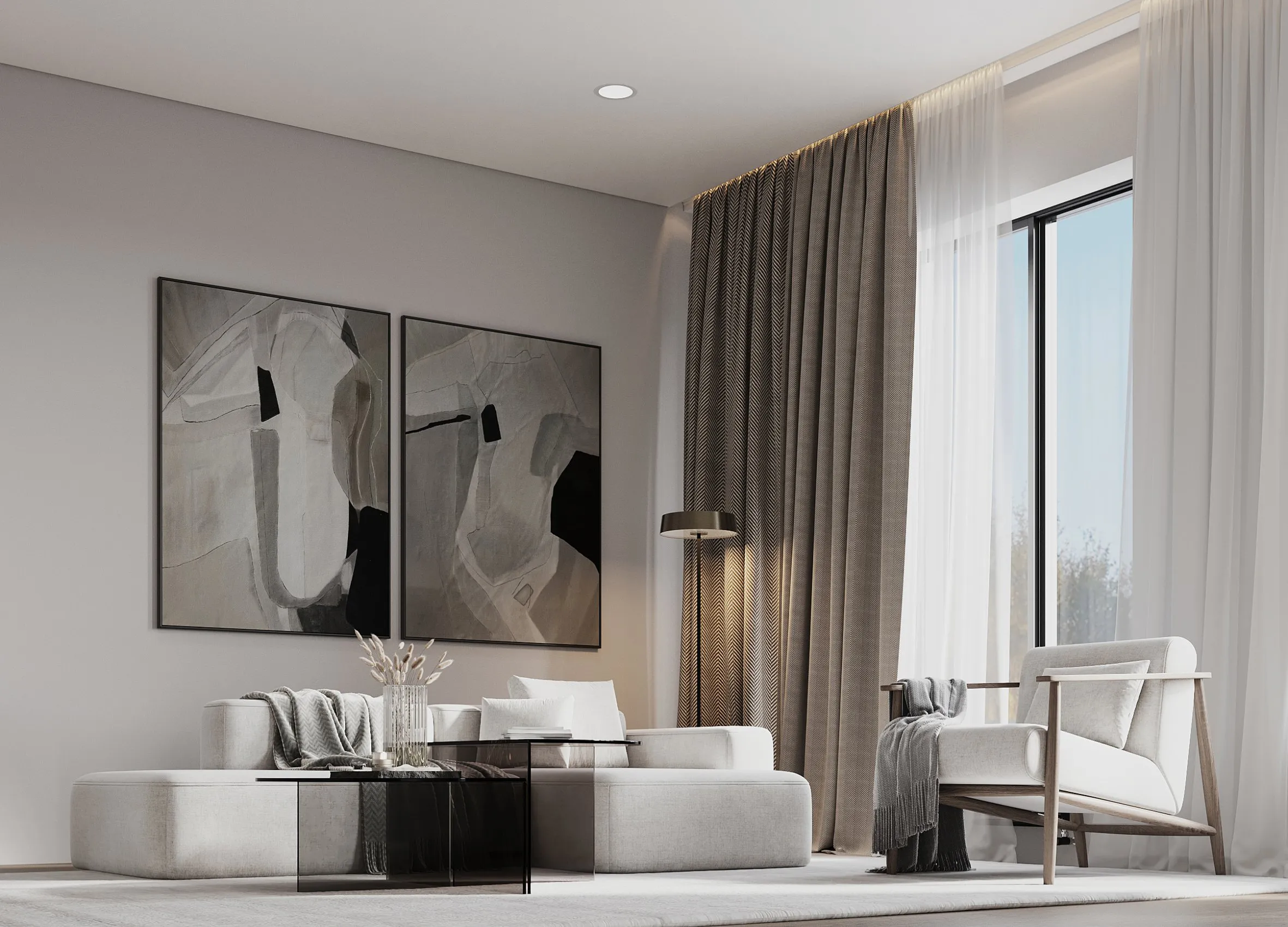

Curtains within the ceiling design
The integrated rail conceals curtain fittings and creates a neat junction with the stretch ceiling.
SofiMarsel / Curtain tracks
09-8 PRO. Two curtain tracks. Light within.
U-shaped 102 × 49 mm profile with two curtain tracks, narrow internal lighting and an independent end-cap finish.
Profile finish
- Standard length
- 2 m
- Lighting
- D13 / PVC12
- Finishes
- 2 colours
- End cap
- 2 parts
Integrated curtain track. A complete line.

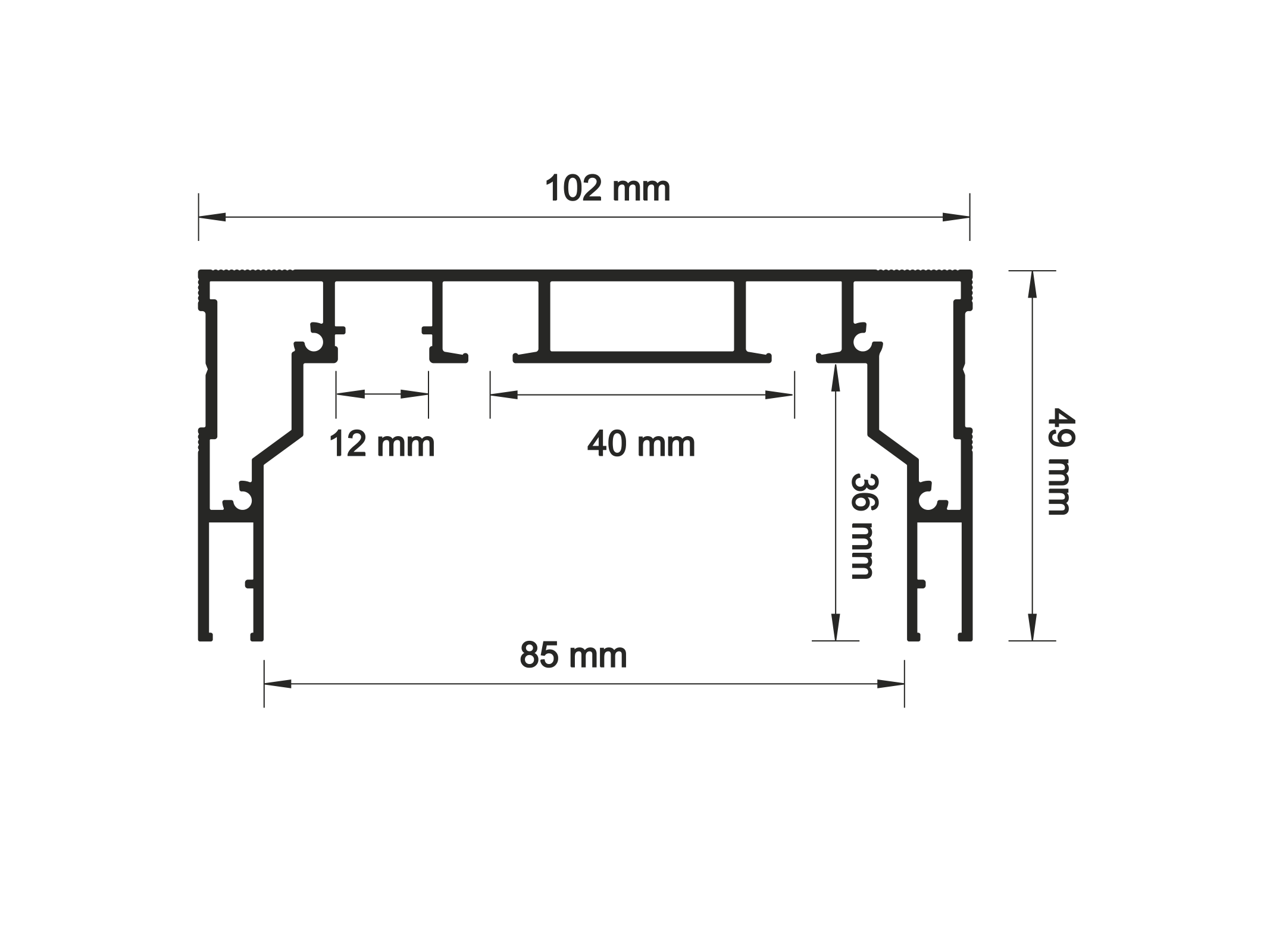

09-8 PRO is a U-shaped aluminium two-track curtain profile for stretch ceilings. Its cross-section is 102 × 49 mm, internal width 85 mm and standard length 2 m. The narrow lighting channel sits inside the profile and accepts LED strips up to 12 mm wide. Compatible diffusers are rigid D13 and D13 Black and flexible PVC12. White and black textured matte finishes, TF303 Mini / TF347 Mini inserts and a two-part end cap allow the profile to match the ceiling and end independently of a wall.
Narrow internal lighting
The light channel is concealed inside the curtain profile. Choose D13, D13 Black or flexible PVC12.
An independent end point
End the profile wherever the design calls for it: the end cap neatly finishes the exposed edge.
Integrate. Illuminate. Complete.

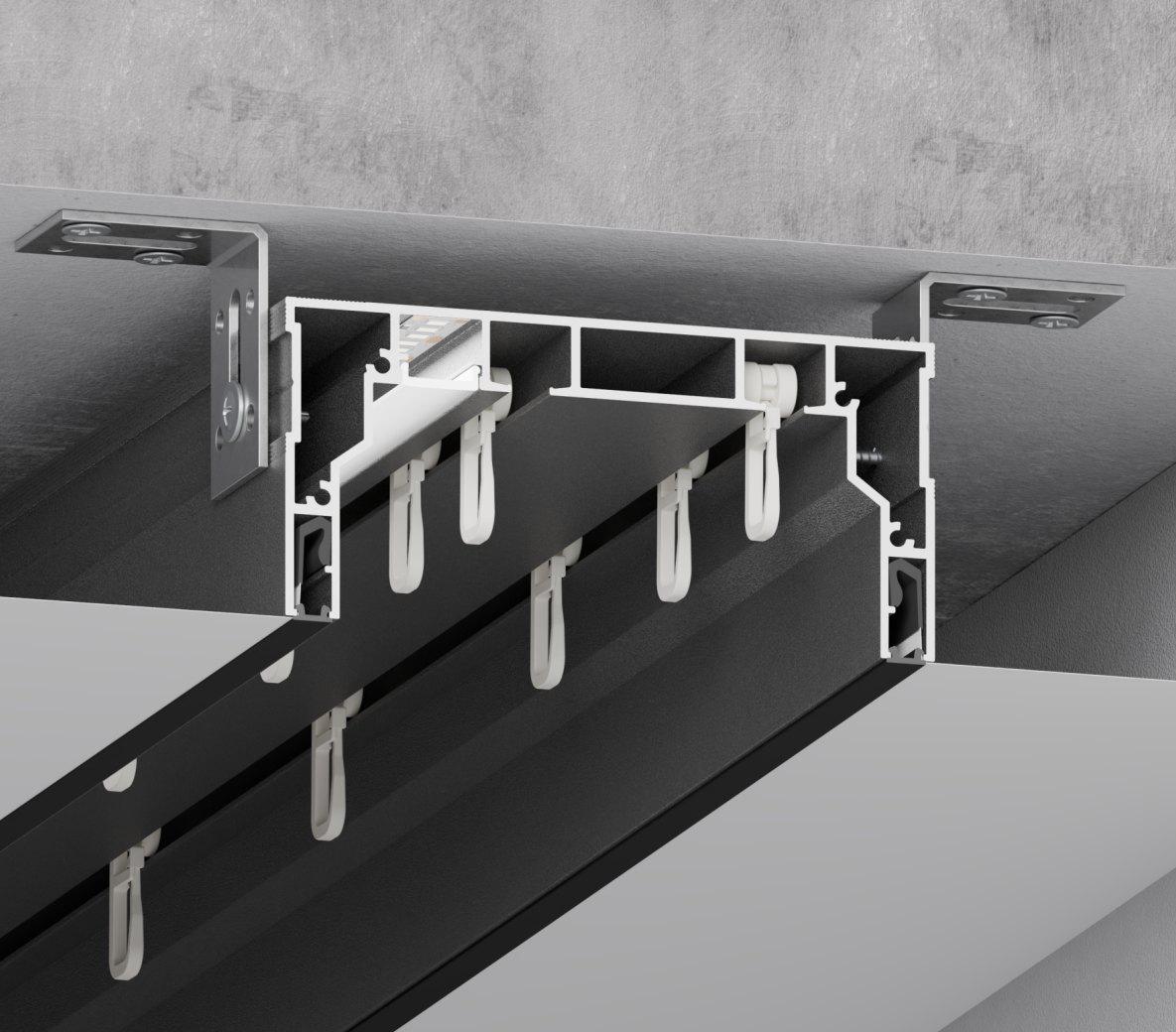

Curtain rails, a lighting channel and the ceiling membrane fixing are combined in one profile. Choose the run length, colour and fittings for your project.
Two tracks for curtains and sheers. Raised guides help the hooks travel smoothly without dropping into the track.
09-8 PRO / CURTAIN
- Profile
- 09-8 PRO
- Lighting
- Optional internal lighting: D13 / Black or PVC12
- End point
- At a wall or with an end cap
- Fittings
- Standard hooks and CS stops
A narrow light line. Inside the curtain profile.
Choose rigid D13 or D13 Black, or flexible PVC12. The lighting channel is inside the U-shaped profile and takes LED strips up to 12 mm wide.
09-8 PRO / LED
D13
Rigid white diffuserA light-coloured line for a white ceiling and profile.
- Light transmission
- 80%
09-8 PRO / LED
D13 Black
Rigid black diffuserA dark line that blends with the black profile when the light is off.
- Light transmission
- 20%
09-8 PRO / LED
PVC12
White flexible diffuserFlexible screen for a thin hidden light line inside the curtain profile.

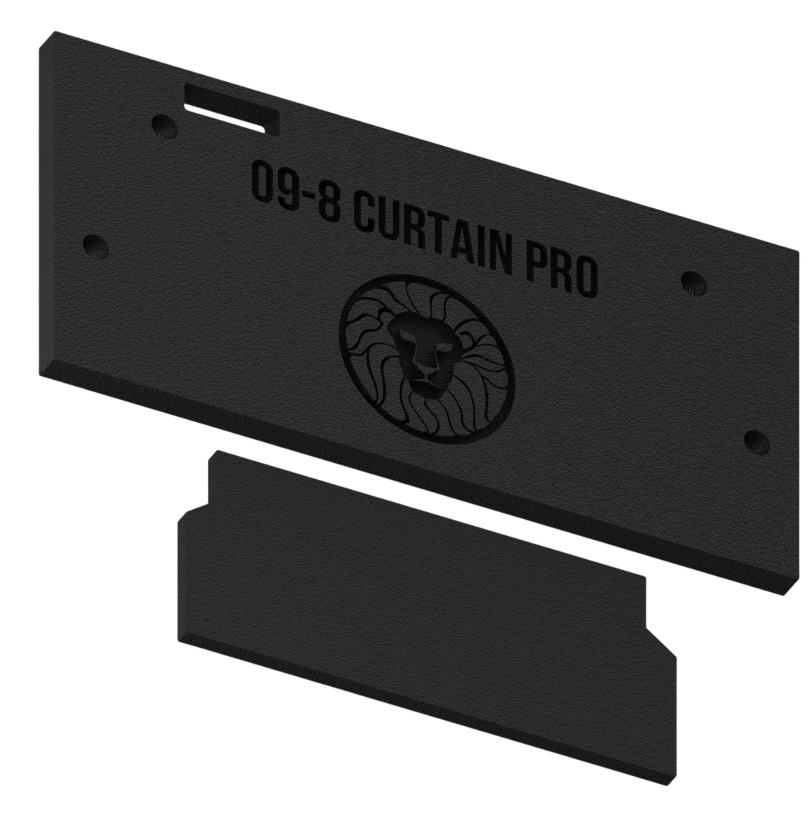

Finish the curtain track. Before it reaches the wall.
The curtain track can form an independent section of the ceiling. The end cap allows 09-8 PRO to end without joining another profile and conceals the fixing area.
Mounting part
The stretch ceiling membrane is bonded to this part.
Decorative part
Covers the bonded area and gives the end a neat finish.
A small detail. A clean junction.
Cover the mounting grooves with white TF303 Mini or black TF347 Mini inserts. Match the insert to the profile finish.
Fittings. Explore every detail.
3D / 360°

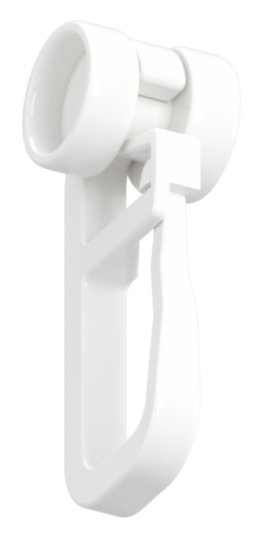

Curtain hook with glider
09-8 PRO works with standard curtain fittings. Rotate the hook to inspect the glider, body and hook shape.
09-8 PRO / Curtain hook with glider
Hook visualisation based on the product image.
Keep the hooks in the track.
CS 01-1 and CS 01-2 stops prevent hooks from leaving the curtain track. Choose white or black to match the profile.
How the stop keeps hooks in place
A short demonstration of fitting a stop in the track. Once secured, it prevents hooks from sliding out of the end.
09-8 PRO in action
An overview of the integrated profile, curtain tracks and lighting channel.
09-8 PRO / CURTAIN
Technical details
| Application | Integrated curtain track for stretch ceilings with optional lighting |
|---|---|
| Material | Aluminium |
| Standard length | 2 m |
| Profile finishes | Textured matte white / textured matte black |
| Lighting diffusers | D13 / D13 Black / PVC12 |
| Inserts | TF303 Mini — white; TF347 Mini — black |
| End cap | Two parts: mounting and decorative |
| Curtain fittings | Standard |
| Stops | CS 01-1 — white; CS 01-2 — black |
| Profile cross-section | 102 × 49 mm |
| Curtain tracks | 2 |
| Lighting channel | 12 mm |
| D13 light transmission | White — 80%; Black — 20% |
| Mounting | To the structural ceiling with adjustable brackets on both sides |
| Joining sections | Connecting elements |
| Membrane fixing | Two harpoon grooves in one plane |
| Internal width | 85 mm |
| LED strip width | Up to 12 mm |
Questions about 09-8 PRO
Is lighting required?
No. 09-8 PRO can be used as an integrated curtain track, with lighting added to suit the project.
Which diffusers fit 09-8 PRO?
Rigid D13 (80% light transmission), D13 Black (20%) and flexible PVC12 are compatible. The channel accepts LED strips up to 12 mm wide.
Can the curtain track end away from a wall?
Yes. A two-part end cap allows an independent end point: the ceiling membrane is bonded to the mounting part, and the decorative part covers the bonded area.
Which inserts and finishes are available?
The 2 m profile comes in textured matte white or black. Compatible inserts are white TF303 Mini and black TF347 Mini.
How do I prevent hooks from falling out of the track?
Use white CS 01-1 or black CS 01-2 stops to keep the hooks in the track.
What information is needed for a quote?
Specify the track length, profile colour, whether lighting is required, diffuser colour, any exposed ends, and the number of hooks and stops. Attach a room plan.
