Wall mounting
For fixing the stretch ceiling around the room perimeter.
SofiMarsel / Basic profiles
02-5 EURO Universal
Basic EURO profile. Universal.
One profile, two fixing options: wall or ceiling. The undrilled aluminium 02-5 is available in standard ≈230 g/m and lightweight Light ≈210 g/m versions.
3D model: 02-5 aluminium version
- Installation
- Wall / ceiling

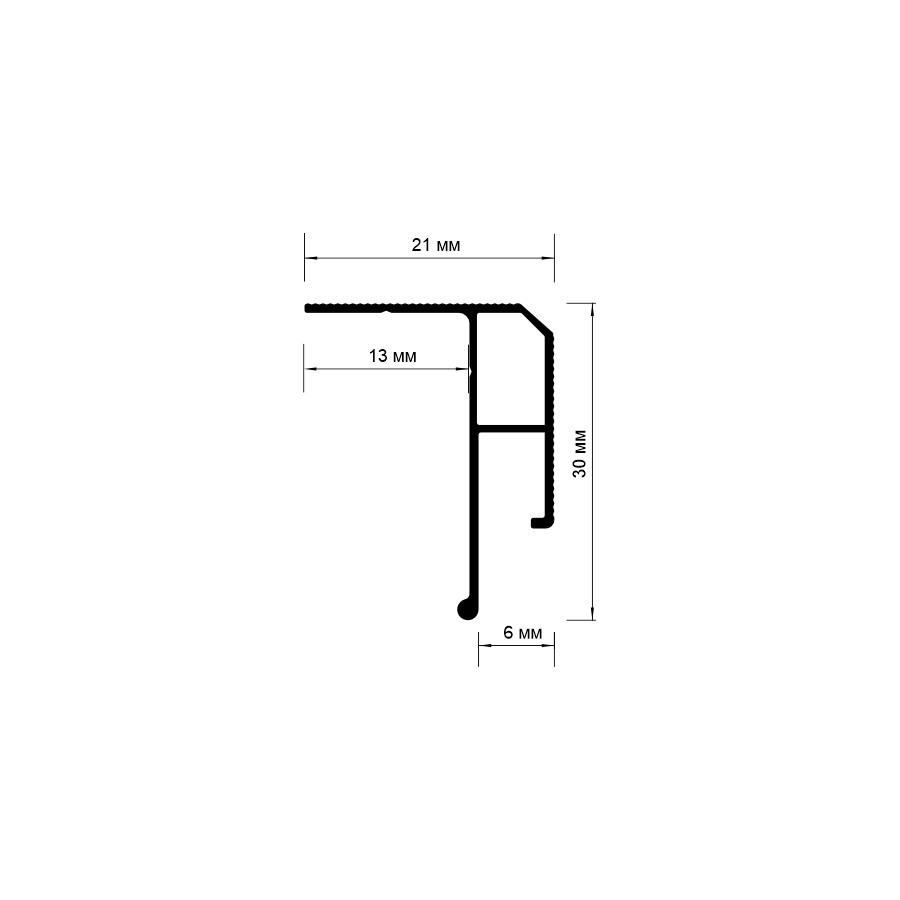

- Cross-section in drawing
- 30 × 21 mm
- Profile length
- 2 m
- Pre-drilled
- No
Wall. Or ceiling.
SofiMarsel 02-5 EURO Universal is a basic universal aluminium profile for stretch ceilings. Its design allows fixing to the wall or ceiling substrate. Supplied without pre-drilled holes in standard and lightweight Light versions.
Ceiling mounting
An alternative fixing to the ceiling substrate, according to the junction design.
Undrilled
Fixing holes are made during installation to suit the substrate and project.
02-5 or 02-5 Light
Choose the version for your project. Weights are approximate and given per linear metre of profile.
02-5 EURO Universal
Standard
≈230g/m
Standard universal version.
- Version
- Grey aluminium
- Profile length
- 2 m
02-5 EURO Universal Light
Lightweight Light
≈210g/m
A lighter version for projects prioritising economy.
- Version
- Grey aluminium
- Profile length
- 2 m
Two installation options
Choose wall or ceiling fixing to suit the site. The profile is undrilled: hole positions and fixings are selected according to the substrate and installation design.
02-5 EURO Universal installation and application
Technical specifications
| Cross-section in drawing | 30 × 21 mm |
|---|---|
| Profile length | 2 m |
| Installation | Wall / ceiling |
| Material | Aluminium |
| Pre-drilled | No |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈230 g/m |
| Weight per linear metre · Lightweight Light | ≈210 g/m |
Questions about 02-5 EURO Universal
How does Light differ?
Standard 02-5 weighs approximately 230 g/m, while Light weighs approximately 210 g/m. Both versions support wall or ceiling fixing.
Is the profile pre-drilled?
No. Both versions are supplied without pre-drilled holes.
Where can 02-5 be fixed?
To the wall or ceiling substrate, depending on the project and mounting arrangement.
Is weight given per metre?
Yes, it is the approximate weight per linear metre. The supplied profile length is 2 m.
