SofiMarsel / Basic profiles

02-8

Basic ceiling profile. With TL insert.

02-8 fixes to the ceiling and accepts a decorative PVC TL insert. One version only — approximately 150 g/m.

3D model: 02-8 aluminium version

Installation: Ceiling-mounted
Cross-section in drawing: 18 × 23 mm
Profile length: 2 m
PVC insert: TL

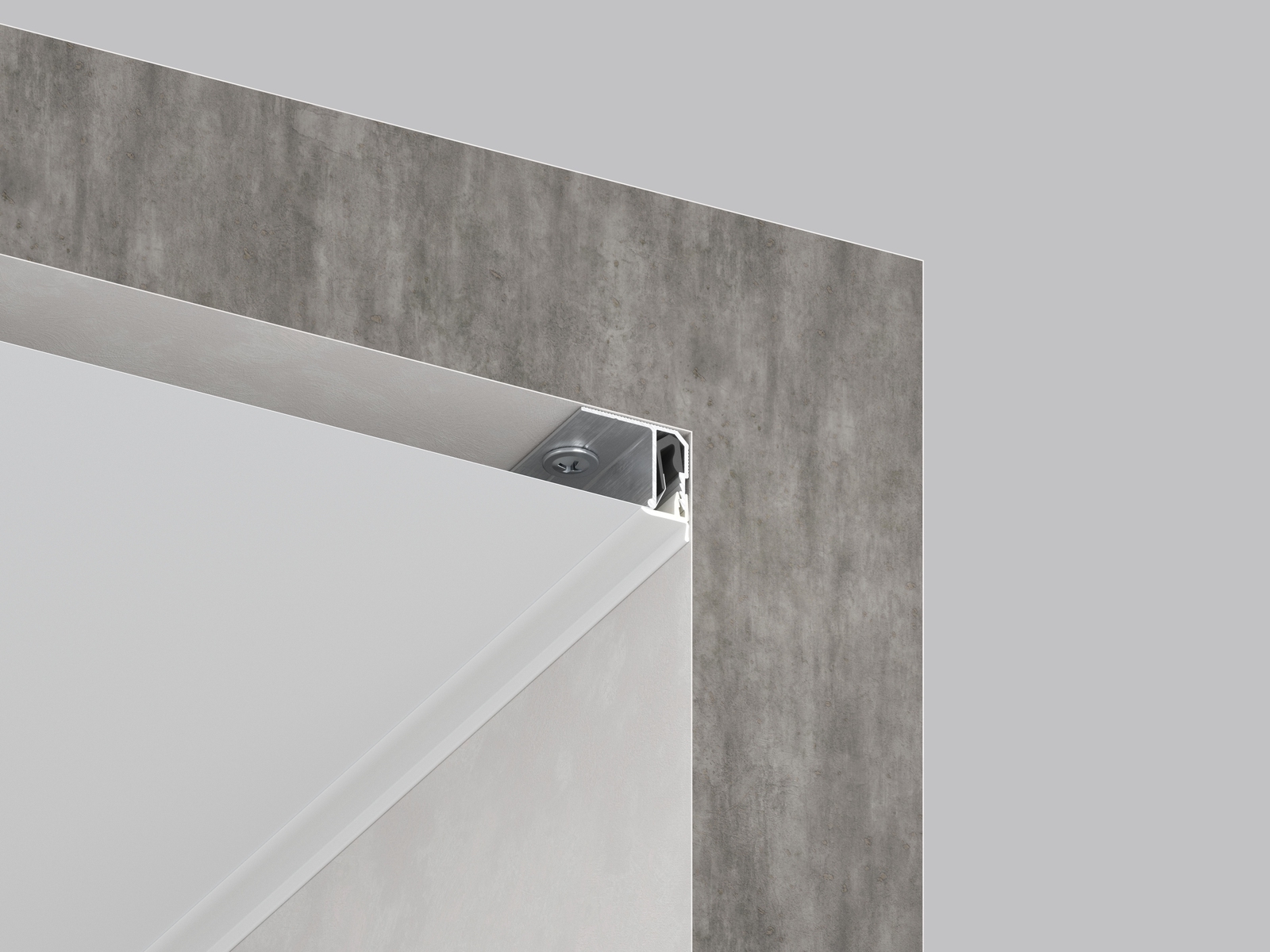

Fixing to the ceiling.

SofiMarsel 02-8 is an aluminium ceiling-mounted profile for stretch ceilings. It is the ceiling-mounted counterpart of the wall-mounted 01-11. The same seven TL inserts finish the junction.

Ceiling fixing

For areas without a suitable wall or where wall mounting is restricted.

A finished wall junction

The TL PVC insert finishes the line between the wall and stretch ceiling.

Weight per linear metre

≈150 g/m

When fixing must move to the ceiling

02-8 is used where there is no wall, beside sliding-door wardrobes without a supporting panel, and around roof windows or building services. The catalogue describes installation typically via an aluminium or timber beam. Select the substrate and fixings to suit the project. After fitting the membrane, the junction is finished with a decorative PVC TL insert.

TL inserts. Seven shades.

The decorative PVC insert covers the installation gap at the wall. Select the article number using the displayed sample.

PVC insert

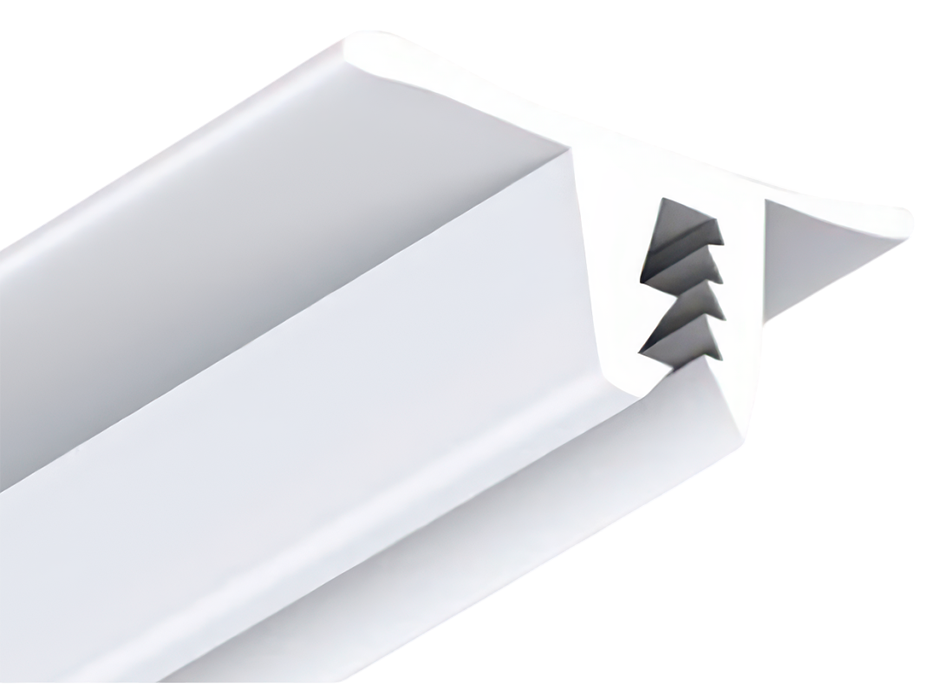

TL-303

White

PVC insert

TL-307

Light cream

PVC insert

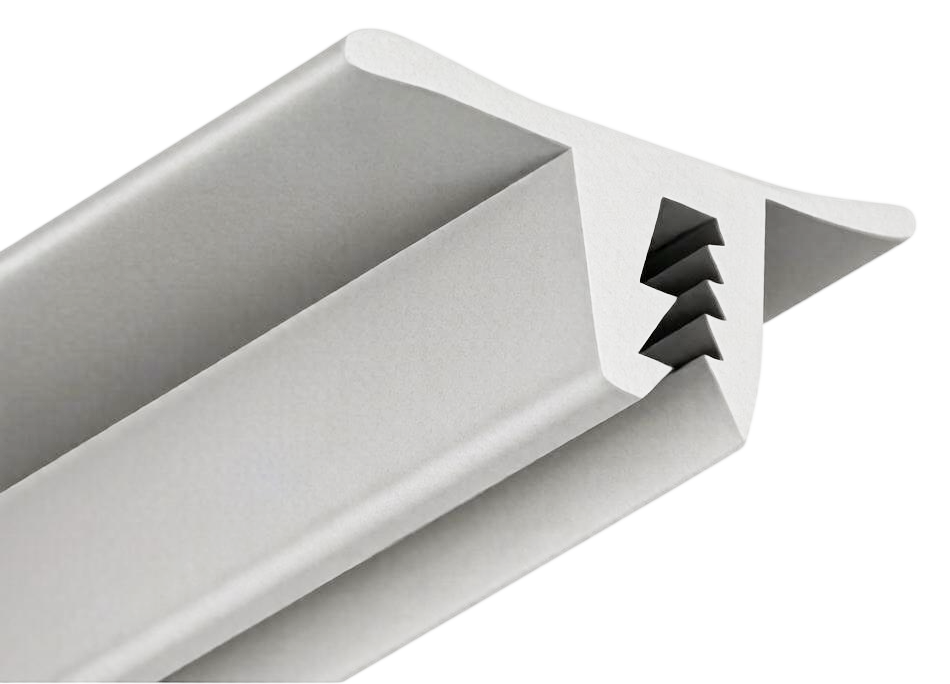

TL-313

Light grey

PVC insert

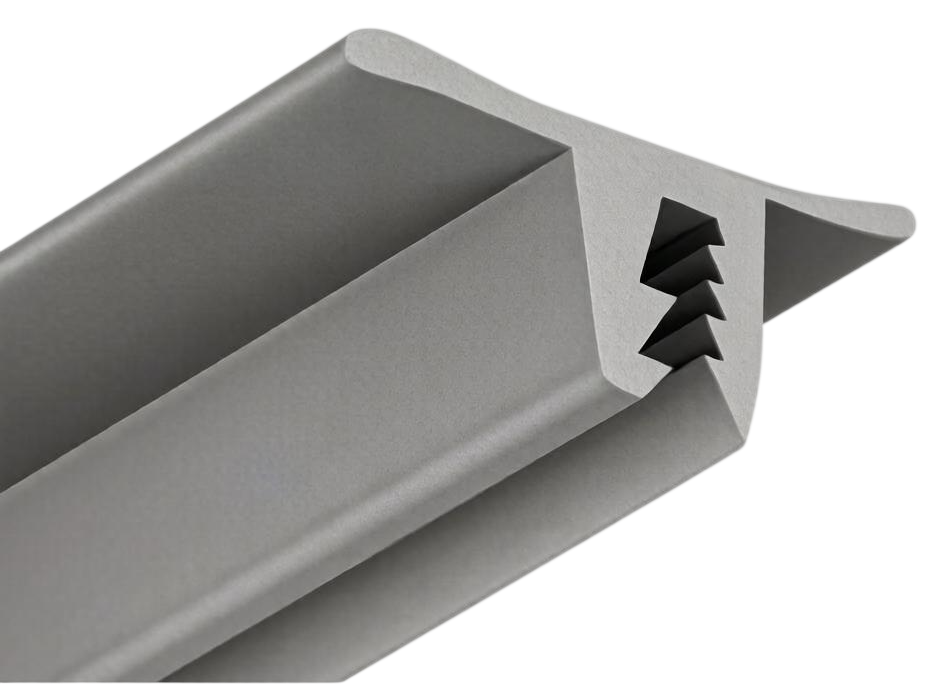

TL-319

Grey

PVC insert

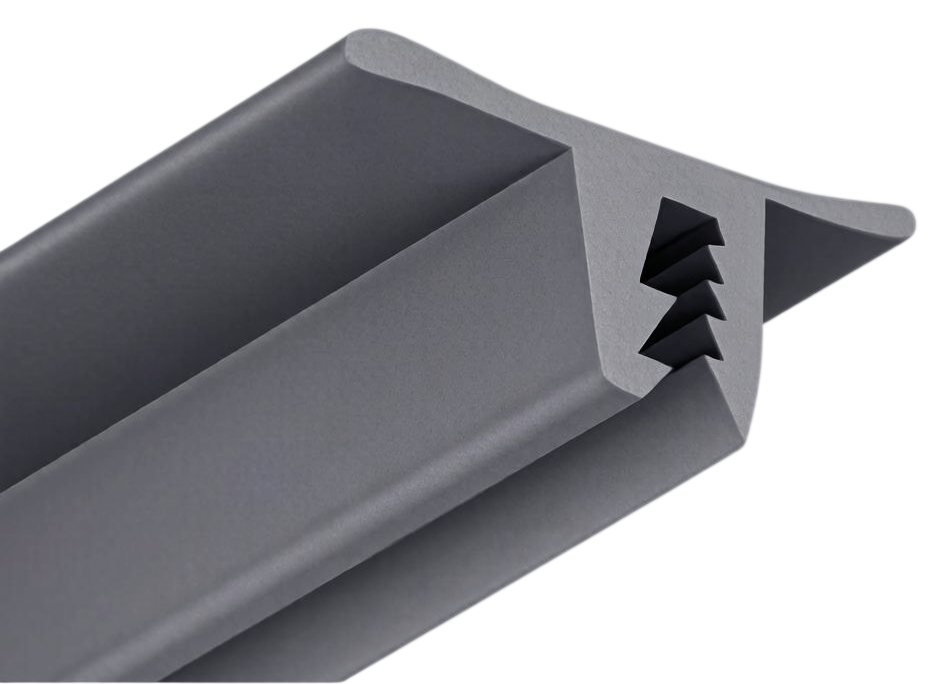

TL-333

Graphite

PVC insert

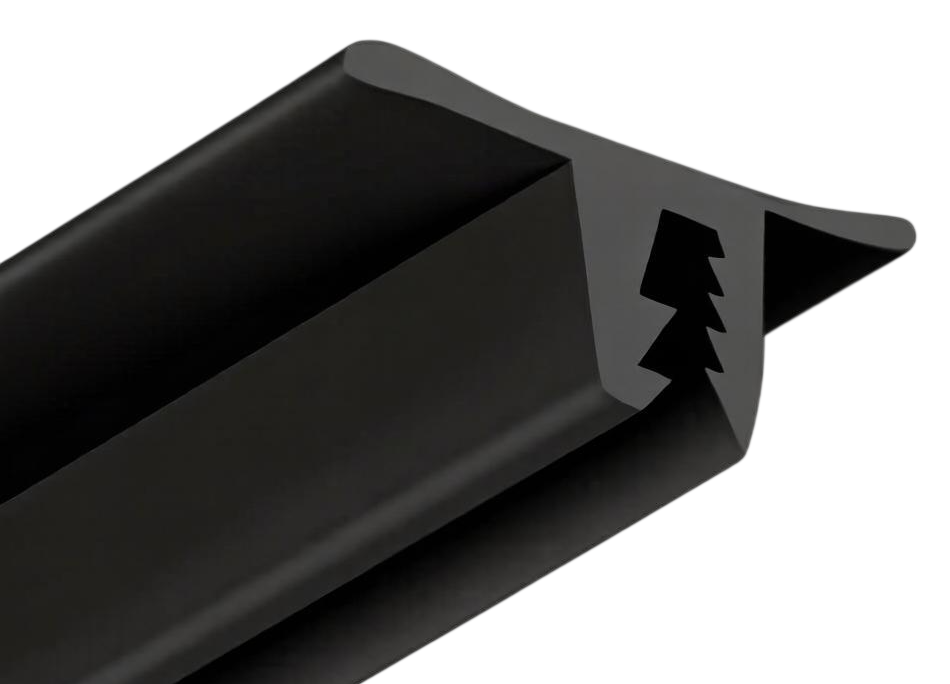

TL-347

Black

PVC insert

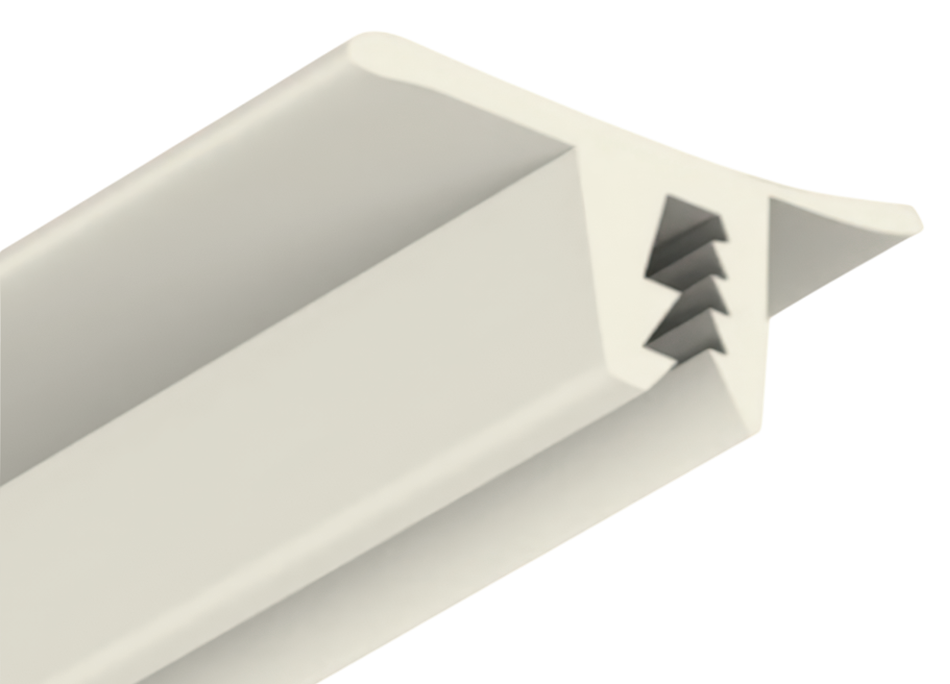

TL-501

Cream

Shade names describe the images. Order by TL article number; colour appearance depends on the screen.

Technical specifications

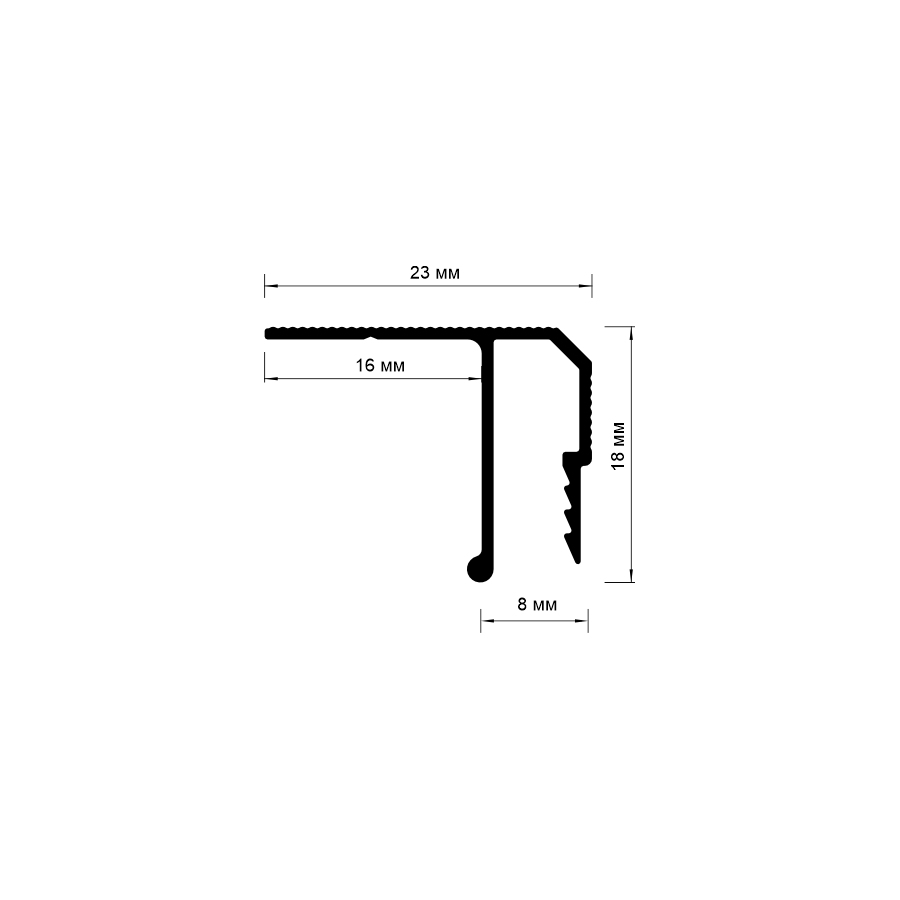

02-8 / 18 × 23 mm

02-8
Cross-section in drawing	18 × 23 mm
Profile length	2 m
Installation	Ceiling-mounted
Material	Aluminium
PVC insert	TL
Harpoon	SofiMarsel — black or white
Weight per linear metre · Standard	≈150 g/m

Drawings and files

02-8 · DWG↓02-8 Aluminium · GLB↓02-8 · JPG↓02-8 · TXT↓

Questions about 02-8

Is there a lightweight version?

02-8 is available in one version at approximately 150 g/m. This product has no Lite version.

Is this the weight of a 2 m profile?

No. Weight is stated per linear metre. The standard supplied profile length is 2 m.

How does 02-8 differ from 01-11?

01-11 fixes to the wall, while 02-8 fixes to the ceiling. Both profiles use the same TL inserts.

Which inserts are compatible?

This profile accepts TL PVC inserts. This page shows TL-303, TL-307, TL-313, TL-319, TL-333, TL-347 and TL-501.
