Perimeter fixing
The profile attaches to the wall and forms the support for the tensioned membrane.
SofiMarsel / Basic profiles
01-11
Basic wall profile. With TL insert.
Two versions for standard stretch ceilings: 01-11 at approximately 190 g/m and 01-11 Lite at approximately 162 g/m. Finish the wall junction with a TL PVC insert in your chosen shade.
3D model: 01-11 aluminium version
- Installation
- Wall-mounted

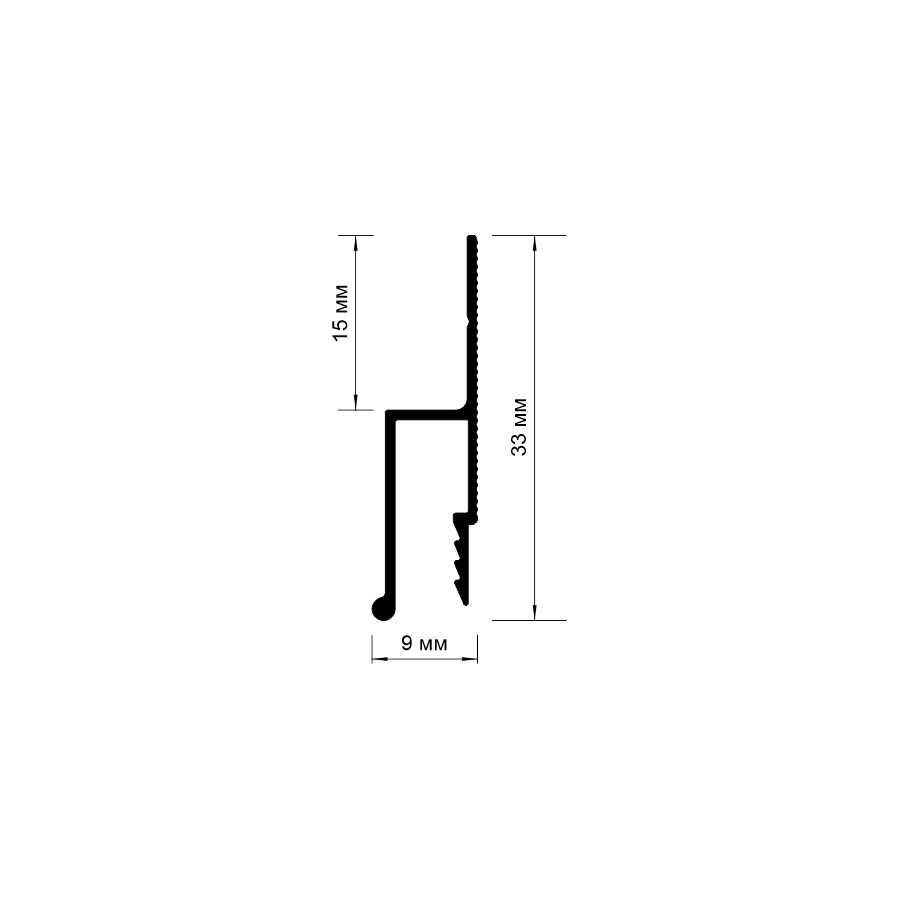

- Cross-section in drawing
- 33 × 9 mm
- Profile length
- 2 m
- PVC insert
- TL
The foundation of a single-level ceiling.
SofiMarsel 01-11 is an aluminium wall profile for single-level stretch ceilings. It is fixed around the room perimeter and accepts a decorative TL PVC insert. Available in standard and lightweight versions.

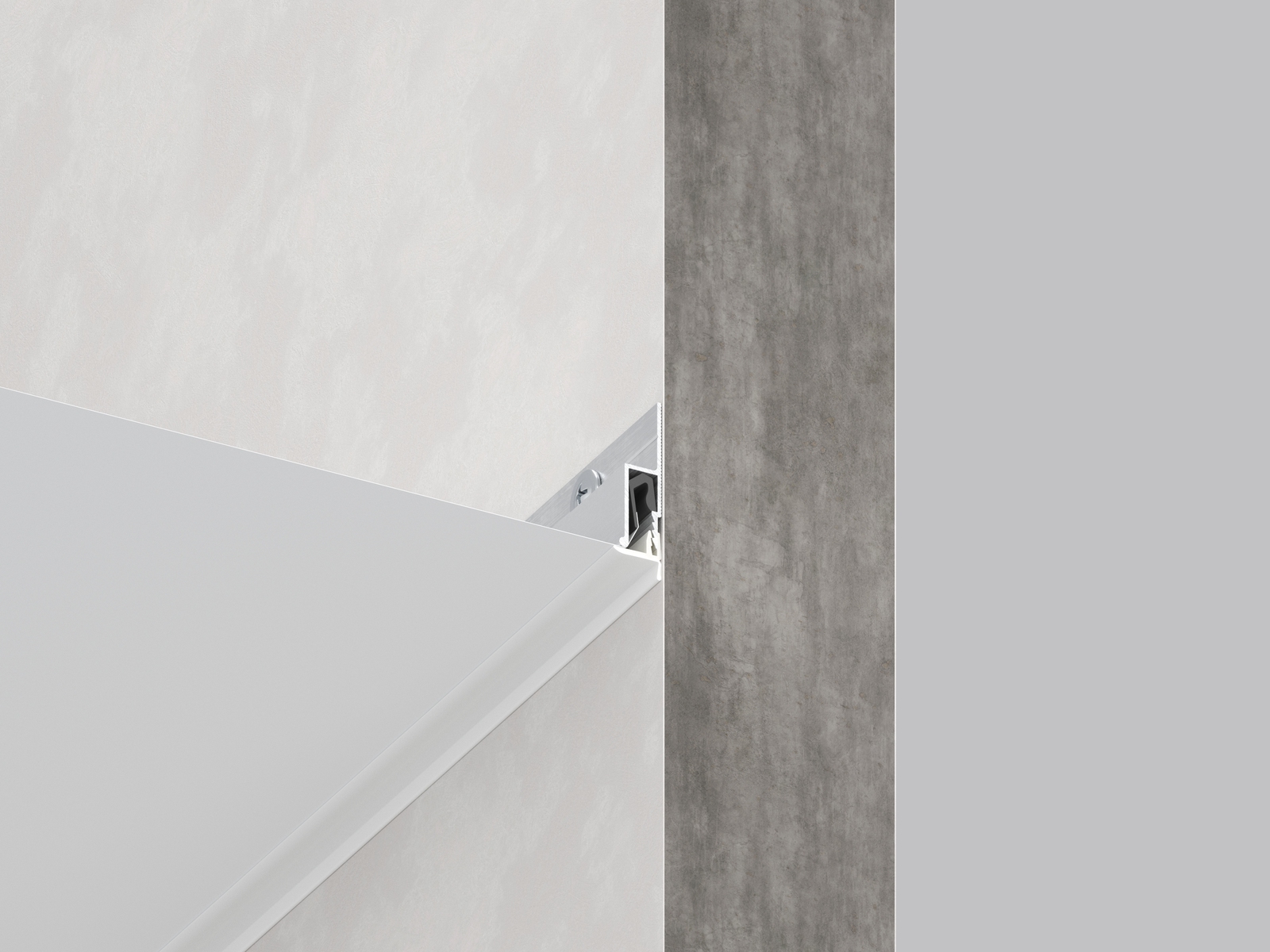

A finished wall junction
The TL PVC insert finishes the line between the wall and stretch ceiling.
Curved sections
Cuts on the back of the profile allow it to follow curves according to the installation design.
01-11 or 01-11 Lite
Choose the version for your project. Weights are approximate and given per linear metre of profile.
01-11
Standard
≈190g/m
The standard version for typical wall-mounted installations.
- Version
- Grey aluminium
- Profile length
- 2 m
01-11 Lite
Lightweight Lite
≈162g/m
A lighter version for projects prioritising economy.
- Version
- Grey aluminium
- Profile length
- 2 m
Wall fixing for the membrane
Fix the profile to the wall around the room perimeter. After installing the membrane, finish the junction with a TL PVC insert. Back cuts adapt the profile to curved sections.
TL inserts. Seven shades.
The decorative PVC insert covers the installation gap at the wall. Select the article number using the displayed sample.

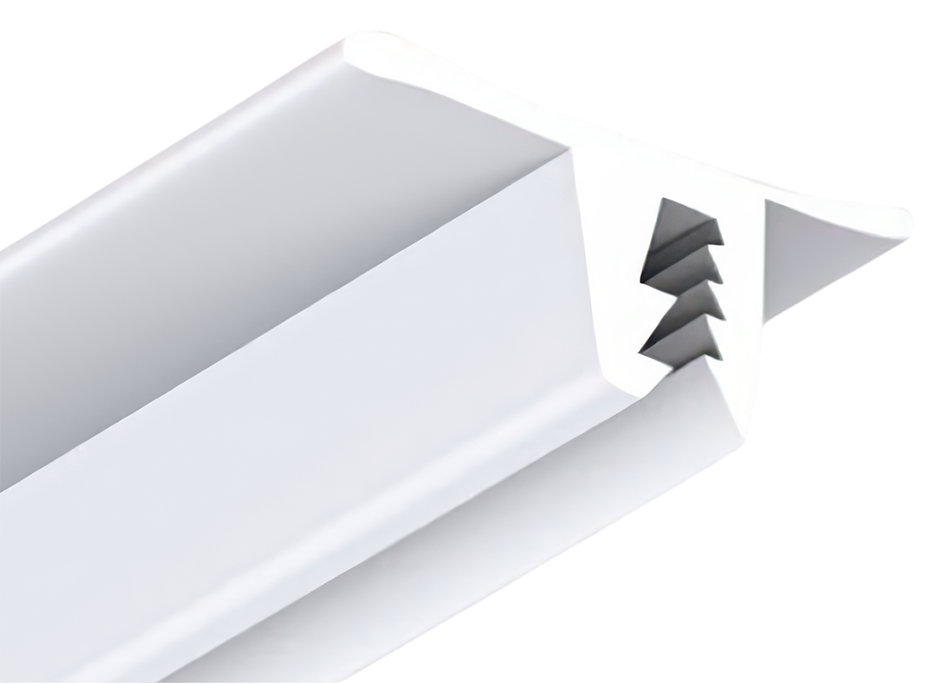

PVC insert
TL-303
White

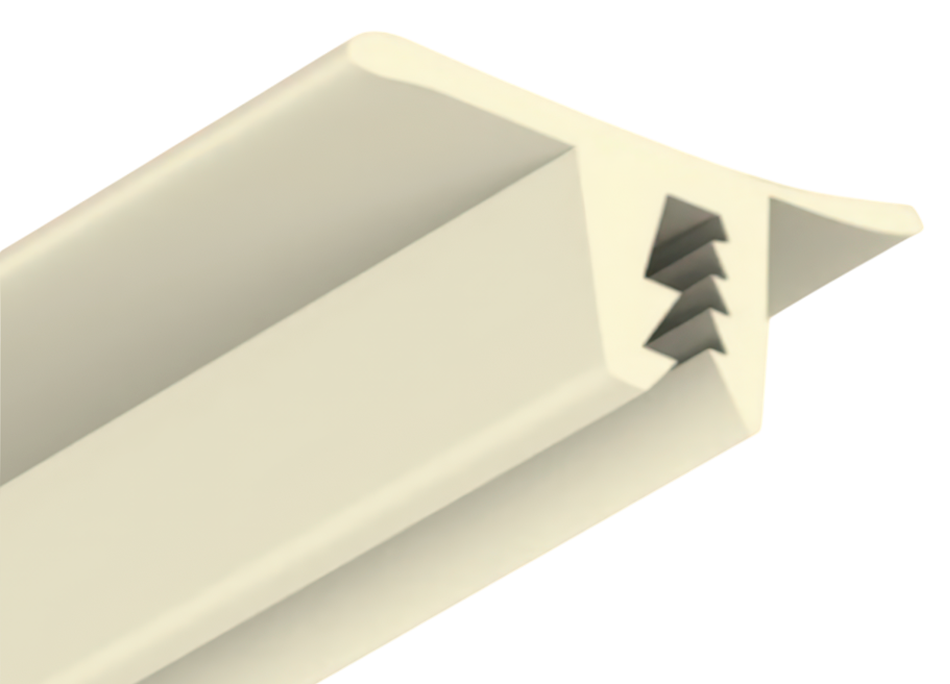

PVC insert
TL-307
Light cream

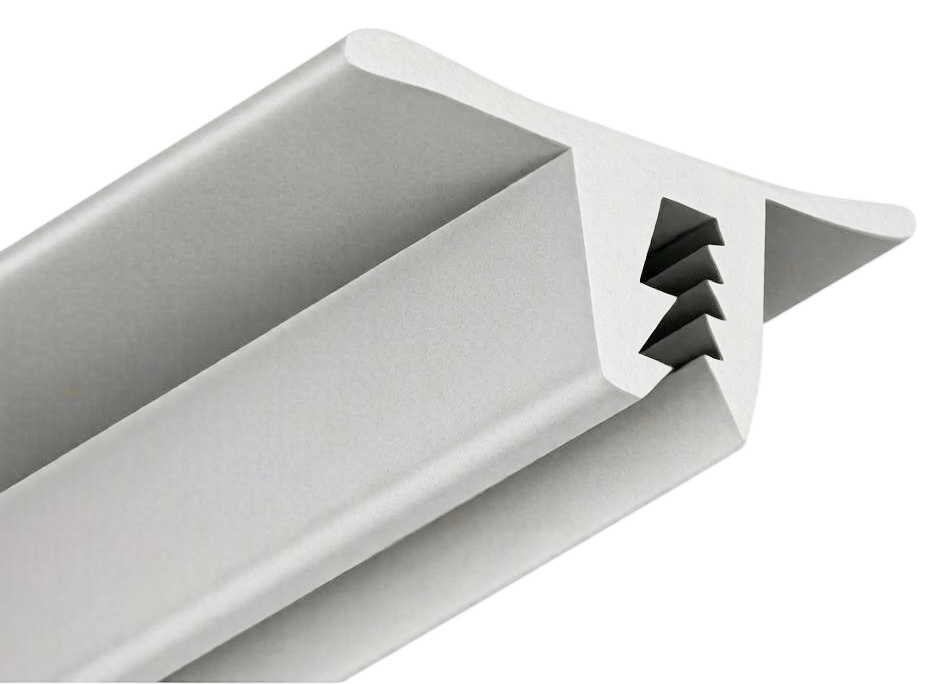

PVC insert
TL-313
Light grey

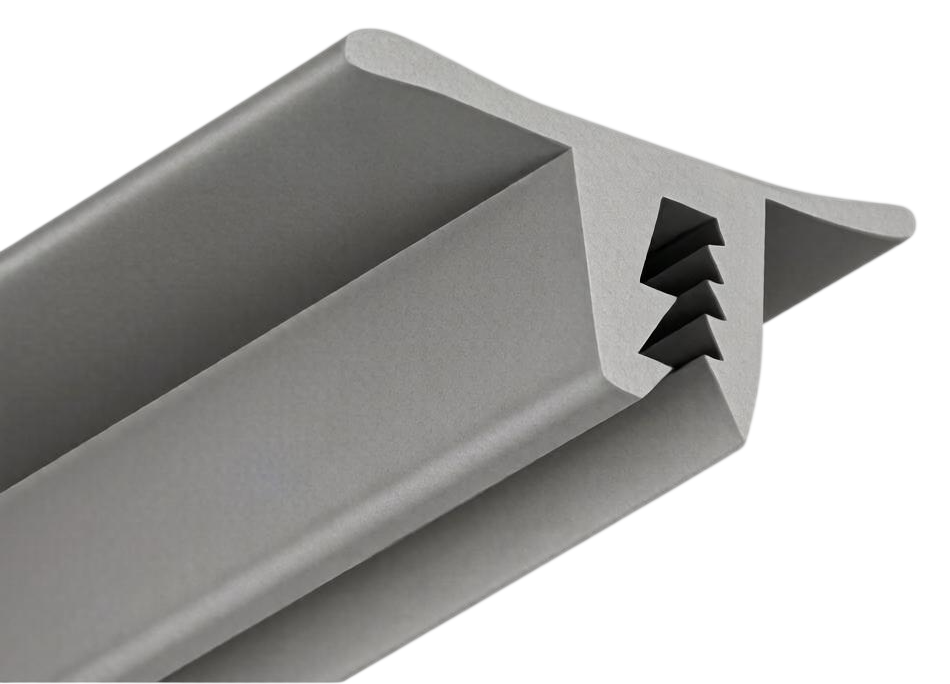

PVC insert
TL-319
Grey

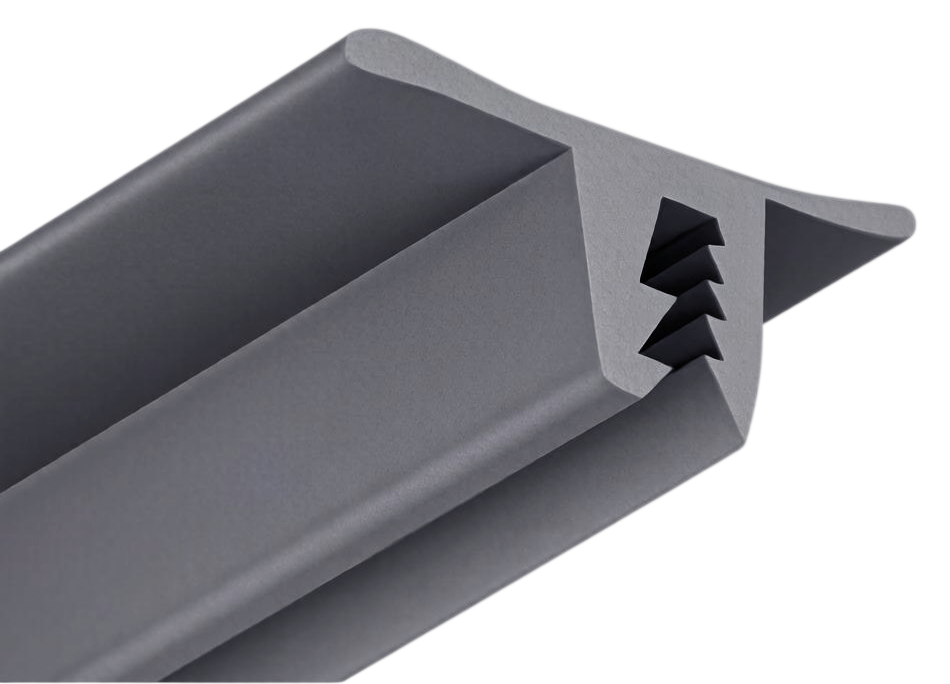

PVC insert
TL-333
Graphite

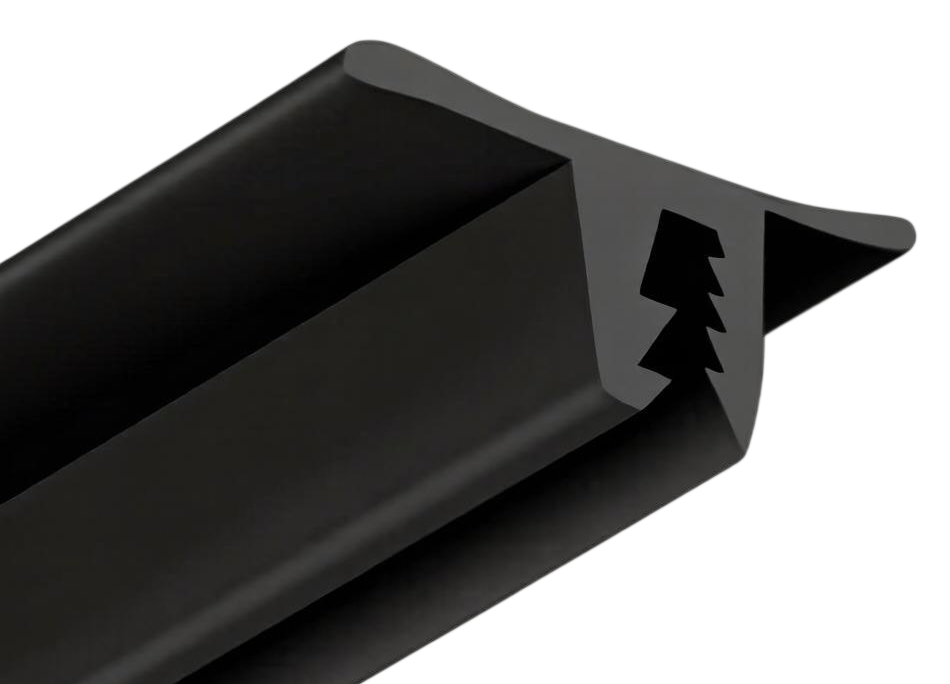

PVC insert
TL-347
Black
PVC insert
TL-501
CreamShade names describe the images. Order by TL article number; colour appearance depends on the screen.
01-11 installation and application
Technical specifications
| Cross-section in drawing | 33 × 9 mm |
|---|---|
| Profile length | 2 m |
| Installation | Wall-mounted |
| Material | Aluminium |
| PVC insert | TL |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈190 g/m |
| Weight per linear metre · Lightweight Lite | ≈162 g/m |
Questions about 01-11
How does 01-11 Lite differ?
Lite is the lightweight version: approximately 162 g/m compared with 190 g/m for standard 01-11. Both versions are for wall installation.
Is this the weight of a 2 m profile?
No. Weight is stated per linear metre. The standard supplied profile length is 2 m.
Where is the profile used?
For fixing standard single-level stretch ceilings to the walls around the room perimeter.
Which inserts are compatible?
This profile accepts TL PVC inserts. This page shows TL-303, TL-307, TL-313, TL-319, TL-333, TL-347 and TL-501.
Can it follow a curved wall?
Yes. Cuts on the back adapt the profile to curved sections. The cutting method and spacing depend on the installation design.
