Multi-level ceilings
Creates a clearly defined projecting edge.
SofiMarsel / Basic profiles
04-2
Bending profile for stretch ceilings.
Aluminium 04-2 defines the membrane bend line. For crisp edges in multi-level ceilings and the geometry of attic structures.
3D model: 04-2 aluminium version
- Function
- Membrane bend line

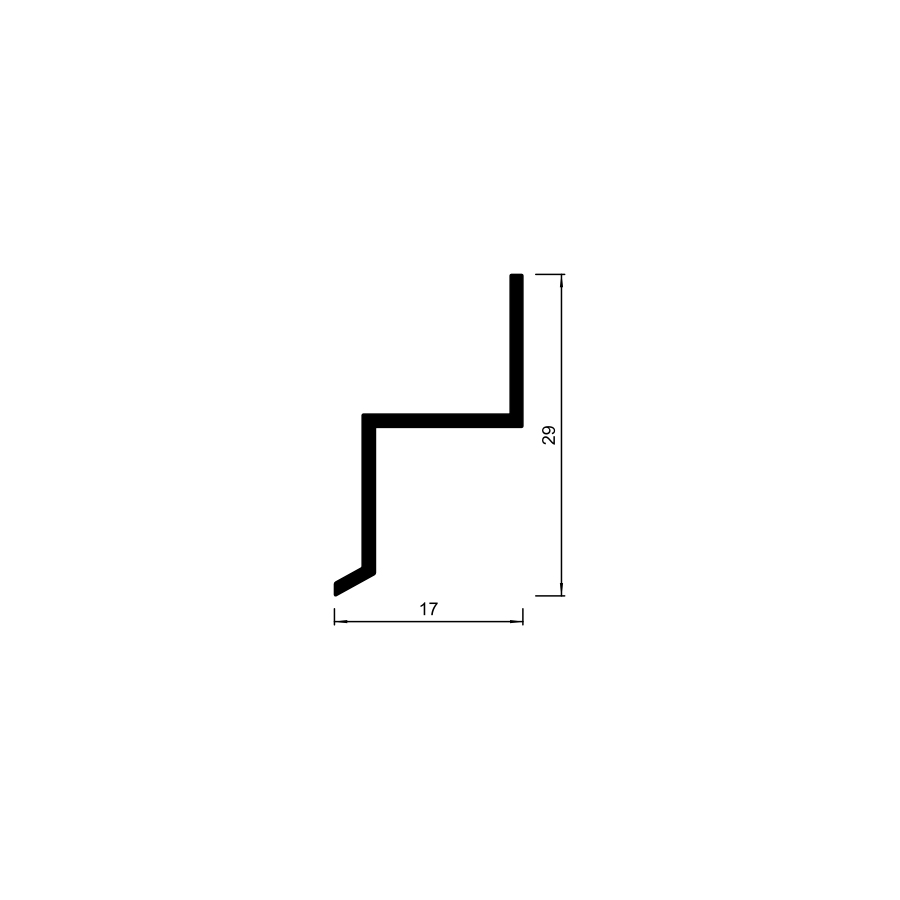

- Cross-section in drawing
- 29 × 17 mm
- Profile length
- 2 m
A crisp line. A complex shape.
SofiMarsel 04-2 is an aluminium bending profile for complex stretch ceilings. The membrane wraps around the profile to create a defined edge or change of plane. Used in multi-level and faceted attic ceilings.
Attic structures
Defines the geometry of faceted ceilings.
Aluminium profile
2 m length, approximately 117 g/m.
How the bending profile works

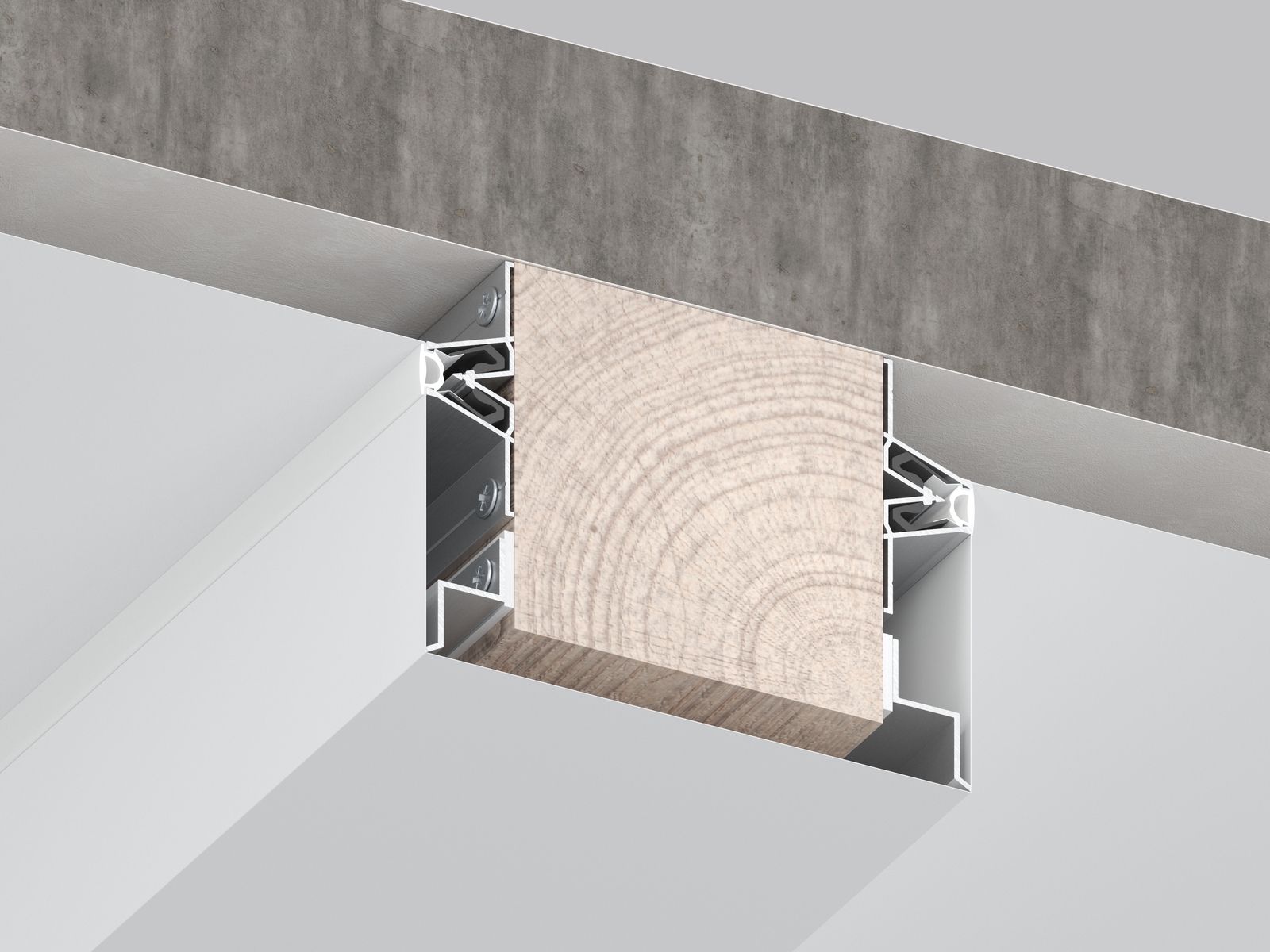

The membrane follows and wraps around the profile contour. The profile defines the transition between planes. The installation illustration shows 04-2 used with a separating profile.
04-2 installation and application
Technical specifications
| Cross-section in drawing | 29 × 17 mm |
|---|---|
| Profile length | 2 m |
| Function | Membrane bend line |
| Material | Aluminium |
| Weight per linear metre · Standard | ≈117 g/m |
Questions about 04-2
What is 04-2 used for?
To define a membrane bend line in complex stretch ceilings.
How does it work with the membrane?
The membrane wraps around the profile and follows its contour.
Where is it used?
In multi-level ceilings and faceted attic ceilings.
Is this a separating profile?
No. It defines a membrane bend. Separating profiles such as 03-1 or 03-2 join two separate membranes.
