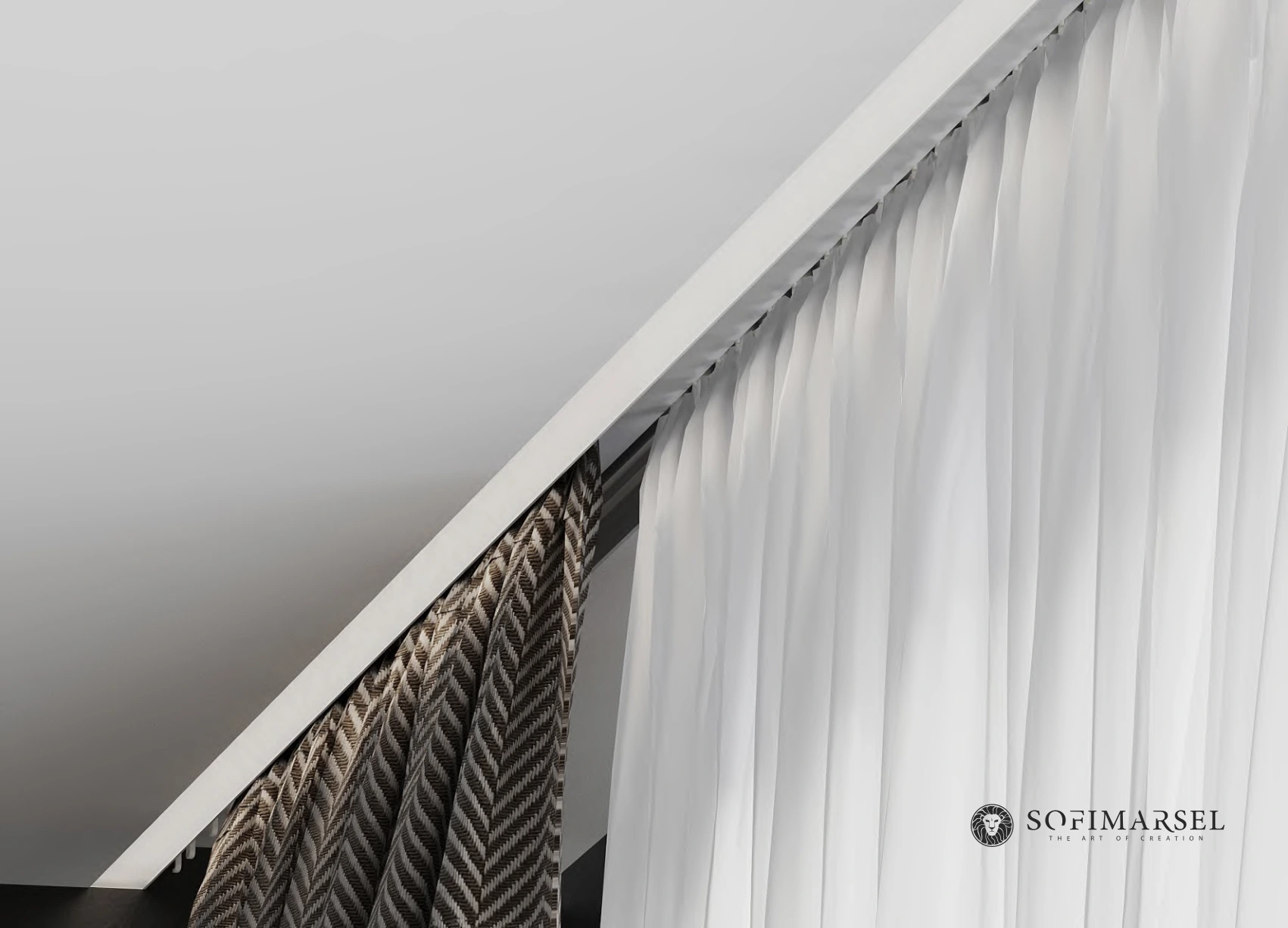

Curtains within the ceiling design
The integrated rail conceals curtain fittings and creates a neat junction with the stretch ceiling.
SofiMarsel / Curtain tracks
09-3 PRO. Curtain track. An extension of the ceiling.
Conceal curtain fittings within the ceiling plane and add a line of light. The 09-3 PRO curtain track can run from wall to wall or end independently with a neatly finished end cap.
Profile finish
- Standard length
- 2 m
- Lighting
- D13 / D13 Black / PVC13
- Finishes
- 2 colours
- End cap
- 2 parts
Integrated curtain track. A complete line.
09-3 PRO is a SofiMarsel aluminium curtain track profile for stretch ceilings. It combines rails for standard curtain fittings with a lighting channel for rigid D13 and D13 Black diffusers or flexible PVC13. The profile comes in 2 m lengths in textured matte white or black. A two-part end cap allows the track to end without meeting a wall or another profile.
Optional lighting
Add lighting with the white rigid D13, black rigid D13 Black or flexible PVC13 diffuser.
An independent end point
End the profile wherever the design calls for it: the end cap neatly finishes the exposed edge.
Integrate. Illuminate. Complete.

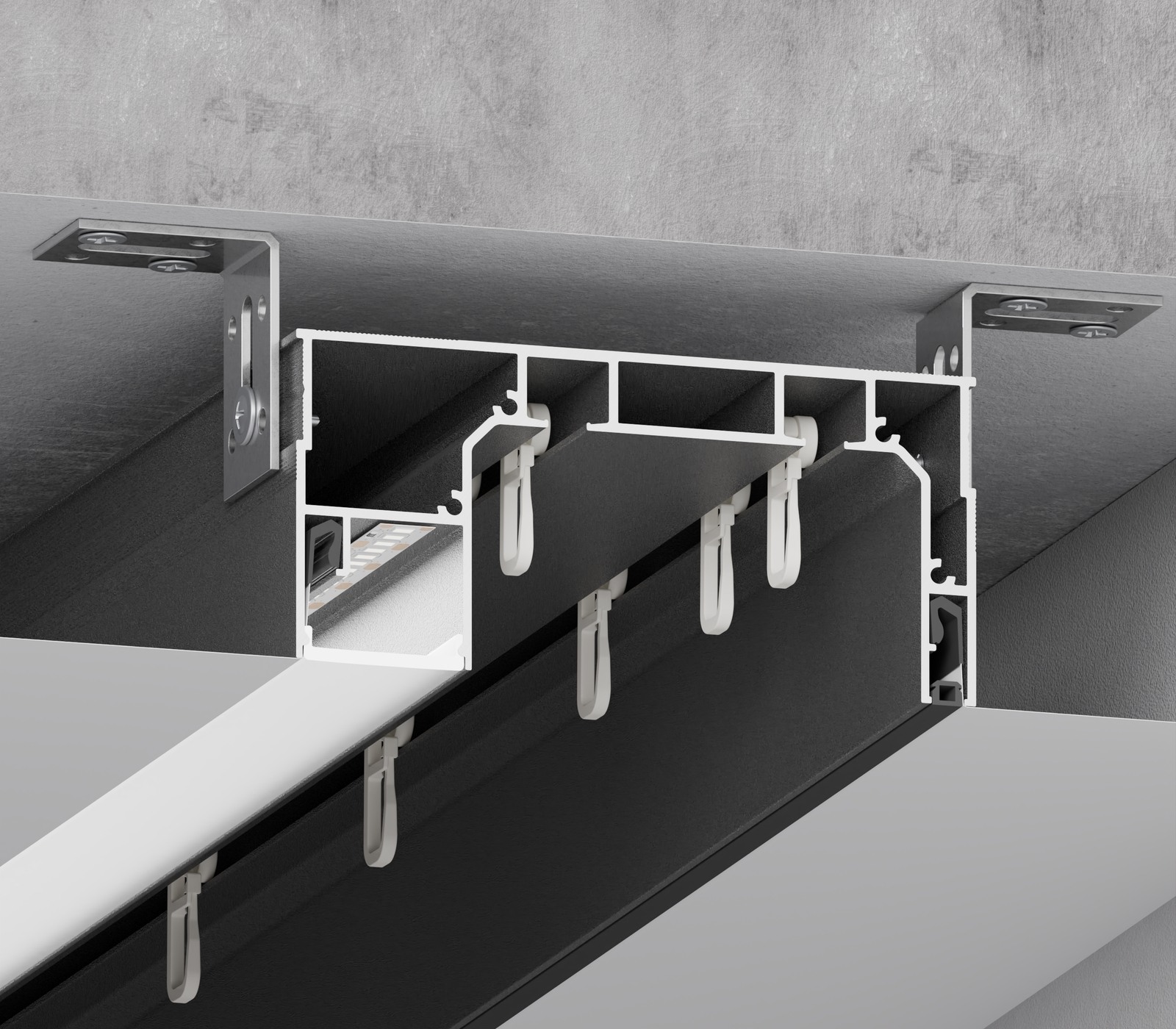

Curtain rails, a lighting channel and the ceiling membrane fixing are combined in one profile. Choose the run length, colour and fittings for your project.
Two tracks for curtains and sheers. Raised guides help the hooks travel smoothly without dropping into the track.
09-3 PRO / CURTAIN
- Profile
- 09-3 PRO
- Lighting
- Optional: D13 / D13 Black / PVC13
- End point
- At a wall or with an end cap
- Fittings
- Standard hooks and CS stops
Light along the curtains. Three diffuser options.
09-3 PRO lighting accepts the white rigid D13, black rigid D13 Black and flexible PVC13 diffusers.
09-3 PRO / LED
D13
Rigid white diffuserA light-coloured line for a white ceiling and profile.
- Light transmission
- 80%
09-3 PRO / LED
D13 Black
Rigid black diffuserA dark line that blends with the black profile when the light is off.
- Light transmission
- 20%
09-3 PRO / LED
PVC13
Flexible diffuserFlexible PVC13 for lighting in the 09-3 PRO curtain profile.
- Light transmission
- 50%
Finish the curtain track. Before it reaches the wall.

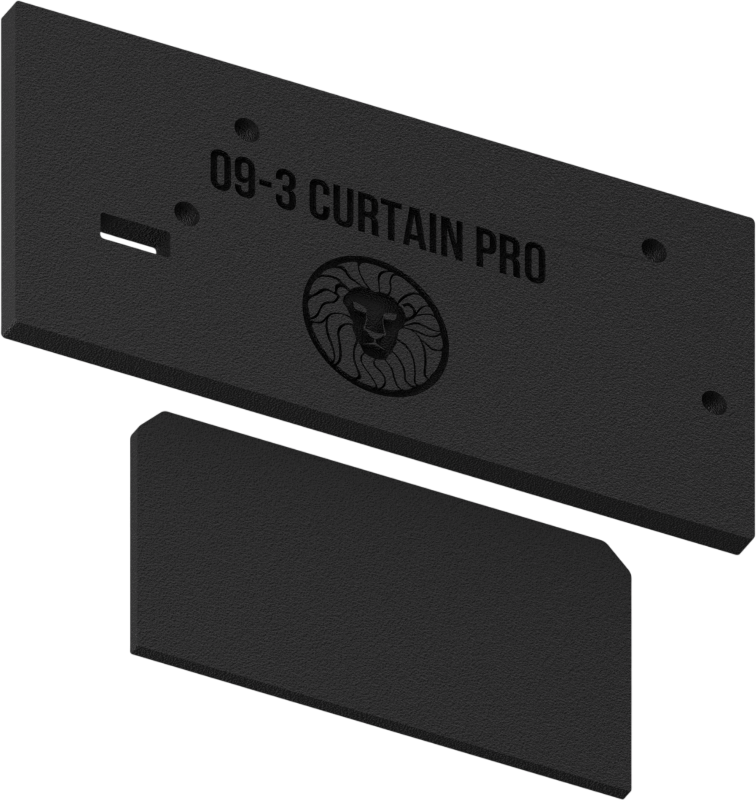

The curtain track can form an independent section of the ceiling. The end cap allows 09-3 PRO to end without joining another profile and conceals the fixing area.
Mounting part
The stretch ceiling membrane is bonded to this part.
Decorative part
Covers the bonded area and gives the end a neat finish.
A small detail. A clean junction.
White TF303 Mini and black TF347 Mini inserts finish the junction. Match the insert to the profile and ceiling colour.
Fittings. Explore every detail.
3D / 360°

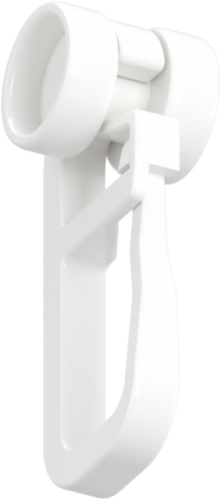

Curtain hook with glider
09-3 PRO works with standard curtain fittings. Rotate the hook to inspect the glider, body and hook shape.
09-3 PRO / Curtain hook with glider
Hook visualisation based on the product image.
Keep the hooks in the track.

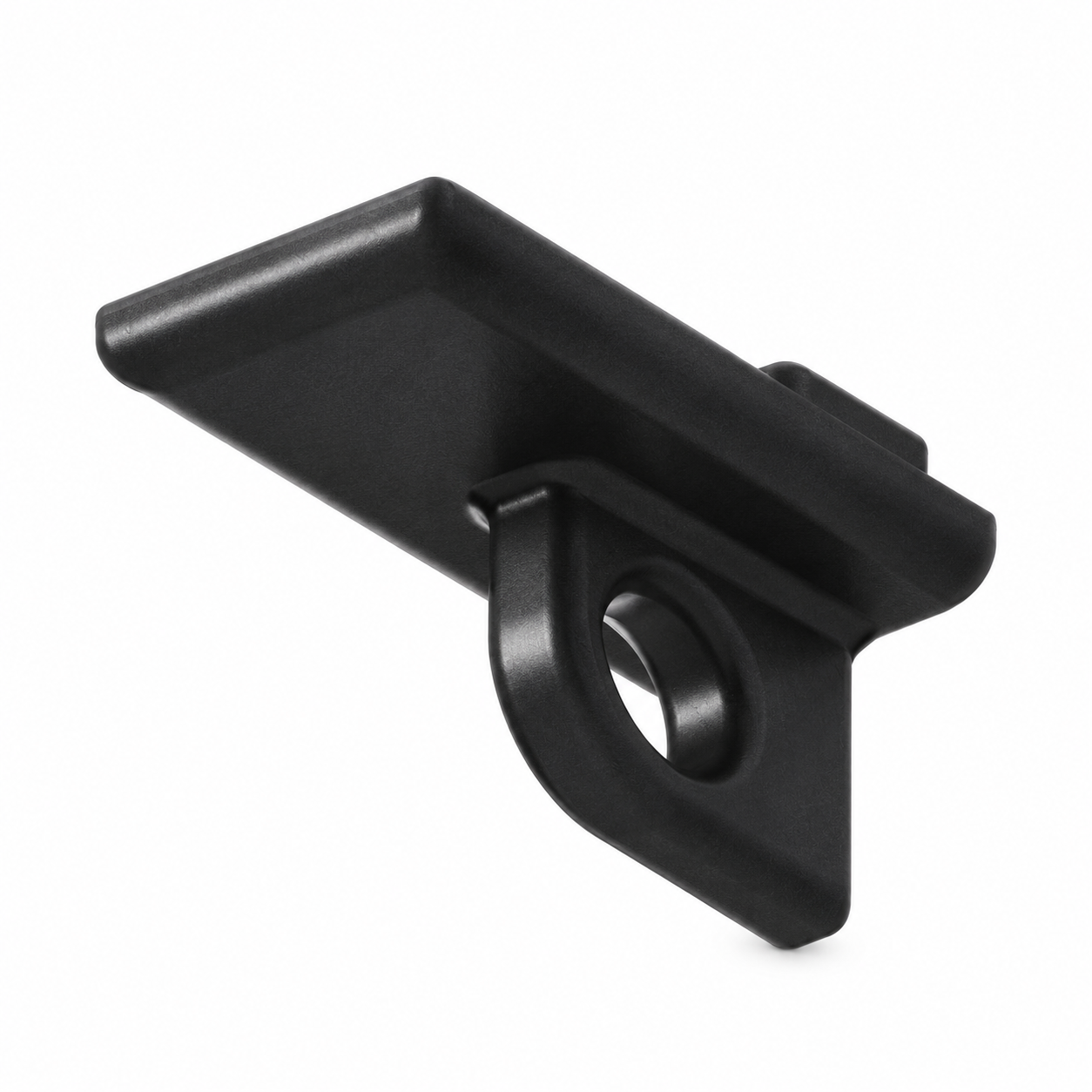

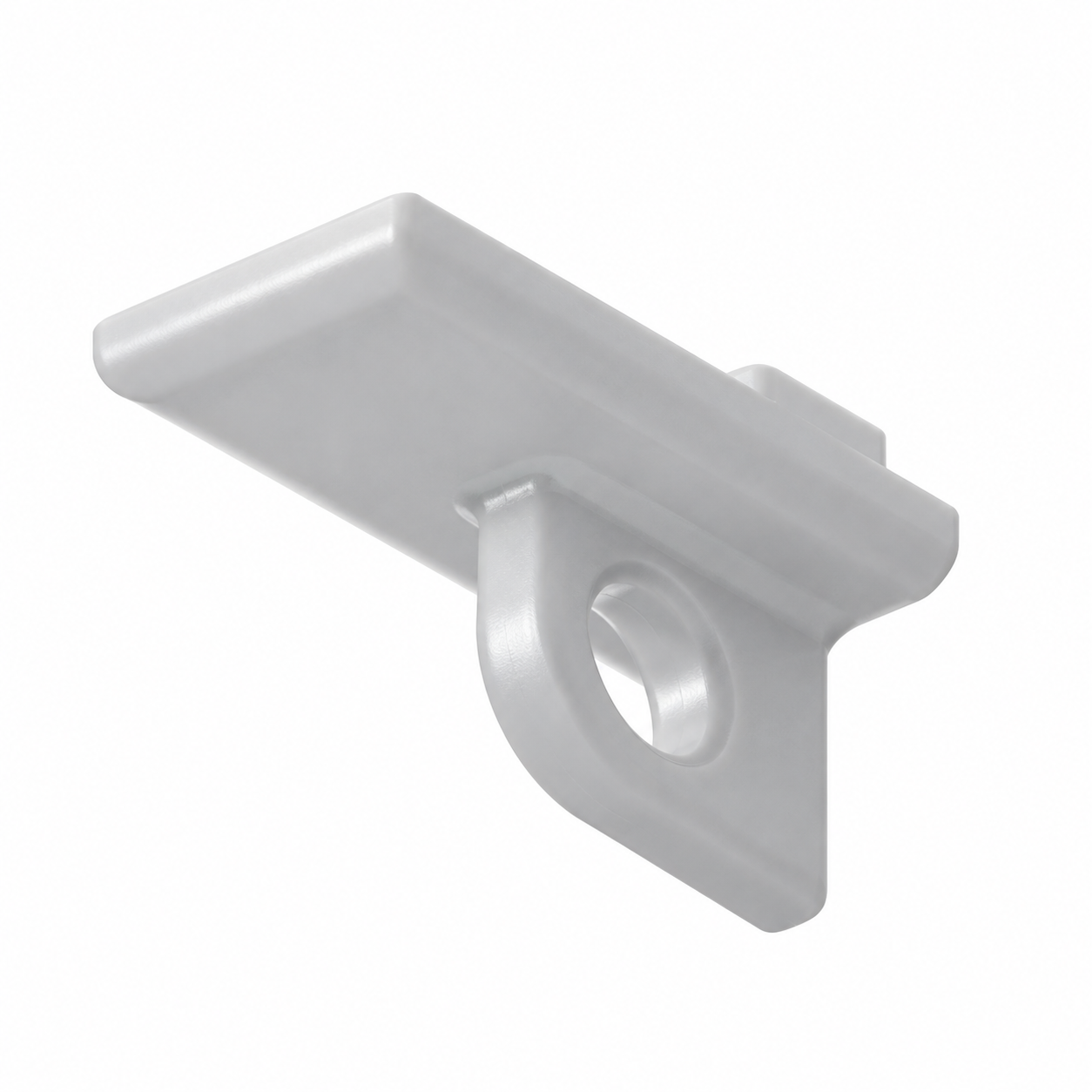

CS 01-1 and CS 01-2 stops prevent hooks from leaving the curtain track. Choose white or black to match the profile.
How the stop keeps hooks in place
A short demonstration of fitting a stop in the track. Once secured, it prevents hooks from sliding out of the end.
09-3 PRO / CURTAIN
Technical details
| Application | Integrated curtain track for stretch ceilings with optional lighting |
|---|---|
| Material | Aluminium |
| Standard length | 2 m |
| Profile finishes | Textured matte white / textured matte black |
| Lighting diffusers | D13 / D13 Black / PVC13 |
| Inserts | TF303 Mini — white; TF347 Mini — black |
| End cap | Two parts: mounting and decorative |
| Curtain fittings | Standard |
| Stops | CS 01-1 — white; CS 01-2 — black |

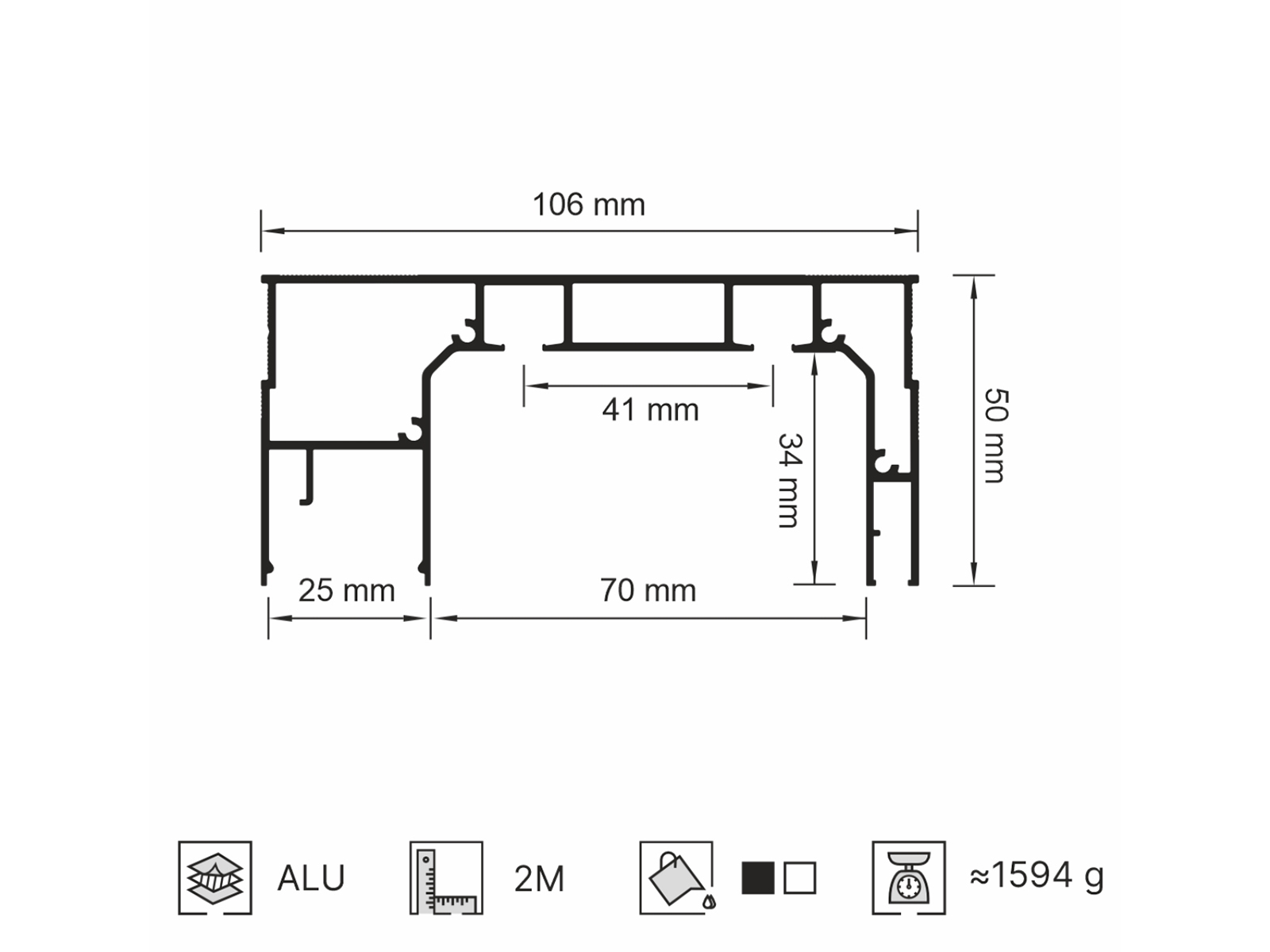

| Profile cross-section | 106 × 50 mm |
| Curtain tracks | 2 |
| Lighting channel | 25 mm |
| D13 light transmission | White — 80%; Black — 20% |
| Mounting | To the structural ceiling with adjustable brackets on both sides |
| Joining sections | Connecting elements |
| Membrane fixing | Two harpoon grooves in one plane |
| PVC13 light transmission | 50% |
Drawings for your project

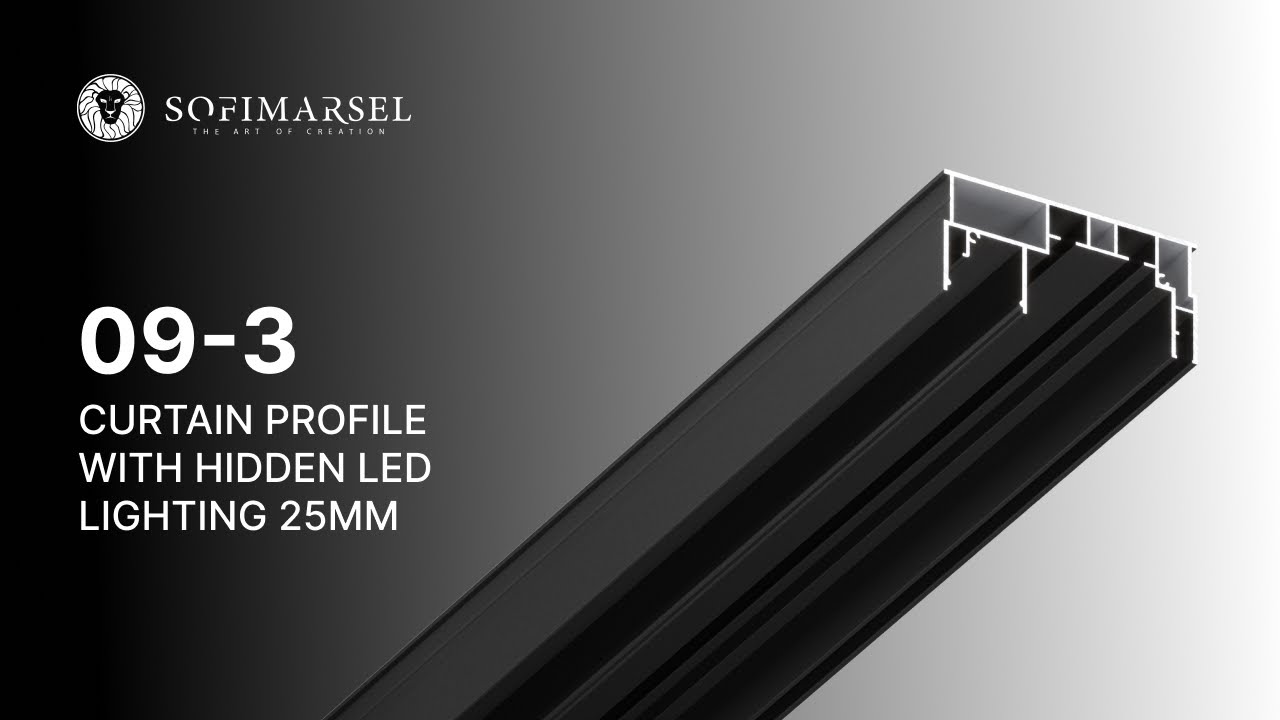

09-3 PRODownload DWG ↓09-3 PRO in action
An overview of the integrated profile, curtain tracks and lighting channel.
Questions about 09-3 PRO
Is lighting required?
No. 09-3 PRO can be used as an integrated curtain track, with lighting added to suit the project.
Which diffusers fit 09-3 PRO?
Compatible diffusers are white rigid D13 (80% light transmission), black rigid D13 Black (20%) and flexible PVC13 (50%).
Can the curtain track end away from a wall?
Yes. A two-part end cap allows an independent end point: the ceiling membrane is bonded to the mounting part, and the decorative part covers the bonded area.
Which inserts and finishes are available?
The 2 m profile comes in textured matte white or black. Compatible inserts are white TF303 Mini and black TF347 Mini.
How do I prevent hooks from falling out of the track?
Use white CS 01-1 or black CS 01-2 stops to keep the hooks in the track.
What information is needed for a quote?
Specify the track length, profile colour, whether lighting is required, diffuser colour, any exposed ends, and the number of hooks and stops. Attach a room plan.
