Wall-mounted contour-light system
06‑14 wall-mounted contour profile with a visible 25 mm light line
An aluminium perimeter profile that fixes to the wall and frames the stretch ceiling with a continuous screened light contour.
- Compatible screens
- D25 / PVC25
- Overall section
- 30 × 36 mm
- Standard length
- 2 m
- Product code
- 06-14
Contour profile catalogue
Wall-mounted contour-light profiles
06‑14
Ceiling-mounted contour-light profiles
06‑15
Profile overview
What is the SofiMarsel 06-14 profile?
SofiMarsel 06-14 is a wall-mounted aluminium profile for a stretch ceiling with a visible 25 mm illuminated perimeter contour. Unlike a floating profile, the light is not hidden in a recess: the D25 or PVC25 screen becomes a clear part of the finished ceiling line. The removable screen also preserves access to the LED strip.
Advantages
Why choose wall-mounted 06-14
The profile combines a precise wall junction, a serviceable LED channel and a clearly visible architectural light line.
Visible 25 mm contour
The screen outlines the room with a uniform light line in the finished ceiling plane.
Wall mounting
The full-height mounting flange fixes directly to the wall around the room perimeter.
Serviceable lighting
Remove the separately specified screen to access the LED strip after the stretch ceiling has been installed.
Technical specifications
06-14 technical data
Mounting type, profile envelope and screen compatibility are listed together for selection and installation planning.
- Application
- Wall-mounted contour-light profile for stretch ceilings
- Compatible screens
- D25 Black / D25 White / PVC25
- Overall section
- 30 × 36 mm
- Standard length
- 2 m
- Weight
- ≈320 g/m
- Material
- Aluminium
- Mounting
- Direct fixing to the wall
- Visible light contour
- 25 mm
- LED mounting shelf
- 15 mm
- Light transmission
- D25 Black 20% / PVC25 50% / D25 White 80%
- Screen supply
- Specified separately from the aluminium profile
- Finish
- Mill-finish aluminium / grey
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Product code
- 06-14

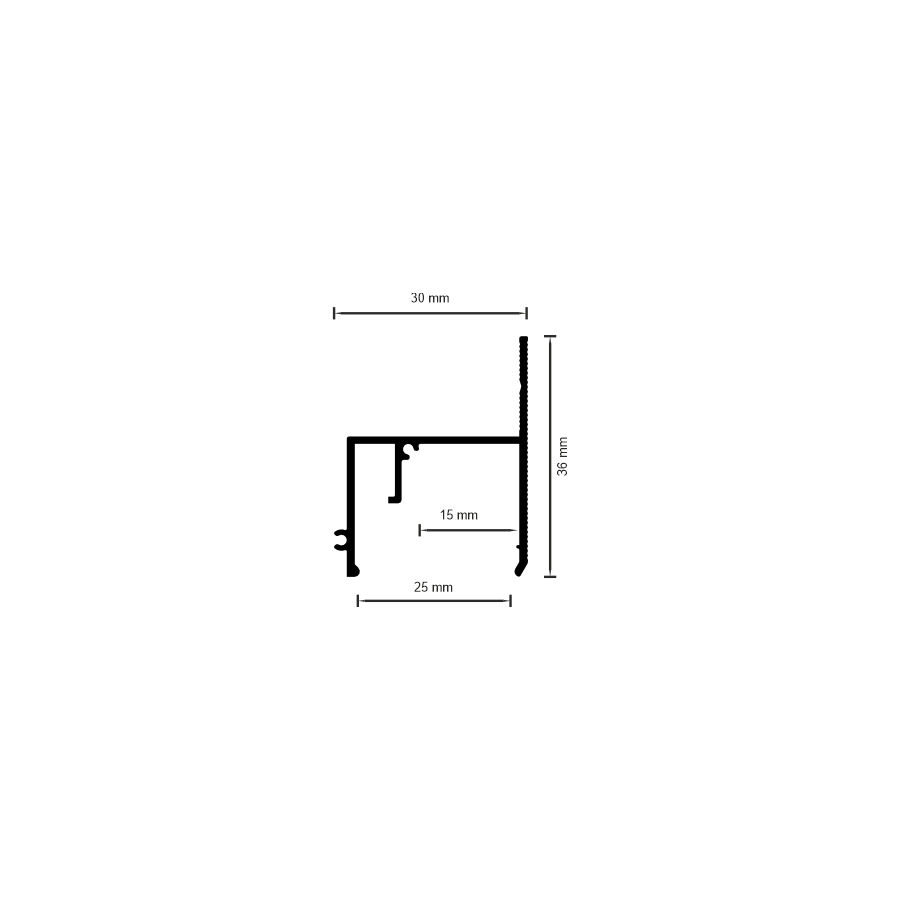

06-14 dimensions and section
The dimensioned section shows the 30 × 36 mm envelope, 25 mm screen opening and 15 mm LED mounting shelf. Download the DWG for detailed CAD coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application

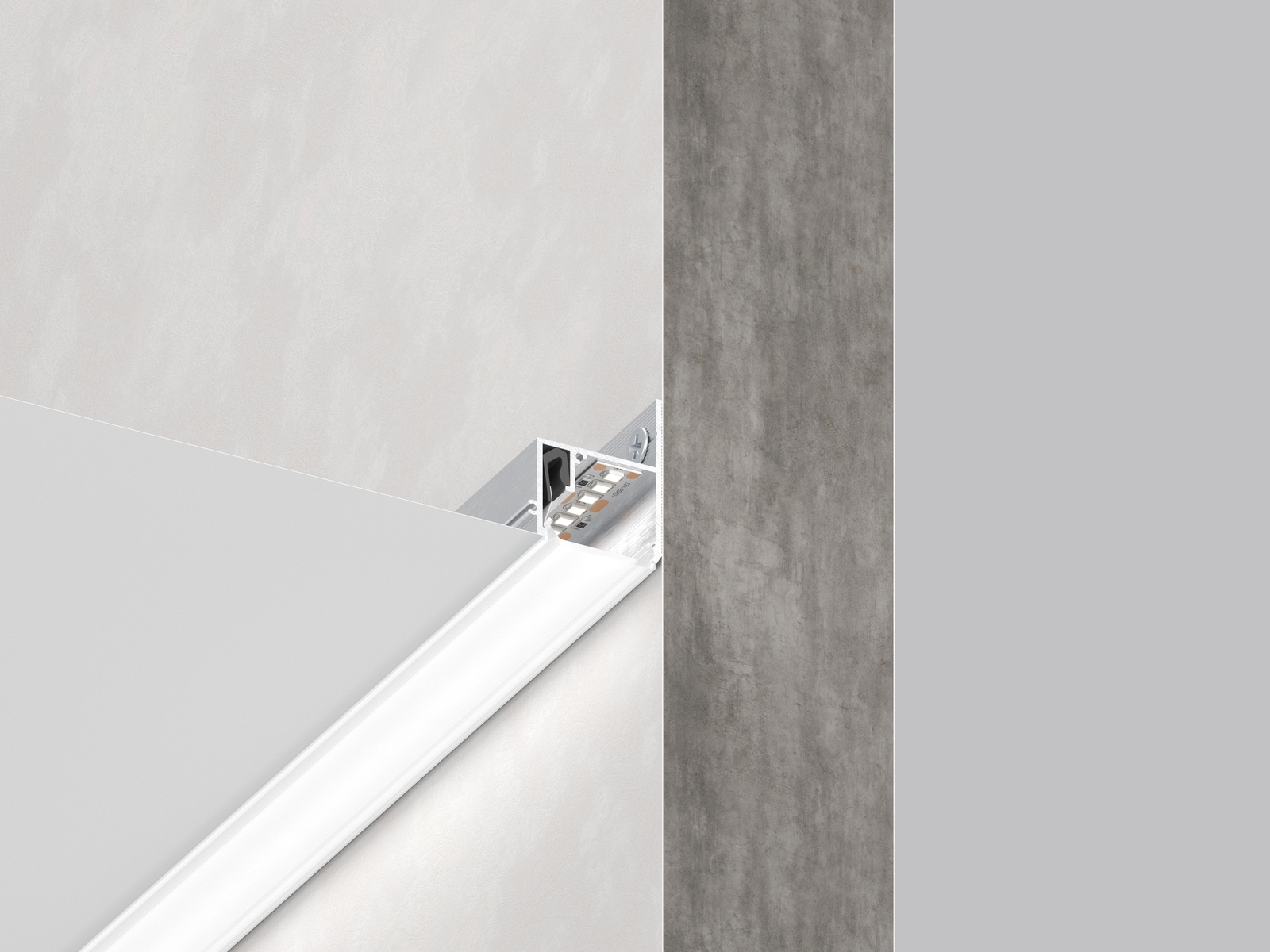

A visible light frame fixed to the wall
Fix 06-14 to the wall, install the LED strip on the 15 mm shelf, mount the stretch-ceiling membrane and close the 25 mm light channel with the selected D25 or PVC25 screen. LED strip, power supply and lighting calculation are selected for the project.
Compatible components
Three screens for the 25 mm light contour
The screen is specified separately from the aluminium profile. It closes the visible light channel and remains removable for access to the LED strip.

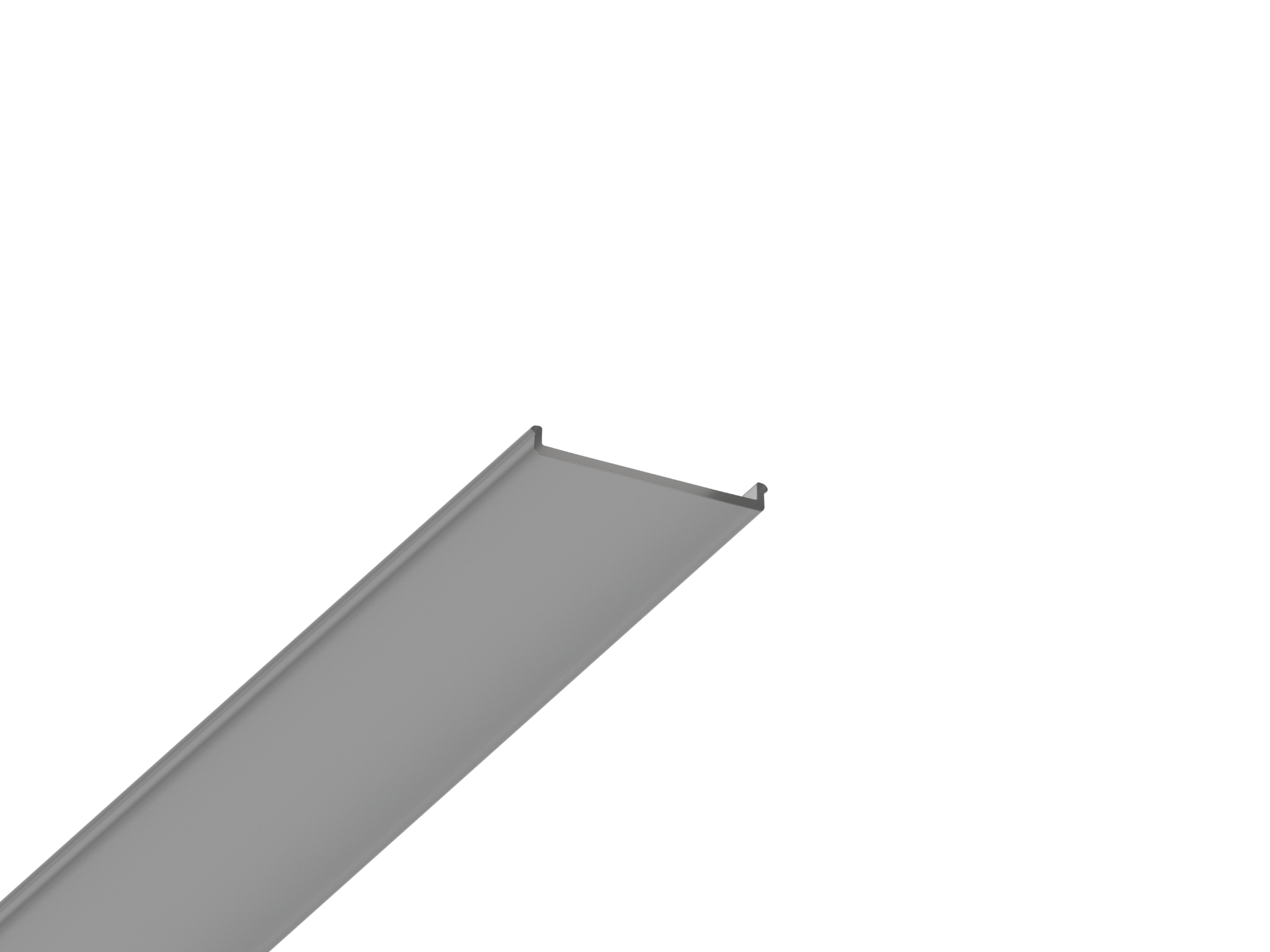

Black polycarbonate light screen
Darkens the unlit line and transmits 20% of the LED light.
- Material
- Polycarbonate
- Colour
- Black
- Light transmission
- 20%
- System width
- 25 mm
Compatible withSofiMarsel 06-14 · 25 mm contour system
White polycarbonate light screen
Creates the brightest diffused contour and transmits 80% of the LED light.
- Material
- Polycarbonate
- Colour
- White
- Light transmission
- 80%
- System width
- 25 mm
Compatible withSofiMarsel 06-14 · 25 mm contour system
Flexible PVC light screen
Flexible press-in screen with balanced 50% light transmission.
- Material
- Flexible PVC
- Colour
- White
- Light transmission
- 50%
- System width
- 25 mm
Compatible withSofiMarsel 06-14 · 25 mm contour system
Interior view
View the 06-14 contour light in 360°
The interactive scene shows how the visible 25 mm perimeter light line is perceived in a finished room.
Open visual referenceQuestions and answers
Questions about 06-14 and its screens
How does a contour profile differ from a floating profile?
A floating profile hides the light source in a recess, while 06-14 places a visible 25 mm screened light line in the finished ceiling plane.
Where is 06-14 fixed?
It is a wall-mounted profile fixed directly around the room perimeter.
Which screens fit 06-14?
D25 Black, D25 White and flexible PVC25.
How much light does each screen transmit?
D25 Black transmits 20%, PVC25 transmits 50% and D25 White transmits 80%.
Can the LED strip be serviced?
Yes. The screen is removable, so the LED strip remains accessible after the ceiling is installed.
What are the profile dimensions?
The overall section is 30 × 36 mm, the visible light contour is 25 mm and the LED mounting shelf is 15 mm.
Are the screens included with the profile?
No. The selected D25 or PVC25 screen is specified separately.
Can I download the 06-14 CAD file?
Yes. The page provides the 06-14 DWG, dimension drawing and interactive 3D model.
