Two membranes
Separate fixing of both membrane edges along the joint.
SofiMarsel / Basic profiles
03-1
Separating profile. Two membranes, one joint.
03-1 divides a stretch ceiling into two membranes. For attic and conventional ceilings, with a decorative T insert at the joint.
3D model: 03-1 aluminium version
- Function
- Two-membrane junction

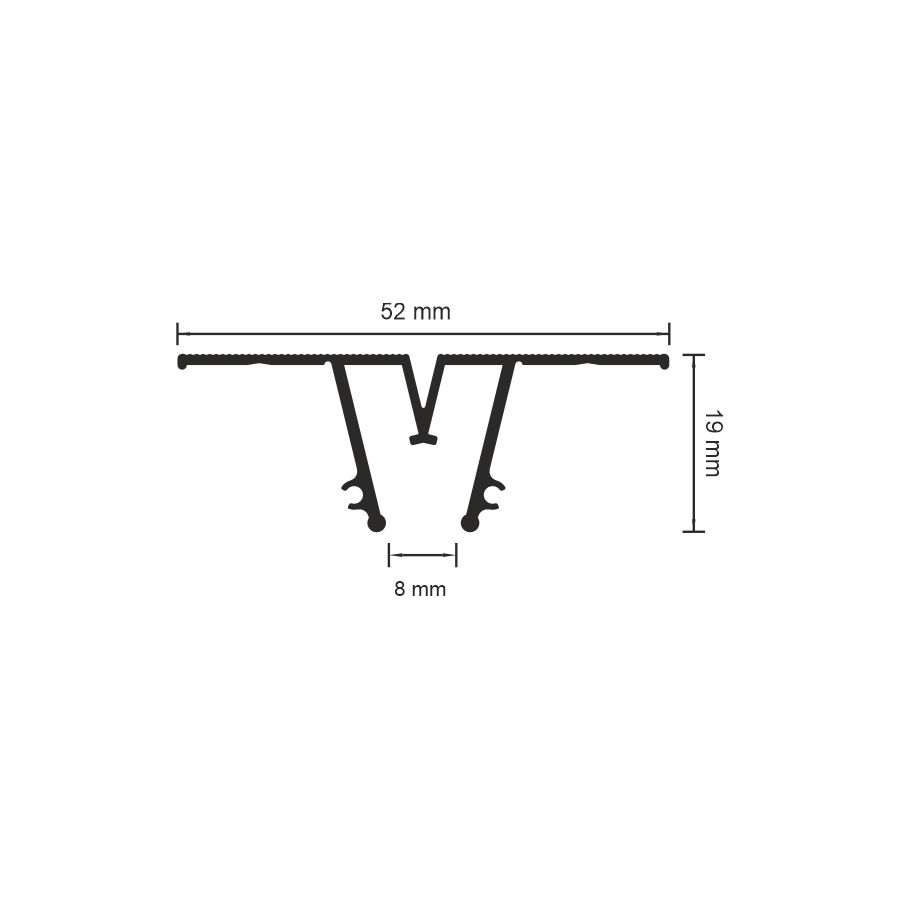

- Cross-section in drawing
- 19 × 52 mm
- Profile length
- 2 m
- PVC T insert
- T
Dividing large membranes.
SofiMarsel 03-1 is an aluminium separating profile for joining two stretch-ceiling membranes. Used in attic and conventional ceilings, around columns and in multi-level structures. SofiMarsel recommends dividing membranes larger than 50 m² to reduce the risk of sagging.
Areas above 50 m²
Dividing large membranes is recommended to reduce the risk of sagging.
Attic ceilings
A separating junction for ceilings with complex geometry.
Attics and large areas
The profile creates a dividing line and holds the edges of two membranes. For areas above 50 m², division is recommended; the joint position follows the room geometry and ceiling design. After installation, the joint is covered with a T insert.
T inserts. Five shades.
The T insert covers the joint between two membranes. Select the article code using the sample.
PVC T insert

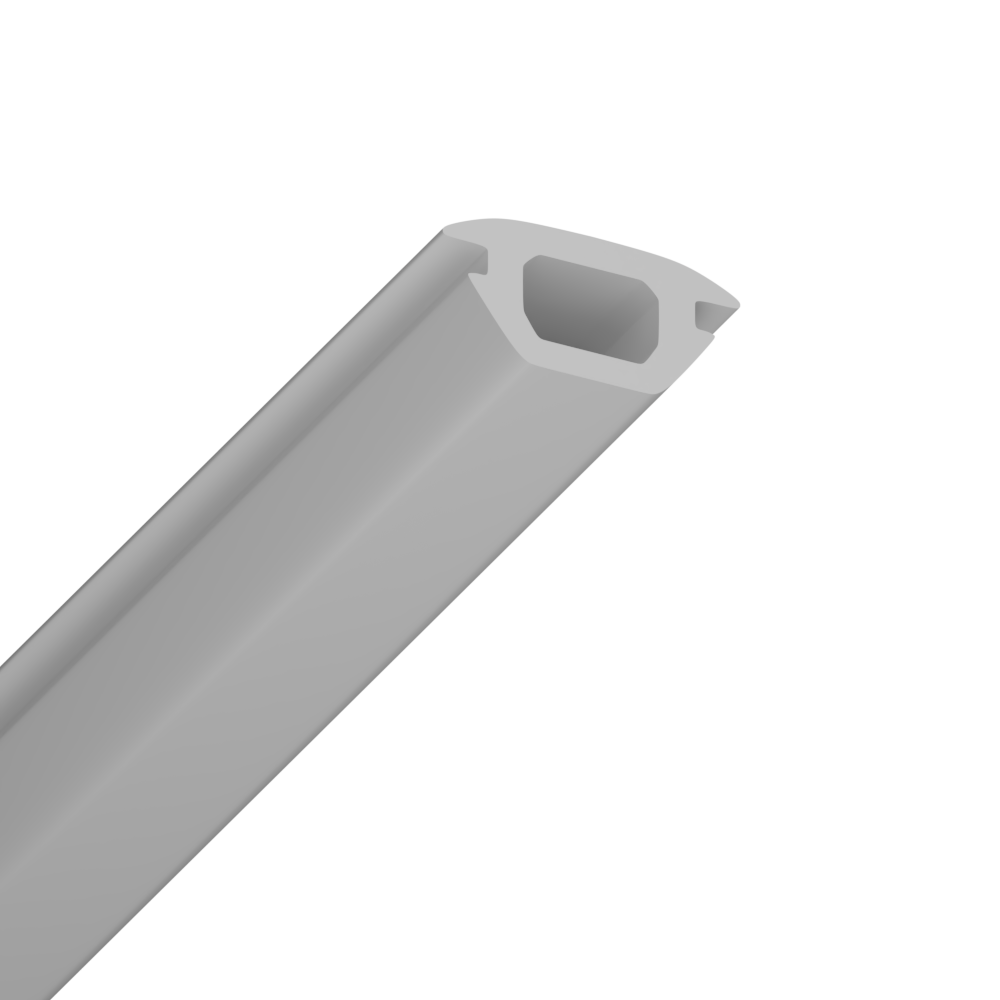

T-303
White
PVC T insert
T-307
Beige
PVC T insert

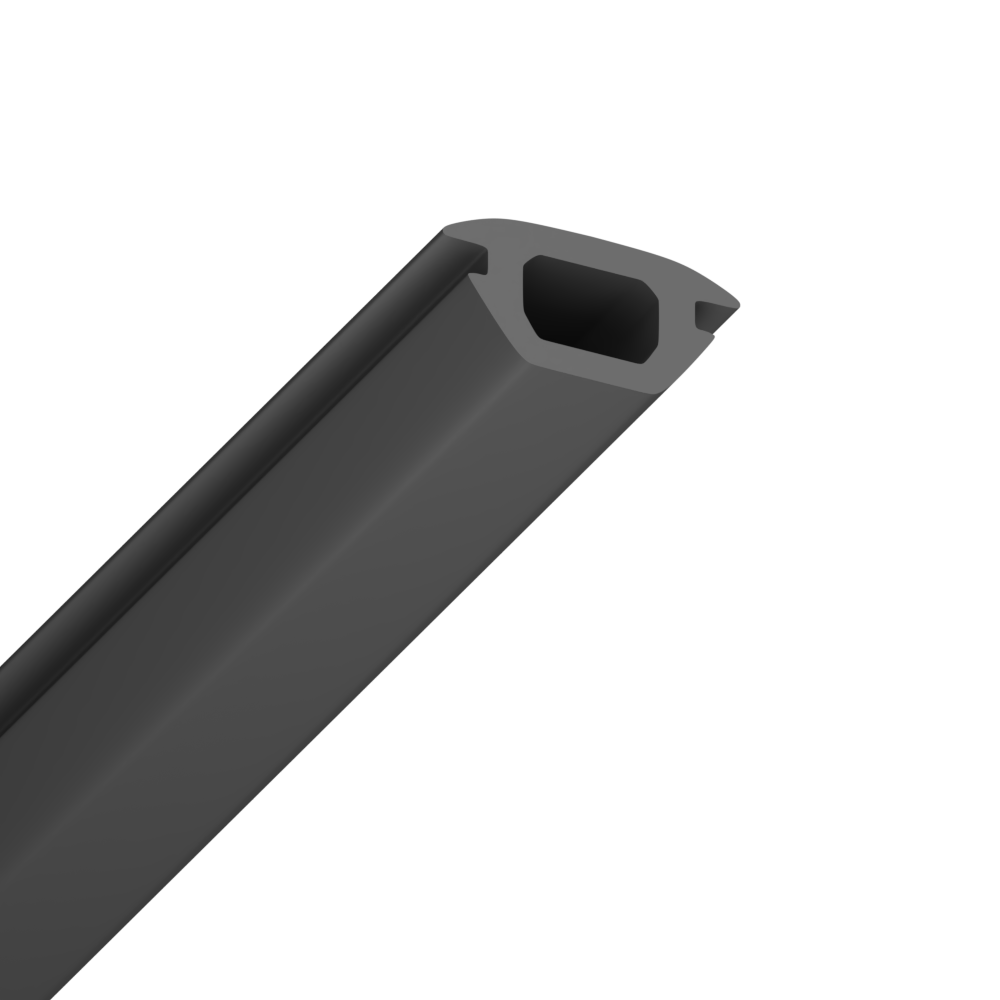

T-319
Grey
PVC T insert

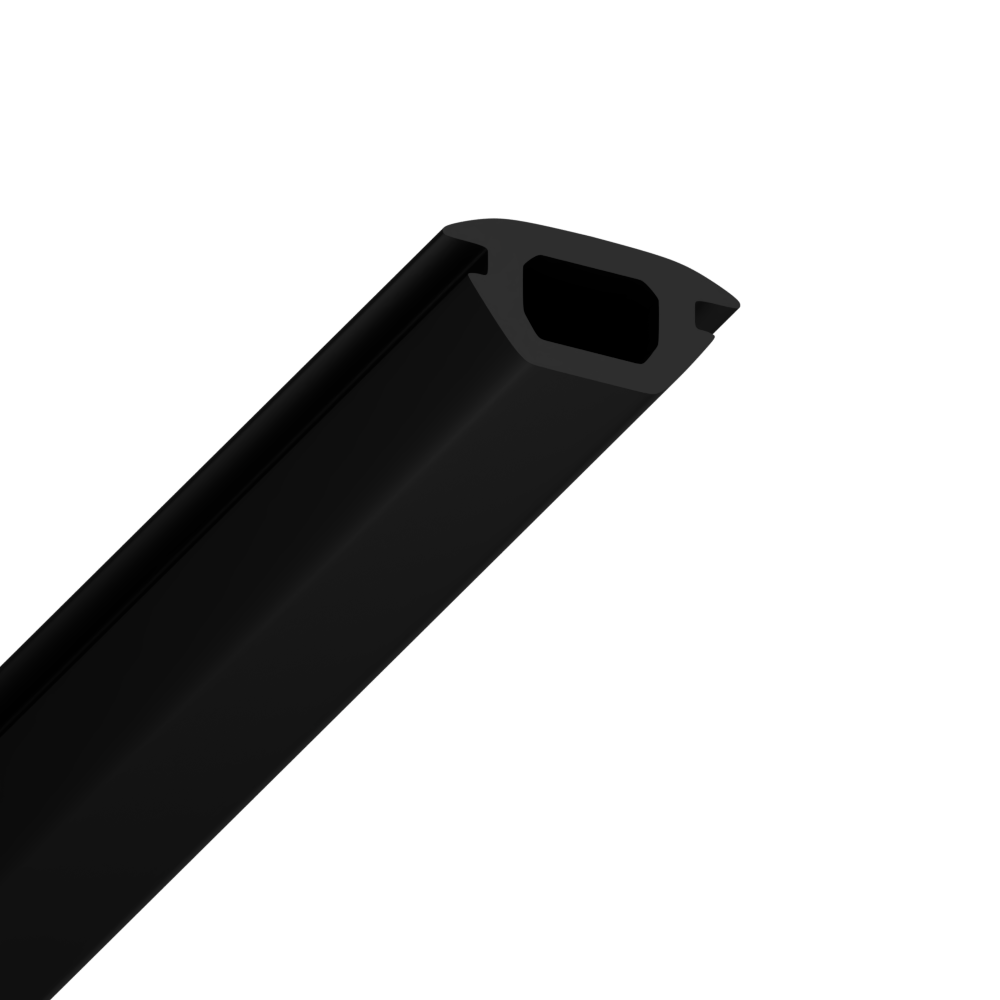

T-347
Black
PVC T insert

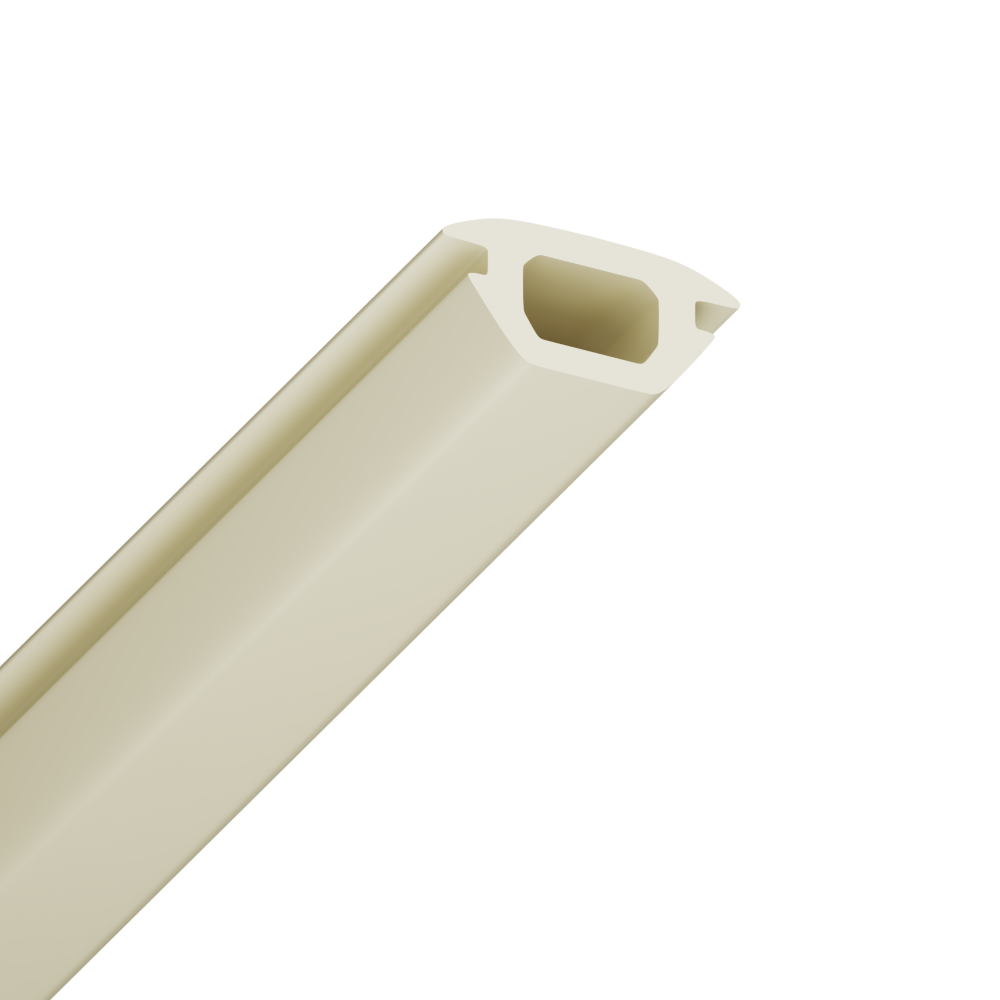

T-501
Light creamShade names describe the images. Order by TL article number; colour appearance depends on the screen.
03-1 installation and application
Technical specifications
| Cross-section in drawing | 19 × 52 mm |
|---|---|
| Profile length | 2 m |
| Function | Two-membrane junction |
| Material | Aluminium |
| PVC T insert | T |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈352 g/m |
Questions about 03-1
What is 03-1 used for?
Joining two separate stretch-ceiling membranes along one line.
When is ceiling division recommended?
SofiMarsel recommends dividing membranes larger than 50 m² to reduce sagging risk. The decision considers ceiling geometry and design.
Which inserts fit?
T inserts: T-303, T-307, T-319, T-347 and T-501.
Can it be used in an attic?
Yes, 03-1 is suitable for attic ceiling applications.
