Shadow profile bar system
08‑6 PRO shadow profile bar with a 7 mm gap
A black moiré aluminium support bar that creates a clean shadow junction where a wall- or ceiling-mounted perimeter profile cannot be used.
- Visible shadow gap
- 7 mm
- Profile section
- 25 × 25 mm
- Standard length
- 2 m
- Product code
- 08-6 PRO
Shadow profile catalogue
Wall-mounted shadow gap profiles
01‑12 — 01‑16
Ceiling-mounted shadow gap profiles
02‑9
Separating shadow gap profiles
03‑3
Shadow profile bars
08‑6 PRO
Short answer
What is the SofiMarsel 08-6 PRO profile bar?
SofiMarsel 08-6 PRO is a suspended aluminium profile bar for shadow-gap stretch ceilings. It is mounted to the structural ceiling with adjustable angle brackets at 500 mm intervals and forms a 7 mm shadow line where a conventional wall- or ceiling-mounted profile cannot be used. The optional black TO-347 PVC insert sits recessed inside the profile, above the finished ceiling plane. It preserves the shadow effect while masking local installation imperfections and helping prevent wrinkles and visible defects at external corners.
System logic
Why specify 08-6 PRO
A reinforced 25 × 25 mm bar combines adjustable ceiling suspension, a precise shadow line and an optional finishing insert.
Independent suspension
Adjustable brackets connect the bar to the structural ceiling when perimeter fixing to the wall or ceiling edge is impractical.
Controlled 7 mm line
The section keeps the visible shadow opening straight and consistent along a suspended perimeter junction.
Recessed TO-347 insert
The black PVC insert sits above the finished ceiling plane, so the junction remains visually shadowed while installation imperfections and difficult external corners are neatly concealed.
Verified product data
Technical specifications
Dimensions, suspension method and compatible components for design and installation.
- Application
- Suspended shadow profile bar for a stretch ceiling
- Visible shadow gap
- 7 mm
- Profile section
- 25 × 25 mm
- Standard length
- 2 m
- Weight
- ≈345 g/m
- Material
- Aluminium
- Mounting
- Adjustable angle brackets to the structural ceiling
- Bracket spacing
- 500 mm (50 cm)
- Finish
- Black moiré
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Optional insert
- TO-347 · black PVC · not included
- Product code
- 08-06-PRO

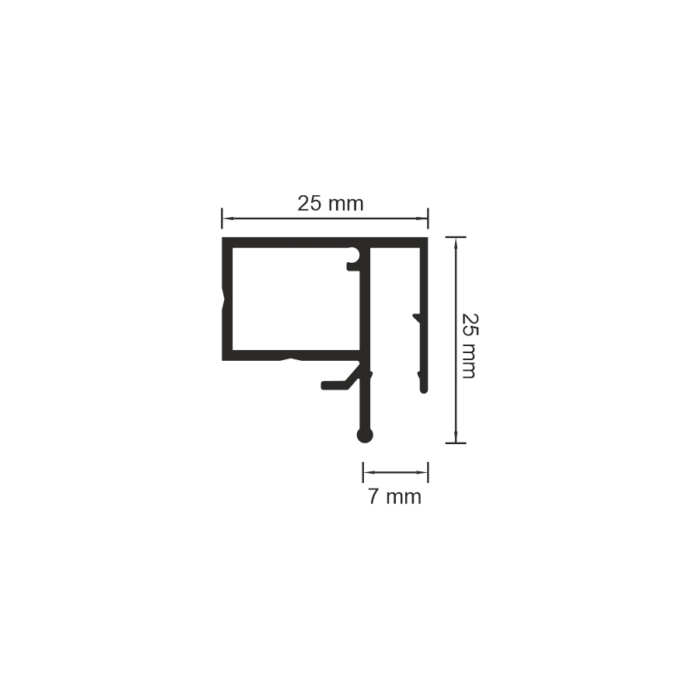

CAD and dimension drawing
Use the dimensioned drawing for a quick check and the original DWG when coordinating the suspended junction and bracket positions.
DWGDownload DWG↓JPGOpen dimension drawing↗Application
Suspended shadow perimeter

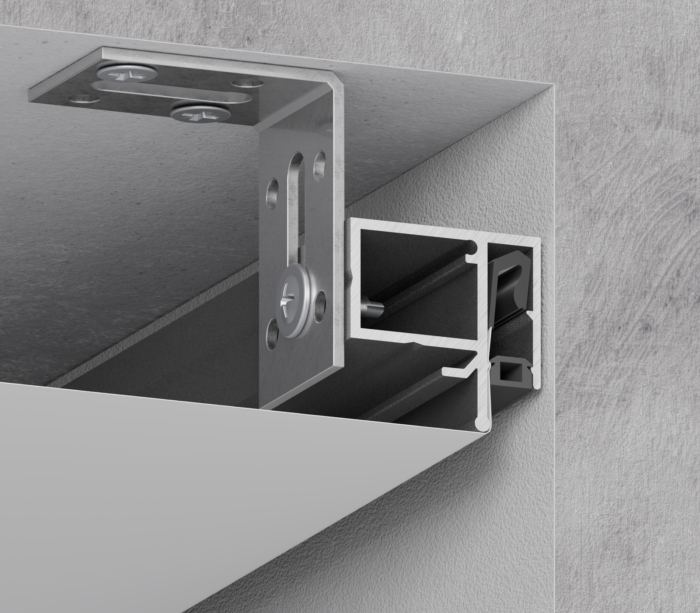

The 08-6 PRO bar is levelled below the structural ceiling on adjustable angle brackets placed at 50 cm intervals. Its 25 × 25 mm section supports the stretch-ceiling junction and leaves a precise 7 mm shadow opening. Where extra edge finishing is needed, the optional black TO-347 insert is fitted into the dedicated channel.
Compatible component

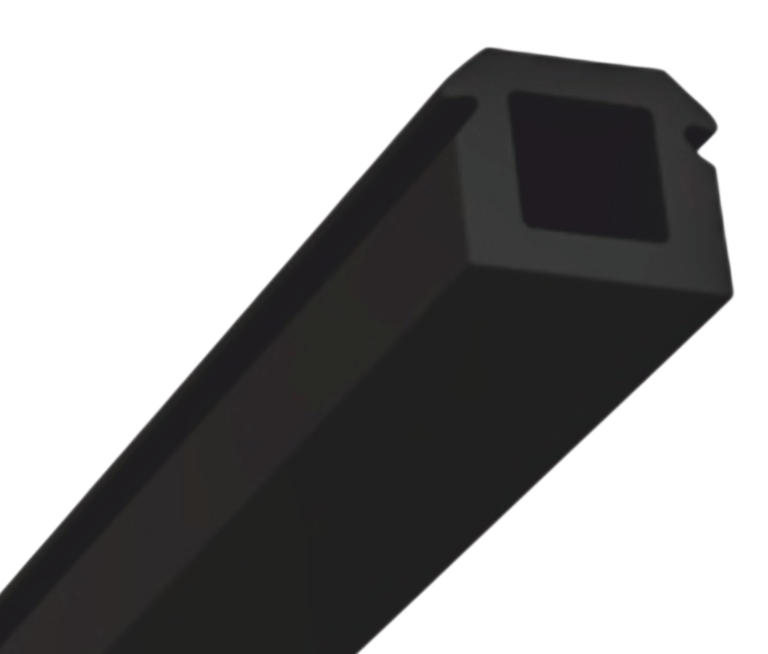

TO‑347 black PVC masking insert
Unlike a flush masking strip, TO-347 is seated deep inside 08-6 PRO, above the finished ceiling plane. The shadow line stays visually open while the insert masks installation imperfections and improves external-corner finishing. It is ordered separately.
Black PVC masking insert
A flexible black PVC insert for the dedicated recessed channel. Its deep position preserves the shadow effect while masking local installation imperfections and helping prevent wrinkles and visible defects at external corners.
TO-347 is recessed above the finished ceiling plane and does not close the visible shadow line. It masks installation imperfections and makes external corners easier to finish cleanly.
- Material
- Flexible PVC
- Colour
- Black
- Position
- Recessed above the finished ceiling plane
- Visual result
- Shadow effect retained
- Function
- Masks imperfections and helps prevent corner wrinkles
- Supply
- Optional · not included with the profile
05 / Animation
Profile 08-6 PRO in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTubeClear answers
Questions about 08-6 PRO and TO-347
What is the 08-6 PRO profile bar used for?
It creates a suspended shadow-gap stretch-ceiling junction where a conventional wall- or ceiling-mounted shadow profile cannot be used.
What shadow gap does 08-6 PRO create?
The finished visible opening is 7 mm.
What are the dimensions and weight?
The section is 25 × 25 mm, the standard length is 2 m and the weight is approximately 345 g per running metre.
How is 08-6 PRO mounted?
It is suspended from the structural ceiling on adjustable angle brackets installed at 500 mm (50 cm) intervals.
What is the TO-347 insert?
TO-347 is a flexible black PVC masking insert seated in a recessed channel above the finished ceiling plane. It conceals local installation imperfections and helps prevent wrinkles and visible defects at external corners.
Does TO-347 remove the shadow effect?
No. The insert sits deep inside 08-6 PRO rather than flush with the ceiling, so the 7 mm junction remains visually shadowed.
Is TO-347 included with 08-6 PRO?
No. TO-347 is an optional compatible component ordered separately.
Which harpoon and finish are specified?
The profile uses the SofiMarsel harpoon in white or black and is supplied in a black moiré finish.
Are a 3D model and CAD file available?
Yes. This page provides an interactive 3D model, a dimension drawing and the original 08-6 PRO DWG file.
