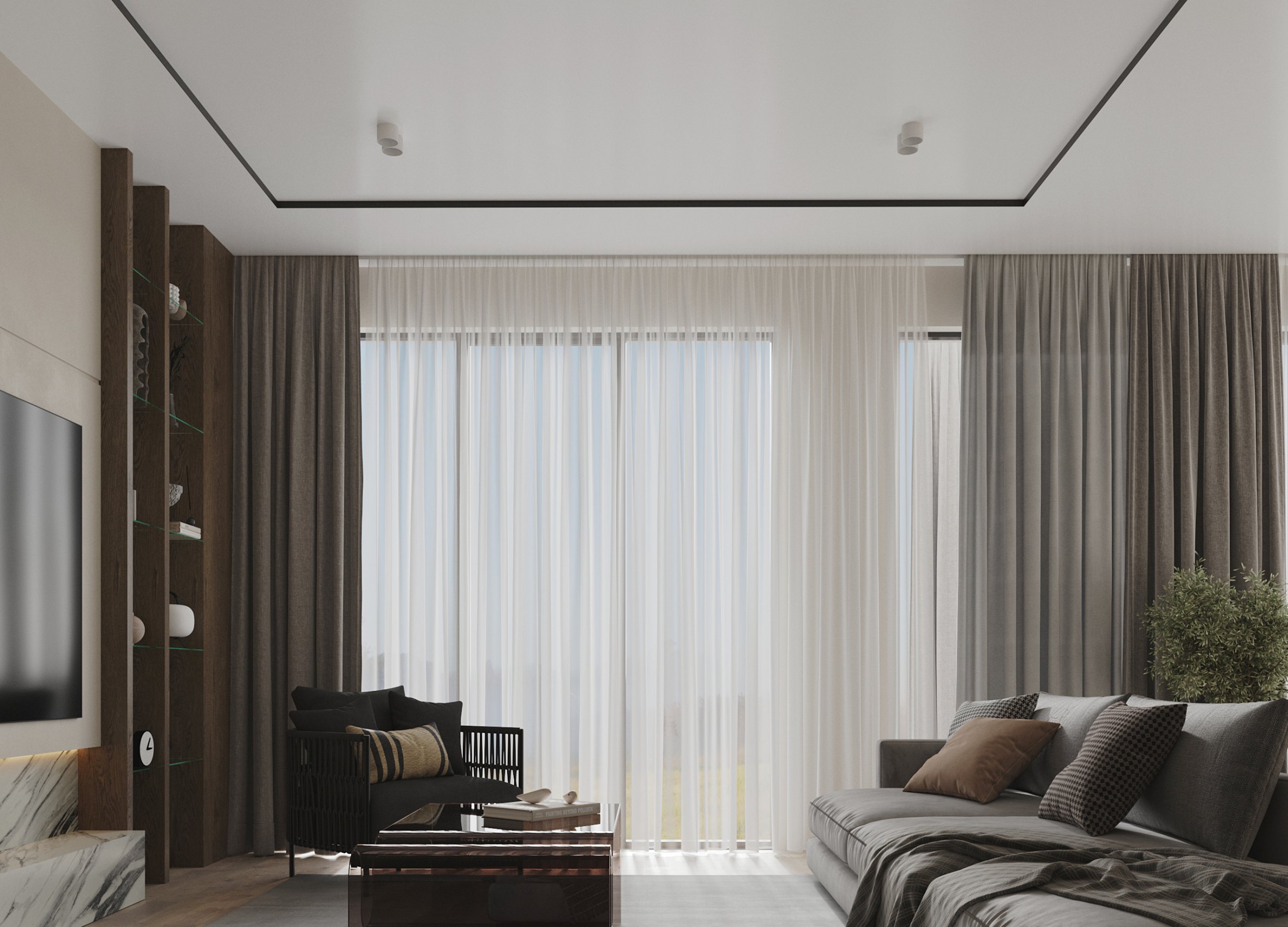

Concealed junction
The membrane enters from the side. Inserts sit inside the junction without a visible finishing strip across the ceiling.
SofiMarsel / Curtain tracks · FLAGSHIP
09-13 PRO. Side insertion. A clean ceiling junction.
The membrane is inserted from the side, concealing the finishing inserts. The curtain profile looks recessed into the ceiling, with two tracks, optional lighting and minimal visible details.
- Membrane insertion
- From the side
- Curtain tracks
- 2
- Lighting
- D13 / PVC13
- Length
- 2 m
Fewer visible details. Cleaner lines.
SofiMarsel 09-13 PRO · SLANT Q is a flagship aluminium two-track curtain profile for stretch ceilings with side membrane insertion. This junction conceals TF303 and TF347 inserts: a neat recess is visible from below and the curtain profile becomes part of the ceiling. Standard length is 2 m and cross-section is 113.63 × 52.2 mm. Available in white and black. Optional lighting uses D13, D13 Black or flexible PVC13 diffusers; the curtain tracks accept standard hooks with gliders.
Two curtain tracks
Separate tracks for curtains and sheers, with standard fittings and the familiar hook with glider.
Optional lighting
Add lighting with D13, D13 Black or flexible PVC13.

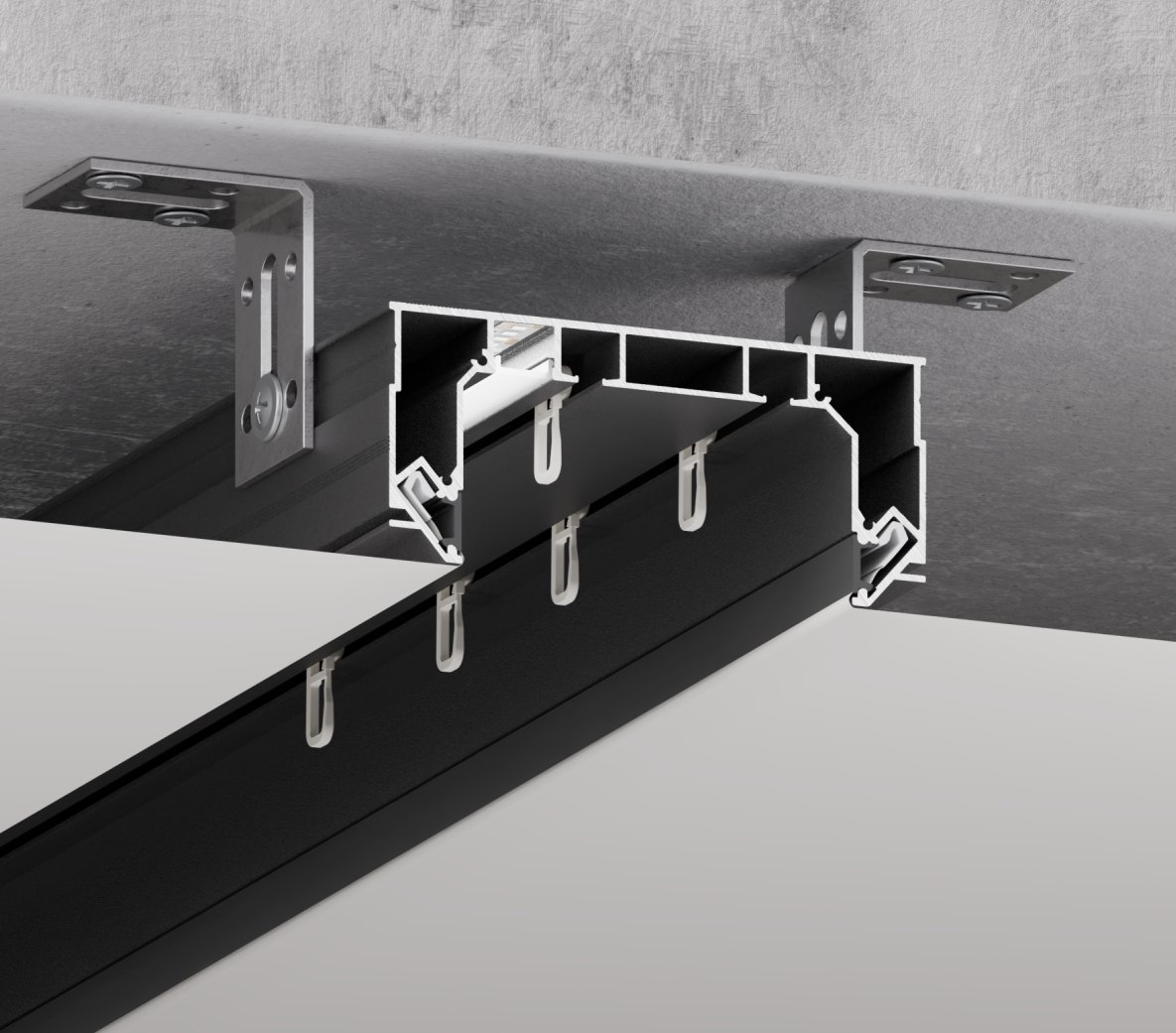

Membrane at the sides. Fittings inside.
The profile is fixed to the ceiling with adjustable brackets. Side grooves accept the stretch ceiling membrane, while TF303 and TF347 inserts are concealed in the junction.
Two tracks for curtains and sheers. The same standard hook as other SofiMarsel curtain profiles.
09-13 PRO / CURTAIN
- Profile
- 09-13 PRO · SLANT Q · 113.63 × 52.2 mm
- Membrane insertion
- From both sides
- Mounting
- To the ceiling with adjustable brackets
- Inserts
- TF303 / TF347 · concealed in the junction
Light along the curtains. Three diffuser options.
09-13 PRO accepts rigid D13 and D13 Black diffusers, or flexible PVC13. Add lighting to suit the project.
09-13 PRO / LED
D13
Rigid white diffuserA light-coloured line for a white ceiling and profile.
- Light transmission
- 80%
09-13 PRO / LED
D13 Black
Rigid black diffuserA dark line that blends with the black profile when the light is off.
- Light transmission
- 20%
09-13 PRO / LED
PVC13
White flexible diffuserFlexible screen for a thin hidden light line inside the curtain profile.
- Light transmission
- 50%

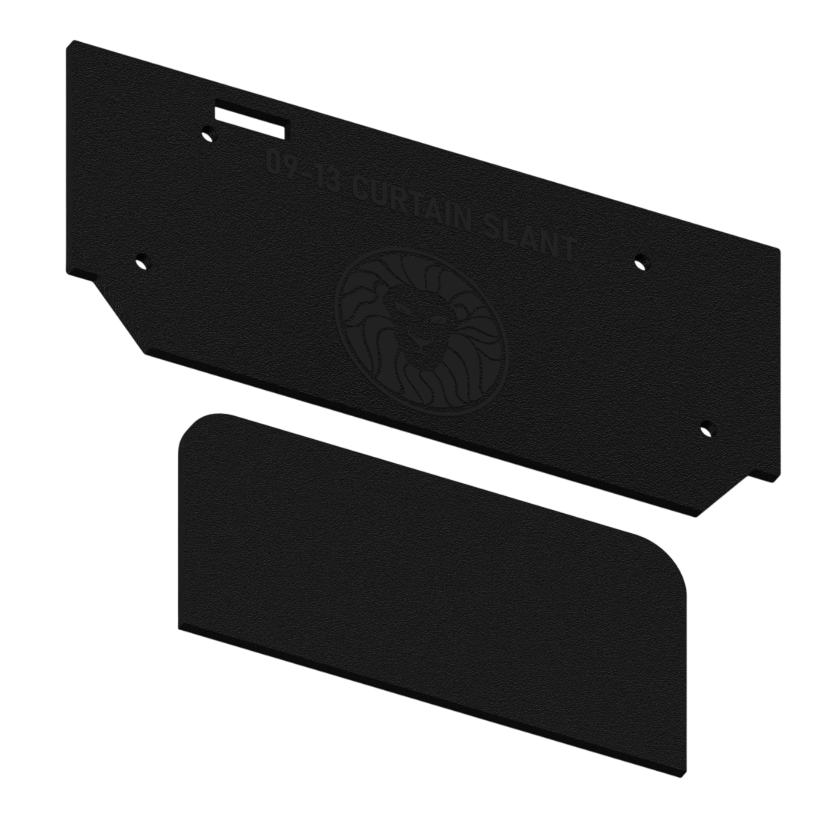

Finish the curtain track. Before it reaches the wall.
The curtain track can form an independent section of the ceiling. The end cap allows 09-13 PRO to end without joining another profile and conceals the fixing area.
Mounting part
The stretch ceiling membrane is bonded to this part.
Decorative part
Covers the bonded area and gives the end a neat finish.
Inserts in place. A clear view of the ceiling.
Use full-size white TF303 and black TF347 PVC inserts. Side membrane insertion conceals them in the junction. Mini versions are not used with this model. Inserts are selected separately.
Fittings. Explore every detail.
3D / 360°

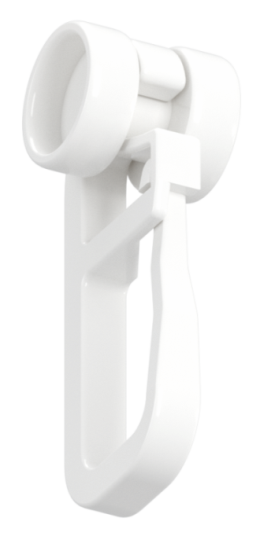

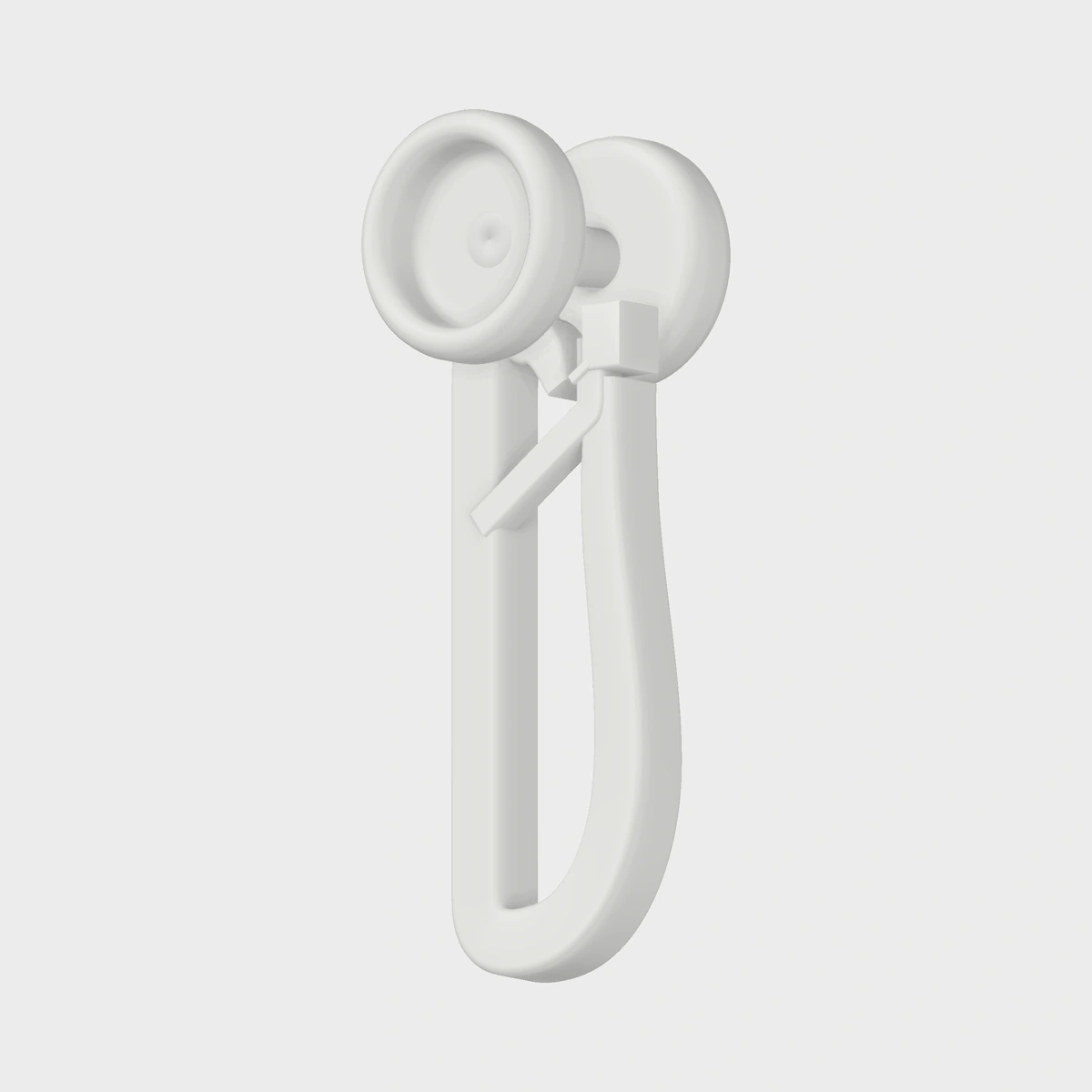

Curtain hook with glider
The standard hook with glider is shared with 09-3 PRO, 09-8 PRO and 09-11 PRO. Rotate the model to inspect the details.
09-13 PRO / Curtain hook with glider
Hook visualisation based on the product image.
09-13 PRO in action
An overview of the SofiMarsel 09-13 PRO curtain profile.
09-13 PRO / CURTAIN
Technical details
| Application | Two-track curtain profile with side membrane insertion for stretch ceilings |
|---|---|
| Material | Aluminium |
| Length | 2 m |
| Colours | White / black |

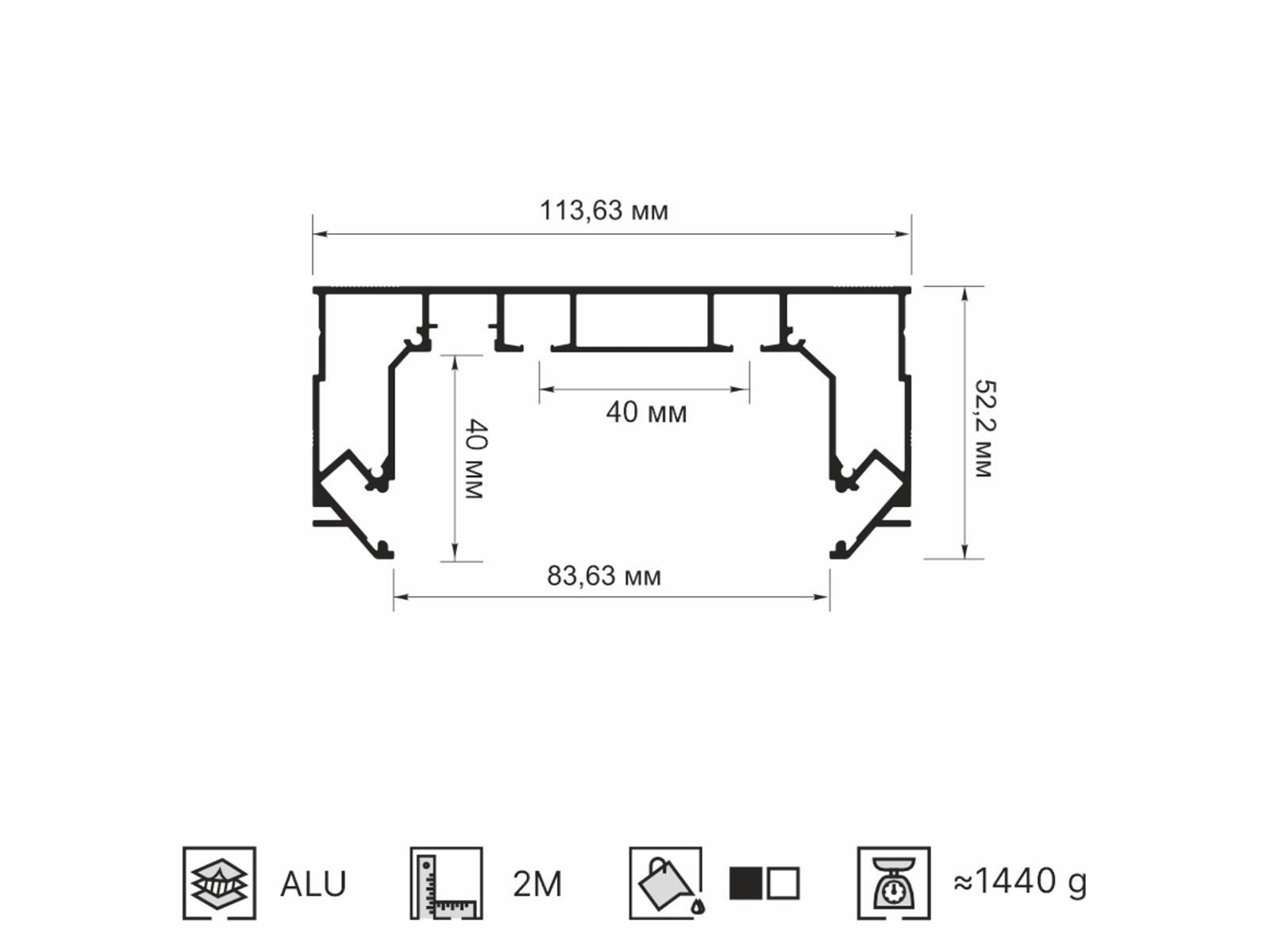

| Cross-section | 113.63 × 52.2 mm |
| Curtain tracks | 2 |
| Membrane insertion | From the side |
| Mounting | To the ceiling with adjustable brackets |
| Lighting diffusers | D13 / D13 Black / PVC13 |
| Inserts | TF303 — white; TF347 — black; supplied separately |
| Fittings | Standard hooks with gliders |
| End cap | 09-13 CURTAIN SLANT · two parts |
Drawings for your project
09-13 PRO · DWGDownload DWG ↓Questions about 09-13 PRO
What makes 09-13 PRO different?
Side membrane insertion. TF303 and TF347 inserts are concealed in the junction, so the curtain profile looks recessed into the ceiling with minimal visible detail.
Which inserts fit 09-13 PRO?
Full-size white TF303 and black TF347. These are not Mini versions. Inserts are selected separately.
Which lighting diffusers are compatible?
D13, D13 Black or flexible PVC13. The curtain profile can also be used without lighting.
Which hooks are required?
Standard hooks with gliders, as used in 09-3 PRO, 09-8 PRO and 09-11 PRO. A 3D visualisation is available on this page.
Can the curtain track end before the wall?
Yes. A two-part 09-13 CURTAIN SLANT end cap finishes an exposed end.
What are the dimensions and mounting method?
Cross-section: 113.63 × 52.2 mm; standard length: 2 m. The profile is fixed to the ceiling with adjustable brackets.
