Concealed curtain track
Creates a niche for curtain tracks.
SofiMarsel / Basic profiles
08-1 PRO
Box profile for concealed curtain niches.
08-1 PRO creates a concealed curtain-track niche and supports stretch-ceiling installation where wall fixing is not possible.
3D model: 08-1 PRO aluminium version
- Installation
- Ceiling brackets
- Cross-section in drawing
- 37 × 39 mm
- Profile length
- 2 m
A ready mounting base. A concealed niche.
SofiMarsel 08-1 PRO is a 37 × 39 mm aluminium box profile. It creates niches for concealed curtain tracks and provides a mounting base where wall fixing is not possible. Attach to the existing ceiling using adjustable brackets at a recommended spacing of 50 cm.
Independent of the wall
A mounting base where wall fixing is not possible.
Reinforced joints
An aluminium joining band and internal pins connect the profile.
Installation and joint reinforcement

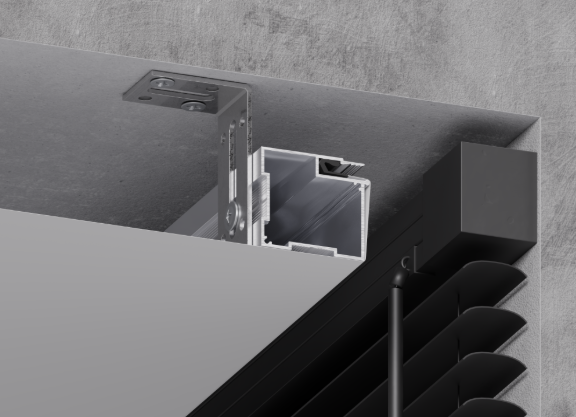

Fix the profile to the existing ceiling with adjustable brackets at a recommended spacing of 50 cm. An aluminium joining band and pins inside the profile enable jointing and reinforcement.
Technical specifications

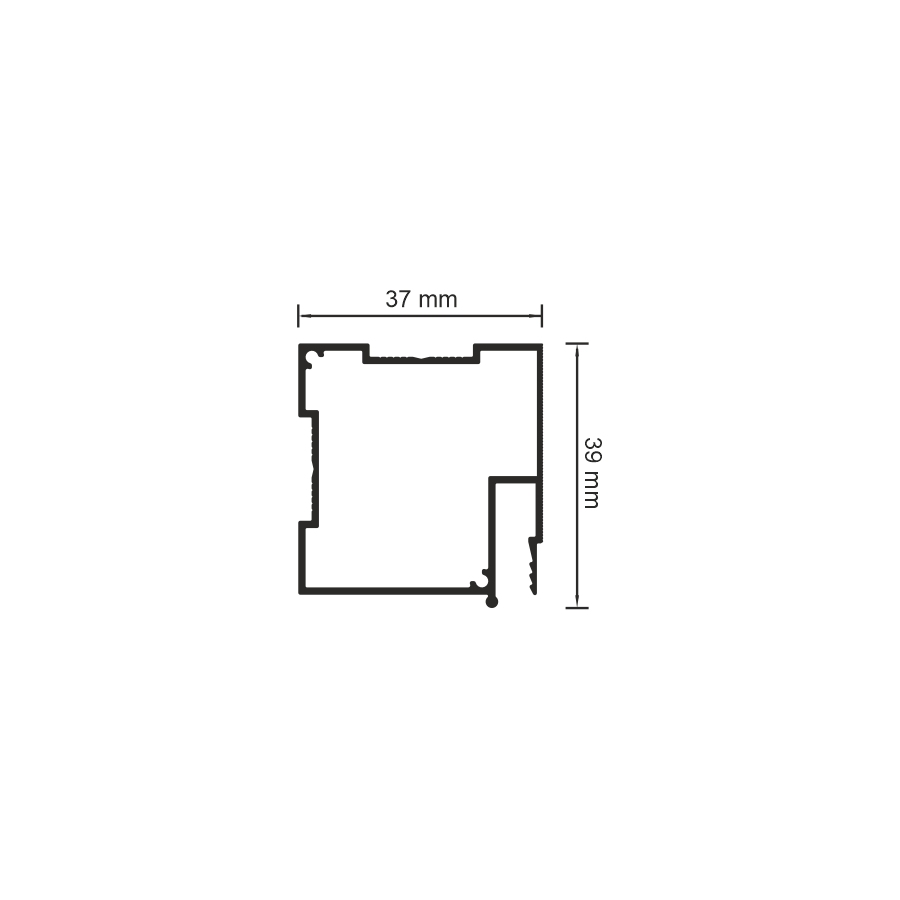

| Cross-section in drawing | 37 × 39 mm |
|---|---|
| Profile length | 2 m |
| Installation | Ceiling brackets |
| Material | Aluminium |
| Harpoon | SofiMarsel — black or white |
| Weight per linear metre · Standard | ≈517 g/m |
Questions about 08-1 PRO
What is 08-1 PRO used for?
Concealed curtain-track niches and stretch-ceiling mounting without fixing to the wall.
How is it installed?
On adjustable brackets attached to the existing ceiling, with a recommended spacing of 50 cm.
How are joints reinforced?
With an aluminium joining band and pins inside the profile.
Which harpoon is used?
SofiMarsel harpoon, black or white.
