Compact linear-light system
06‑20 PRO profile for a 12 mm linear light
A compact aluminium profile for a narrow, continuous 12 mm light line in a stretch ceiling, designed exclusively for the flexible PVC12 diffuser.
- Light line
- 12 mm
- Overall section
- 37 × 33 mm
- Standard length
- 2 m
- Product code
- 06-20 PRO
Linear-light profile catalogue
Choose a linear-light profile
06‑13 — 06‑20 PRO
Profile overview
What is SofiMarsel 06-20 PRO?
06-20 PRO is a 37 × 33 mm aluminium profile that integrates a narrow 12 mm light line into a stretch ceiling. It works only with the flexible PVC12 diffuser, ordered separately.
Advantages
Why choose 06-20 PRO
A controlled narrow line with one clearly defined diffuser system.
Narrow 12 mm line
A fine illuminated stroke for restrained ceiling geometry.
PVC12 only
One compatible flexible diffuser keeps specification and installation unambiguous.
Project-ready geometry
Official 3D, dimension drawing and DWG support coordination before installation.
Technical specifications
06-20 PRO technical data
Official dimensions and diffuser compatibility for selection and coordination.
- Application
- Narrow linear light for stretch ceilings
- Compatible diffuser
- PVC12 only
- Overall section
- 37 × 33 mm
- Standard length
- 2 m
- Weight
- ≈512 g/m
- Material
- Aluminium
- Visible light line
- 12 mm
- Internal channel
- 13 mm
- Diffuser supply
- Ordered separately
- Finish
- Mill-finish aluminium / grey
- Product code
- 06-20-PRO

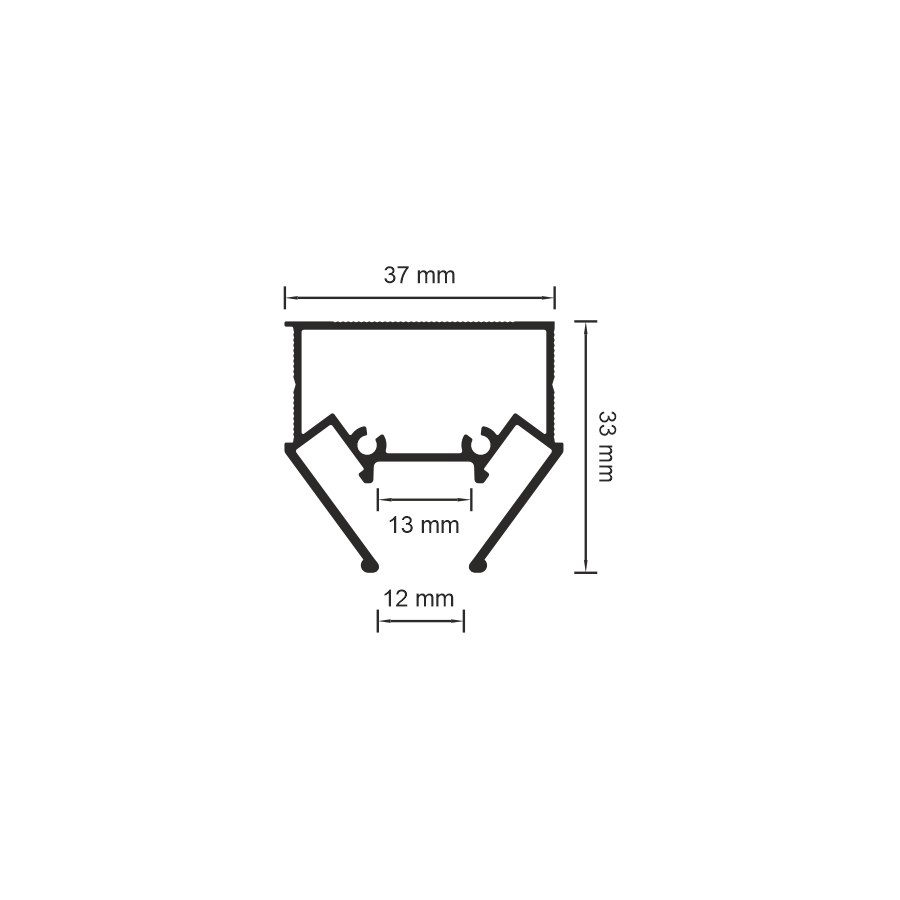

06-20 PRO dimensions and section
The official drawing shows the 37 × 33 mm envelope, 13 mm internal channel and 12 mm visible opening. Use the DWG for CAD coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application

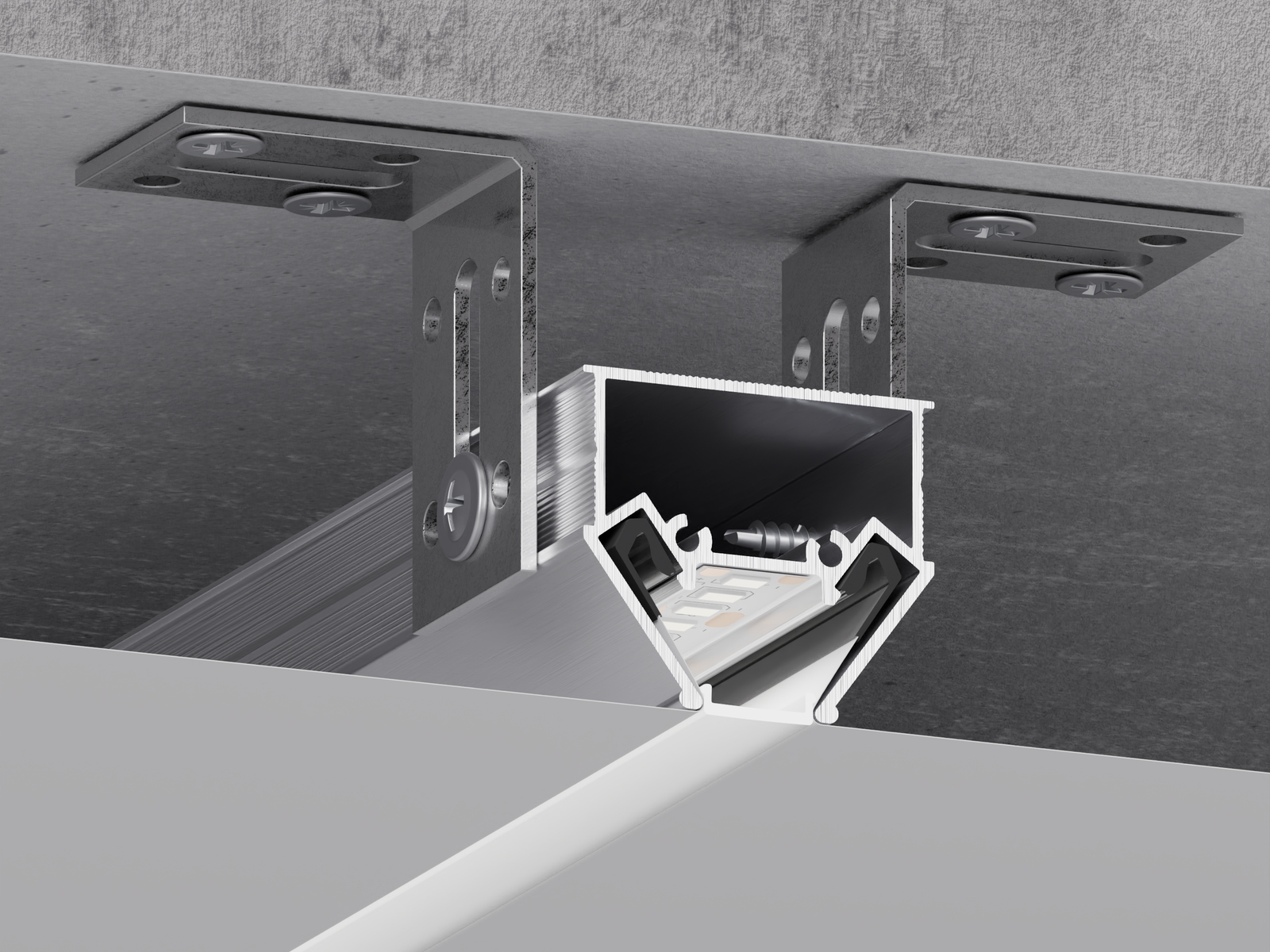

A compact line integrated into the ceiling
Fix the profile on the planned line, install the LED equipment, tension the membrane on both sides and close the channel with the flexible PVC12 diffuser. LED strip, driver and light calculation are specified for the project.
Compatible components

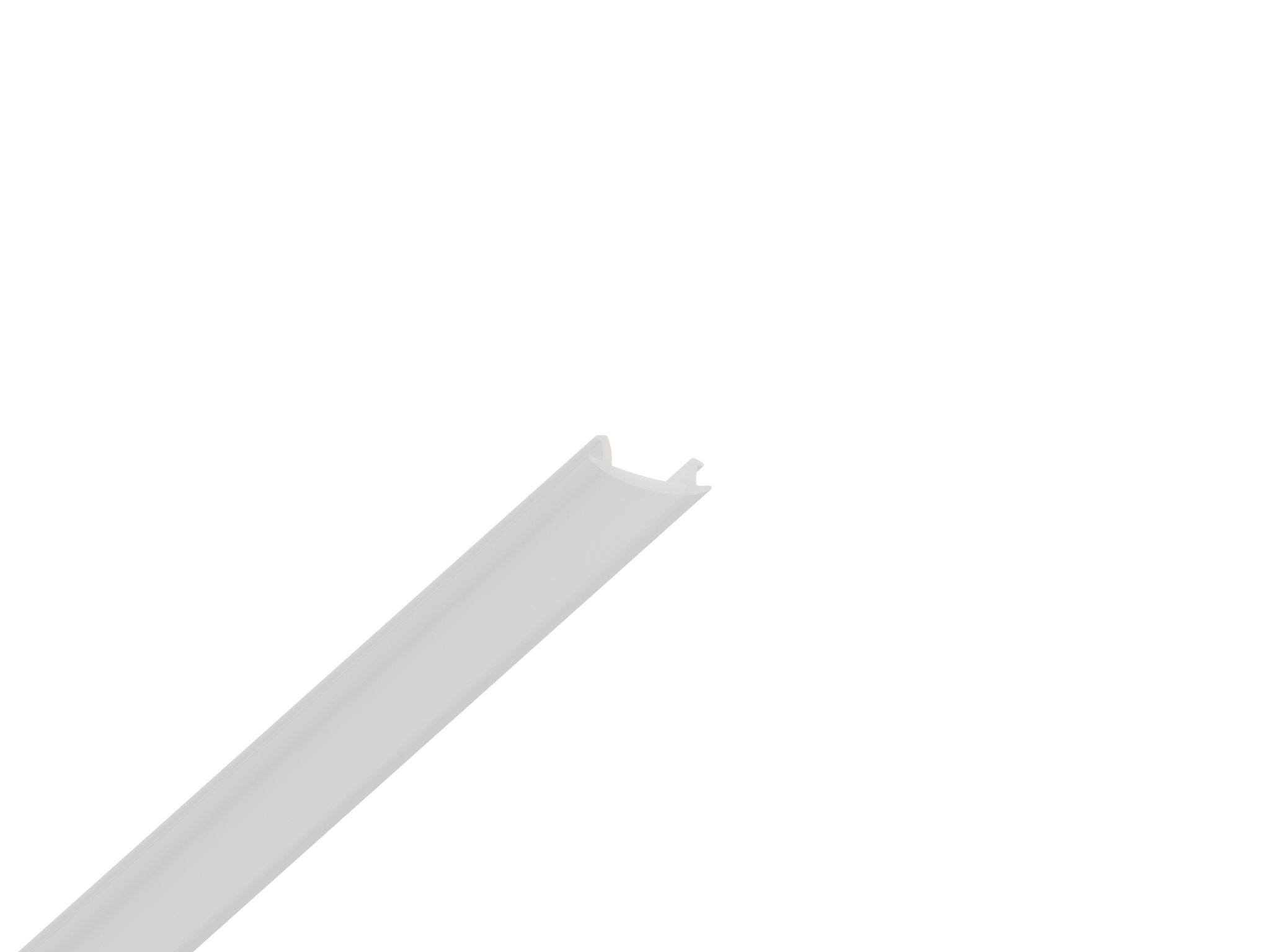

PVC12 diffuser for 06-20 PRO
The profile has one compatible screen: the flexible PVC12 diffuser, ordered separately.
Flexible PVC screen
Flexible press-in screen with balanced 50% light transmission.
- Material
- Flexible PVC
- Colour
- White
- Light transmission
- 50%
- System width
- 12 mm
Compatible withSofiMarsel 06-20 PRO
Questions and answers
Questions about 06-20 PRO
What is 06-20 PRO used for?
For a narrow 12 mm light line integrated into a stretch ceiling.
Which diffuser fits?
Only the flexible PVC12 diffuser.
Do rigid D screens fit?
No. The official system is designed for PVC12 only.
What are the dimensions?
The overall section is 37 × 33 mm, with a 12 mm visible line.
Is the diffuser included?
No, the profile and PVC12 diffuser are ordered separately.
Is CAD available?
Yes. The page includes DWG, an official dimension drawing and a 3D model.
