SofiMarsel MultiSnap
Patented SofiMarsel system
05-8 PRO. 90° corners. Perimeter lighting.
Two ceiling levels, a crisp light line and right-angle corners on both sides. The 05-8 PRO profile works with the wide 07-01 fascia, 60 mm high, and a D25 or PVC25 diffuser.
Updated: 22 September 2026
- Internal and external corners
- 90°
- 07-01 fascia
- 60 mm
- Light line
- 25 mm
- System
- MultiSnap
Two levels. Right-angle corners. No lens-like deformation.
05-8 PRO is an aluminium profile in the SofiMarsel MultiSnap system for two-level stretch ceilings with perimeter lighting. It creates internal and external 90° corners without lens-like deformation of the membrane. This model is designed for assembly with the wide 07-01 fascia, 60 mm high, and a light line fitted with D25 White, D25 Black or PVC25.
Internal and external. Both at 90°.
Create right-angle transitions between levels: an internal corner for a recessed outline and an external corner for a projecting ceiling section.
External 90° corner
No lens-like deformation
The profile creates a right-angle corner in a two-level stretch ceiling without lens-like deformation of the membrane.
Perimeter lighting
A separate lighting channel creates a crisp line along the transition between levels.
Removable fascia
The aluminium 07-01 fascia snaps into the MultiSnap system and can be removed when needed.

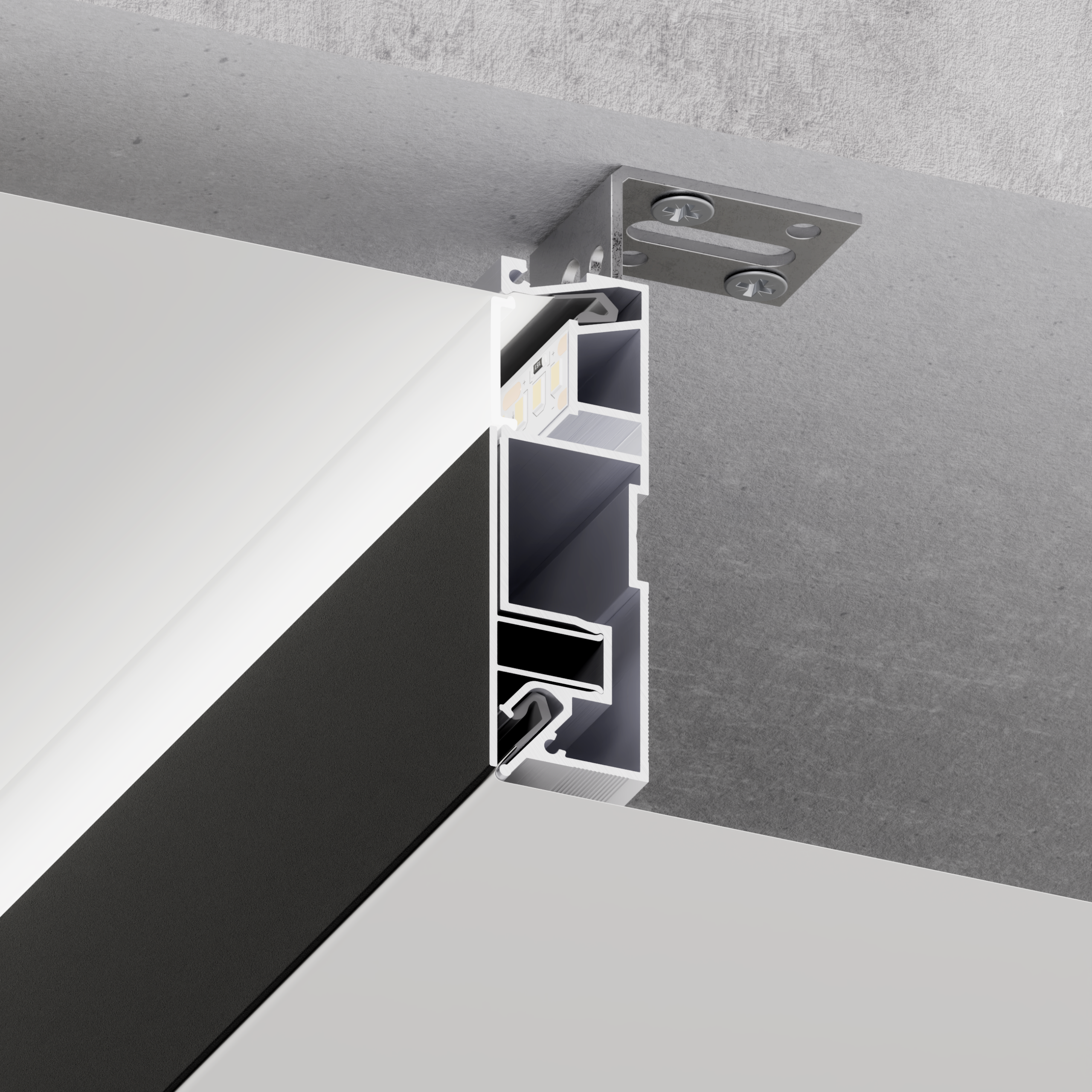

Wide fascia. Crisp light line.
One specified configuration: the 05-8 PRO profile, 07-01 fascia at 60 mm and a light-line diffuser. Choose the fascia colour and diffuser type for your project.
05-8 PRO + 07-01
MultiSnap.
60 mm + LED.
- Profile
- 05-8 PRO
- Fascia
- 07-01 · 60 mm
- Lighting
- Perimeter lighting, 25 mm line
- Diffusers
- D25 White / D25 Black / PVC25
07-01. 60 mm of clean geometry.
05-8 PRO uses only the wide aluminium 07-01 fascia, 60 mm high. It is available in white and black moiré.
White moiré
07-01 60 mm
Black moiré
07-01 60 mm
Three diffusers. One light line.
The lighting channel is covered with rigid D25 White, rigid D25 Black or flexible PVC25. All three options are compatible with 05-8 PRO.
Rigid diffuser
D25 White
White diffuserA rigid white diffuser for the light line around a two-level ceiling.
- Light transmission
- 80%

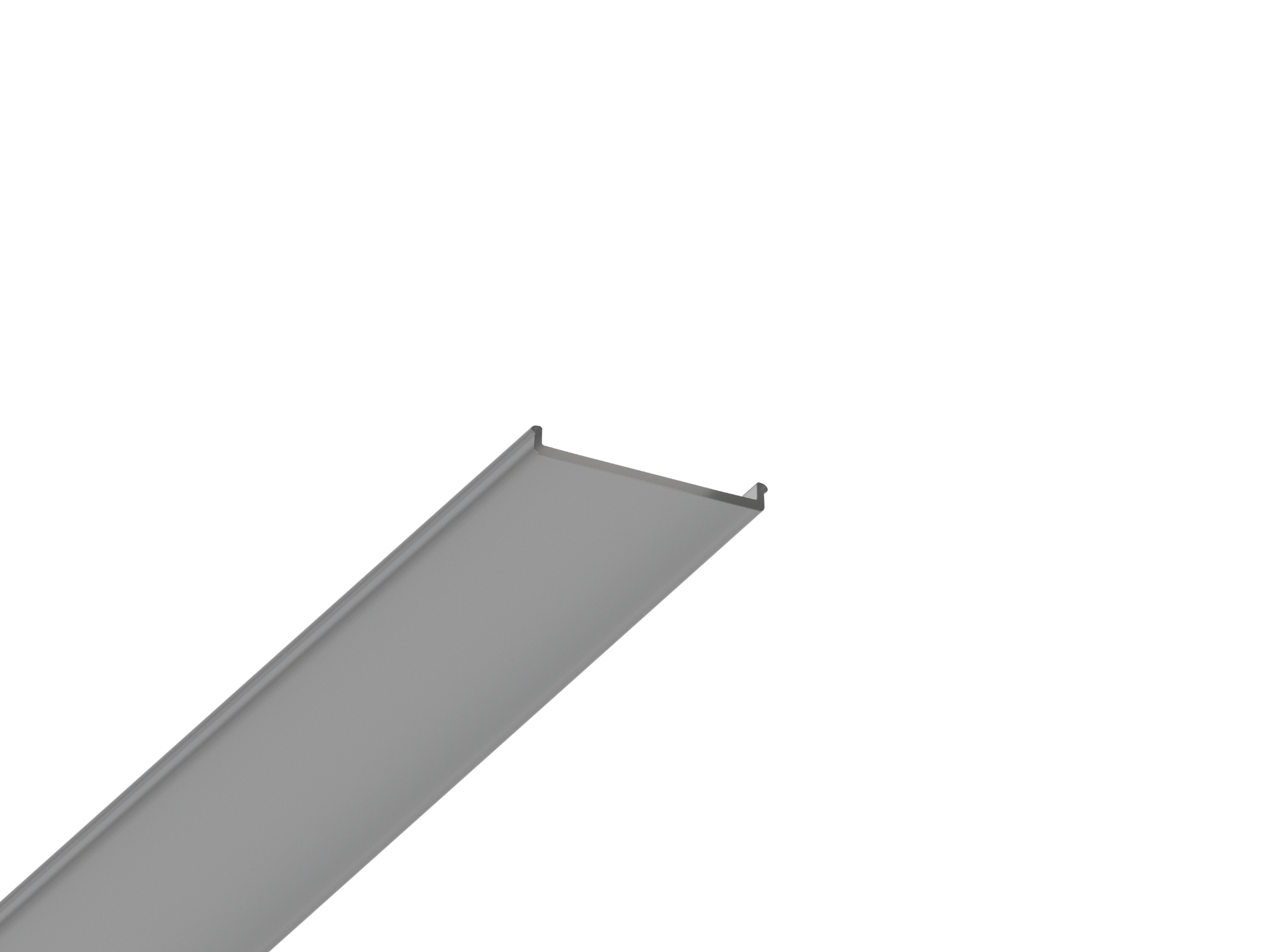

Rigid diffuser
D25 Black
Black diffuserA rigid black diffuser for a dark line when the lighting is off.
- Light transmission
- 20%
Flexible diffuser
PVC25
Flexible diffuserA flexible diffuser for a continuous light line without joints along long straight sections.
- Light transmission
- 50%
MultiSnap / 05-8 PRO
Technical specifications
| Application | Two-level stretch ceiling with perimeter lighting |
|---|---|
| System | MultiSnap |

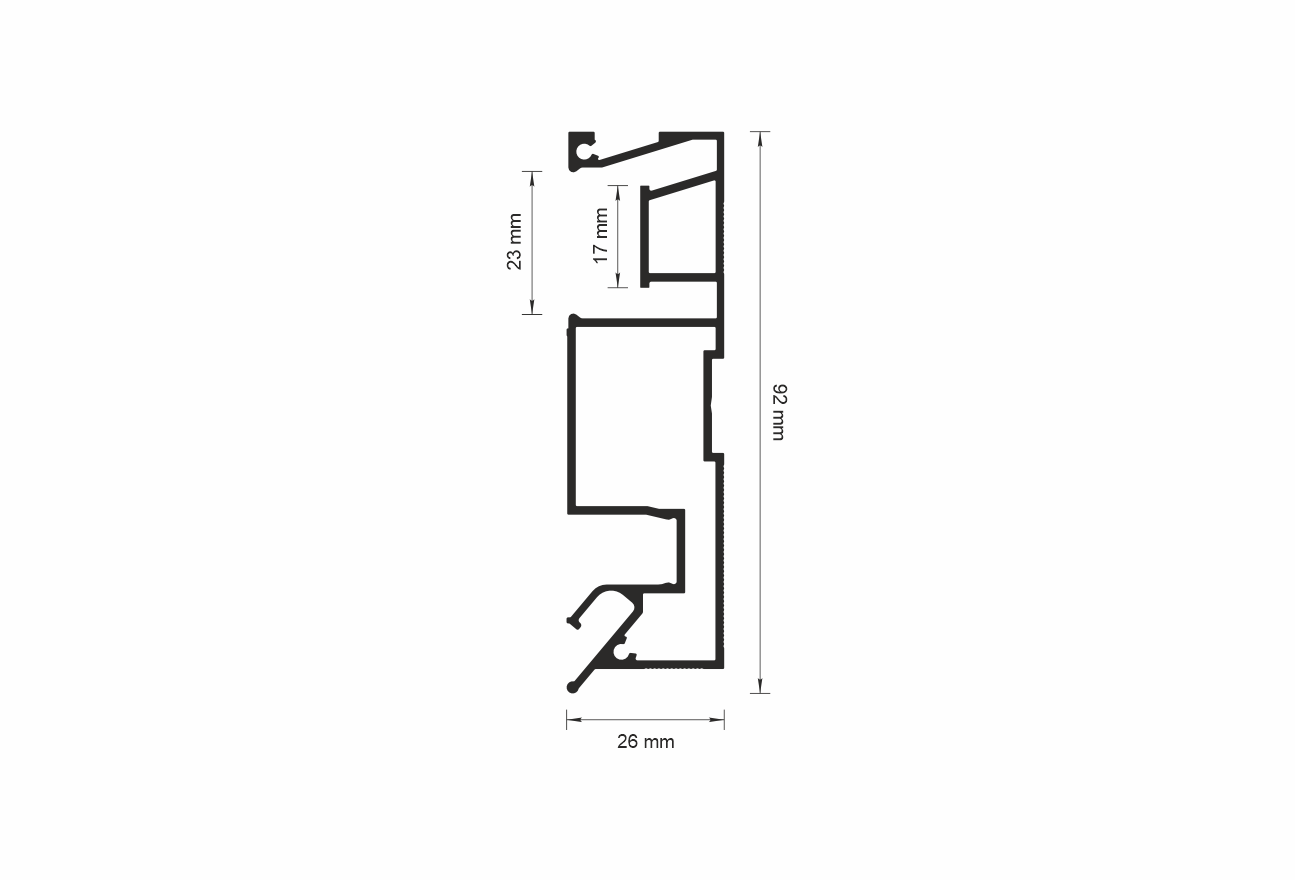

| Profile cross-section | 26 × 92 mm |
| Standard length | 2 m |
| Material | Aluminium |
| Profile finish | Aluminium |
| Fascia | 07-01 · 60 mm |
| Fascia colour | White moiré / Black moiré |
| Light line | 25 mm |
| Diffusers | D25 White / D25 Black / PVC25 |
| Corners | Internal and external 90° corners |
05-8 PRO in action
See how the two-level ceiling assembly works with the 07-01 fascia and light line.
Open on YouTubeQuestions about 05-8 PRO
What corners can be made with 05-8 PRO?
Internal and external 90° corners in a two-level stretch ceiling. The construction allows these corners to be formed without lens-like deformation of the membrane.
Which fascia fits 05-8 PRO?
This model is designed exclusively for the wide 07-01 fascia, 60 mm high. The fascia is available in white and black moiré.
Can 05-8 PRO be assembled without lighting and with a narrow fascia?
The specified 05-8 PRO configuration uses the wide 07-01 fascia at 60 mm and a perimeter light line. For a conventional transition without lighting or an option with a 33 mm fascia, see the 07-4 PRO profile.
Which diffusers are compatible with 05-8 PRO?
D25 White and D25 Black are rigid diffusers; PVC25 is a flexible diffuser. They cover the 25 mm light line.
How does 05-8 PRO differ from 07-4 PRO?
05-8 PRO is designed for internal and external 90° corners, a wide 60 mm fascia and a 25 mm light line. 07-4 PRO has two options: a 60 mm fascia without lighting, or a 33 mm fascia with a lighting recess for D13 or PVC13.
What information is needed for a project quotation?
Send your ceiling plan, section lengths, number of internal and external corners, fascia colour, chosen diffuser and delivery city. We will help prepare the specification.
