Large light panels
A luminous plane for offices, showrooms, retail and public interiors.
SofiMarsel flagship
06-16 PROLightbox
Light. Form. Space.
One aluminium profile, from a large light panel to a modular exhibition stand. 06-16 PRO brings lighting, architecture and brand communication together in the Lightbox system.
131 × 57Overall section · mm
2 mStandard length
Classic + ExpoApplication
White moiréBlack moiré
06-16 PRO / Lightbox
What is 06-16 PRO Lightbox?
SofiMarsel 06-16 PRO is an aluminium profile for light panels, suspended lightboxes and modular exhibition structures. Its 131 × 57 mm section forms a frame for translucent or advertising membranes. The system includes HM 01-1 suspension, straight and corner connections, and supports for freestanding advertising structures.
Lightbox / 01
One profile. Three applications.
Suspended lightboxes
An independent lighting object with HM 01-1 suspension and a distinct white or black frame.
Modular exhibition stands
Advertising walls, illuminated modules and spatial displays, including house-shaped pavilions.

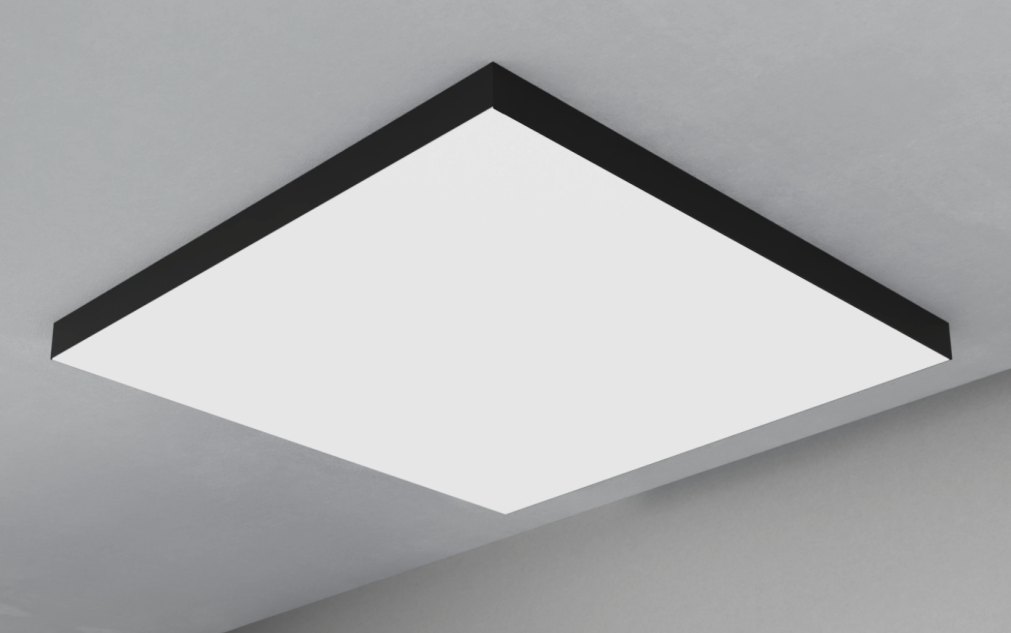

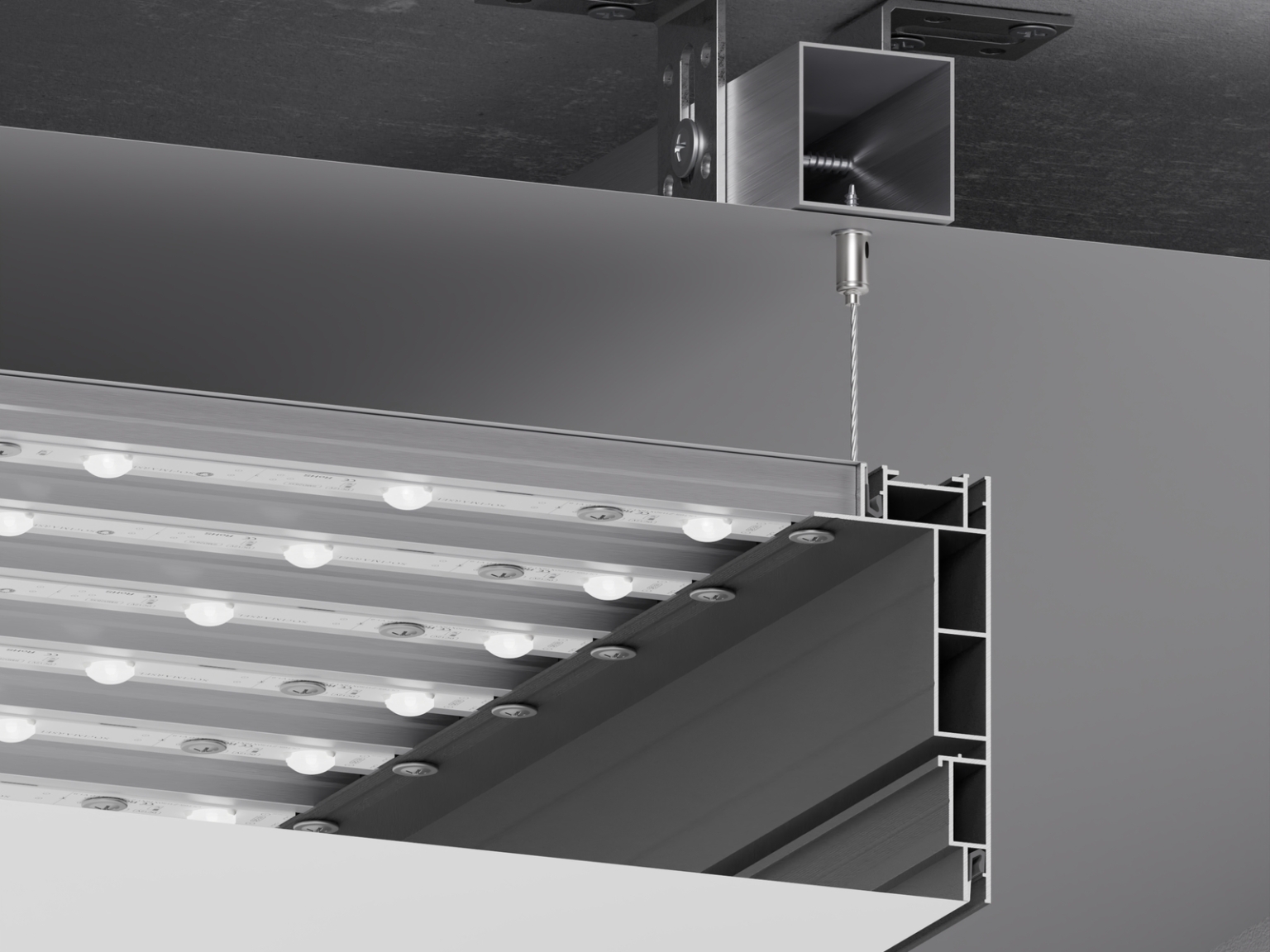

Lightbox Classic
Light becomes a surface.
Lightbox Classic creates a large luminous surface. Panel dimensions, LED equipment and the translucent membrane are selected for the space. HM 01-1 suspension positions the structure at the chosen height.
HM 01-1Lightbox Expo
A profile becomes a brand space.
In its Lightbox Expo application, the profile forms a modular exhibition: graphic walls, light panels and spatial structures become one coherent environment. Create a single display zone or a pavilion visitors can walk into.
SofiMarsel uses 06-16 PRO in its own exhibition stands. Explore the Expo demonstration and videos from BUDMA, Foire de Paris and Bauexpo below.
See the projects
Lightbox Expo Lightbox / 02
Geometry that opens up possibilities
131 mm profile height
Space inside the panel for LED strips or New Vision lens-equipped LED bars.
A connection system
Straight and corner kits join profile lengths into a frame.
Two finishes
White moiré for a light outline. Black moiré for a strong architectural silhouette.
06-16 PRO / 3D
The profile in detail
Geometry and components for coordinating a light panel or exhibition module.
White moiré / Black moiré
06-16 PRO · GLB
Lightbox / 03

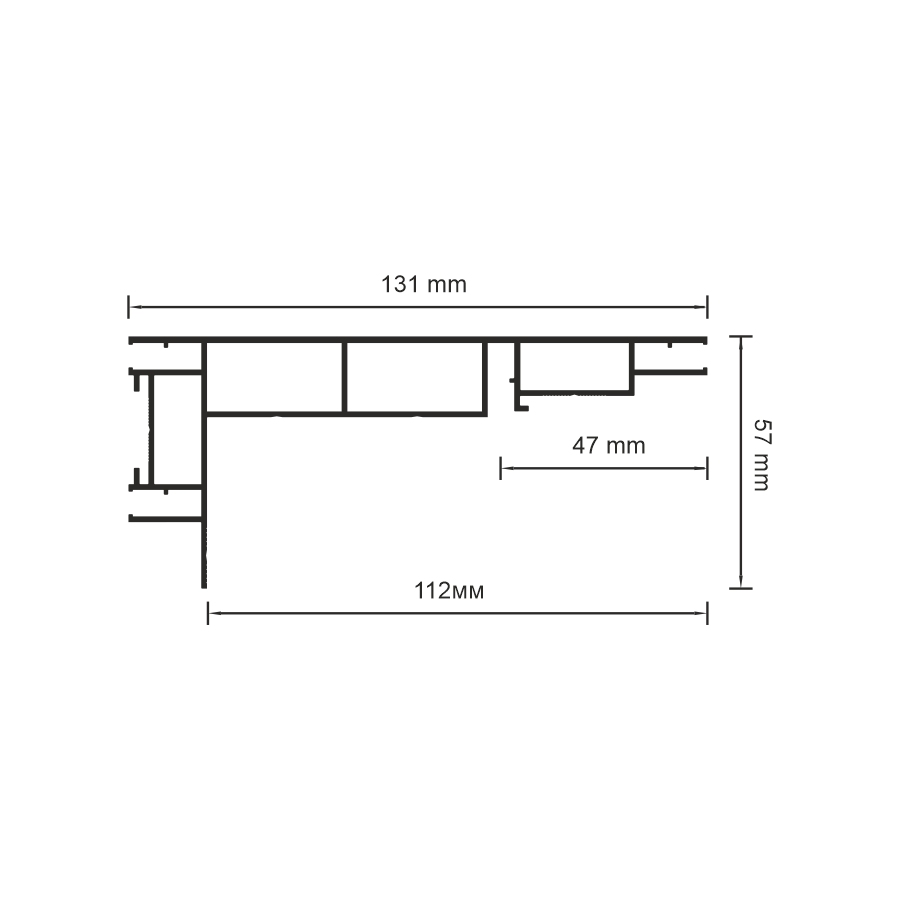

06-16 PRO technical data
Download the DWG to integrate the section into your design. Panel size, connections, suspension points and lighting are specified for each structure.
| Application | Light panels, suspended lightboxes, exhibition and advertising structures |
|---|---|
| Overall section | 131 × 57 mm |
| Profile height | 131 mm |
| Internal drawing dimensions | 112 mm / 47 mm |
| Standard length | 2 m |
| Weight | ≈1614 g/m |
| Material | Aluminium |
| Finish | White moiré / black moiré |
| Harpoon | SofiMarsel (black or white) |
| Light sources | LED strip / New Vision lens-equipped LED bars |
| Suspension | HM 01-1, specified separately |
| Product code | 06-16-PRO |
Lightbox / 04
Components that complete the system
Connection, suspension or support: choose the kit for the application. Components are specified separately.
HM01-1
HM 01-1 · suspension
For suspended Lightbox structures. The number and location of suspension points depend on the design.
06-16-PRO-2

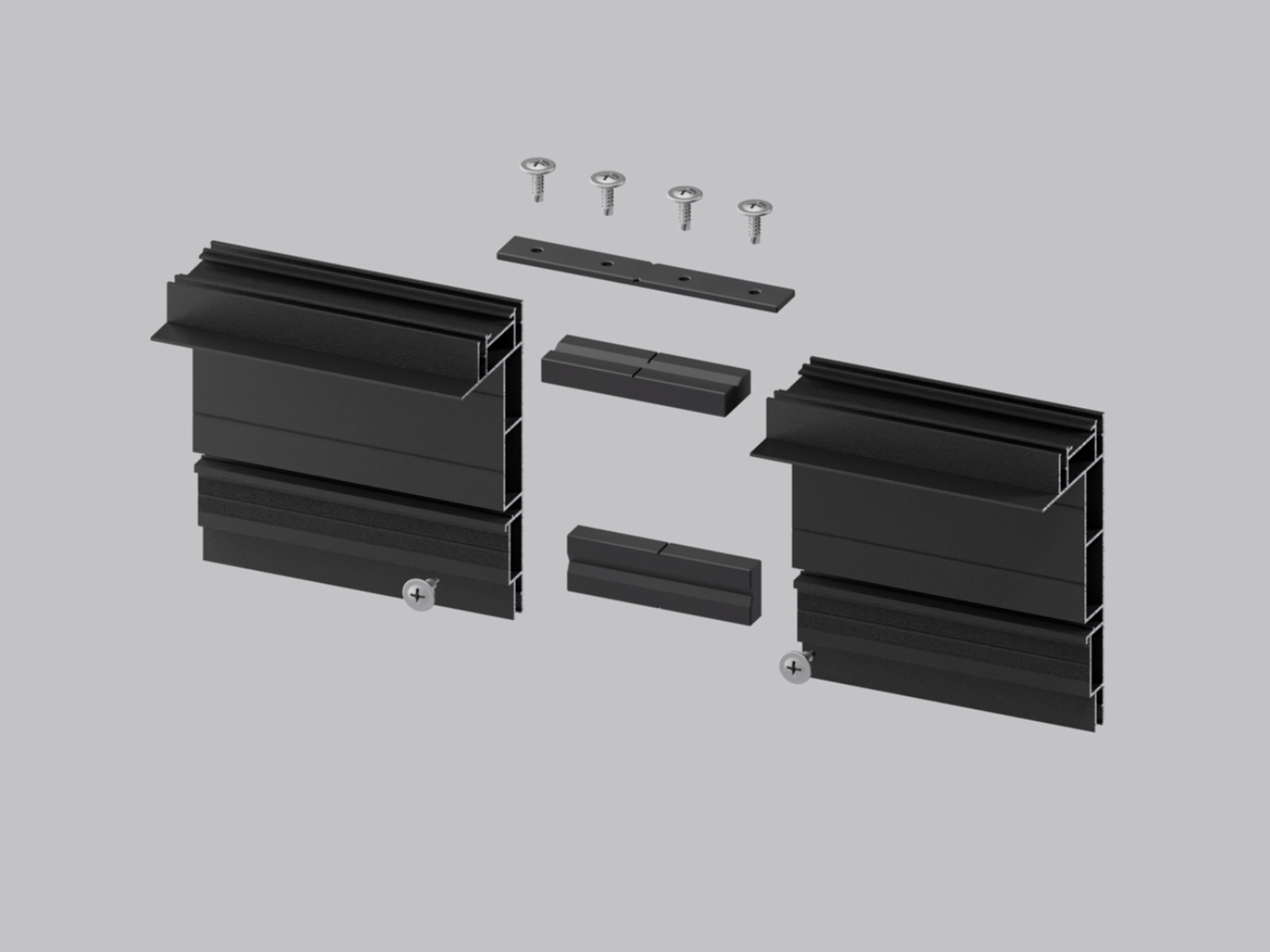

Straight connection kit
Joins 06-16 PRO lengths in a straight run when assembling the frame.
06-16-PRO-1

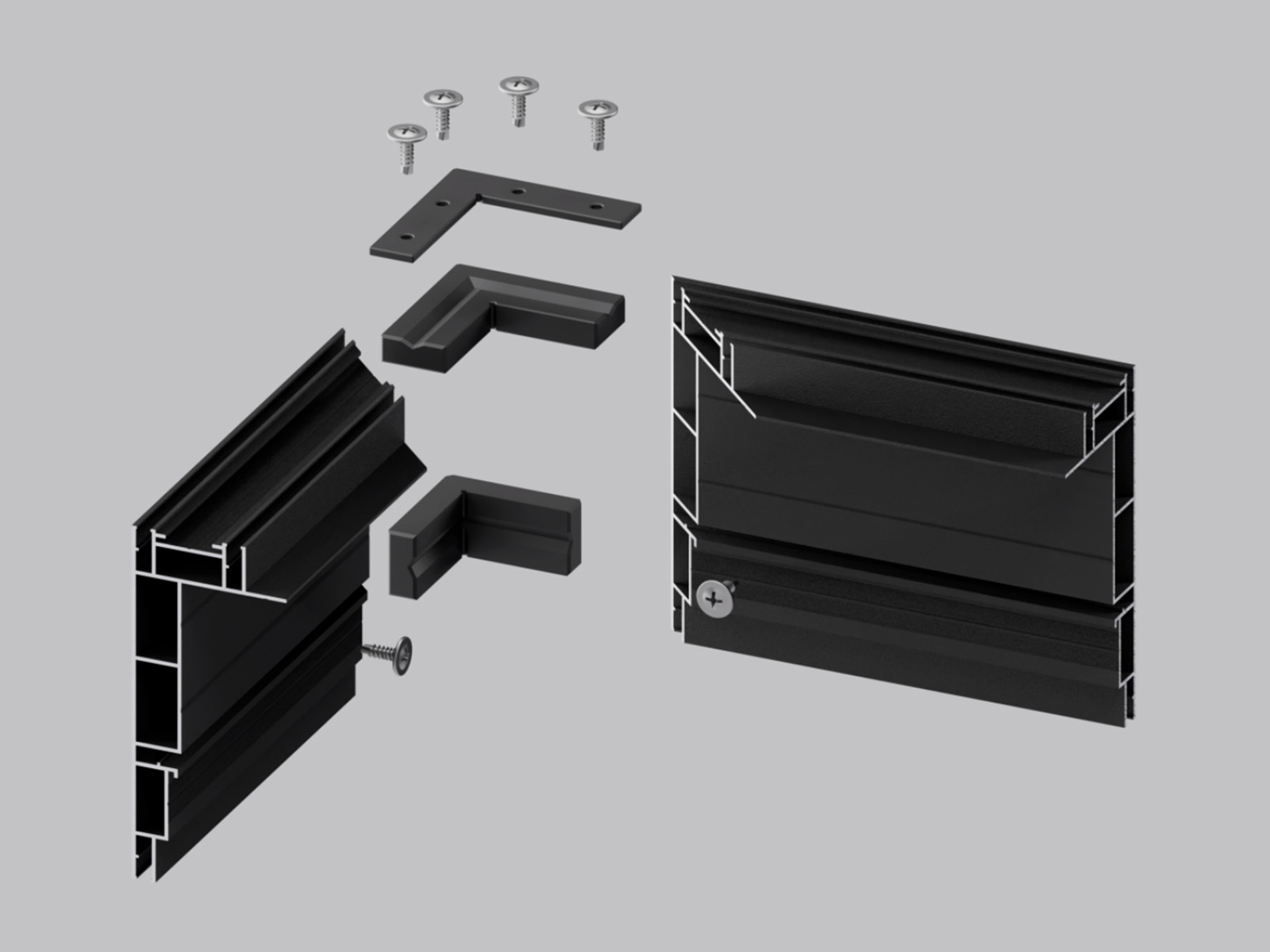

Corner connection kit
Connects 06-16 PRO at a corner to form the frame outline.

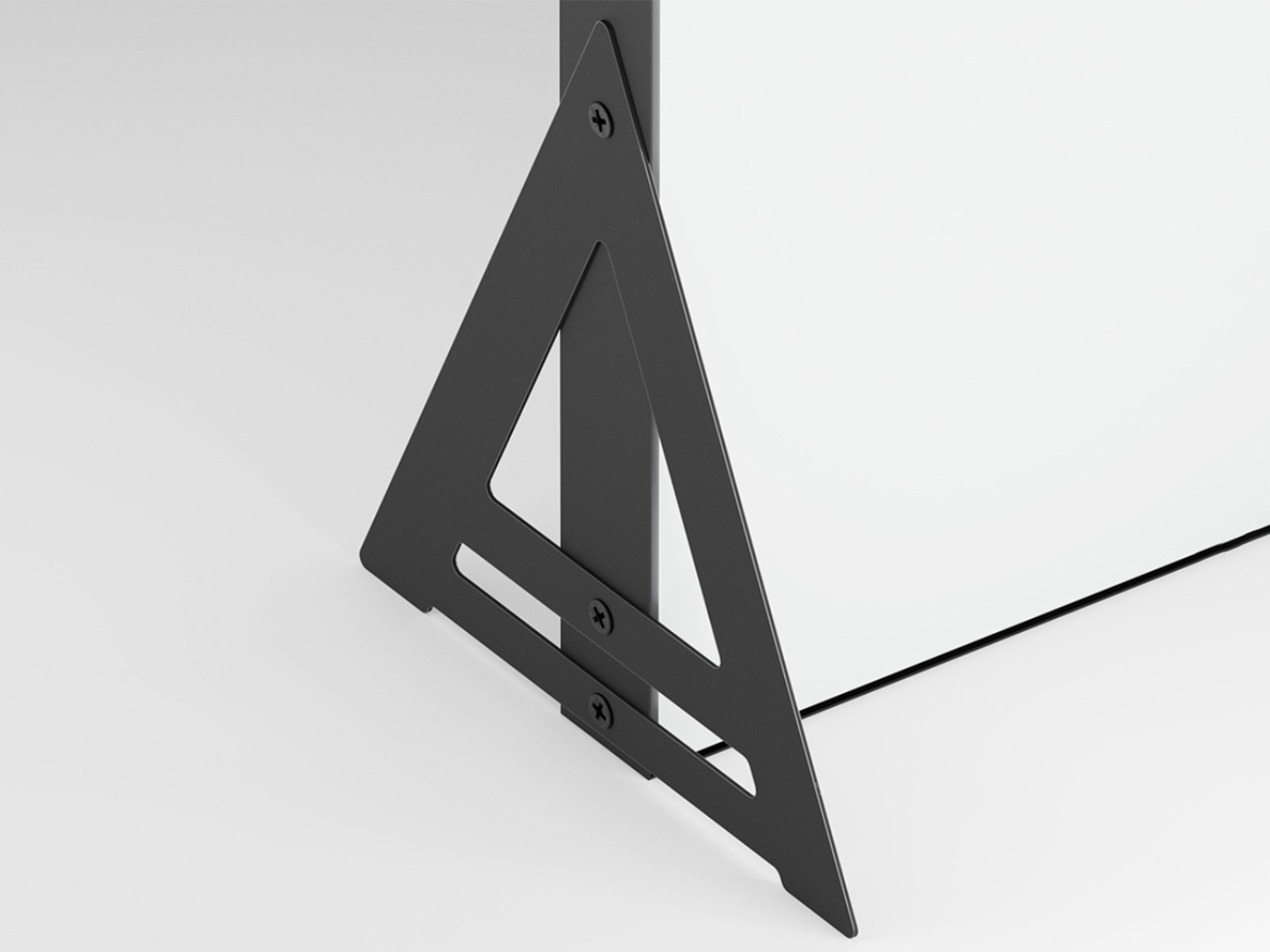

06-16-PRO-3
Advertising support
3 mm sheet steel, in white or black moiré. For a freestanding floor-mounted advertising structure.
Lightbox / 05
See what the system can become
Two system demonstrations and four SofiMarsel exhibition videos, from the light-panel structure to a completed display.
01

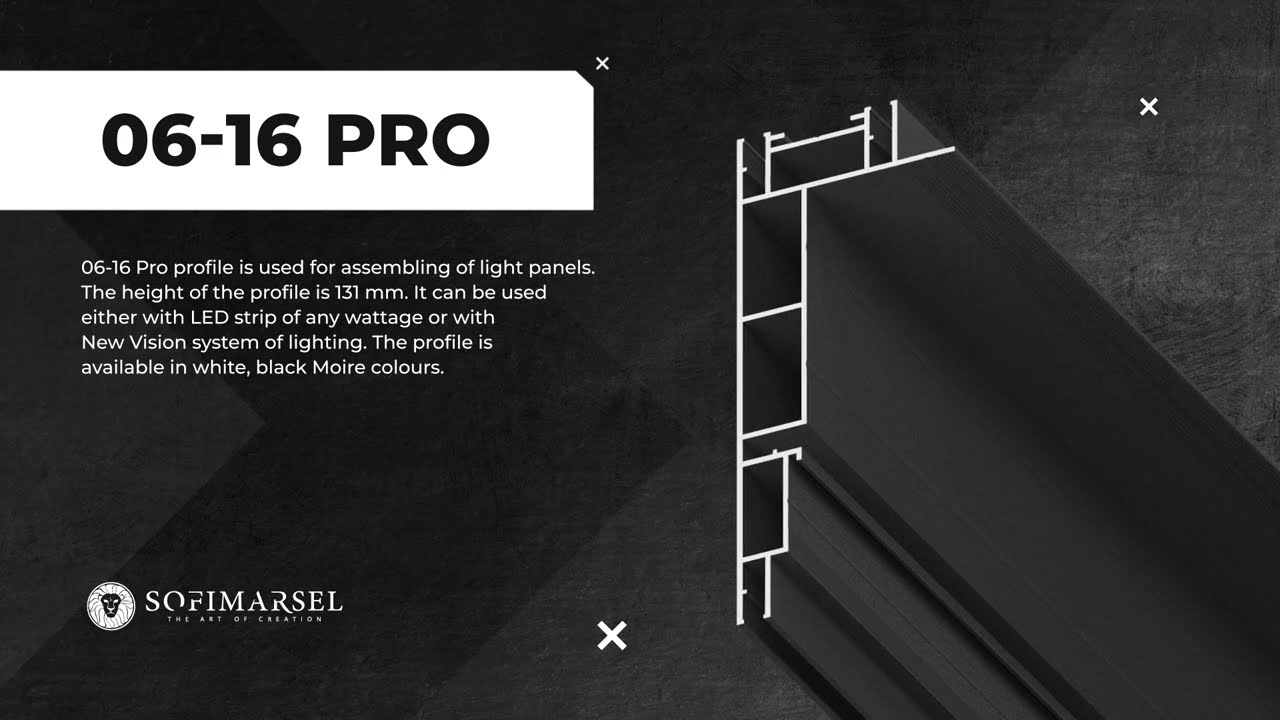

06-16 PRO · Lightbox Classic
06-16 PRO construction and application in suspended Lightbox Classic panels.
Open on YouTube02

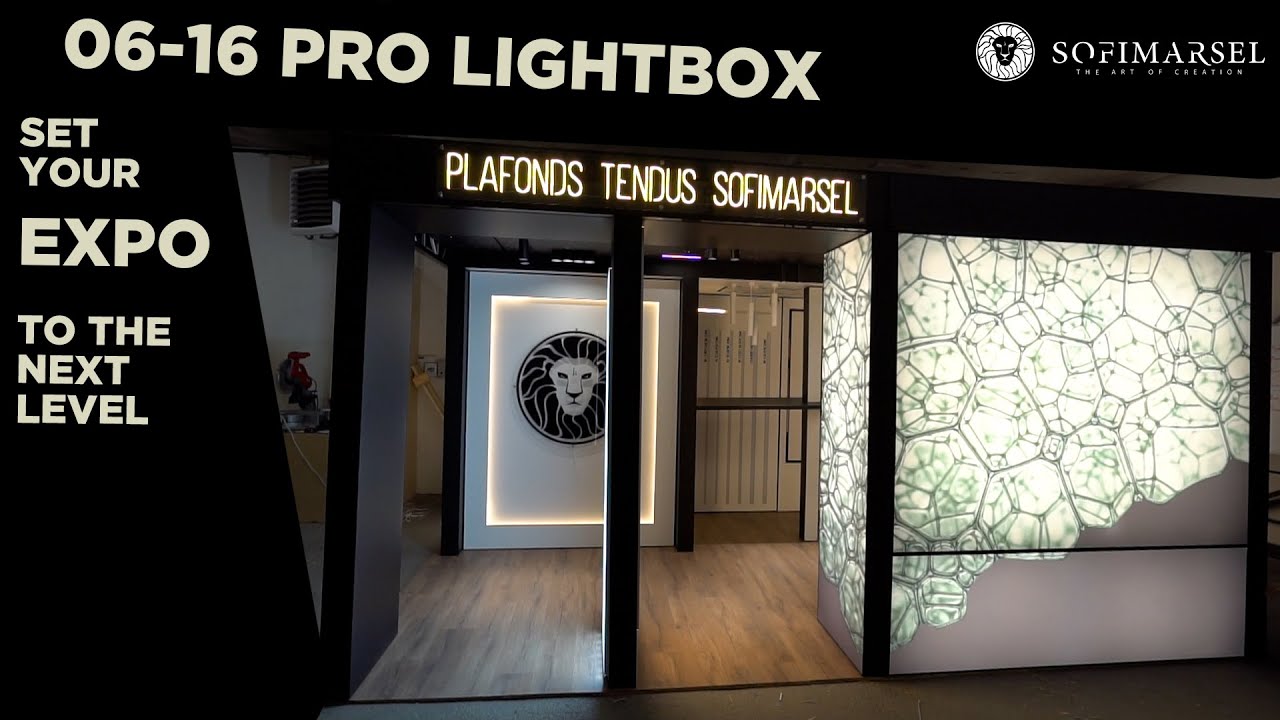

06-16 PRO · Lightbox Expo
06-16 PRO Lightbox Expo: a demonstration of the exhibition application.
Open on YouTube03
SofiMarsel · BUDMA 2022
SofiMarsel at BUDMA 2022: the exhibition and presentation of the brand’s solutions.
Open on YouTube04
SofiMarsel · Foire de Paris
SofiMarsel’s invitation to Foire de Paris and an introduction to its exhibition space.
Open on YouTube05

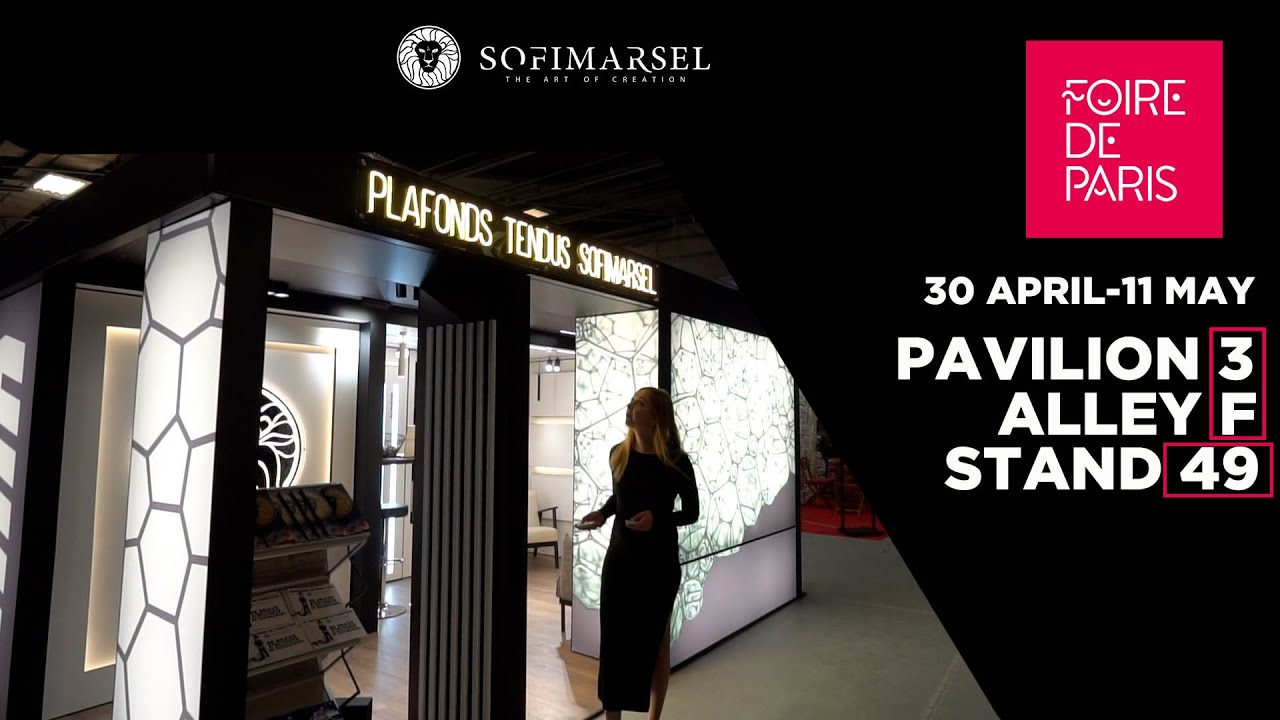

SofiMarsel · Foire de Paris Expo
A video presentation of the SofiMarsel exhibition at Foire de Paris.
Open on YouTube06
SofiMarsel · Bauexpo 2020
SofiMarsel at Bauexpo 2020: an example of the company’s exhibition presence.
Open on YouTube06-16 PRO / FAQ
Questions about 06-16 PRO Lightbox
What is 06-16 PRO designed for?
Primarily large light panels and suspended lightboxes. It is also used for advertising walls and modular exhibition stands.
Can it form a complete exhibition stand?
Yes. SofiMarsel uses 06-16 PRO for modular displays and spatial pavilions. See the Lightbox Expo demonstration and exhibition videos on this page.
How do Classic and Expo differ?
They are two applications of 06-16 PRO: Classic for light panels and suspended structures; Expo for modular stands and advertising spaces.
How is a lightbox suspended?
With HM 01-1 suspension. Fixing locations and quantity are designed around the completed structure’s size and weight.
Which colours are available?
The profile is available in white moiré and black moiré.
Which light sources can be used?
LED strips or New Vision lens-equipped LED bars. Output, spacing, power supply and membrane are selected for the required brightness and uniformity.
Is there one maximum panel size?
Dimensions, frame reinforcement, joints and suspension are project-specific; no universal maximum is stated here.
Can it create a freestanding advertising wall?
Yes. 06-16-PRO-3 supports are made of 3 mm steel with white or black moiré finish.
SofiMarsel / 06-16 PRO
Start with the shape and purpose.
Send the dimensions, sketch and intended use. We can help specify your 06-16 PRO system.
Request a quoteApplication
Light panel, suspended object, advertising wall or exhibition stand.
Geometry
Dimensions, position, finish and fixing method.
Light and graphics
Required brightness, membrane, printed graphics and LED equipment.
