40 mm track spacing
Extra space for heavy drapes and generous folds. Curtains and sheers travel along separate tracks.
SofiMarsel / Curtain tracks · PREMIUM FLAGSHIP
09-14 PRO MAX. Space for generous folds.
A premium two-track curtain profile for heavy fabrics and generous folds. Wider track spacing gives curtains room to move, while side membrane insertion conceals the finishing inserts.
- Track spacing
- 40 mm
- Curtain tracks
- 2
- Lighting
- D13 / PVC13
- Length
- 2 m

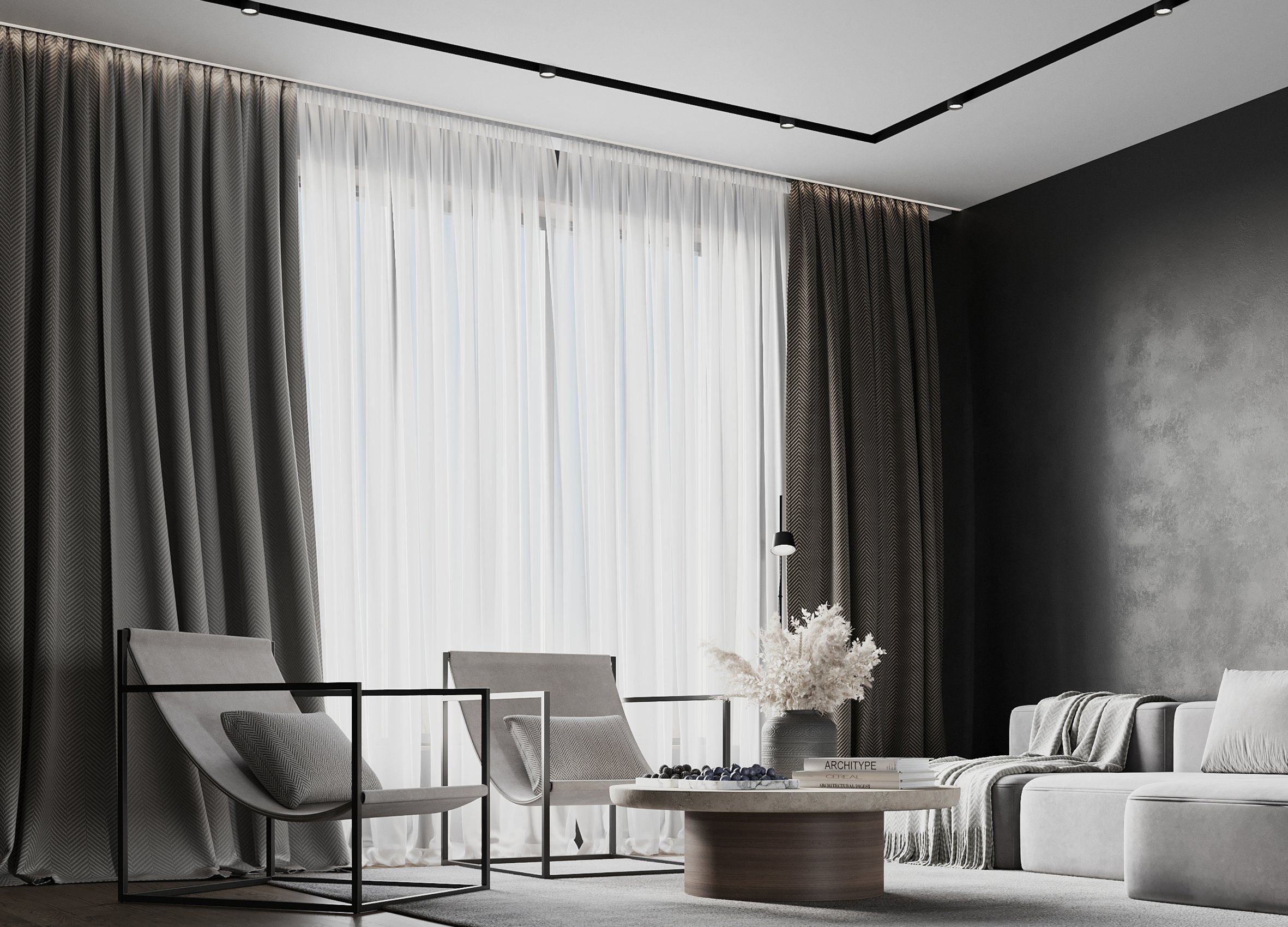

Heavy curtains. Room to move.
SofiMarsel 09-14 PRO MAX is a premium aluminium curtain profile for stretch ceilings. The two tracks are 40 mm apart, leaving more room for deep folds and heavy fabrics to move without catching each other. Cross-section: 154 × 59 mm; fixing concealment depth: 40 mm; length: 2 m. Side membrane insertion hides TF303 / TF347 inserts. Available in white and black textured matte finishes, with optional D13, D13 Black or PVC13 lighting diffusers. Premium rubberised GCH 01-1 hooks are sold separately, individually, with an approximate load capacity of 5 kg per hook.
Rubberised rollers
GCH 01-1 hooks provide smooth, quiet movement. Sold separately, individually.
A clean ceiling junction
Side membrane insertion and concealed inserts maintain a minimal ceiling finish.

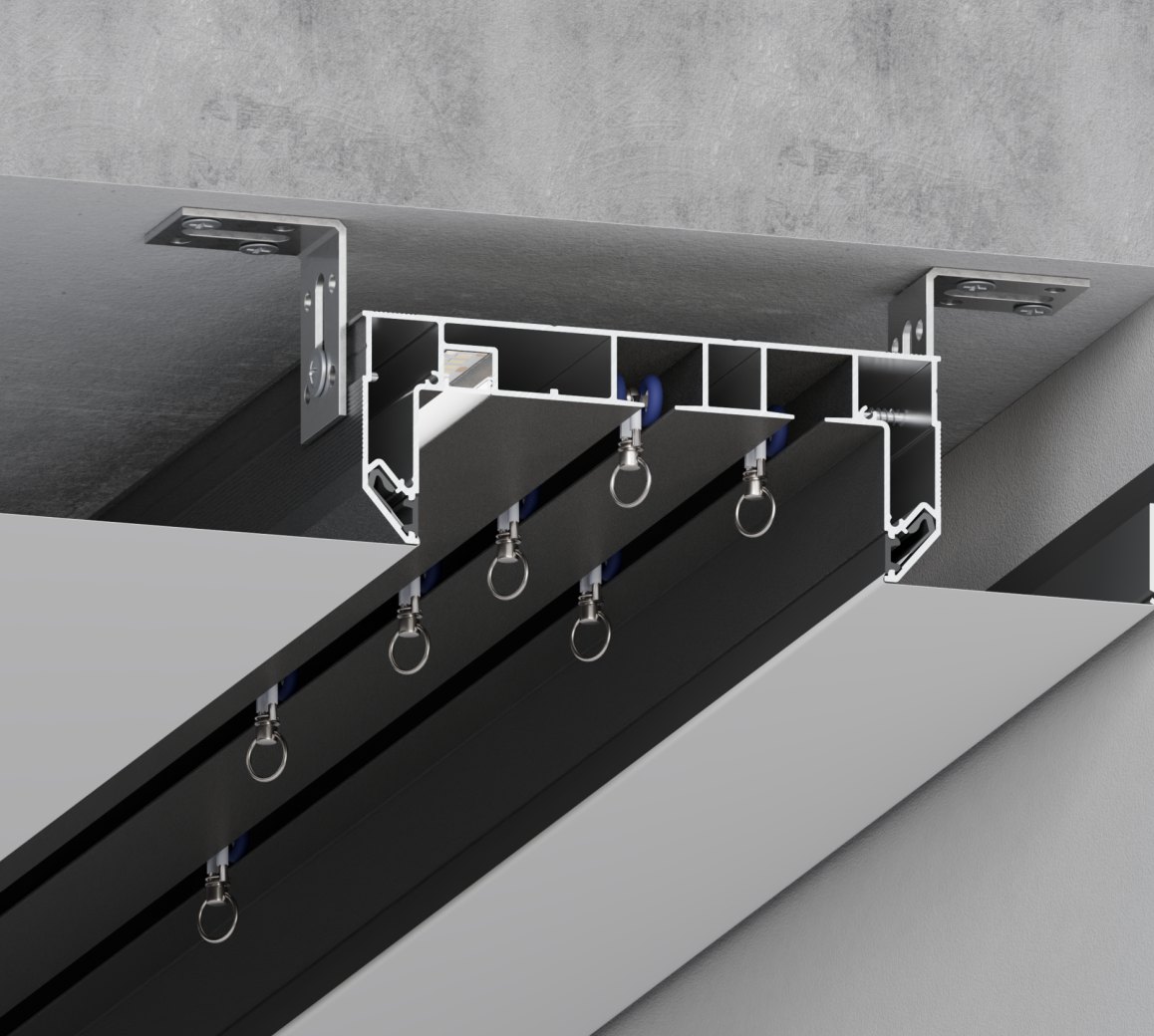

Membrane at the sides. Fittings inside.
The profile is fixed to the ceiling with adjustable brackets. Side grooves accept the stretch ceiling membrane, while TF303 and TF347 inserts are concealed in the junction.

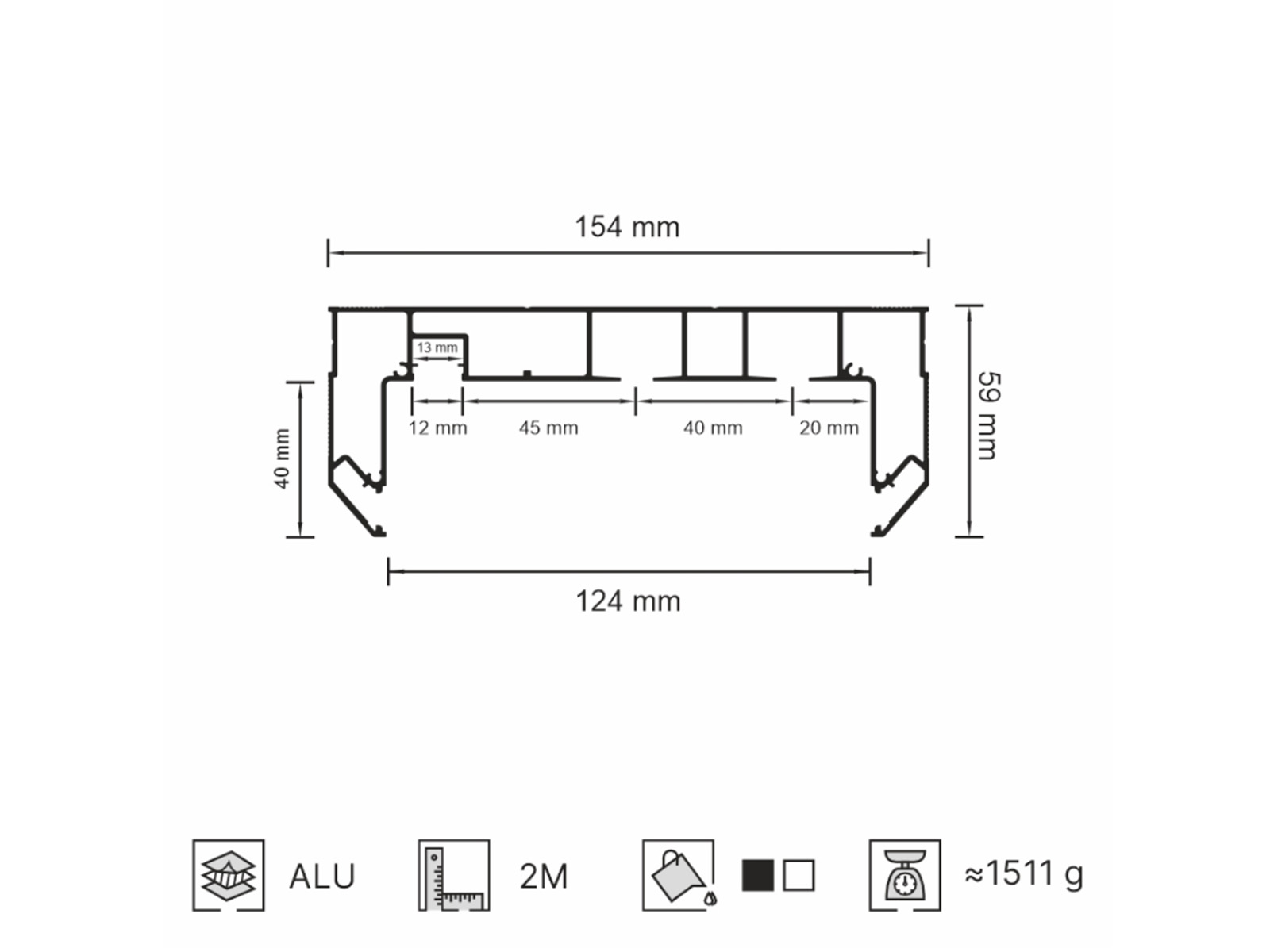

40 mm between tracks. A 40 mm depth conceals the fixings.
09-14 PRO MAX / CURTAIN
- Profile
- 09-14 PRO MAX · 154 × 59 mm
- Membrane insertion
- From both sides
- Mounting
- To the ceiling with adjustable brackets
- Inserts
- TF303 / TF347 · concealed in the junction
Light along the curtains. Three diffuser options.
09-14 PRO MAX accepts rigid D13 and D13 Black diffusers, or flexible PVC13. Add lighting to suit the project.
09-14 PRO MAX / LED
D13
Rigid white diffuserA light-coloured line for a white ceiling and profile.
- Light transmission
- 80%
09-14 PRO MAX / LED
D13 Black
Rigid black diffuserA dark line that blends with the black profile when the light is off.
- Light transmission
- 20%
09-14 PRO MAX / LED
PVC13
White flexible diffuserFlexible screen for a thin hidden light line inside the curtain profile.
- Light transmission
- 50%

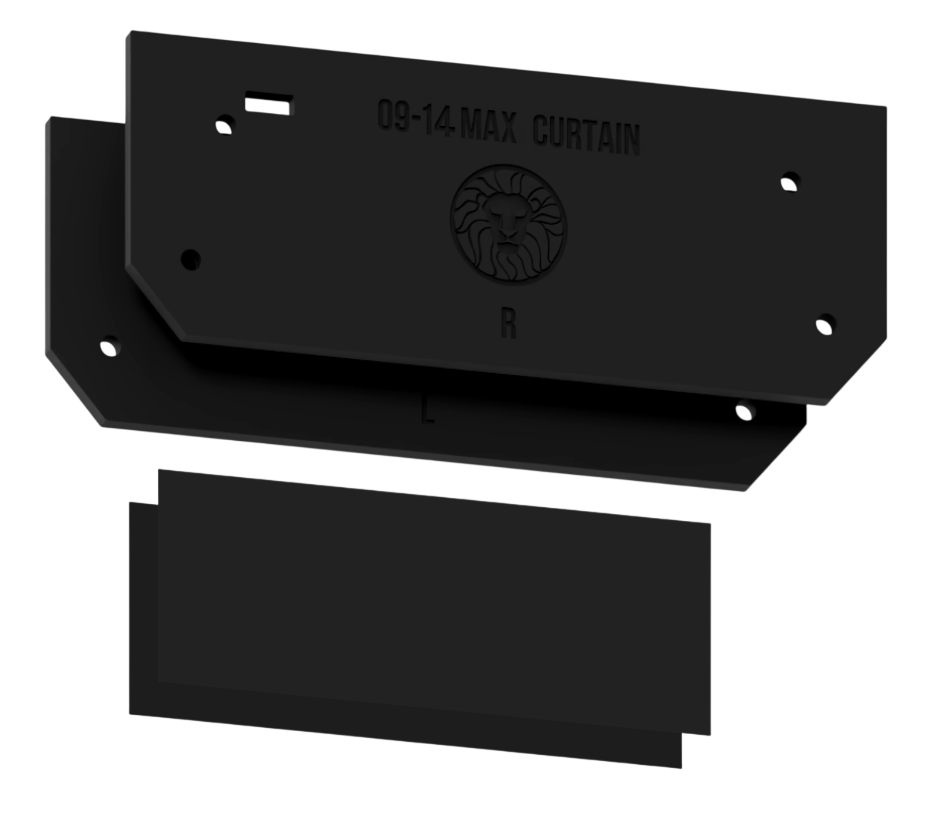

Finish the curtain track. Before it reaches the wall.
The 09-14 MAX end-cap set lets the curtain track finish before reaching a wall. The set contains two mounting pieces, two decorative pieces and screws.
Mounting pieces · 2
The structural parts for finishing the curtain track ends.
Decorative pieces · 2
Cover the mounting parts and complete the visible ends.
Inserts in place. A clear view of the ceiling.
Use full-size white TF303 and black TF347 PVC inserts. Side membrane insertion conceals them in the junction. Mini versions are not used with this model. Inserts are selected separately.
Fittings. Explore every detail.
3D / 360°

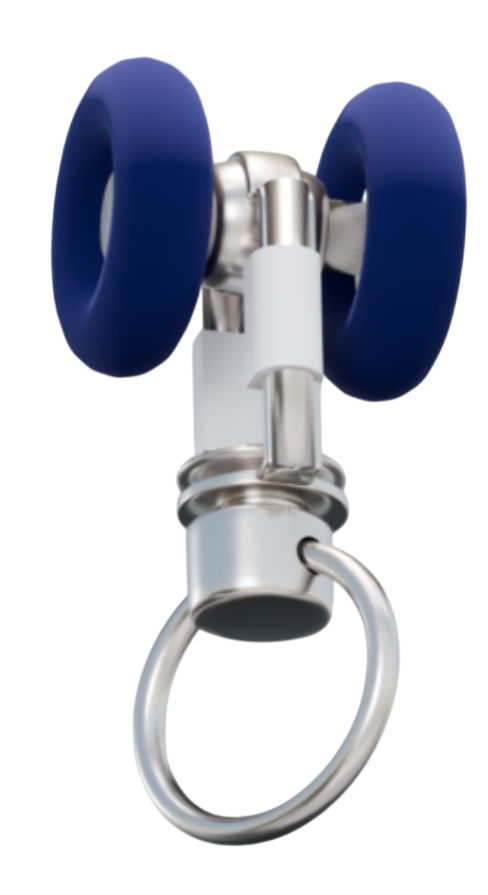

GCH 01-1 premium roller hook
Rubberised rollers for smooth, quiet movement of heavy curtains. Approximately 5 kg per hook. Hooks are sold separately, individually.
09-14 PRO MAX / GCH 01-1 premium roller hook
Explore the hook with two side uprights and rubberised rollers from every angle. The approximate 5 kg load refers to one hook, not the entire curtain track.

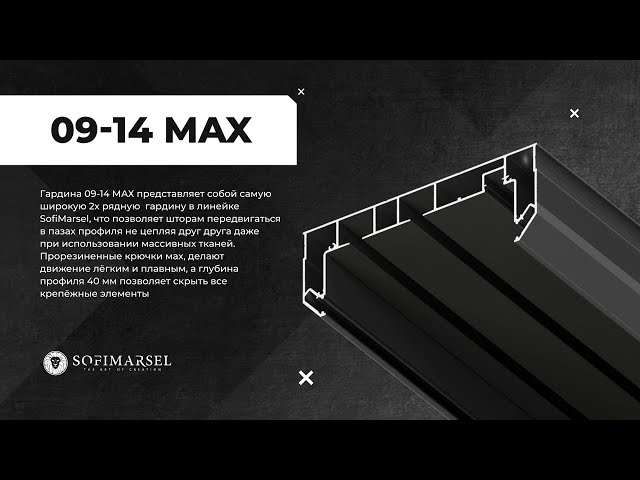

09-14 PRO MAX product review
A closer look at the curtain profile and its features.
Video in English
09-14 PRO MAX in action
An overview of the SofiMarsel 09-14 PRO MAX curtain profile.
09-14 PRO MAX / CURTAIN
Technical details
| Application | Two-track curtain profile with side membrane insertion for stretch ceilings |
|---|---|
| Material | Aluminium |
| Length | 2 m |
| Colours | White / black textured matte |
| Cross-section | 154 × 59 mm |
| Curtain tracks | 2 |
| Membrane insertion | From the side |
| Mounting | To the ceiling with adjustable brackets |
| Lighting diffusers | D13 / D13 Black / PVC13 |
| Inserts | TF303 — white; TF347 — black; supplied separately |
| Fittings | GCH 01-1 · rubberised rollers · approx. 5 kg each · sold separately, individually |
| End cap | 09-14 MAX · 2 mounting + 2 decorative pieces |
| Track spacing | 40 mm |
| Fixing concealment depth | 40 mm |
Drawings for your project
09-14 PRO MAX · DWGDownload DWG ↓Questions about 09-14 PRO MAX
Which curtains is 09-14 PRO MAX designed for?
Heavy drapes and fabrics with generous folds. The 40 mm track spacing gives the curtains more room to move freely.
How much can one hook carry?
Approximately 5 kg per premium GCH 01-1 hook. This is a hook specification, not the total load capacity of the curtain track.
Are the hooks included?
No. Rubberised GCH 01-1 hooks are sold separately, individually.
Which inserts and diffusers fit?
Full-size white TF303 and black TF347 inserts; D13, D13 Black and PVC13 diffusers.
Are the inserts visible from below?
Side membrane insertion conceals the inserts at the junction, giving the profile a recessed appearance.
What are the dimensions and mounting method?
154 × 59 mm cross-section, 2 m length and 40 mm track spacing. Ceiling mounting with adjustable brackets. White and black textured matte finishes.
