Standard linear-light system
06‑19 profile for a 35 mm linear light
A straight aluminium profile that integrates a stretch-ceiling fixing, LED channel and removable 35 mm diffuser.
- Light line
- 35 mm
- Overall section
- 35 × 38 mm
- Standard length
- 2 m
- Product code
- 06-19
Linear-light profile catalogue
Choose a linear-light profile
06‑13 — 06‑20 PRO
Profile overview
What is SofiMarsel 06-19?
SofiMarsel 06-19 is a straight aluminium profile for a visible 35 mm light line in a stretch ceiling. The classic screen position supports rigid D35 Black or D35 White and flexible PVC35, so the diffuser can be selected for appearance, light output and installation method.
SofiMarsel technology
DEEP recesses the diffuser inside the profile
The difference is visible at the ceiling plane and becomes especially important where a light line terminates before reaching a wall.
06-19 · classic screen plane
The removable screen sits at the finished ceiling plane. This version accepts rigid D35 polycarbonate or flexible PVC35.

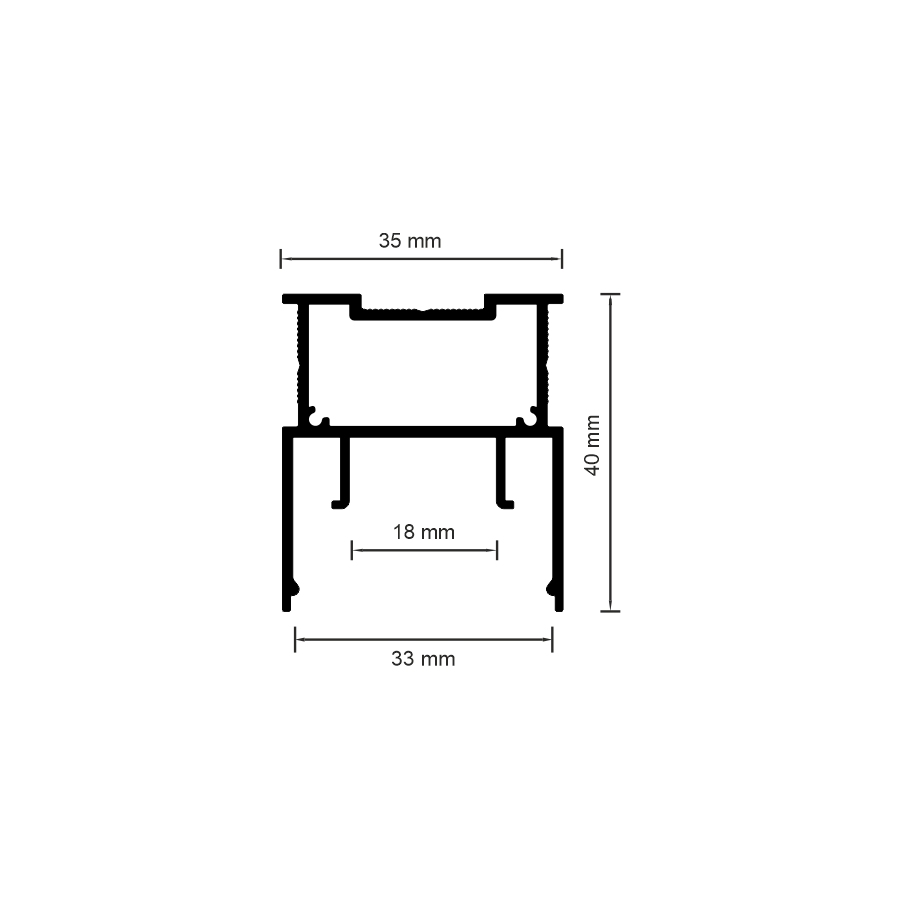

06-19 DEEP · recessed screen
The rigid D35 screen locks deeper inside the aluminium section, so the membrane-to-light junction reads like a precise plasterboard detail.

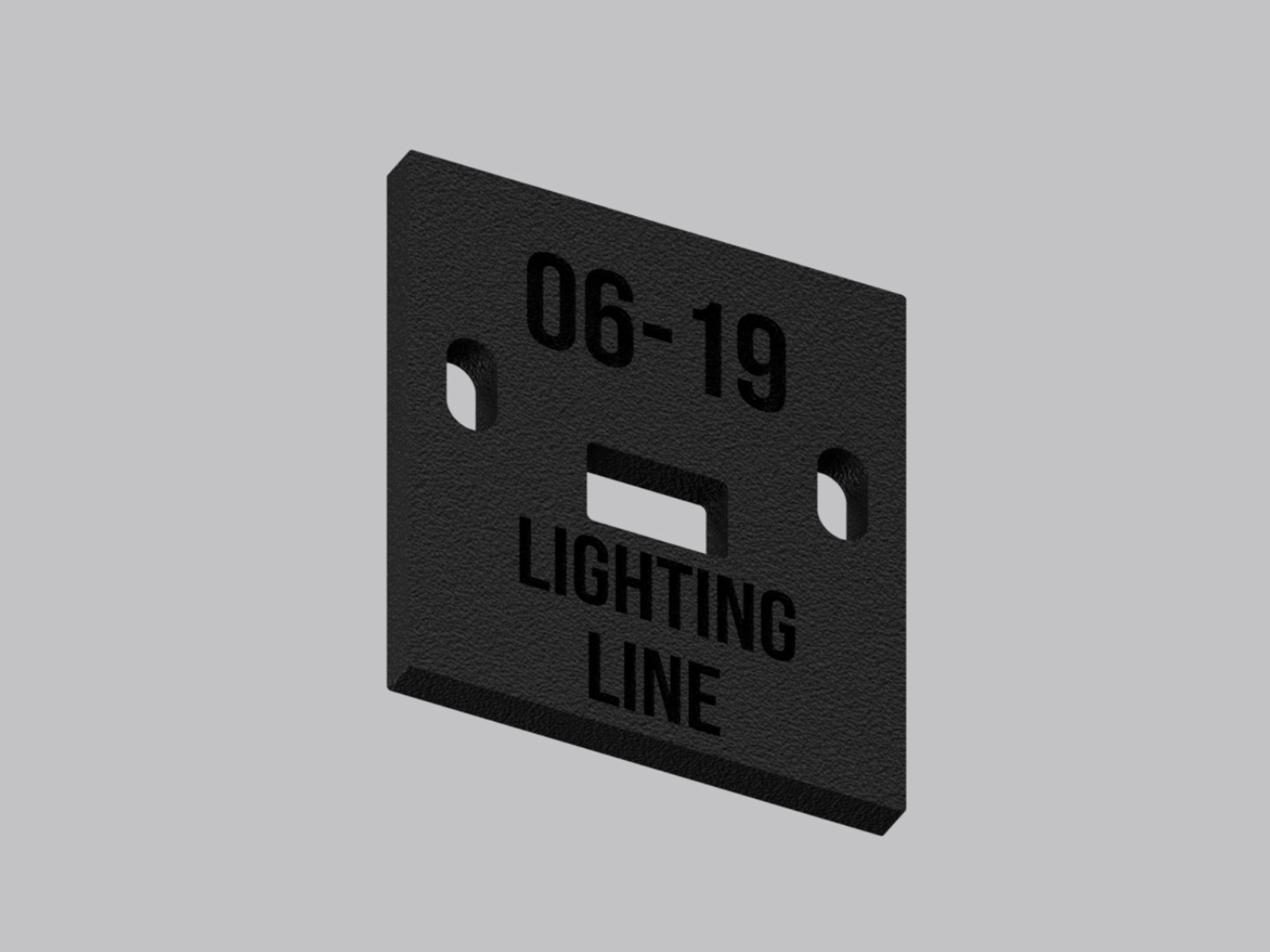

06-19 · end element
A clean terminated light line
With a front end cap, the recessed rigid screen stays controlled at the line end: no visible bulge and less stray side light when viewed at an angle.
Advantages
Why choose the standard 06-19
A versatile 35 mm system for continuous, geometric and terminated light lines.
Visible 35 mm light line
The screen creates a precise illuminated strip within the ceiling plane.
Three screen options
Choose black 20%, flexible PVC35 at 50% or white polycarbonate at 80% transmission.
Flexible layout
Build straight runs, closed geometries or terminate the line with the dedicated 06-19-F end cap.
Technical specifications
06-19 technical data
Dimensions, screen compatibility and supply data for selection and coordination.
- Application
- Linear light for stretch ceilings
- Compatible screens
- D35 Black / D35 White / PVC35
- Overall section
- 35 × 38 mm
- Standard length
- 2 m
- Weight
- ≈594 g/m
- Material
- Aluminium
- Visible light line
- 35 mm
- Internal channel
- 18 mm
- Screen position
- In the finished ceiling plane
- Light transmission
- D35 Black 20% / PVC35 50% / D35 White 80%
- Screen supply
- Ordered separately
- Finish
- Mill-finish aluminium / grey
- Product code
- 06-19

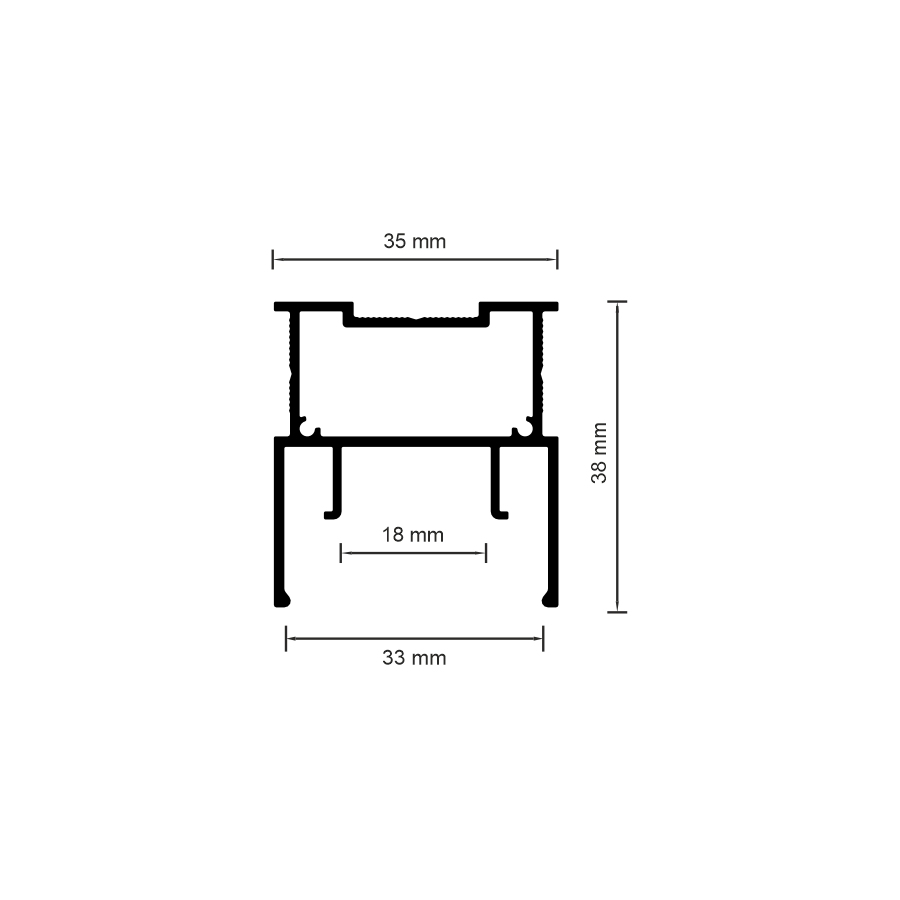

06-19 dimensions and section
The dimension drawing shows the 35 × 38 mm envelope, 35 mm light opening and 18 mm internal channel. Use the DWG for CAD coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application

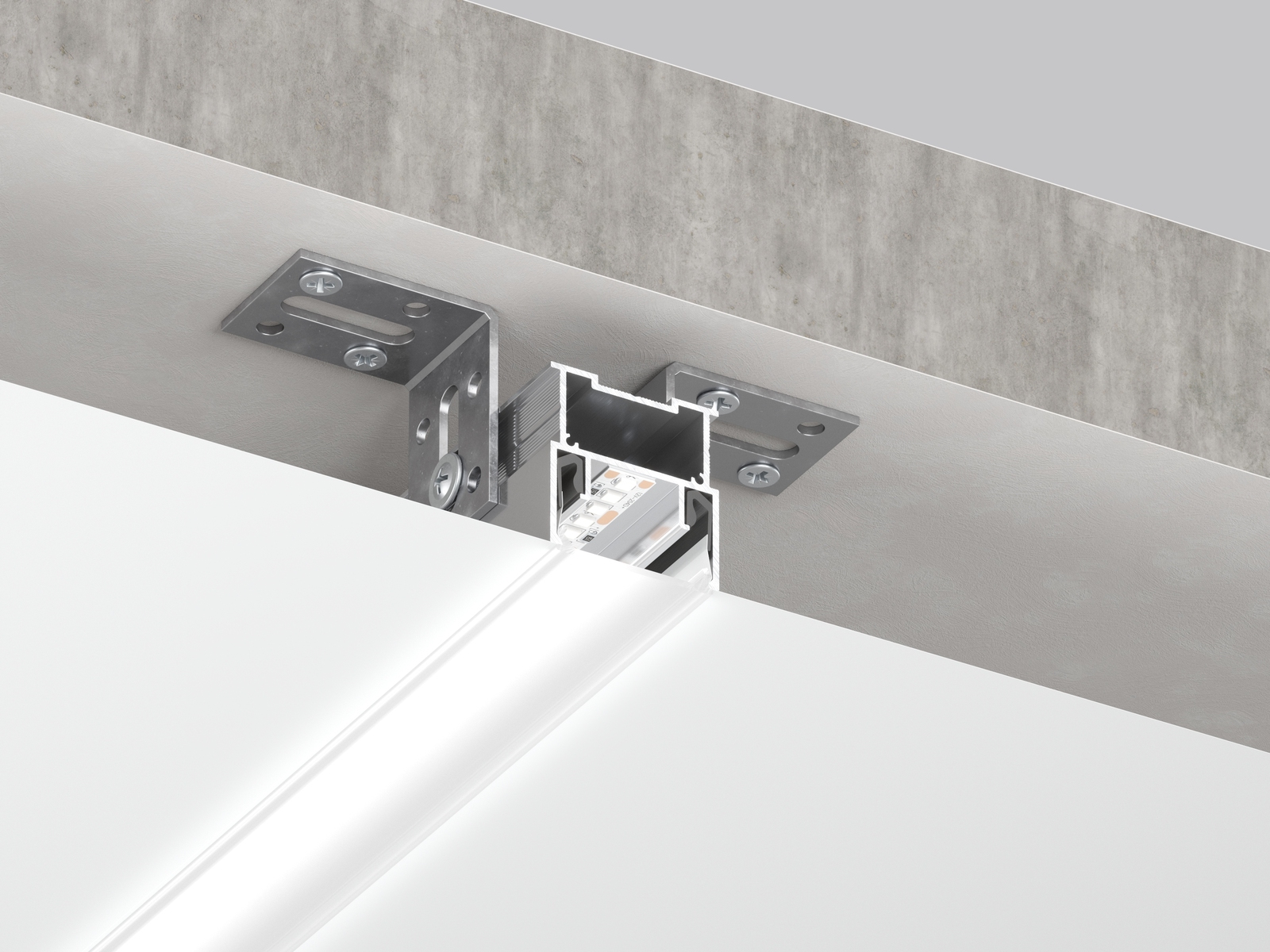

Integrated line in the ceiling plane
Fix the profile on the planned line, install the LED equipment, tension the membrane on both sides and close the 35 mm channel with the selected D35 or PVC35 screen. LED strip, driver and thermal/light calculation are specified for the project.
Compatible components
Three screens for the 35 mm light line
Select the screen separately: black and white D35 are rigid polycarbonate; PVC35 is the flexible option.
Black polycarbonate screen
Darkens the unlit line and transmits 20% of LED light.
- Material
- Polycarbonate
- Colour
- Black
- Light transmission
- 20%
- System width
- 35 mm
Compatible withSofiMarsel 06-19
White polycarbonate screen
Creates the brightest diffused line and transmits 80% of LED light.
- Material
- Polycarbonate
- Colour
- White
- Light transmission
- 80%
- System width
- 35 mm
Compatible withSofiMarsel 06-19

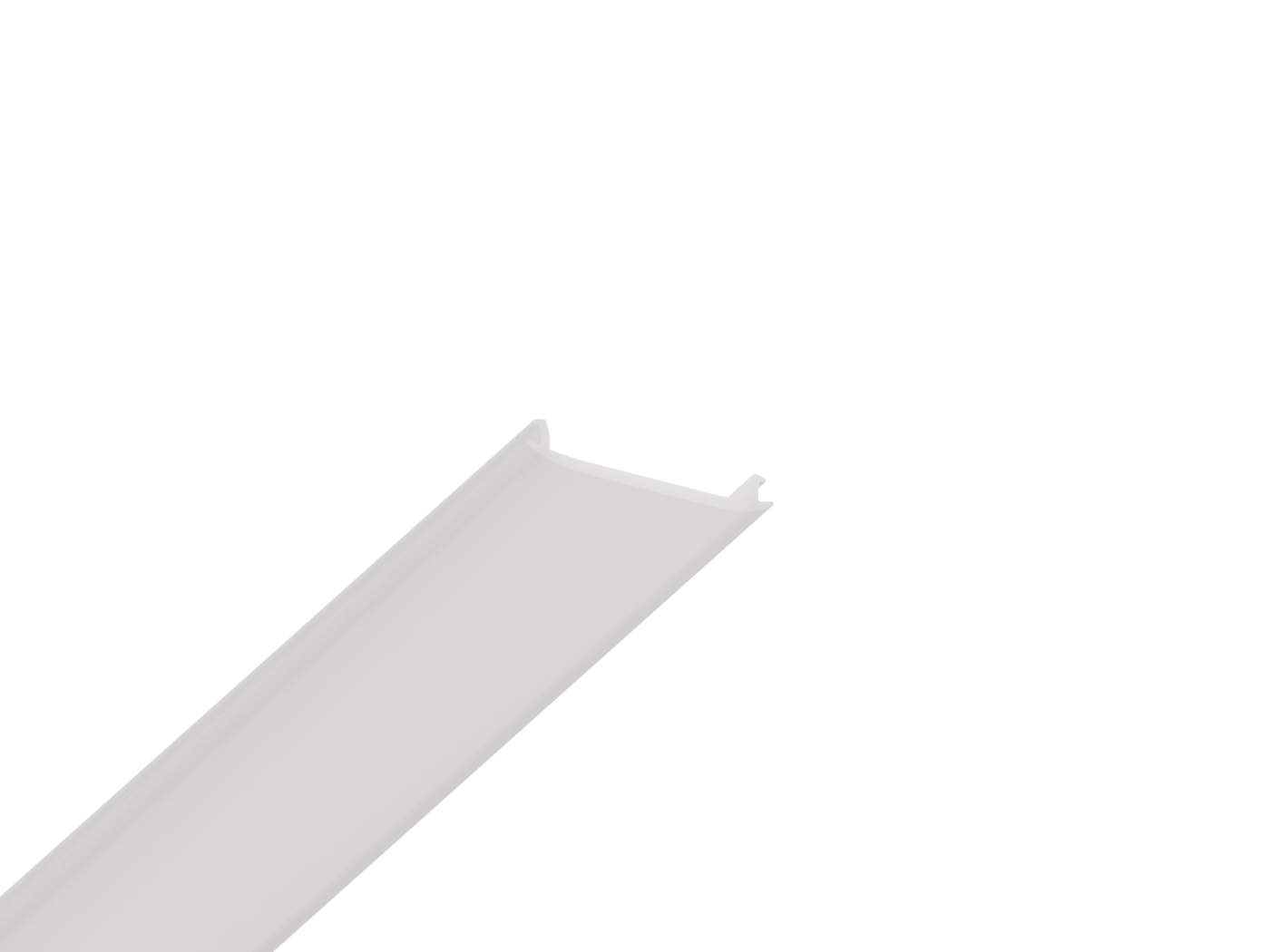

Flexible PVC screen
Flexible press-in screen with balanced 50% light transmission.
- Material
- Flexible PVC
- Colour
- White
- Light transmission
- 50%
- System width
- 35 mm
Compatible withSofiMarsel 06-19
05 / Animation
Profile 06-19 in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTubeQuestions and answers
Questions about 06-19
What is 06-19 used for?
For a visible 35 mm light line integrated into a stretch ceiling.
Which screens fit 06-19?
D35 Black, D35 White and flexible PVC35.
How much light do the screens transmit?
20%, 80% and 50% respectively.
Can the line end before the wall?
Yes. Use the 06-19-F front end cap.
How does it differ from DEEP?
The standard screen sits in the ceiling plane and can use PVC35; DEEP recesses a rigid D35 screen inside the profile.
What are the dimensions?
The overall section is 35 × 38 mm and the light line is 35 mm wide.
Is the screen included?
No. The aluminium profile and selected screen are specified separately.
Is CAD available?
Yes. The page includes DWG, a dimension drawing and a 3D model.
