Patented MultiSnap floating system
Patented06-17 MultiSnap patented gapless floating profile
A unique wall-mounted aluminium system that combines a screened lighting niche with the 07-0 PRO bumper to create a completely gapless, plasterboard-like perimeter junction.
- Screen system
- D13 / PVC13
- Overall section
- 51 × 62 mm
- Standard length
- 2 m
- Product code
- 06-17 MultiSnap
Floating profile catalogue
Wall-mounted floating ceiling profiles
06‑6 PRO — 06‑18 PRO
Ceiling-mounted floating ceiling profiles
06‑22
Short answer
What makes 06-17 MultiSnap unique?
SofiMarsel 06-17 MultiSnap is a patented wall-mounted profile for a floating stretch ceiling. It creates an illuminated niche between wall and ceiling and accepts D13 Black, D13 or PVC13 screens. The separately specified 07-0 PRO aluminium bumper closes the visible junction, producing a fully gapless edge with the visual precision of plasterboard construction.
Design logic
One patented system, three controlled results
The profile combines controlled light, a serviceable stretch ceiling and a genuinely gapless wall junction in one coordinated assembly.
Patented MultiSnap junction
06-17 and the 07-0 PRO bumper form a distinct proprietary assembly without a visible perimeter slot.
Three continuous screens
Choose D13 Black 20%, D13 80% or flexible PVC13 50%; roll supply avoids intermediate screen joints.
Plasterboard-like finish
The bumper closes the 30 mm working junction and produces a clean architectural edge while the stretch-ceiling system remains serviceable.
Verified product data
06-17 MultiSnap technical data
Overall size, screen channel and working junction are shown together for fast specification and installation planning.
- Material
- Aluminium
- Screen system
- D13 Black / D13 / PVC13
- Overall section
- 51 × 62 mm
- Standard length
- 2 m
- Screen channel
- 13 mm
- Visible light opening
- 12 mm
- Working junction
- 30 mm
- Weight
- ≈719 g/m
- Compatible bumper
- 07-0 PRO · 19 × 33 mm
- Finish
- Black moiré
- Harpoon
- SofiMarsel harpoon — white / black
- Product code
- 06-17

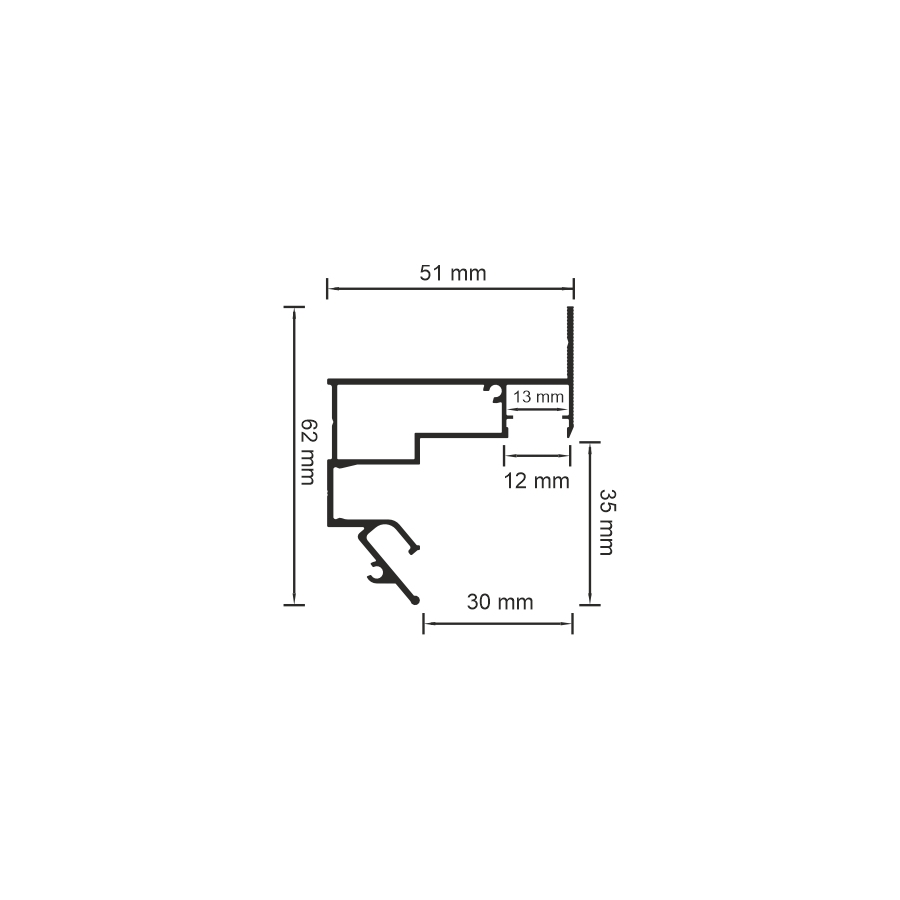

06-17 MultiSnap dimensions and section
Use the dimensioned section to select the screen, check the junction and prepare the installation. The DWG is available for detailed CAD coordination.
DWGDownload DWG↓JPGOpen dimension drawing↗Application

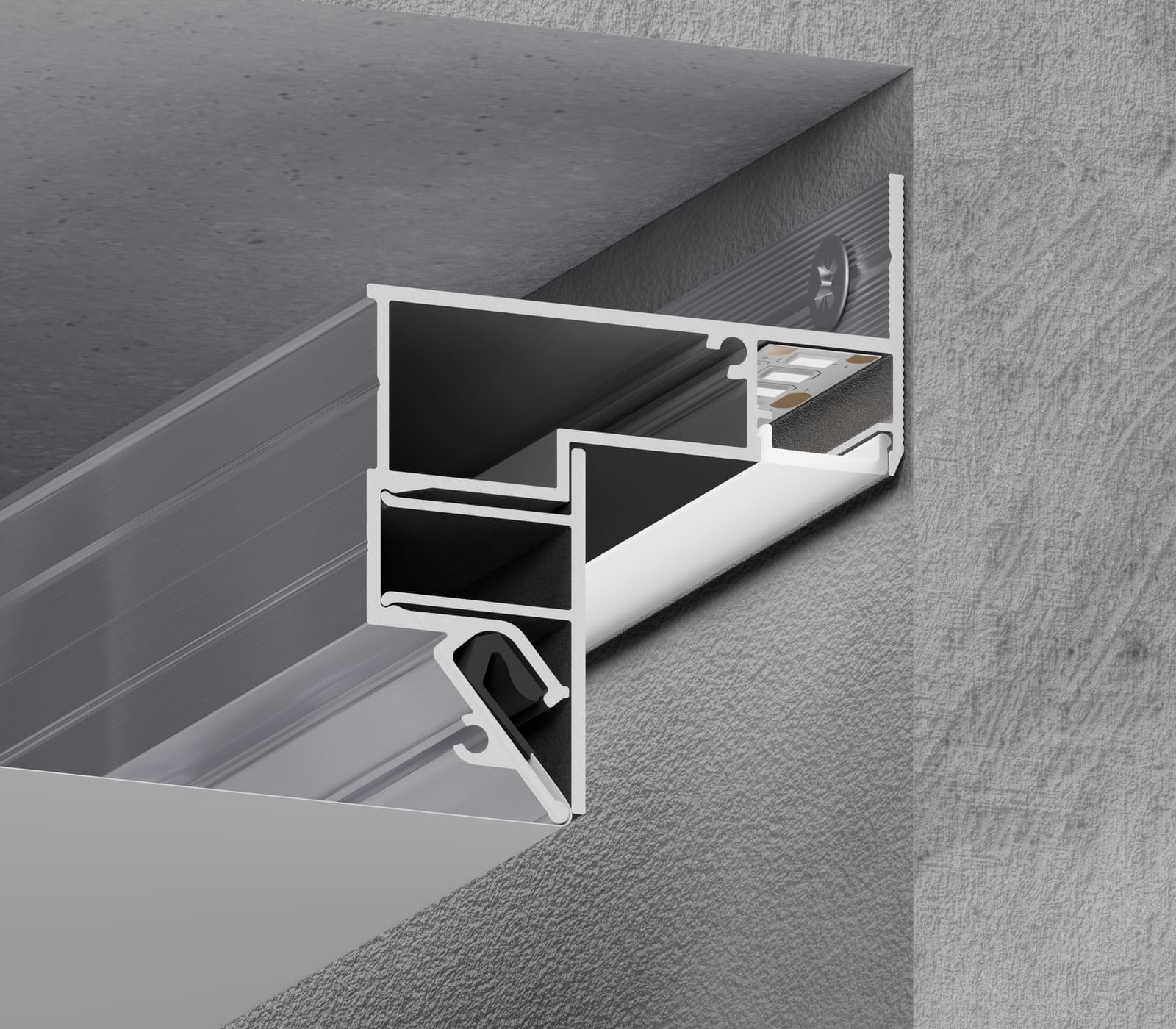

A light niche with no visible wall gap
Fix 06-17 at the wall, install the LED and selected continuous screen, then complete the visible junction with the separately ordered 07-0 PRO bumper. The finished edge reads as a solid plasterboard detail rather than a conventional shadow slot.
Compatible light screens
Choose the light output: 20%, 50% or 80%
06-17 MultiSnap accepts three separately specified continuous screens. D13 is rigid polycarbonate in black or white; PVC13 is a flexible screen that is easier to fit. All three are supplied from rolls and cut to order in whole-metre increments, so the visible line can remain free of intermediate screen joints.
Black rigid polycarbonate screen
The darkest option for restrained accent lighting. The black D13 screen transmits 20% of the light and keeps the line visually quiet when the LEDs are off.
- Material
- Rigid polycarbonate
- Colour
- Black
- Light transmission
- 20%
- Installation
- Clip-in screen for the 13 mm channel
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-17 MultiSnap
White rigid polycarbonate screen
The highest-output option. The white D13 screen transmits 80% of the light for a brighter continuous perimeter line.
- Material
- Rigid polycarbonate
- Colour
- White
- Light transmission
- 80%
- Installation
- Clip-in screen for the 13 mm channel
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-17 MultiSnap

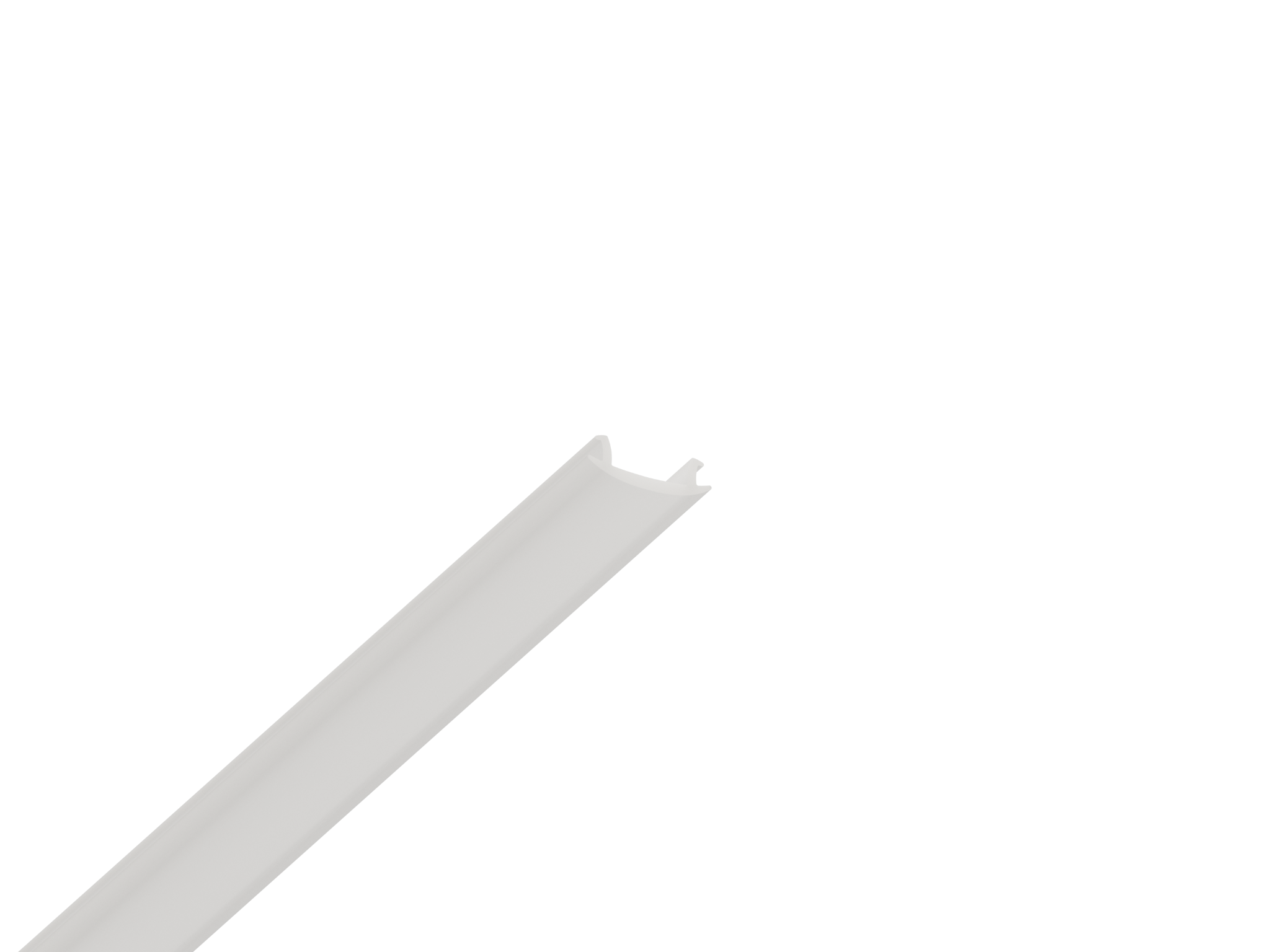

Flexible PVC screen
A flexible press-in screen for faster, more forgiving installation. PVC13 transmits 50% of the light and provides the balanced middle option.
- Material
- Flexible PVC
- Colour
- White translucent
- Light transmission
- 50%
- Installation
- Flexible press-in screen; easier to fit
- Supply
- Continuous roll; no intermediate screen joints
- Ordering
- Cut to order in whole-metre increments
Compatible profileSofiMarsel 06-17 MultiSnap

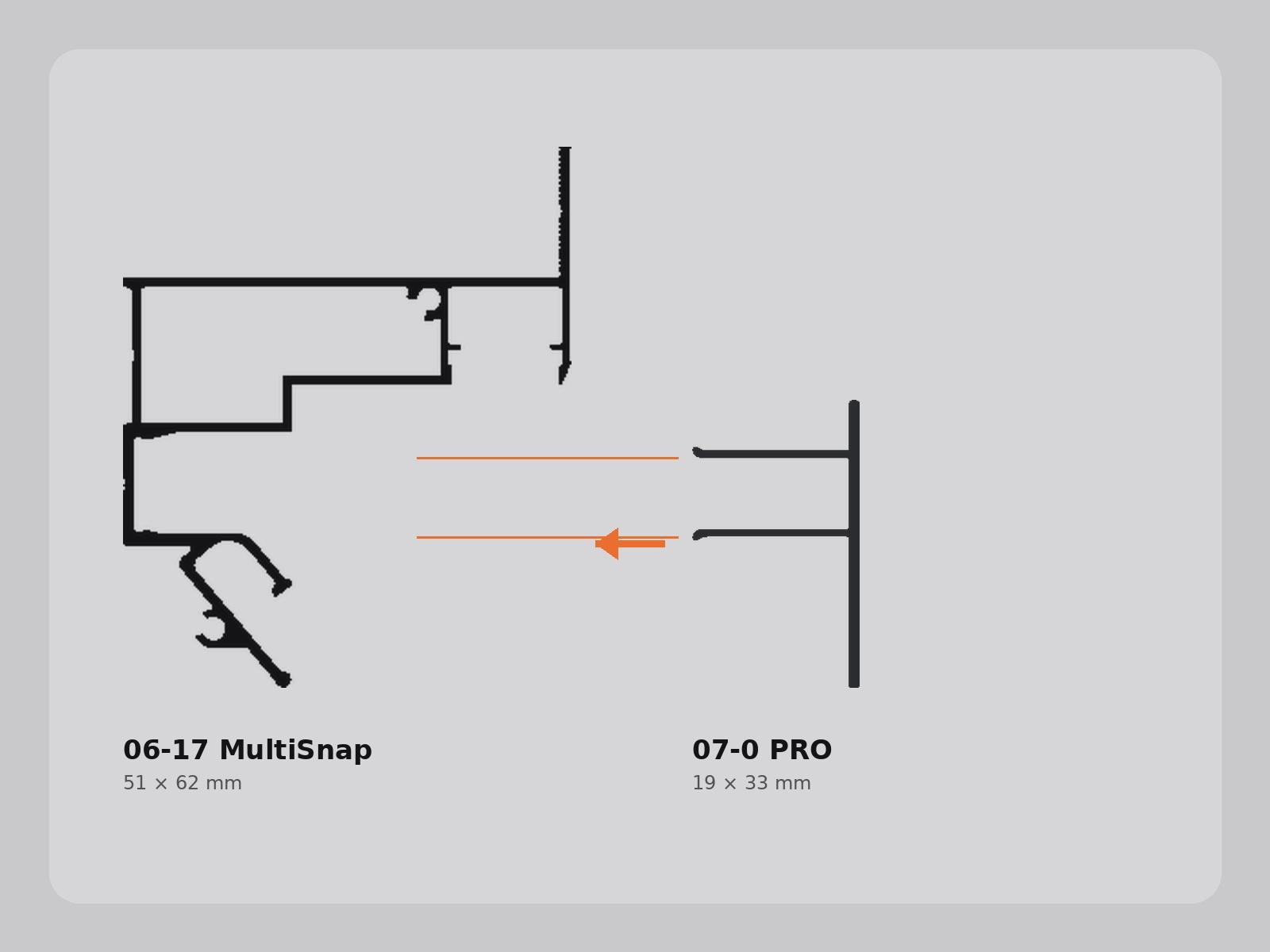

MultiSnap component

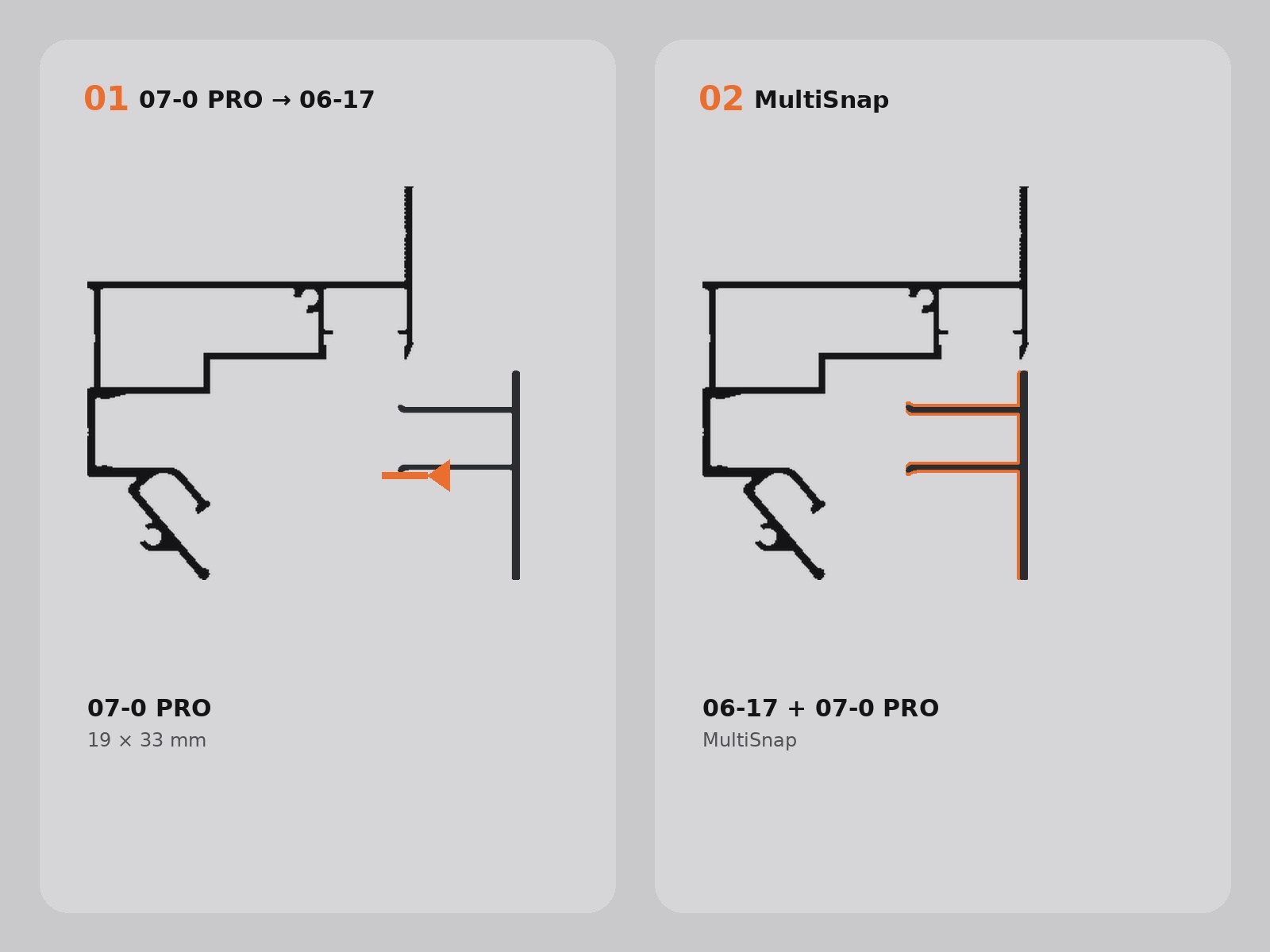

07-0 PRO bumper for a completely gapless junction
The aluminium 07-0 PRO masking profile completes the patented 06-17 MultiSnap assembly. It covers the connection at the wall and creates a clean, plasterboard-like edge with no visible perimeter slot.

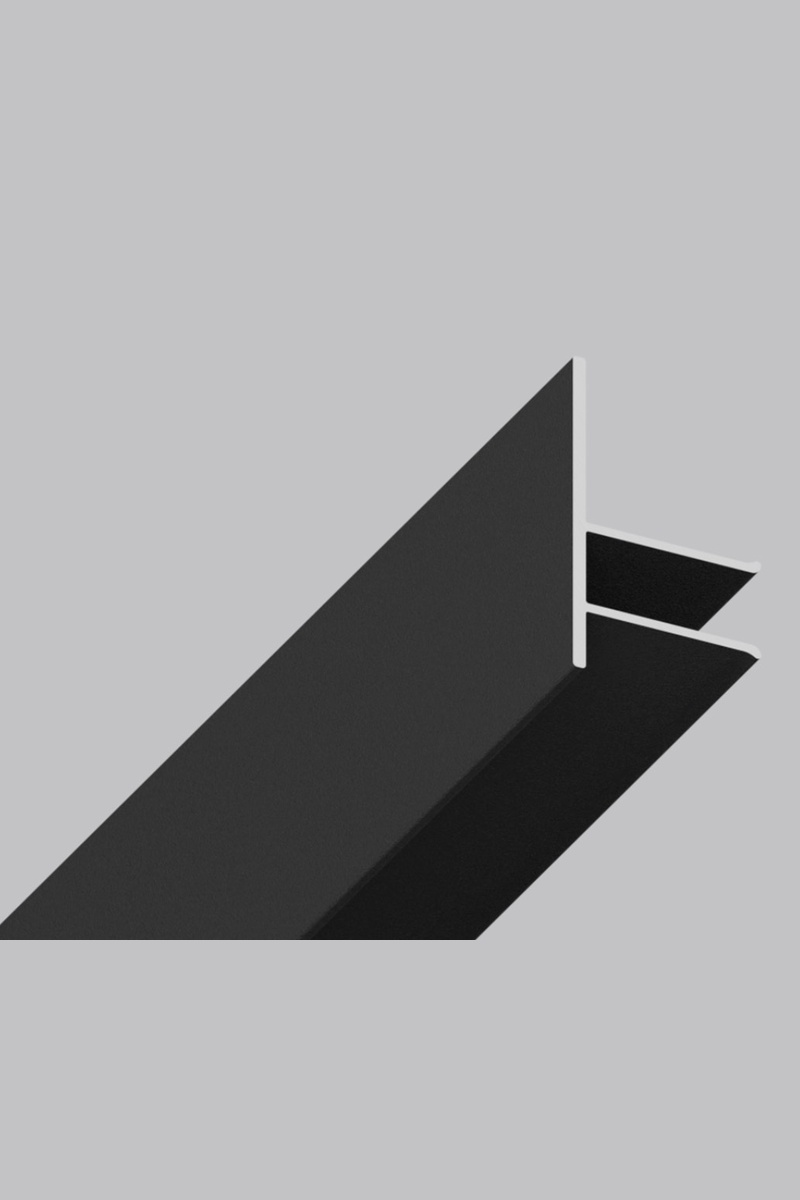

3D · 07-0 PROMultiSnap masking profile ‘Bumper’ 33 mm
A separately specified snap-in cover for 06-17 MultiSnap. The full profile is 19 × 33 mm; in the 06-17 assembly it closes the 30 mm working junction and removes the visual gap between the stretch ceiling and the wall.
The finished edge resembles a carefully executed plasterboard ceiling while retaining the serviceable stretch-ceiling system behind it.
- Overall section
- 19 × 33 mm
- 06-17 working junction
- 30 mm
- Standard length
- 2 m
- Weight
- ≈205 g/m
- Finish
- White moiré / black moiré
- Supply
- Specified separately
05 / Animation
Profile 06-17 MultiSnap in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTubeClear answers
Questions about 06-17 MultiSnap
What is patented in the 06-17 MultiSnap system?
The official SofiMarsel Profiles catalogue identifies 06-17 as a patented MultiSnap product. No patent number is published on this page until it is supplied and verified.
Which light screens fit 06-17?
The current system options are rigid D13 Black at 20%, rigid D13 at 80% and flexible PVC13 at 50% light transmission.
What does the 07-0 PRO bumper do?
It masks the wall junction and removes the visible gap, giving the completed stretch ceiling a plasterboard-like edge.
Is 07-0 PRO included with 06-17?
No. It is a compatible component specified and ordered separately.
What are the verified dimensions?
06-17 measures 51 × 62 mm overall, with a 13 mm screen channel, a 12 mm visible opening and a 30 mm working junction. The 07-0 PRO bumper measures 19 × 33 mm.
Can I download both CAD files?
Yes. The page provides the supplied 06-17 DWG and a separate supplied 07-0 PRO DWG.
