Wall-mounted floating ceiling system
06‑11 PRO curved profile for concealed perimeter lighting
A wall-mounted aluminium profile whose rounded lighting chamber hides the LED strip and produces soft indirect perimeter light without a masking diffuser.
- Lighting principle
- Concealed LED · 19 mm recess
- Overall profile envelope
- 30 × 45.5 mm
- Standard length
- 2 m
- Product code
- 06-11 PRO
Floating profile catalogue
Wall-mounted floating ceiling profiles
06‑6 PRO — 06‑18 PRO
Ceiling-mounted floating ceiling profiles
06‑22
Short answer
What is the SofiMarsel 06-11 PRO profile?
SofiMarsel 06-11 PRO is a wall-mounted aluminium profile for a floating stretch ceiling. A rounded rear chamber accommodates an LED strip in a 19 mm lighting recess and turns the light away from direct view. The diodes remain hidden and the intended indirect-light effect does not require a masking diffuser.
Lighting logic
Why specify 06-11 PRO
The rounded section combines concealed indirect light, a generous LED position and accurate joining of adjacent profile lengths.
Rounded light chamber
The curved profile surface guides the strip into position and directs the light towards the perimeter recess.
19 mm concealed LED recess
The dedicated lighting position accepts the specified strip while keeping individual diode points outside the direct line of sight.
Controlled profile joints
The front structural detail allows adjacent lengths to be aligned and reinforced with a steel joining pin.
Verified product data
Technical specifications
Current product characteristics, official dimensions and the supplied 06-11 PRO CAD reference.
- Application
- Wall-mounted profile for a floating stretch ceiling
- Lighting principle
- Concealed indirect perimeter LED
- Overall profile envelope
- 30 × 45.5 mm
- Standard length
- 2 m
- LED recess width
- 19 mm
- Weight
- ≈355 g/m
- Material
- Aluminium
- LED visibility
- Diodes hidden from direct view
- Masking diffuser
- Not required
- Available finishes
- White moiré / black moiré
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Product code
- 06-11 PRO

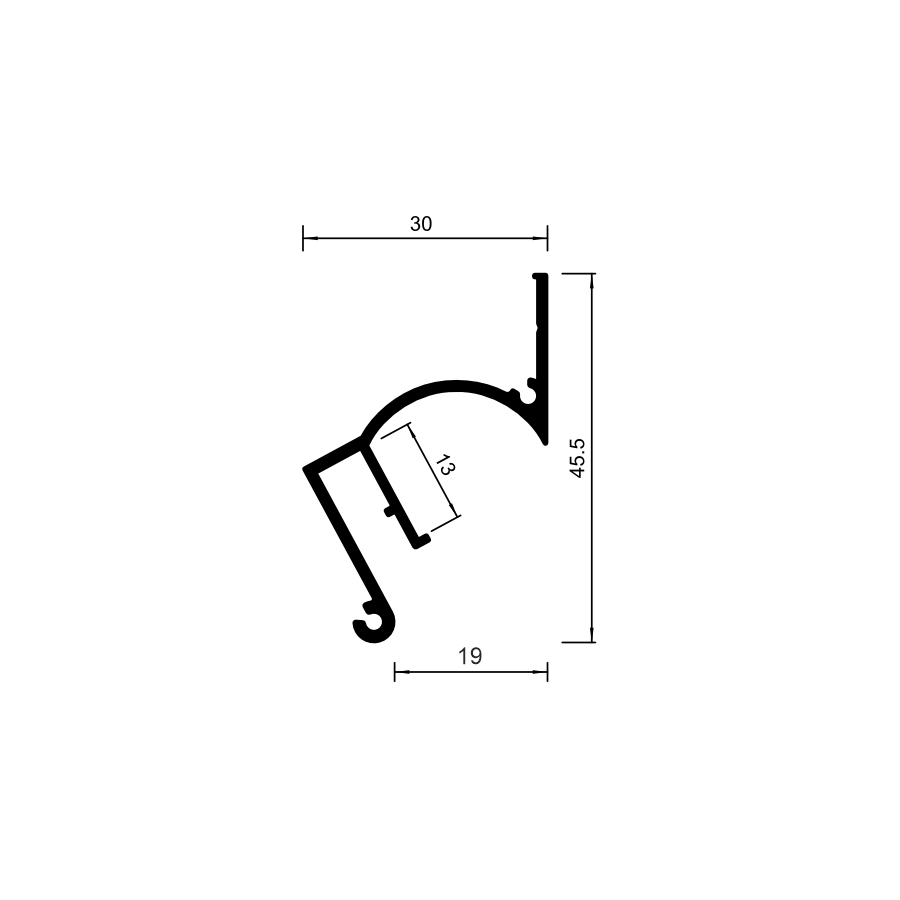

CAD and dimension drawing
Use the visible official diagram for orientation and the supplied 06-11 PRO DWG as the authoritative file for technical coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application

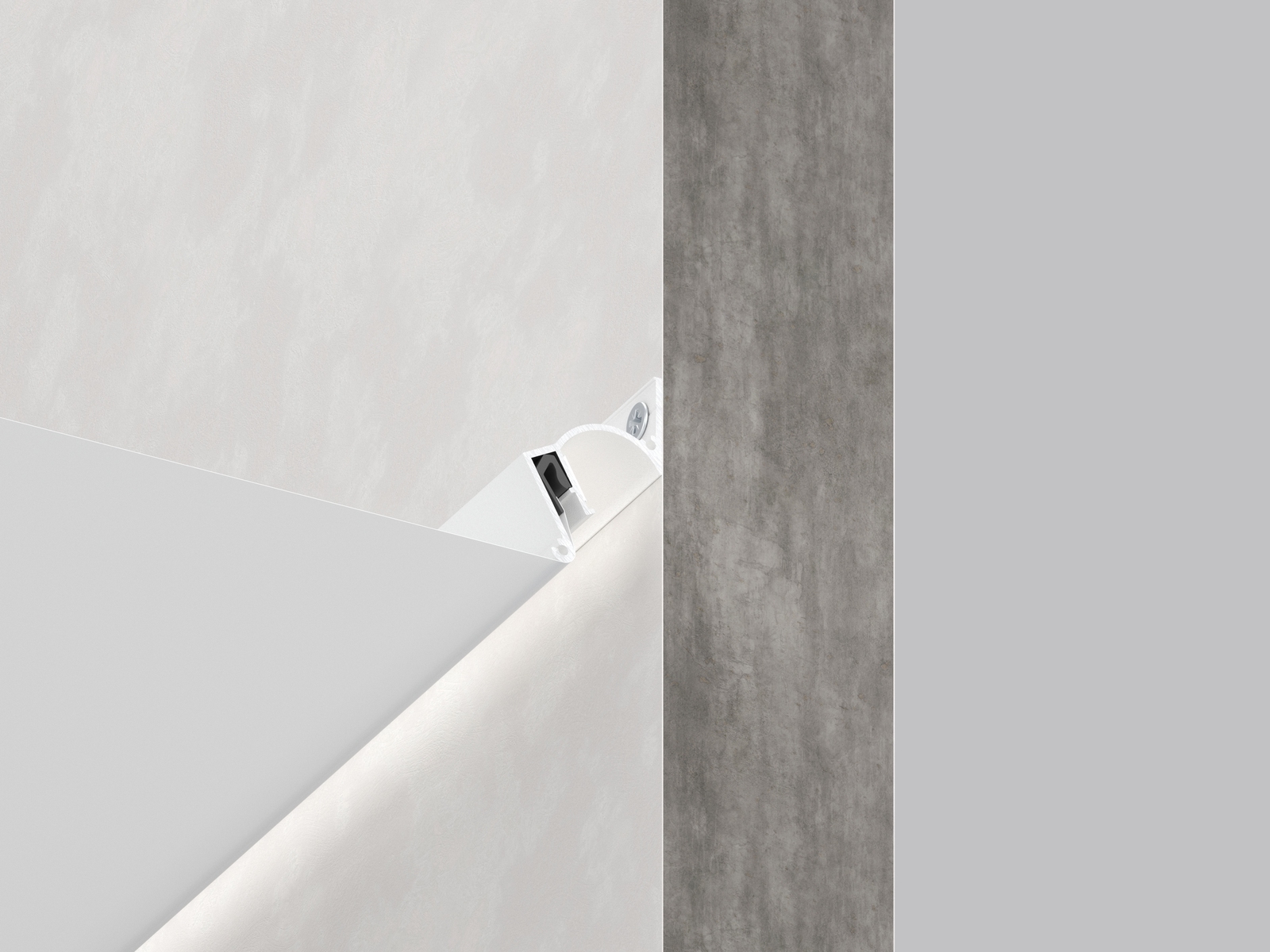

Soft concealed light along the wall perimeter
The profile is fixed to the wall like a conventional perimeter profile. The LED strip sits inside the rounded rear lighting chamber and is directed away from the viewer. The strip, power supply and lighting calculation are selected separately for each project.
05 / Animation
Profile 06-11 PRO in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTubeClear answers
Questions about 06-11 PRO
What is 06-11 PRO used for?
It is a wall-mounted profile for installing a floating stretch ceiling with concealed indirect perimeter lighting.
What is special about the curved section?
The rounded lighting chamber helps position the LED strip and directs its light into the perimeter recess while keeping the diodes out of direct view.
How wide is the LED recess?
The declared LED recess width is 19 mm.
Does 06-11 PRO need a diffuser?
No masking diffuser is required for the profile's intended concealed indirect-light configuration.
What are the dimensions and length?
The overall PRO drawing envelope is 30 × 45.5 mm and the standard profile length is 2 m.
Which finishes are available?
The declared finishes are white moiré and black moiré.
Which harpoon is compatible?
06-11 PRO uses the SofiMarsel harpoon in white or black.
Can I download the PRO CAD file?
Yes. The page provides the supplied 06-11 PRO DWG, the official dimension drawing and an interactive 3D visualization.
