Close to the wall
Wall mounting suits windows without a sill when the curtains need to be positioned near the wall. One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm.
SofiMarsel / Curtain tracks
09-11 PRO. Two tracks. Closer to the wall.
A wall-mounted two-track curtain profile for stretch ceilings. Where there is no windowsill, it brings the curtains close to the wall, with optional lighting. One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm.
Profile finish
- Mounting
- Wall + ceiling
- Curtain tracks
- 2
- Lighting
- D13 / PVC13
- Length
- 2 m
Curtains by the wall. Integrated in the ceiling.
SofiMarsel 09-11 PRO is an L-shaped aluminium curtain profile with two tracks for stretch ceilings. Its cross-section is 94 × 58 mm and standard length is 2 m. It is designed primarily for wall mounting where there is no windowsill and the curtains need to sit close to the wall. The profile comes in white and black textured matte finishes. Optional lighting uses rigid D13 or D13 Black diffusers, or flexible PVC13. TF303 Mini or TF347 Mini inserts cover the mounting grooves; the profile uses standard curtain hooks. One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm.
Two curtain tracks
Separate tracks for curtains and sheers. The standard hook is shared with 09-3 PRO and 09-8 PRO.
Optional lighting
Add a line of light along the curtains with D13, D13 Black or flexible PVC13.

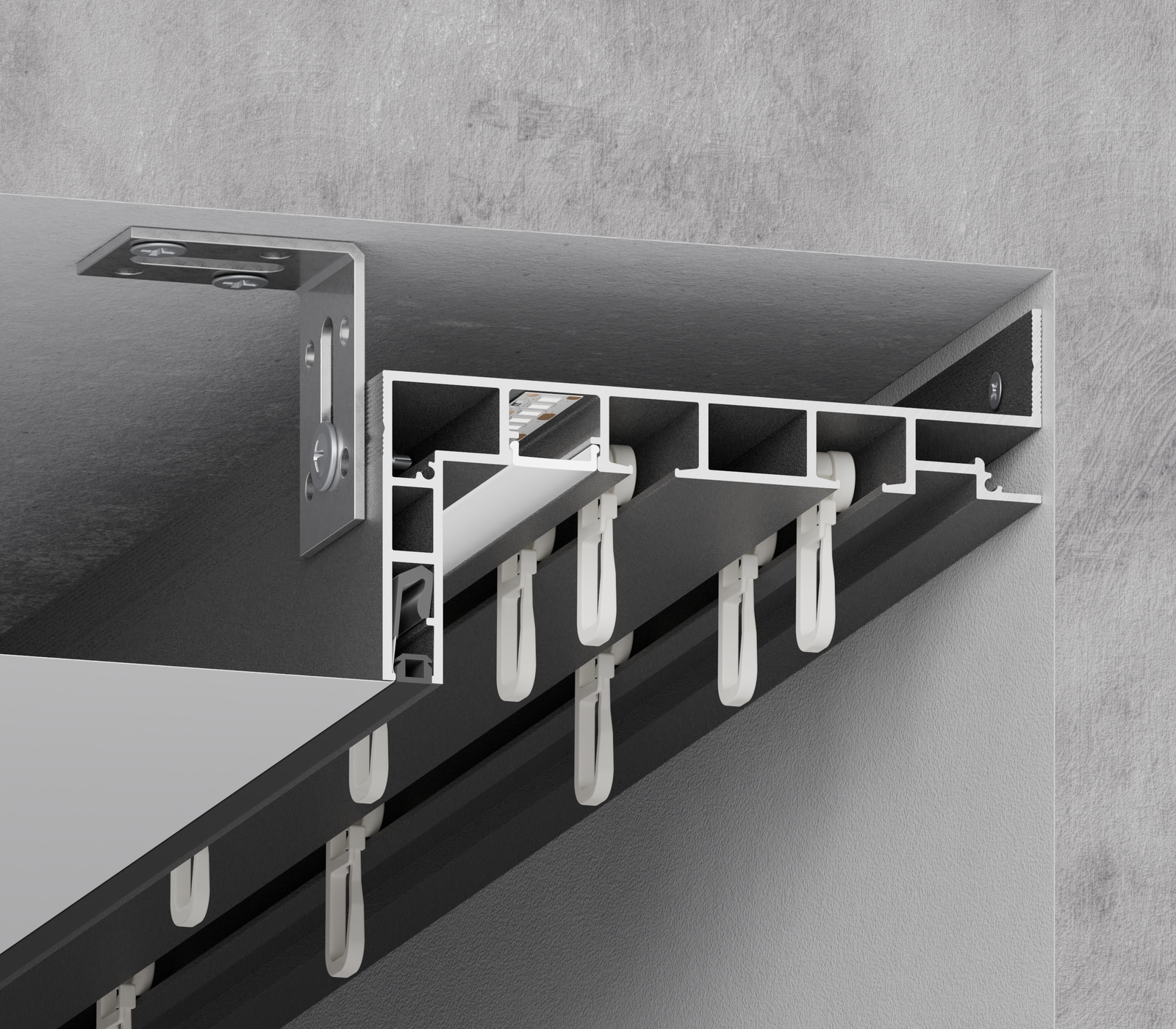

Wall and ceiling fixing. Supported on both sides.
One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm.
Two tracks for curtains and sheers. Raised guides help the hooks travel smoothly without dropping into the track.
09-11 PRO / CURTAIN
- Profile
- 09-11 PRO · 94 × 58 mm
- Mounting
- One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm.
- Adjustable brackets
- Every 50 cm
- Lighting
- D13 / Black or PVC13
- Fittings
- Standard hook; TF303 Mini / TF347 Mini
Light along the curtains. Three diffuser options.
09-11 PRO accepts rigid D13 and D13 Black diffusers, as well as flexible PVC13. The LED strip channel is 12 mm wide.
09-11 PRO / LED
D13
Rigid white diffuserA light-coloured line for a white ceiling and profile.
- Light transmission
- 80%
09-11 PRO / LED
D13 Black
Rigid black diffuserA dark line that blends with the black profile when the light is off.
- Light transmission
- 20%
09-11 PRO / LED
PVC13
White flexible diffuserFlexible screen for a thin hidden light line inside the curtain profile.
- Light transmission
- 50%
A small detail. A clean junction.
Cover the mounting grooves with white TF303 Mini or black TF347 Mini inserts. Match the insert to the profile finish.
Fittings. Explore every detail.
3D / 360°

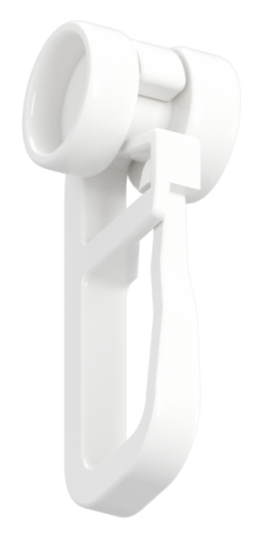

Curtain hook with glider
09-11 PRO uses the same standard hook and glider as 09-3 PRO and 09-8 PRO. Rotate the 3D model to explore its shape and details.
09-11 PRO / Curtain hook with glider
Hook visualisation based on the product image.

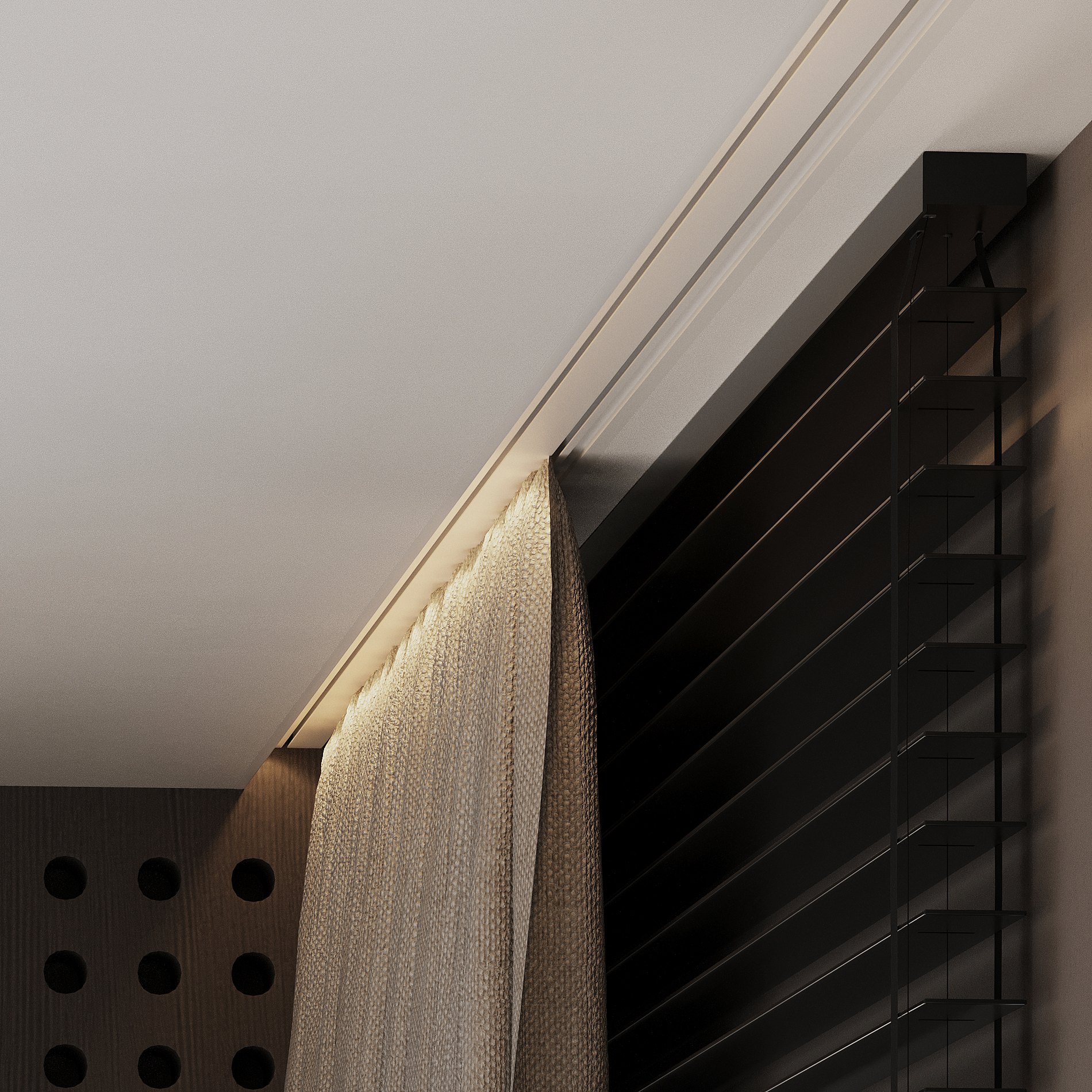

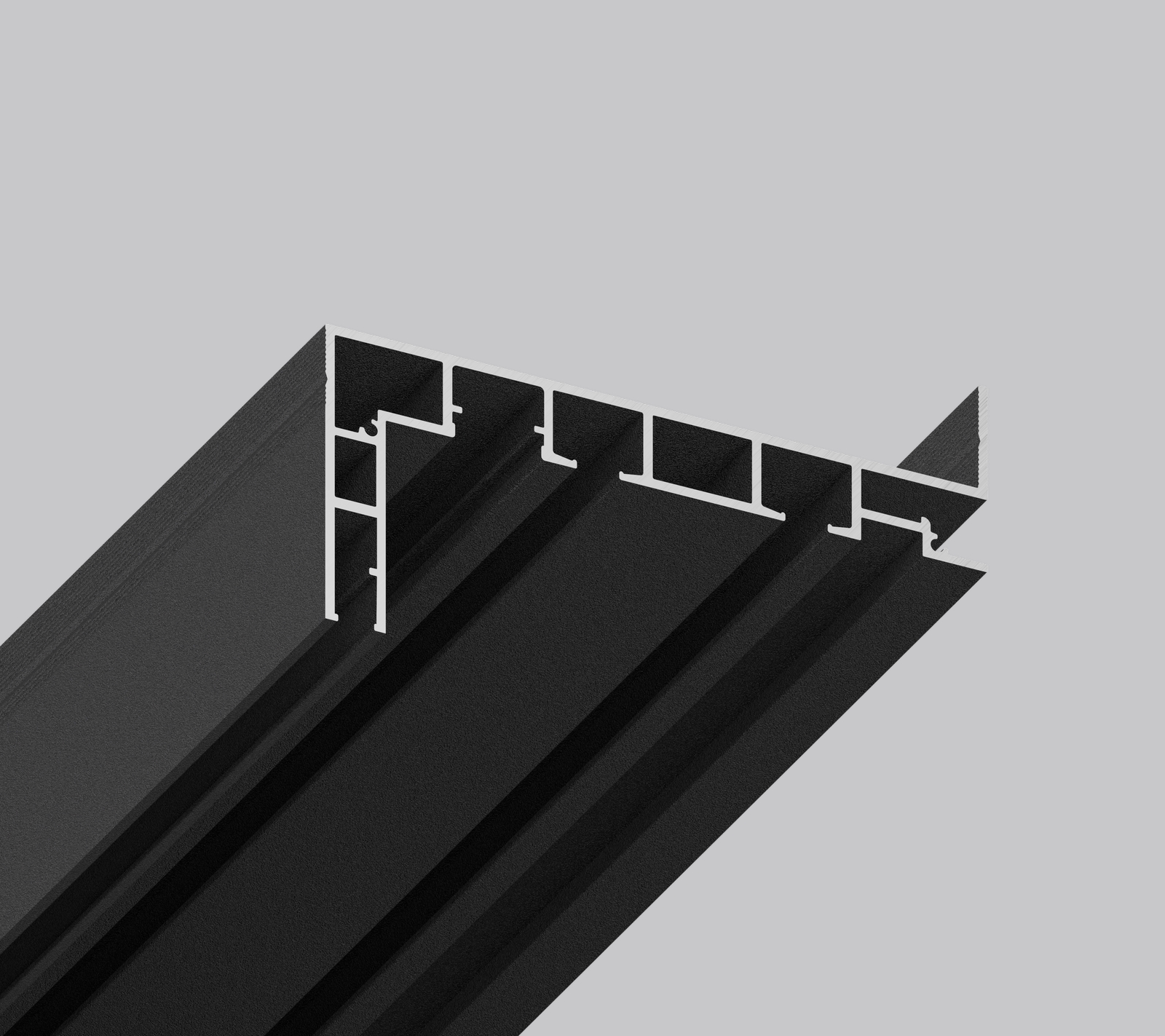

09-11 PRO in action
An overview of the SofiMarsel 09-11 PRO curtain profile.
09-11 PRO / CURTAIN
Technical details
| Application | Wall-mounted curtain profile for stretch ceilings with optional lighting |
|---|---|
| Material | Aluminium |
| Length | 2 m |
| Profile finishes | Textured matte white / textured matte black |

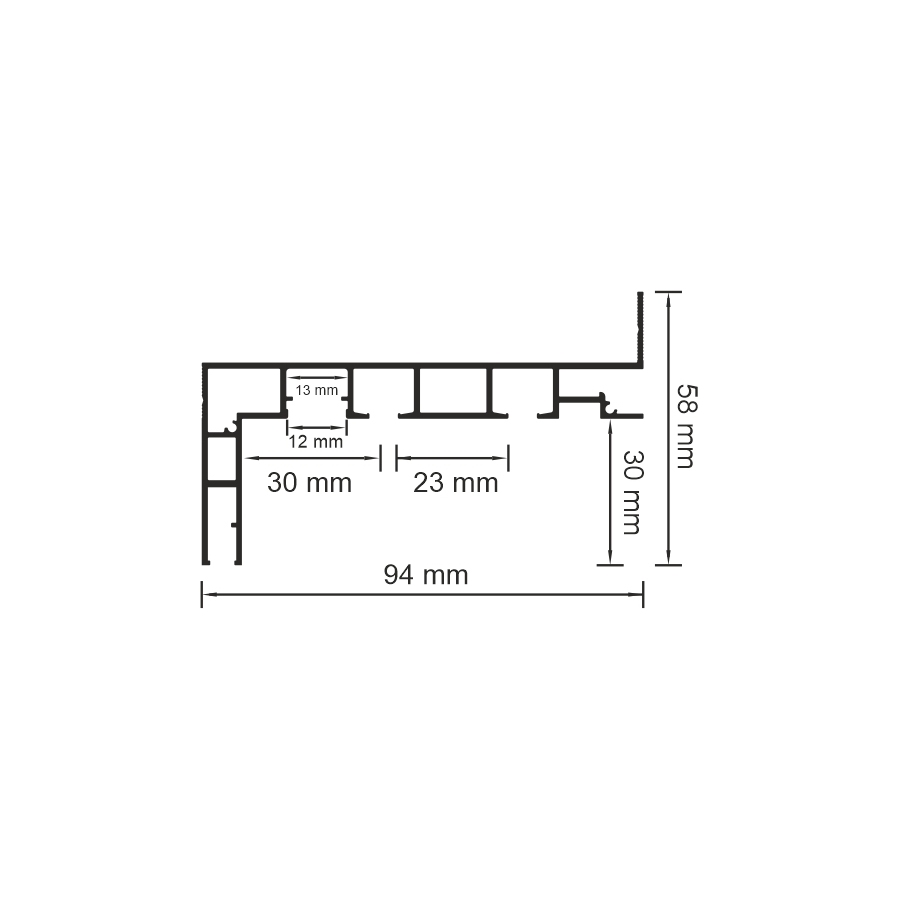

| Cross-section | 94 × 58 mm |
| Curtain tracks | 2 |
| Mounting | One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm. |
| Lighting diffusers | D13 / D13 Black / PVC13 |
| Lighting channel | 12 mm |
| Inserts | TF303 Mini — white; TF347 Mini — black |
| Hook | Standard, as used in 09-3 PRO and 09-8 PRO |
Drawings for your project
09-11 PRO · DWGDownload DWG ↓Questions about 09-11 PRO
How is 09-11 PRO mounted?
One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm.
When should I choose 09-11 PRO?
Choose it for a two-track curtain profile close to the wall, particularly where there is no windowsill. Its L-shaped section is designed for wall mounting in a stretch ceiling system.
Can it be used without lighting?
Yes. Lighting is optional. A 12 mm channel is provided for the LED strip.
Which diffusers fit 09-11 PRO?
Rigid D13 and D13 Black, or flexible PVC13.
Which inserts and hooks are compatible?
White TF303 Mini and black TF347 Mini inserts, and the same standard hook with glider as 09-3 PRO and 09-8 PRO.
How does 09-11 PRO differ from 09-8 PRO?
09-11 PRO has a 94 × 58 mm L-shaped section and is designed primarily for wall mounting. 09-8 PRO has a 102 × 49 mm U-shaped section. Both have two curtain tracks and accept D13 / PVC13 diffusers. One side of the profile is fixed to the wall; the other is fixed to the ceiling with adjustable brackets every 50 cm.
What length and finishes are available?
The standard length is 2 m. Finishes are textured matte white and textured matte black.
