Wall-mounted shadow gap system
01‑16 shadow profile with integrated picture hanging system
A black moiré aluminium profile that forms an 8.5 mm shadow gap and adds a dedicated chamber for hanging pictures or mirrors without drilling the finished wall.
- Visible shadow gap
- 8.5 mm
- Profile section
- 44 × 18 mm
- Standard length
- 2 m
- Product code
- 01-16
Shadow profile catalogue
Wall-mounted shadow gap profiles
01‑12 — 01‑16
Ceiling-mounted shadow gap profiles
02‑9
Separating shadow gap profiles
03‑3
Shadow profile bars
08‑6 PRO
Short answer
What is the SofiMarsel 01-16 profile?
SofiMarsel 01-16 is a wall-mounted aluminium profile for stretch ceilings. It creates a nominal 8.5 mm shadow gap and includes a dedicated mounting chamber for the ZP 01-1 Zipper suspension, allowing pictures or mirrors to be positioned without drilling the finished wall.
Design logic
Why specify 01-16
One perimeter profile combines an architectural shadow line with a reusable hanging system for interior displays.
8.5 mm shadow line
The profile keeps a precise dark recess between the wall and the stretch ceiling membrane.
No wall drilling
The integrated chamber carries the hanging system, helping preserve the finished wall surface.
Up to 15 kg
The compatible ZP 01-1 Zipper suspension has a confirmed maximum load of 15 kg.
Verified product data
Technical specifications
Key dimensions and compatibility data for specification and installation.
- Application
- Wall-mounted shadow gap stretch ceiling; picture and mirror hanging
- Visible shadow gap
- 8.5 mm
- Profile section
- 44 × 18 mm
- Standard length
- 2 m
- Mass per metre
- 426 g/m
- Material
- Aluminium
- Finish
- Black moiré
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Compatible component
- ZP 01-1 Zipper suspension
- Maximum suspension load
- 15 kg
- Product code
- 01-16

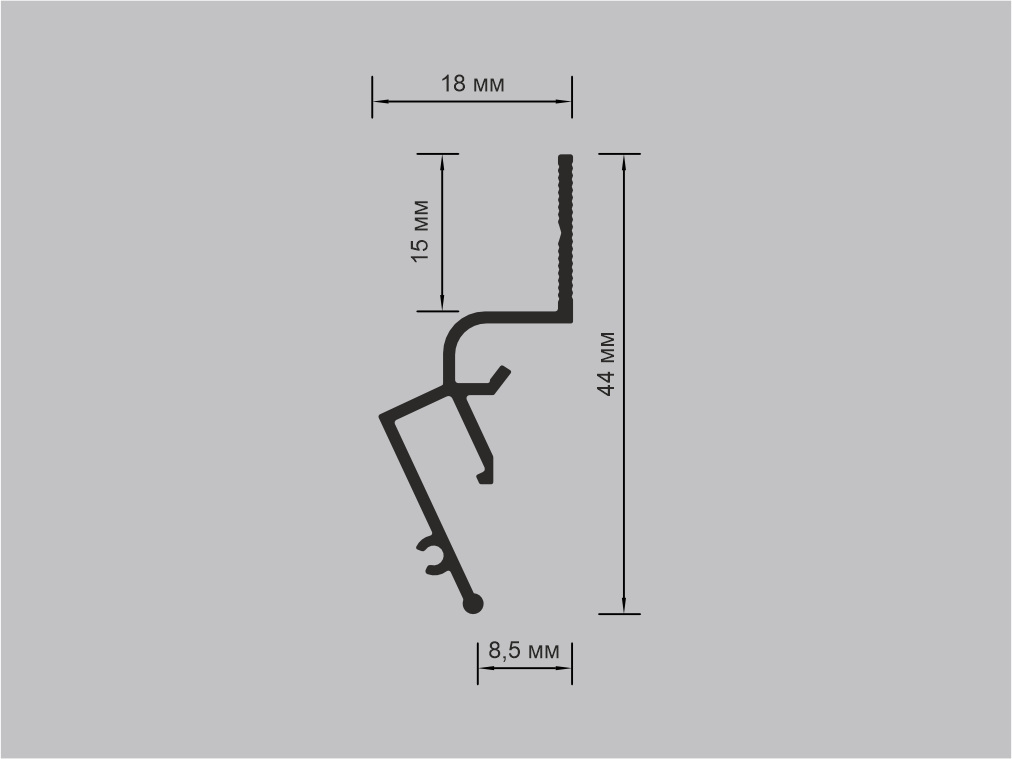

CAD and dimension drawing
Use the dimensioned drawing for quick reference and the source DWG when coordinating the junction in a technical project.
DWGDownload DWG↓JPGOpen dimension drawing↗Application
Ceiling perimeter and picture hanging in one profile

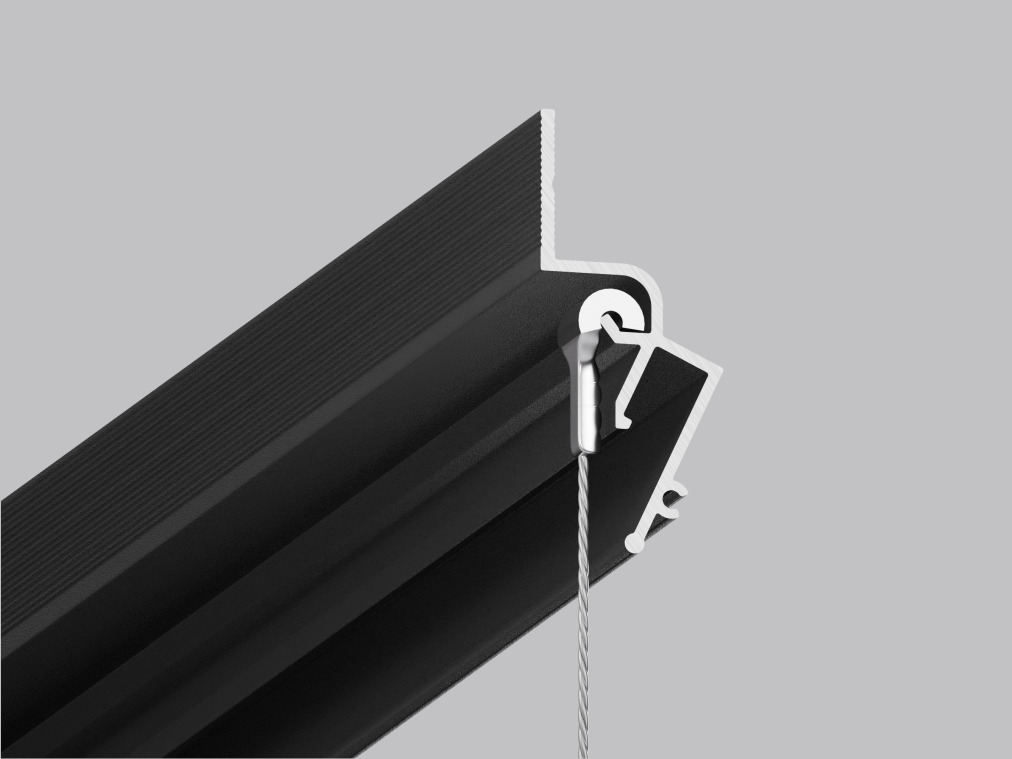

The profile is fixed around the wall perimeter and the stretch ceiling membrane is installed in its harpoon channel. A second, dedicated chamber accepts the ZP 01-1 Zipper suspension. Pictures or mirrors can then be hung from a cable and repositioned without drilling new holes in the finished wall.
Compatible components
Picture hanging system for profile 01-16
The dedicated mounting chamber turns 01-16 into a complete ceiling-and-display system. The compatible suspension is shown as a specified component, not as a generic related product.

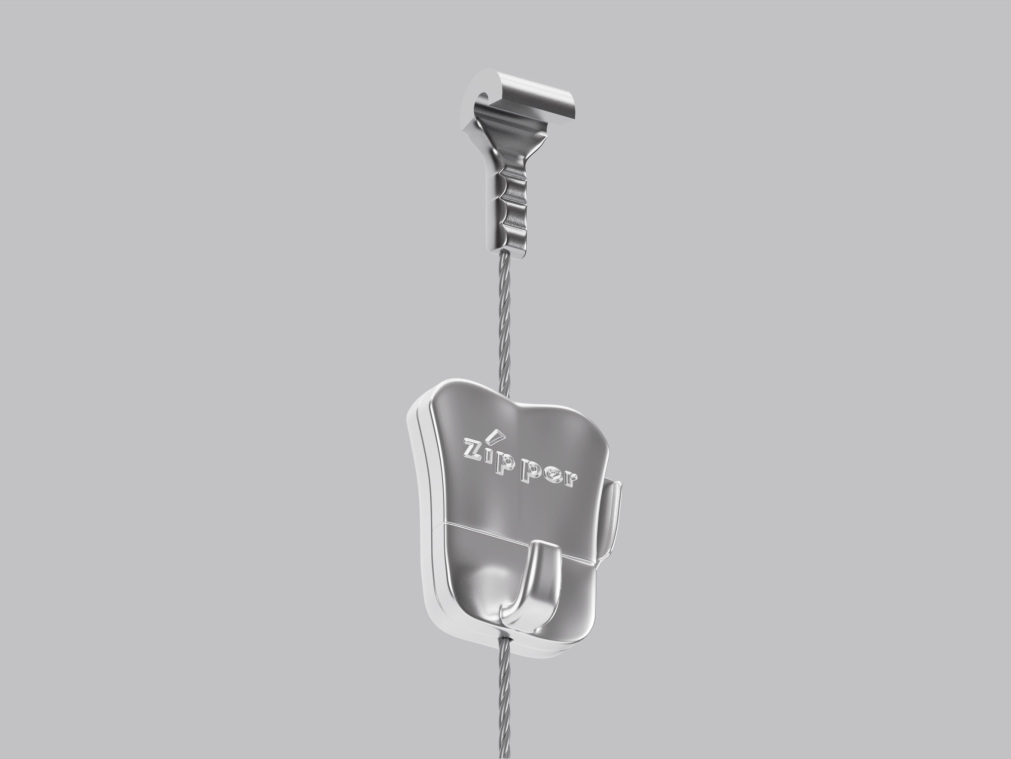

Zipper mounting suspension
ZP 01-1 Zipper engages the dedicated chamber in profile 01-16 and supports cable-based hanging of pictures or mirrors without drilling the finished wall. The confirmed maximum load is 15 kg.
- Component code
- ZP 01-1
- Compatibility
- Profile 01-16
- Maximum load
- 15 kg
- Application
- Pictures and mirrors
- Material
- Aluminium
Clear answers
Questions about profile 01-16
What is profile 01-16 used for?
It is a wall-mounted stretch ceiling shadow profile with an additional chamber for a cable-based picture or mirror hanging system.
How wide is the finished shadow gap?
Profile 01-16 forms a nominal visible shadow gap of 8.5 mm.
What are the dimensions and weight of profile 01-16?
The section is 44 × 18 mm, the standard length is 2 m and the listed weight is 426 g/m.
Which suspension is compatible with profile 01-16?
The dedicated compatible component is the SofiMarsel ZP 01-1 Zipper mounting suspension.
What is the maximum load of the ZP 01-1 Zipper?
The confirmed maximum load of the ZP 01-1 Zipper suspension is 15 kg.
Does the hanging system require drilling the wall?
No. The suspension engages the dedicated chamber in profile 01-16, helping preserve the finished wall surface.
Which harpoon and finish are specified?
Profile 01-16 uses the SofiMarsel harpoon in white or black and is supplied in a deep black moiré finish.
Can I download the CAD file?
Yes. The original 01-16 DWG, dimension drawing and interactive 3D model are available on this page.
