Wall-mounted floating ceiling system
06‑6 PRO profile for hidden perimeter lighting
A compact aluminium profile that holds the stretch-ceiling membrane and conceals a rear-facing LED strip to create a clean floating-light effect.
- Lighting principle
- Hidden rear LED
- Overall profile envelope
- 26 × 40 mm
- Standard length
- 2 m
- Product code
- 06-6 PRO
Floating profile catalogue
Wall-mounted floating ceiling profiles
06‑6 PRO — 06‑18 PRO
Ceiling-mounted floating ceiling profiles
06‑22
Short answer
What is the SofiMarsel 06-6 PRO profile?
SofiMarsel 06-6 PRO is a wall-mounted aluminium profile for a floating stretch ceiling. It is installed like a regular wall profile and has a dedicated rear slot for an LED strip. Because the light source faces away from the viewer, individual diodes remain out of direct sight and a masking diffuser is not required.
Lighting logic
Why specify 06-6 PRO
The profile combines perimeter fixing, concealed indirect light and a reinforced joining detail in one compact section.
LED source out of sight
The strip sits on the rear side of the profile, so the eye sees reflected light rather than exposed diode points.
No masking diffuser
The geometry itself shields the LED source; no separate cover is required for the intended lighting effect.
Precise profile joints
A reinforcing element on the front of the section supports accurate and secure joining of adjacent lengths.
Verified product data
Technical specifications
Declared product characteristics and CAD dimensions for design coordination.
- Application
- Wall-mounted profile for a floating stretch ceiling
- Lighting principle
- Rear-facing concealed LED strip
- Overall profile envelope
- 26 × 40 mm
- Standard length
- 2 m
- Weight
- ≈284 g/m
- Material
- Aluminium
- LED visibility
- Diodes hidden from direct view
- Masking diffuser
- Not required
- Available finishes
- White moiré / black moiré
- Compatible harpoon
- SofiMarsel harpoon — white / black
- Product code
- 06-06-PRO

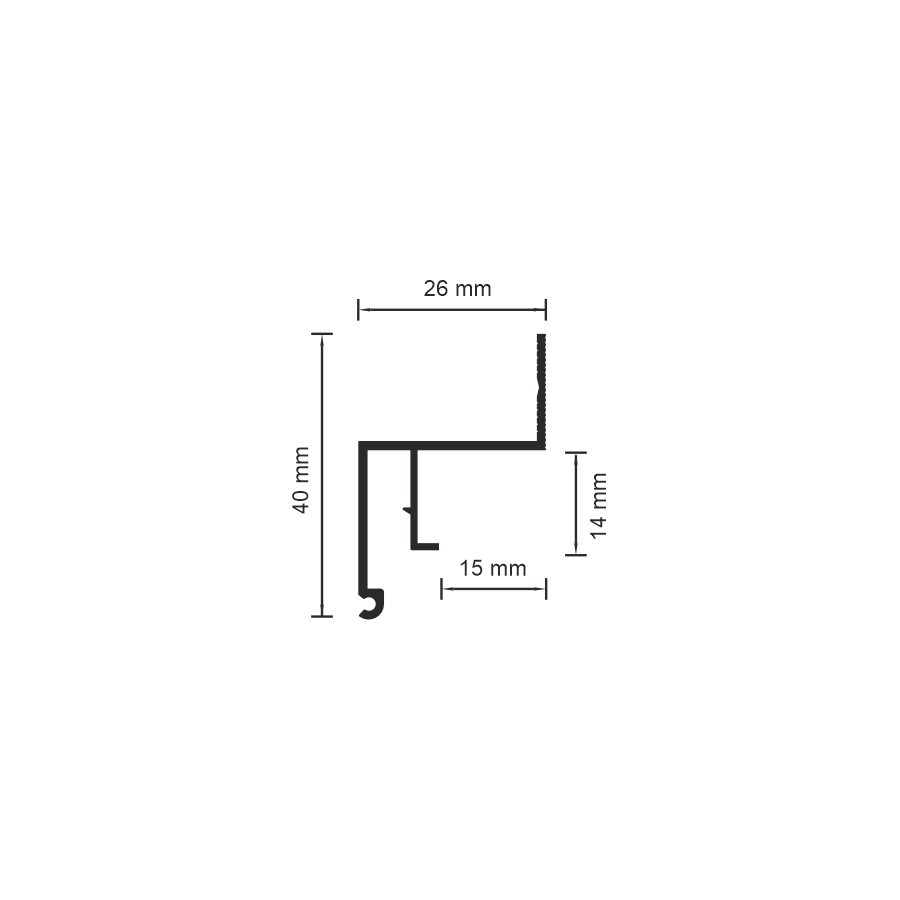

CAD and dimension drawing
Use the visible diagram for orientation and the supplied source DWG as the authoritative file for technical coordination.
DWGDownload DWG↓JPGOpen dimension diagram↗Application

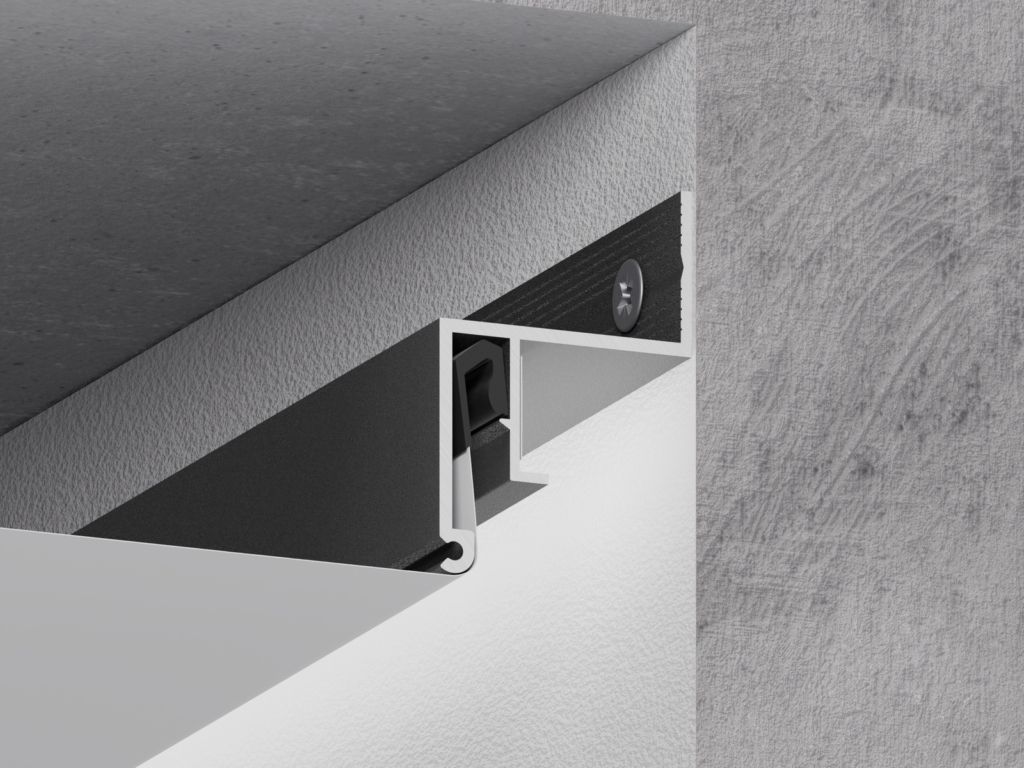

Hidden perimeter light at the wall
The profile is fixed to the wall around the room like a conventional wall profile. The LED strip is placed in its dedicated rear slot and directs light into the perimeter recess. The strip, power supply and lighting calculation must be selected for the specific project.
05 / Animation
Profile 06-6 PRO in motion
The short official SofiMarsel video shows the profile geometry and the assembled ceiling junction.
Watch on YouTubeClear answers
Questions about 06-6 PRO
What is 06-6 PRO used for?
It is a wall-mounted profile for installing a stretch ceiling with concealed indirect perimeter lighting.
Where is the LED strip installed?
The strip is installed in a dedicated slot on the rear side of the profile.
Are the individual LED diodes visible?
The profile positions the strip away from direct view so the intended result is reflected perimeter light rather than visible diode points.
Does 06-6 PRO require a diffuser?
No masking diffuser is required for the profile’s intended indirect-light configuration.
What are the profile dimensions and length?
The CAD envelope is 26 × 40 mm and the standard profile length is 2 m.
Which finishes are available?
The current declared finishes are white moiré and black moiré.
What is the weight of 06-6 PRO?
The declared weight is approximately 284 g per running metre.
Can I download the CAD file?
Yes. The page provides the source 06-6 PRO DWG, a visible dimension diagram and an interactive 3D visualization.
